XY-DMS371 is an intelligent vehicle interior monitoring camera with built-in independent DMS driver monitoring algorithm, professionally designed for commercial vehicle fleet safety supervision. Adopting high-definition starlight imaging sensor and invisible 940nm infrared night vision design, it achieves clear 24-hour black-and-white interior monitoring without dazzling the driver.
Supporting ultra-wide DC 9-36V vehicle voltage adaptation and vehicle-grade shockproof & anti-fog performance, this camera effectively solves common problems such as unstable image and blurred picture of traditional vehicle interior cameras. It integrates multiple core intelligent recognition functions, covering fatigue driving, distracted driving, smoking, calling and other unsafe behaviors, with Chinese and English dual-language voice reminder. Featuring dual installation modes and standard AHD high-definition output, it is a plug-and-play professional safety monitoring accessory for buses, trucks and engineering transport vehicles.
| Item | Details |
|---|---|
| Product Model | XY-DMS371 |
| Product Type | Built-in DMS Algorithm Intelligent In-Vehicle Interior Camera |
| Housing Material | High-quality ABS Plastic |
| Appearance Color | Black |
| Resolution | 1080P/720P Switchable (2MP/1.3MP) |
| Viewing Angle | 60° Horizontal Viewing Angle |
| Infrared Configuration | 2pcs 940nm Invisible Infrared LEDs, Monitoring Distance 0-2m |
| Working Voltage | DC 9V~36V Ultra-wide Vehicle Voltage |
| Signal System | PAL |
| Alarm Language | Chinese / English Switchable (Default: English) |
| Connector Type | 4-core Aviation Connector |
| Default Cable Length | 0.6m |
| Installation Method | 3M Adhesive Sticker / Self-tapping Screw Dual Installation |
| Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -20℃ ~ 80℃ |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Built-in Independent DMS Algorithm | Embedded professional intelligent driving monitoring algorithm independently, no need for additional host algorithm support. It can independently identify various unsafe driving behaviors and realize automatic early warning, realizing all-in-one monitoring solution. |
| 2 | Invisible 940nm Infrared Night Vision | Adopts 940nm invisible infrared lamp design, no visible light glare during night monitoring, will not interfere with the driver's normal driving vision. It presents clear black-and-white images in full-dark vehicle interior environment. |
| 3 | Starlight-grade HD Imaging Performance | Equipped with high-sensitivity 1/2.9-inch CMOS starlight sensor, supports 1080P/720P dual resolution switching. 0.1Lux ultra-low illumination monitoring and ≥50dB high signal-to-noise ratio ensure clean and stable picture quality day and night. |
| 4 | Multi-dimensional Dangerous Behavior Recognition | Accurately identifies multiple unsafe driving behaviors in real time, including driver absence, fatigue driving, distracted driving, driving while smoking, driving while making calls and unfastened seat belt, effectively avoiding fleet traffic accidents. |
| 5 | Dual-language Voice Alarm Reminder | Supports Chinese and English voice reminder switching, default English voice broadcast, which meets the safety monitoring needs of domestic and overseas commercial fleets with flexible language adaptation. |
| 6 | 9-36V Ultra-wide Voltage Compatibility | Ultra-wide vehicle voltage design is universally compatible with 12V/24V commercial vehicles. It can adapt to unstable vehicle power supply voltage, no additional voltage stabilizer is required, reducing installation cost and failure rate. |
| 7 | Vehicle-grade Shockproof & Anti-fog Design | Reinforced internal shockproof structure resists jitter caused by bumpy driving; professional anti-fog lens prevents picture blurring caused by cabin temperature difference, ensuring long-term stable imaging effect. |
| 8 | Flexible Dual Installation Mode | Supports non-destructive 3M adhesive sticking and firm screw fixing installation. It can be freely installed on dashboard, windshield and other positions inside the vehicle, with simple operation and strong adaptability. |
| 9 | High-temperature Stable Operation | Optimized industrial circuit design ensures stable dark level output during long-term high-temperature operation. No vertical black stripes or abnormal bright lines appear in night vision mode, realizing all-weather stable monitoring. |
| 10 | Standard AHD Video Output | PAL system AHD high-definition signal output, highly compatible with mainstream vehicle MDVR monitoring hosts in the market, convenient for real-time video recording, storage and playback. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9 Inch CMOS Starlight Sensor |
| Processing Chip | XM Dedicated Image Processing Chip | |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps / 30fps Optional | |
| Minimum Illumination | 0.1Lux @ F1.2 | |
| Horizontal Resolution | 1080P HD | |
| Signal-to-Noise Ratio | ≥50dB | |
| Imaging Mode | Black & White | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | Auto | |
| Night Vision & View Angle | IR LED Configuration | 2pcs 940nm Invisible Infrared Lights |
| Monitoring Distance & Angle | 0-2m Monitoring Distance, 60° Horizontal Viewing Angle | |
| DMS Function | Identifiable Behaviors | Driver absence, fatigue driving, distracted driving, calling, smoking, unfastened seat belt reminder |
| Alarm Voice Mode | Chinese / English Switchable (Default English) | |
| Electrical Parameters | Working Voltage | DC 9V~36V |
| Interface & Cable Length | 4-core Aviation Connector, 0.6m Cable | |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -20℃ ~ 80℃ | |
| Appearance | Housing Material | ABS Plastic |
| Color | Black |
| Dimension Item | Size Remark |
|---|---|

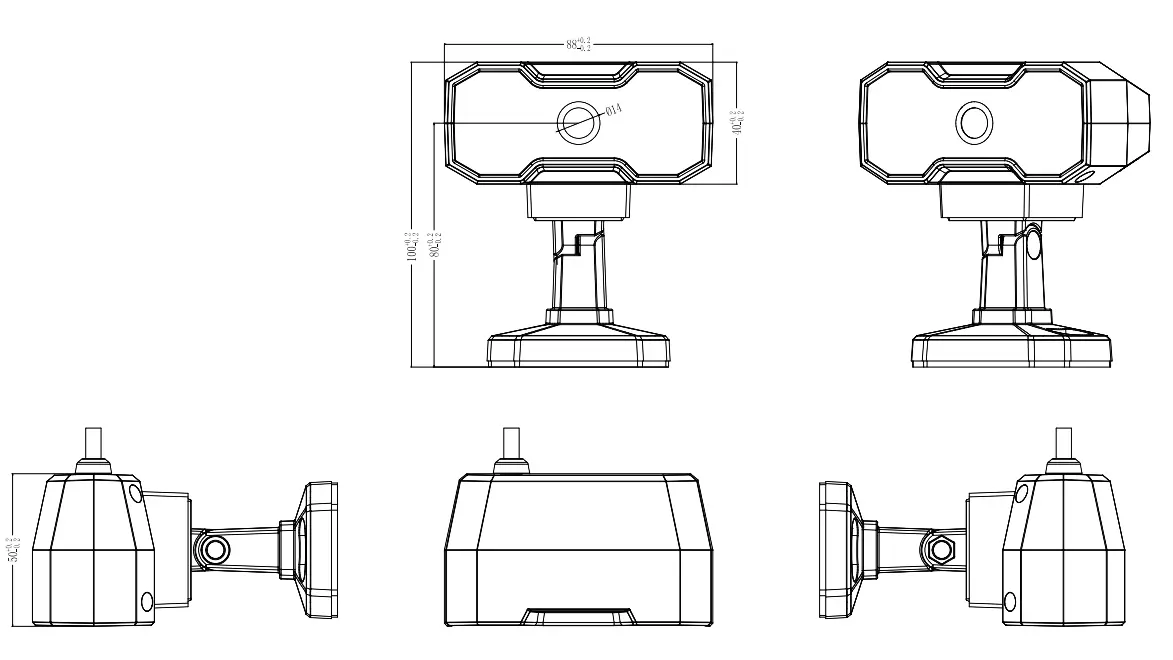

| Overall Product Size | Please refer to official engineering drawing for accurate millimeter dimension data |
| Structural Feature | Mini lightweight ABS housing, compact structure, easy concealed installation |
XY-DMS371 is an integrated intelligent DMS monitoring camera that integrates video collection, intelligent identification and voice warning. With independent algorithm operation, no need for host support, wide voltage compatibility and flexible installation, it is a high-cost-performance standardized safety monitoring solution for modern commercial vehicle fleets.
No, the XY-DMS371 features a built-in independent DMS driver monitoring algorithm. It can process video feeds, detect unsafe behaviors, and trigger alarms locally without requiring any external hardware host processing.
The built-in algorithm is designed to identify multiple safety hazards in real time, including driver absence, fatigue driving, distracted driving, smoking, phone calling, and unfastened seat belts.
The 940nm infrared LEDs emit light that is invisible to the human eye, avoiding any red glow or visible glare. This provides clear black-and-white monitoring in pitch-black interiors without disturbing the driver's focus.
The camera features an ultra-wide voltage design supporting DC 9V to 36V, making it universally compatible with both 12V and 24V commercial vehicle fleets like buses, trucks, and taxis without extra voltage regulators.
It utilizes a standard 4-core aviation connector, outputting standard PAL system AHD high-definition signals. This makes it highly compatible with mainstream MDVR systems on the market.
It supports a flexible dual installation setup: you can use a non-destructive 3M adhesive sticker for quick dashboard or windshield mounting, or secure self-tapping screws for more rugged environments.
