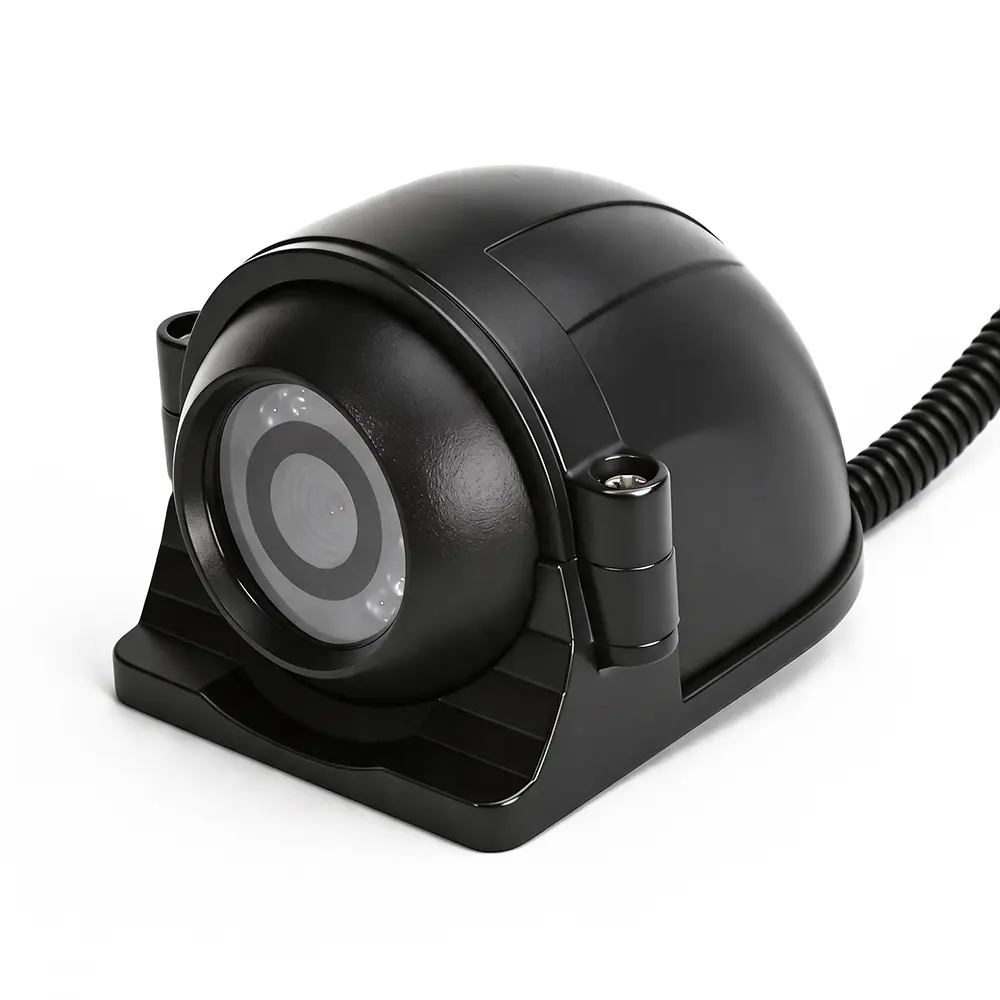

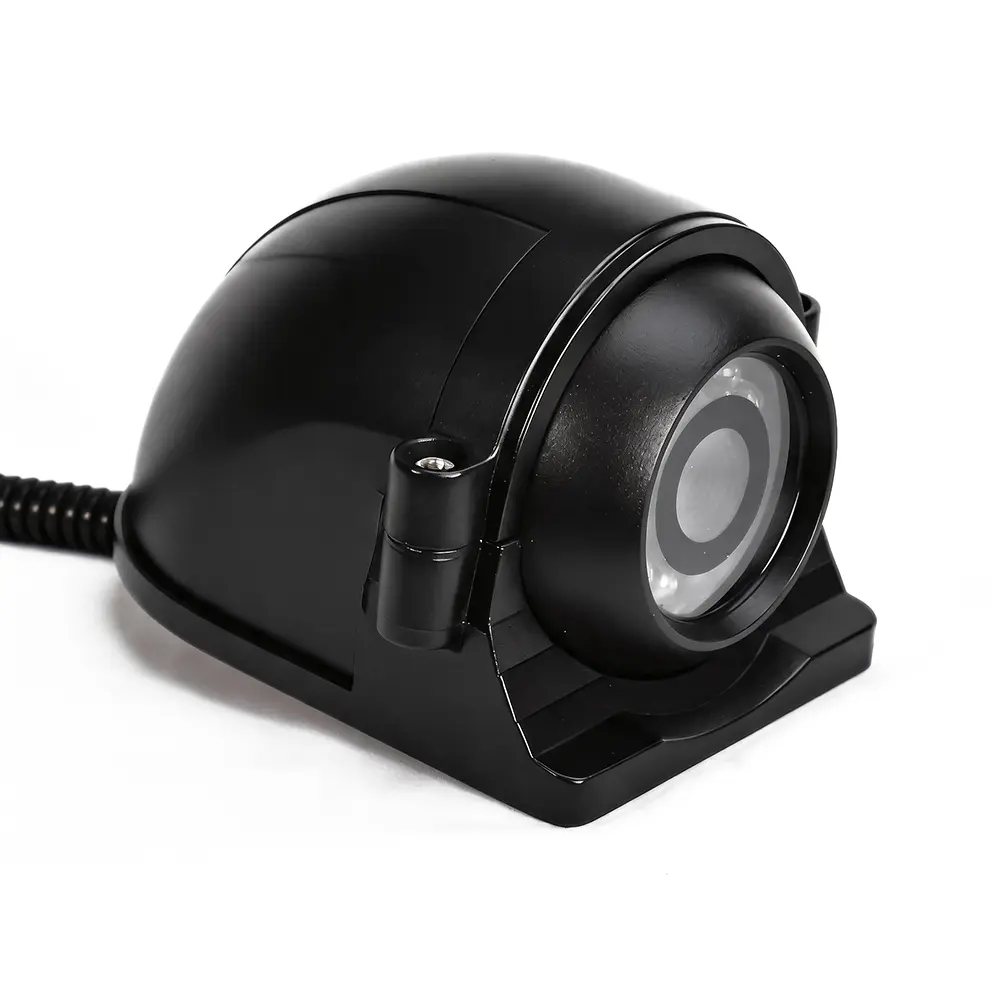

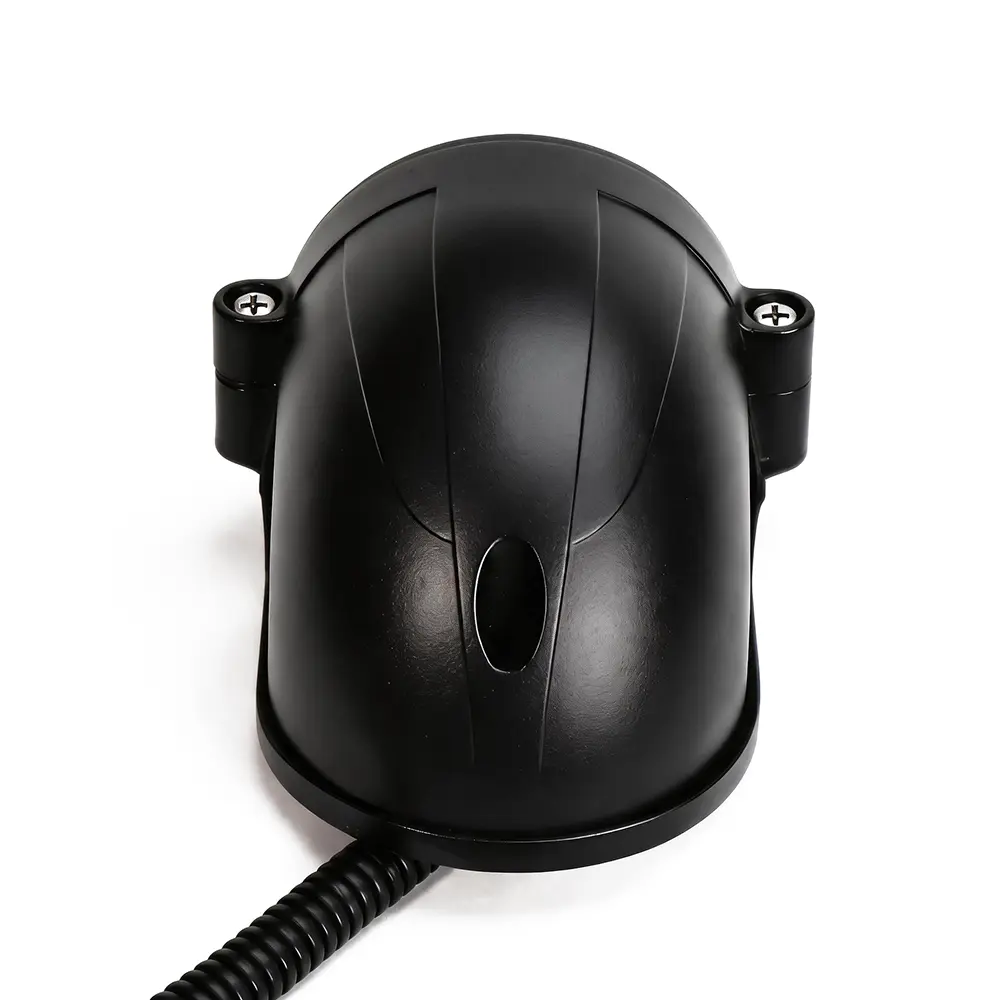

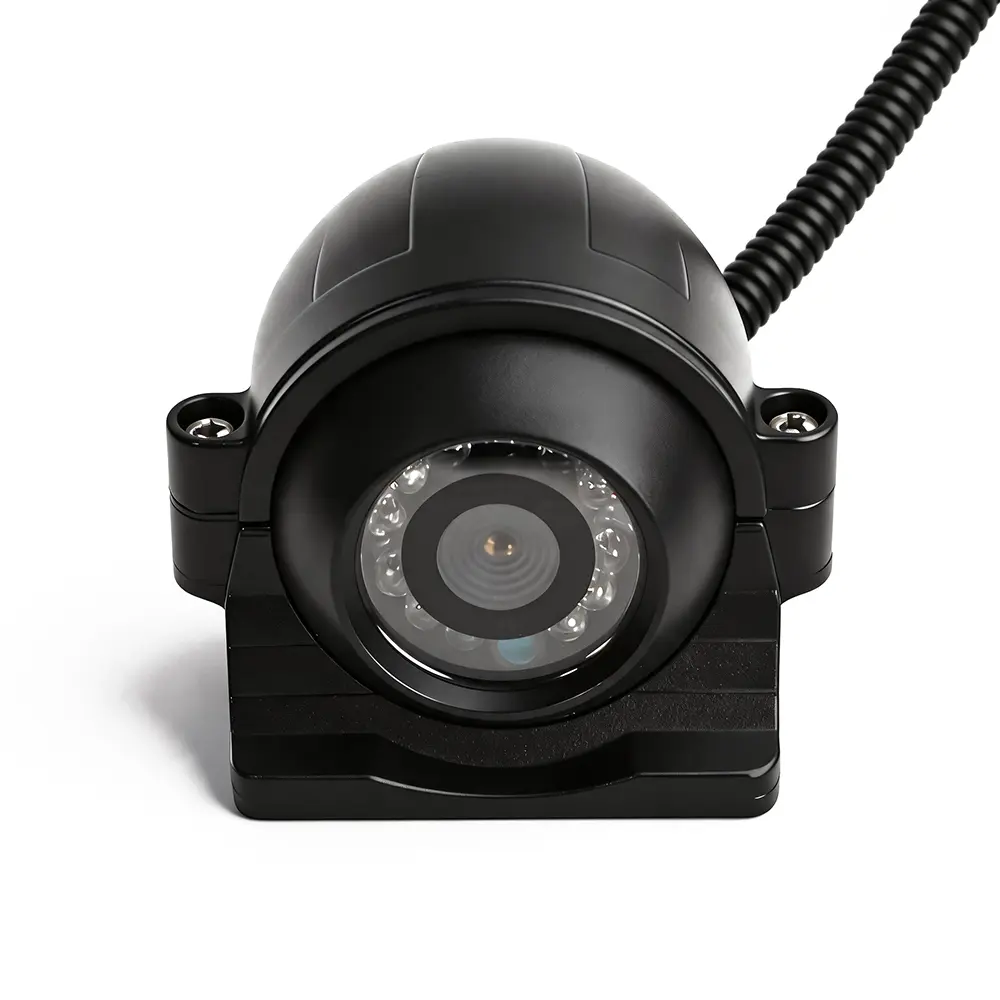

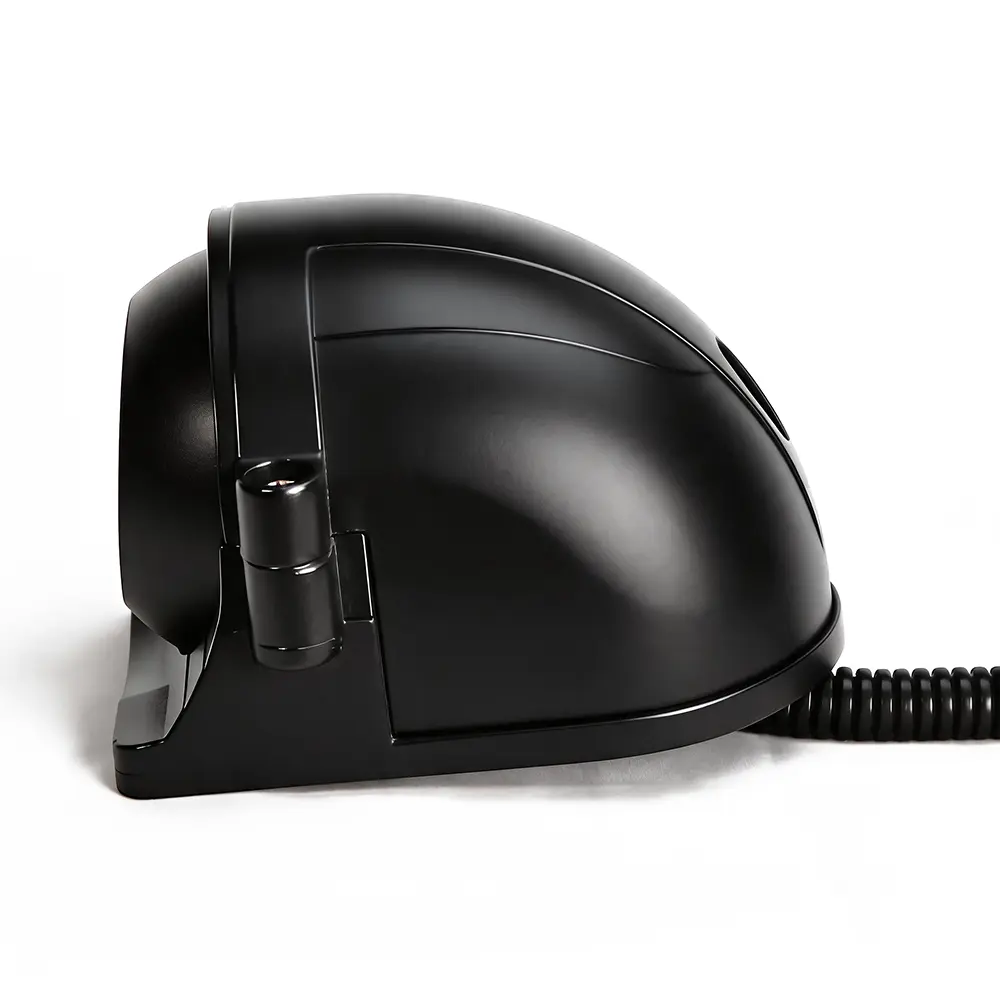

XY-FS798B is an outdoor waterproof AHD vehicle-mounted camera designed for exterior vehicle monitoring. Built with rugged aluminum alloy housing and featured with IP67 full waterproof rating, this camera adopts starlight-level imaging chip, shockproof, anti-fog and low power consumption design. It effectively solves common drawbacks of ordinary vehicle cameras, such as unstable image transmission and gradual picture blurring after long-time bumpy driving. With 12pcs infrared night vision lamps and global anti-exposure function, it delivers stable clear monitoring images day and night, perfectly suitable for outdoor exterior vehicle installation.
| Item | Details |
| Product Model | XY-FS798B |
| Product Type | Outdoor Waterproof AHD Exterior Vehicle Camera |
| Housing Material | Aluminum Alloy |
| Appearance Color | Black |
| Installation Method | Fixed with self-tapping screws |
| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.4KG |
| Waterproof Grade | IP67 |
| No. | Feature Title | Detailed Description |
| 1 | 2MP Starlight Dual Resolution Imaging | Equipped with professional 1/2.9" starlight CMOS sensor, supports switchable 1080P/720P resolution. It restores true-color vivid images in daytime and clear black-white monitoring pictures at night. |
| 2 | Adaptive Digital Exposure System | Built-in upgraded digital exposure algorithm, automatically adapting to drastic light changes, backlight and high-contrast road scenes to avoid picture overexposure. |
| 3 | Stable High-Temperature Anti-Interference | Maintains stable picture dark level during long-time high-temperature onboard operation. No vertical black stripes or abnormal bright lines appear during infrared night vision working. |
| 4 | Vehicle-Grade Shockproof Structure | Reinforced internal shockproof design resists vehicle vibration and bumpy road impact, ensuring smooth and jitter-free video output during driving. |
| 5 | 12pcs Infrared LED Night Vision | 12 built-in low-power infrared lights realize automatic day&night switching, delivering clear monitoring effect even in full dark environments without auxiliary lighting. |
| 6 | Global Anti-Overexposure Mode | Original global anti-exposure technology suppresses strong light from car headlights and sunlight, solving overexposure problems for outdoor vehicle monitoring. |
| 7 | IP67 Full Waterproof Protection | IP67 waterproof rating adapts to rainy, snowy and dusty outdoor harsh environments, supporting long-term exterior vehicle installation without water damage. |
| Category | Parameter Item | Specific Specification |
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization System | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-Exposure | |
| Night Vision Configuration | IR LED Quantity | 12 pcs |
| Viewing Angle | DFOV (Diagonal View Angle) | 110° |
| HFOV (Horizontal View Angle) | 85° | |
| VFOV (Vertical View Angle) | 48° | |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Power Consumption | 250mA @ DC 12V | |
| Environmental Resistance | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
Thanks to IP67 waterproof performance, shockproof structure and stable starlight night vision imaging, this exterior vehicle camera is widely used for trucks, sanitation vehicles, engineering machinery, buses, logistics fleets and other outdoor vehicles. It is perfectly suitable for outdoor driving monitoring, rear view auxiliary monitoring and fleet safety management.
