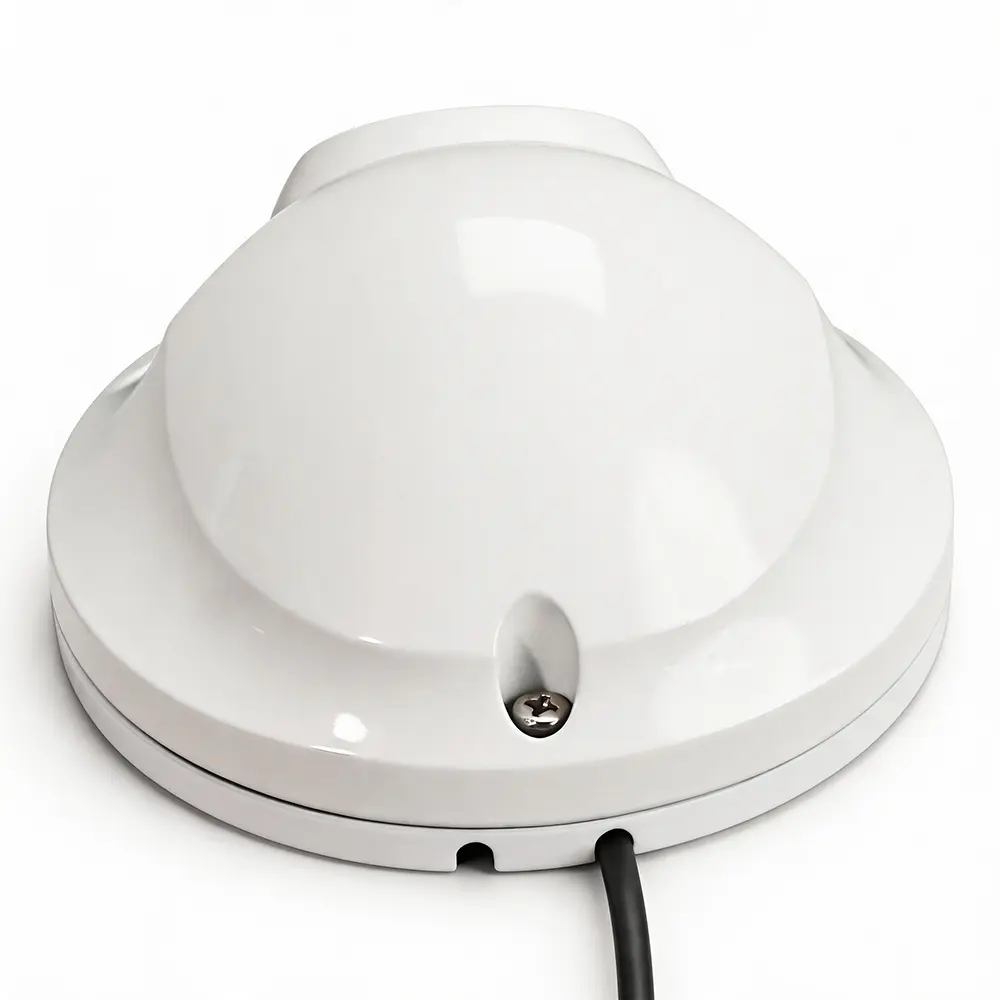

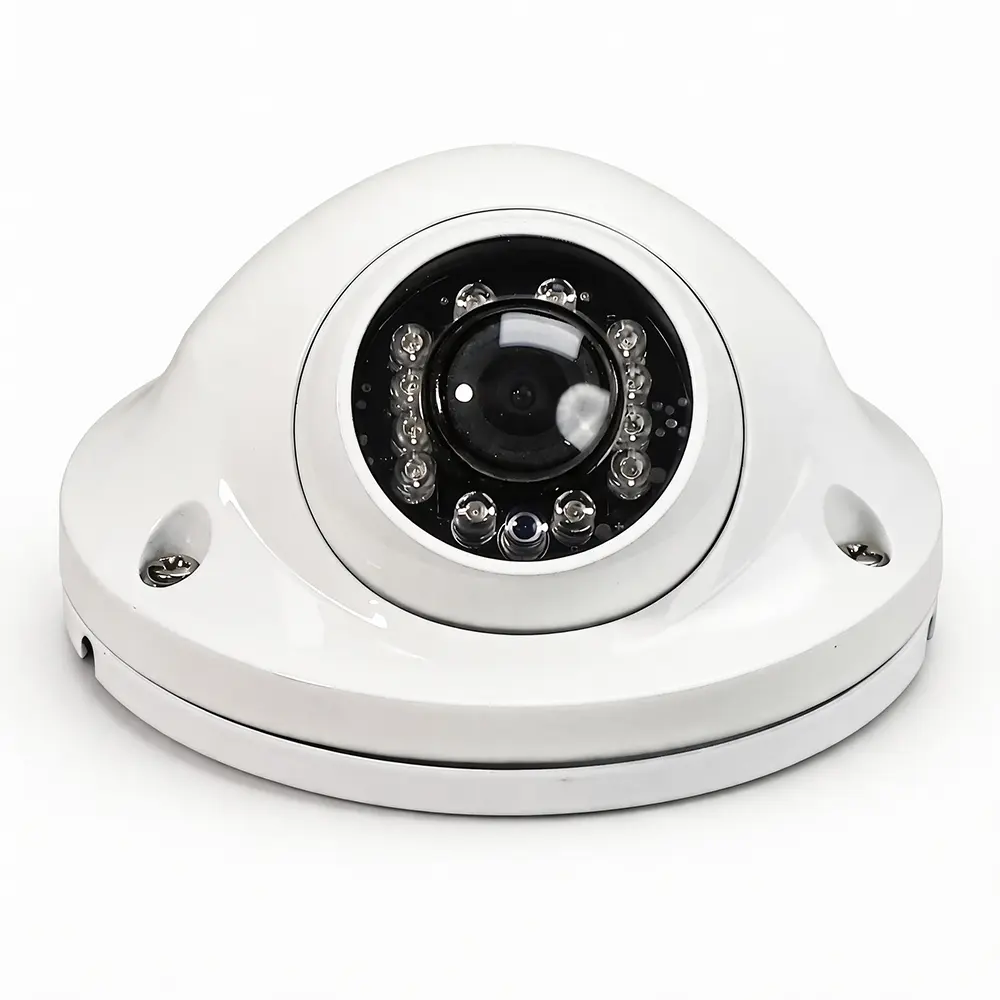

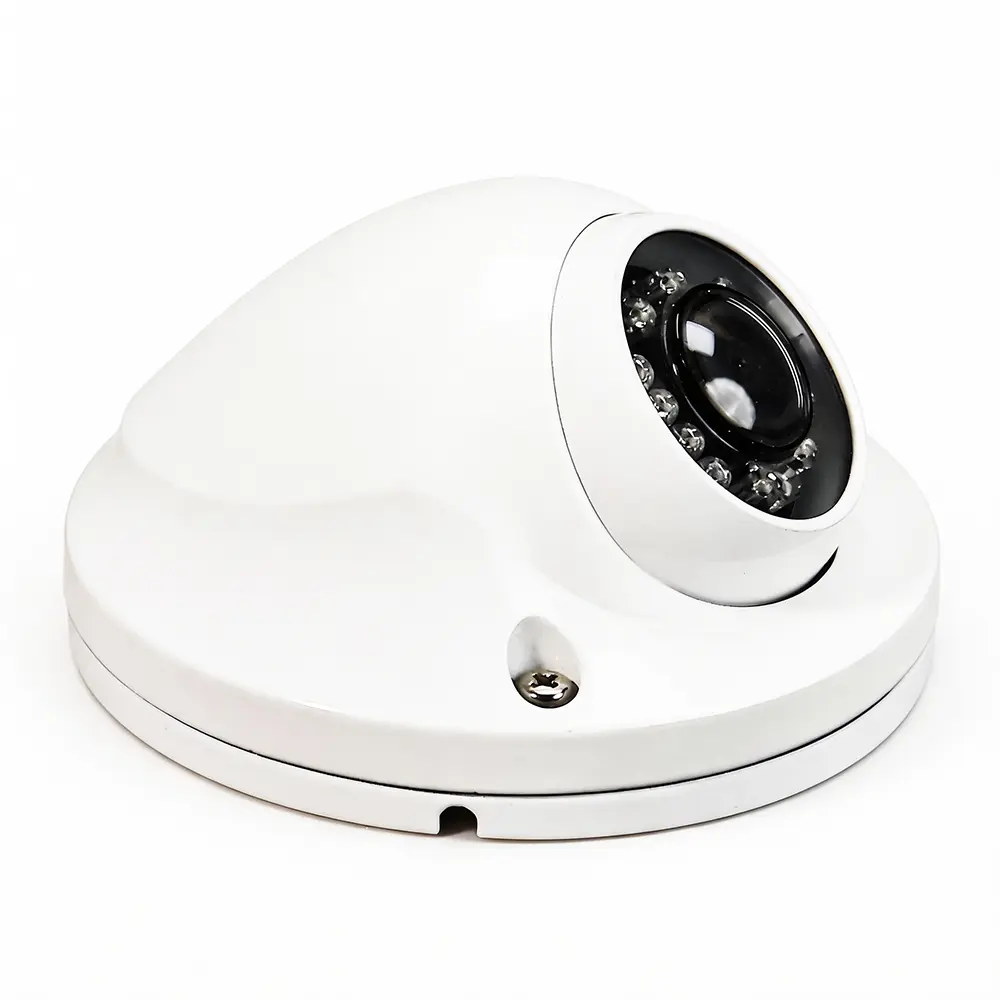

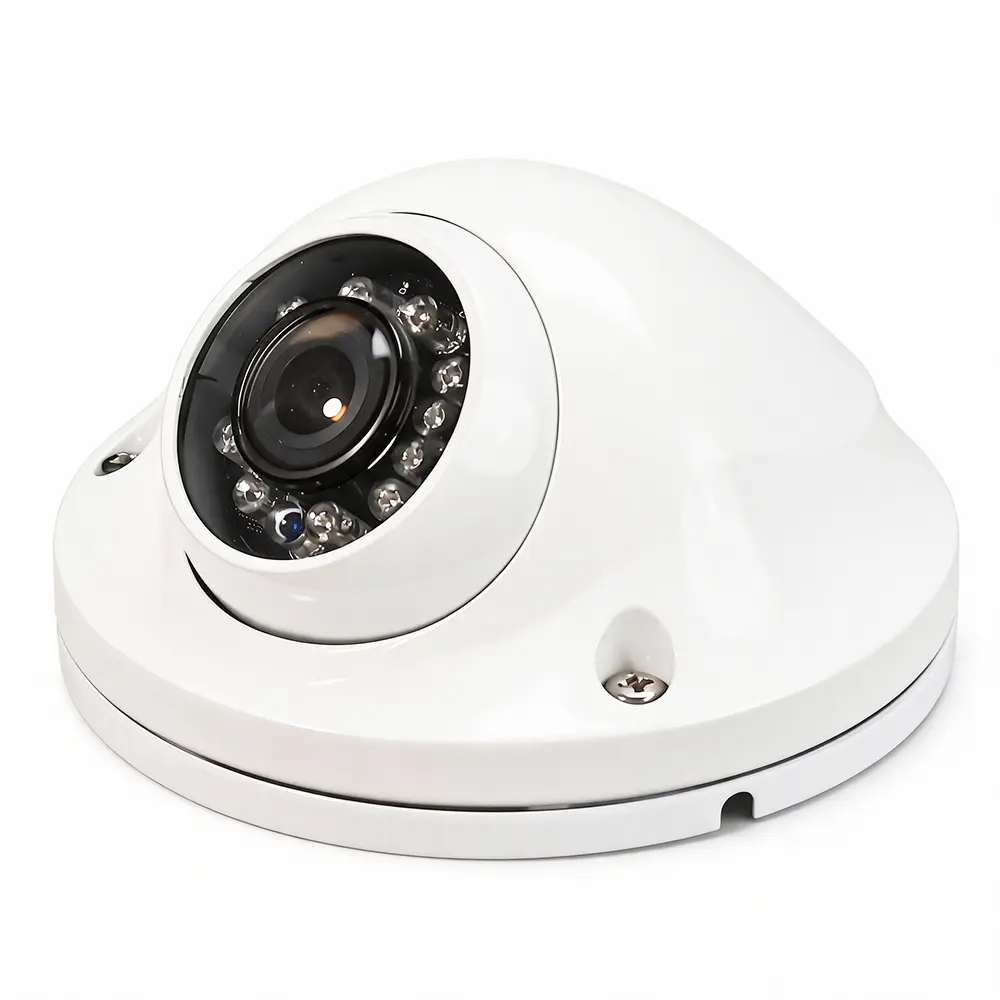

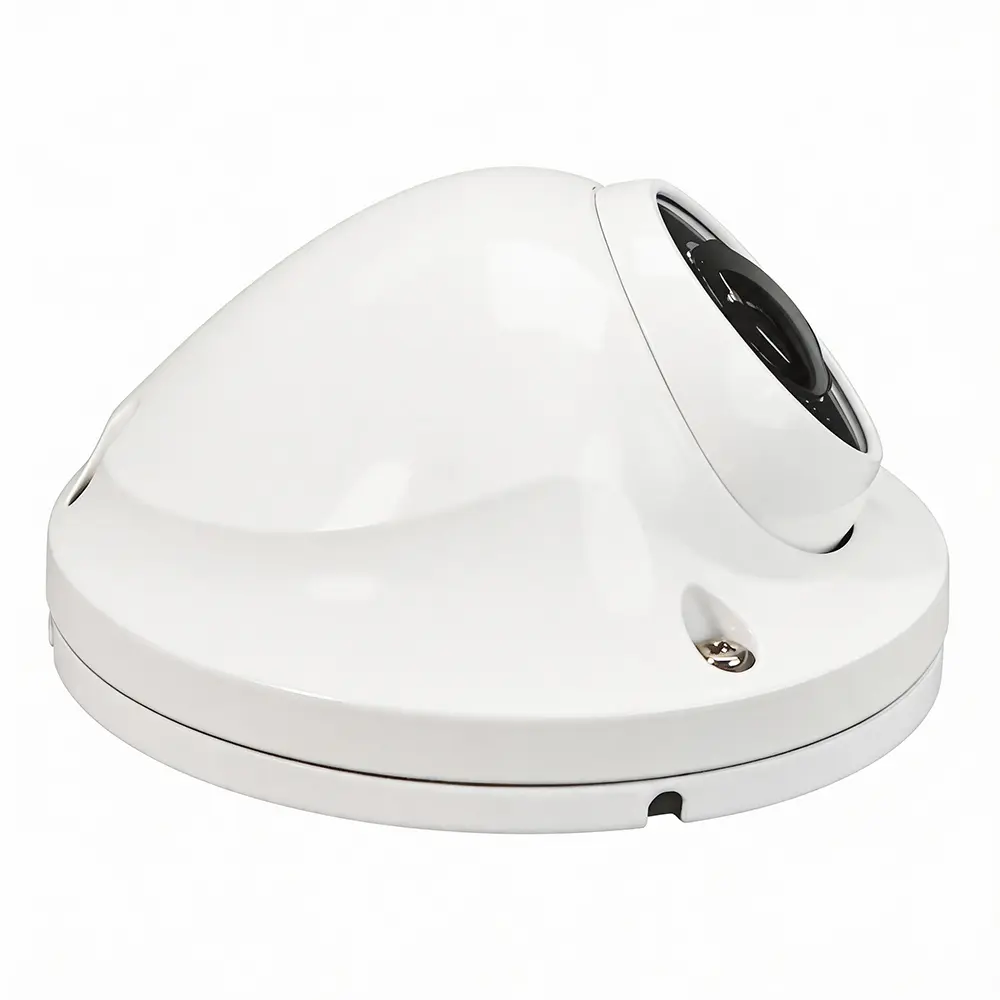

XY-N8813 is an industrial-grade 1080P starlight AHD vehicle-mounted camera with ultra-wide viewing angle. Built with aluminum alloy sturdy housing, it adopts anti-fog, shockproof and 9-16V wide voltage design. This camera effectively solves common pain points of ordinary vehicle cameras, such as unstable image quality and gradual picture blurring after long-time bumpy driving. It delivers stable day & night clear imaging, ideal for all kinds of fleet and engineering vehicle monitoring systems.
| Item | Details |
|---|---|
| Product Model | XY-N8813 |
| Product Type | AHD Starlight Vehicle Monitoring Camera |
| Housing Material | Aluminum Alloy |
| Appearance Color | White |
| Installation Method | Fixed with self-tapping screws |
| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.3KG |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | 2MP Starlight Full HD Dual Resolution | Equipped with premium 1/2.9" starlight CMOS sensor, supports 1080P/720P switchable dual resolution. Captures ultra-sharp and delicate images both in bright daytime and dark night environments. |
| 2 | Adaptive Digital Exposure System | Built-in upgraded digital exposure technology, automatically adapts to sudden light changes and high-contrast road scenes, keeping consistent clear picture all the time. |
| 3 | Long-lasting High Temperature Resistance | Stable image dark level during continuous high-temperature onboard operation. No vertical black stripes or abnormal bright lines appear in infrared night vision mode. |
| 4 | Shockproof Structure & 9-16V Wide Voltage | Professional shockproof internal structure adapts to bumpy vehicle roads. 9-16V wide voltage input fits unstable onboard power supply, perfectly customized for vehicle monitoring scenarios. |
| 5 | 12pcs Infrared LEDs for Clear Night Vision | Built-in 12 low-power infrared lamps, realizing excellent infrared night vision monitoring without extra auxiliary light source at night. |
| 6 | 157° Ultra-Wide Viewing Angle | 157° diagonal ultra-wide field of view, effectively reduces monitoring blind spots and covers larger onboard monitoring range. |
| 7 | Global Anti-Overexposure Imaging | Supports global anti-exposure mode, avoiding picture overexposure caused by strong sunlight and vehicle headlights during driving. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization System | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-Exposure | |
| Night Vision Configuration | Quantity of IR LEDs | 12 pcs |
| Viewing Angle Parameter | DFOV (Diagonal View Angle) | 157° |
| HFOV (Horizontal View Angle) | 130° | |
| VFOV (Vertical View Angle) | 70° | |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Rated Working Voltage | DC 12V |
| Wide Voltage Working Range | DC 9V - 16V | |
| Power Consumption | 250mA @ DC 12V | |
| Environmental Resistance | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |

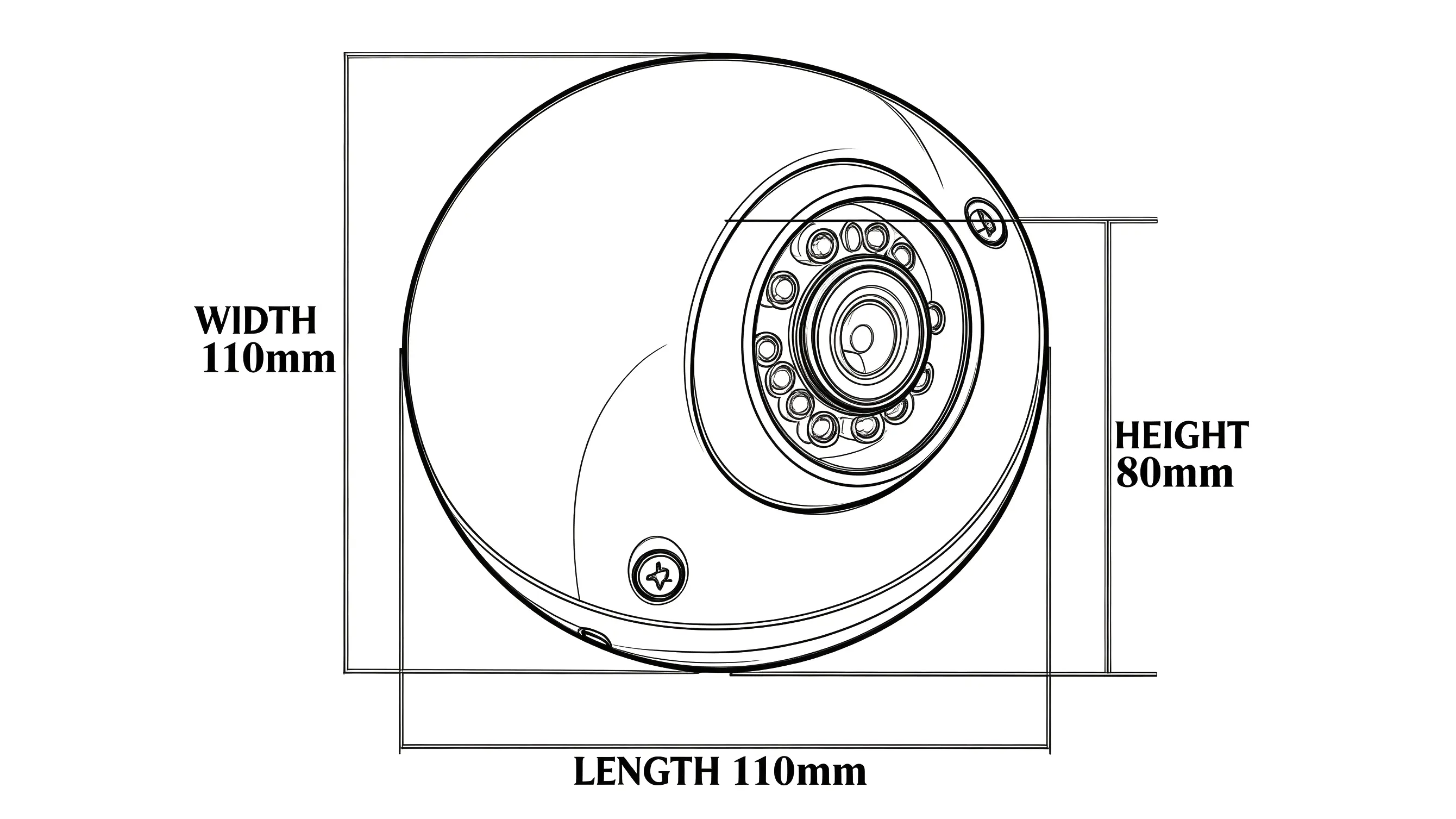

| Dimension Item | Size (mm) |
|---|---|
| Width | 110mm |
| Height | 80mm |
| Length | 110mm |
This durable aluminum alloy AHD vehicle camera is suitable for buses, trucks, logistics vehicles, construction machinery vehicles, fleets and other commercial vehicles. It supports stable all-day monitoring, perfect for onboard driving recording, fleet safety management and vehicle visual monitoring systems.
A: The camera features a premium 1/2.9" starlight CMOS sensor and supports 1080P/720P switchable dual resolution to capture clear, detailed images under both daytime and nighttime conditions.
A: The camera is equipped with 12 built-in low-power infrared LEDs, ensuring clear night vision monitoring without needing extra auxiliary light sources.
A: Yes, it features a professional shockproof internal structure and a sturdy aluminum alloy housing, specifically designed to withstand bumpy road conditions and maintain stable image output.
A: It supports a wide input voltage range of DC 9V to 16V (rated at DC 12V), making it highly compatible with the unstable power systems of various commercial vehicles.
A: It offers an ultra-wide viewing angle, including a Diagonal FOV of 157°, Horizontal FOV of 130°, and Vertical FOV of 70°, which significantly reduces blind spots during operation.
A: The aluminum alloy casing, anti-fog, and robust shockproof features make it perfect for commercial vehicles such as buses, trucks, logistics vehicles, fleets, and construction machinery vehicles.
