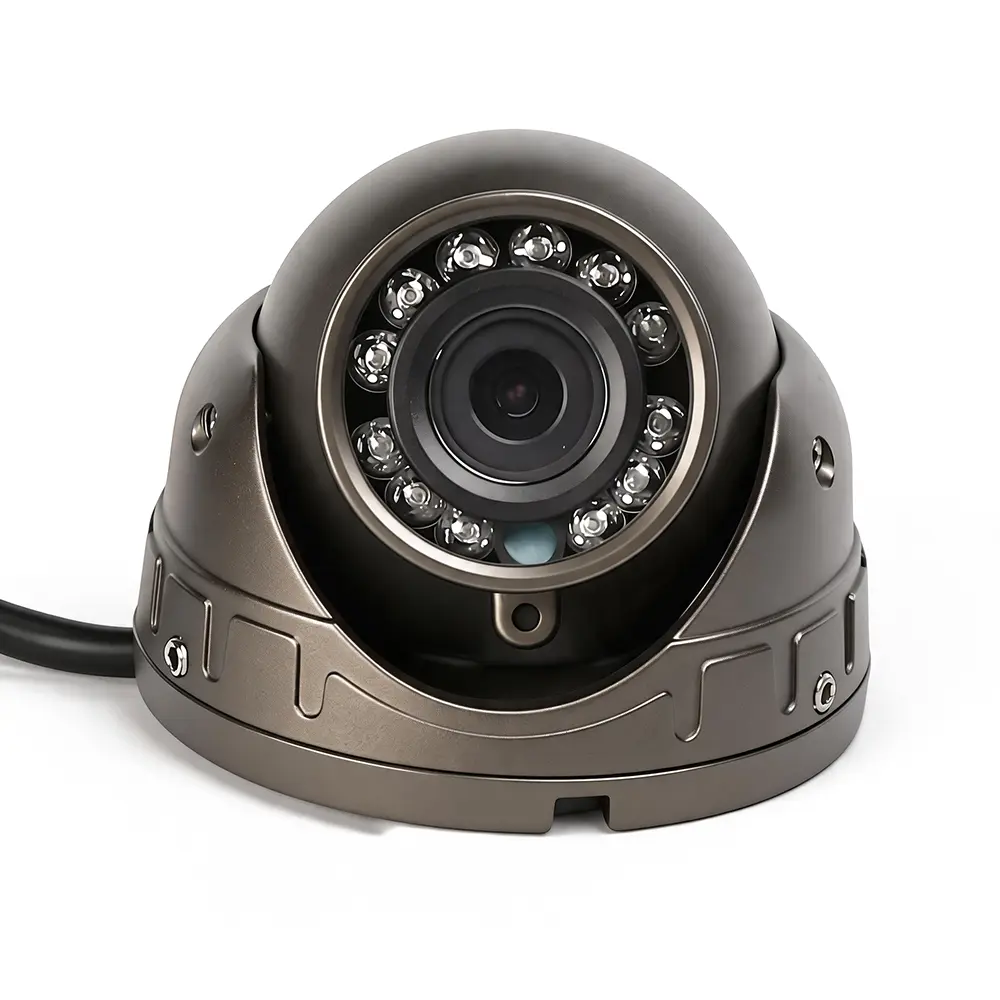

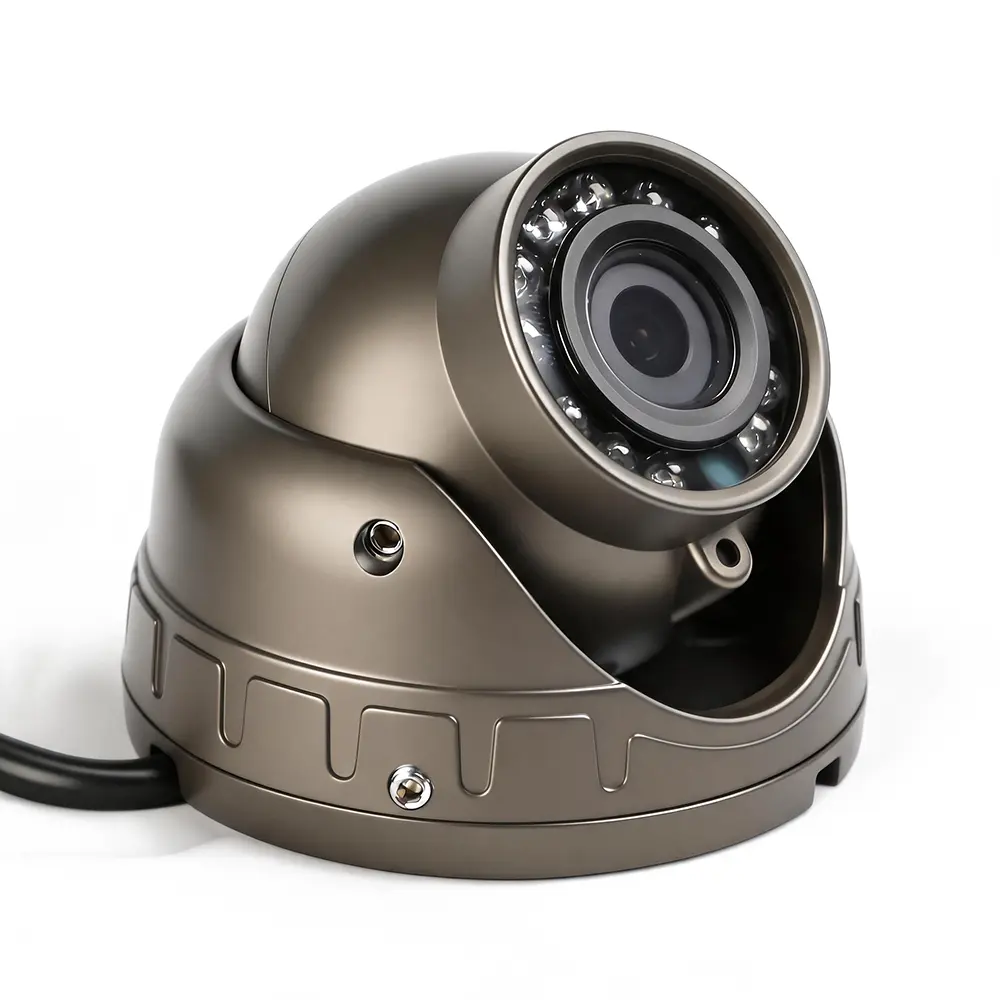

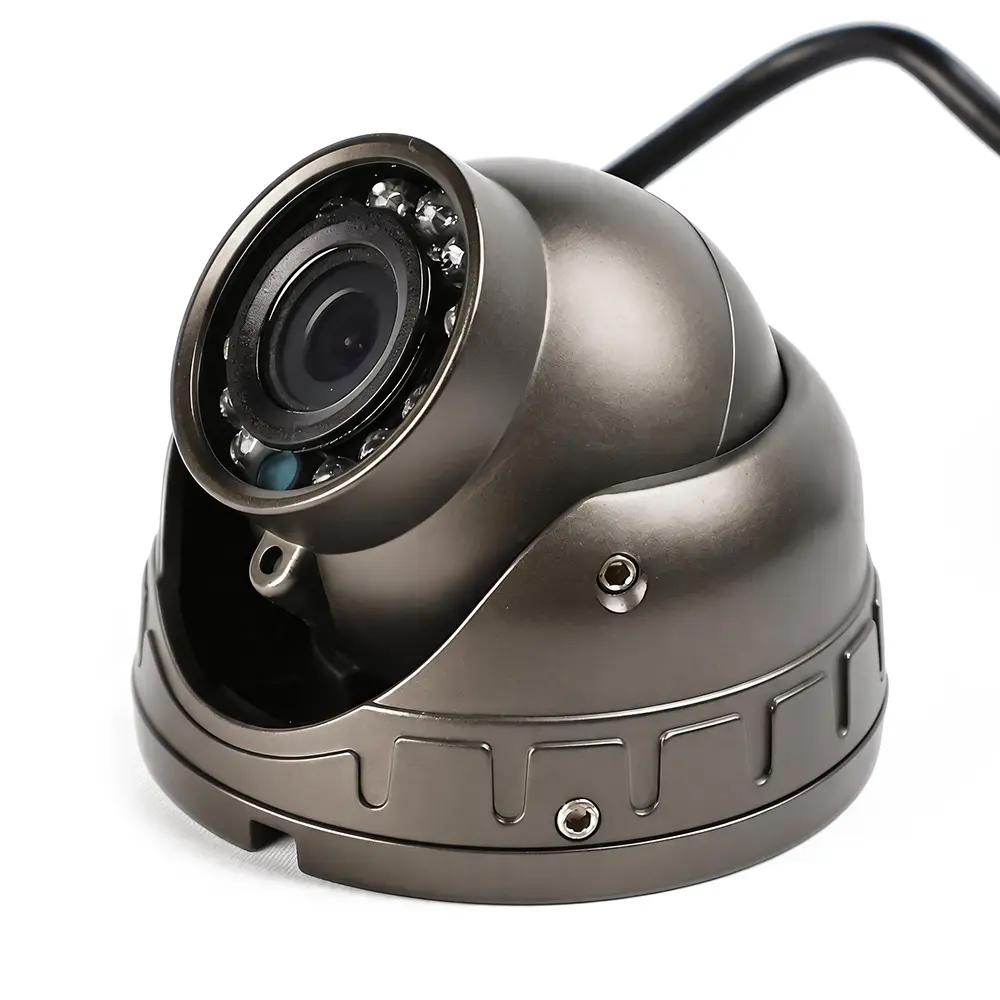

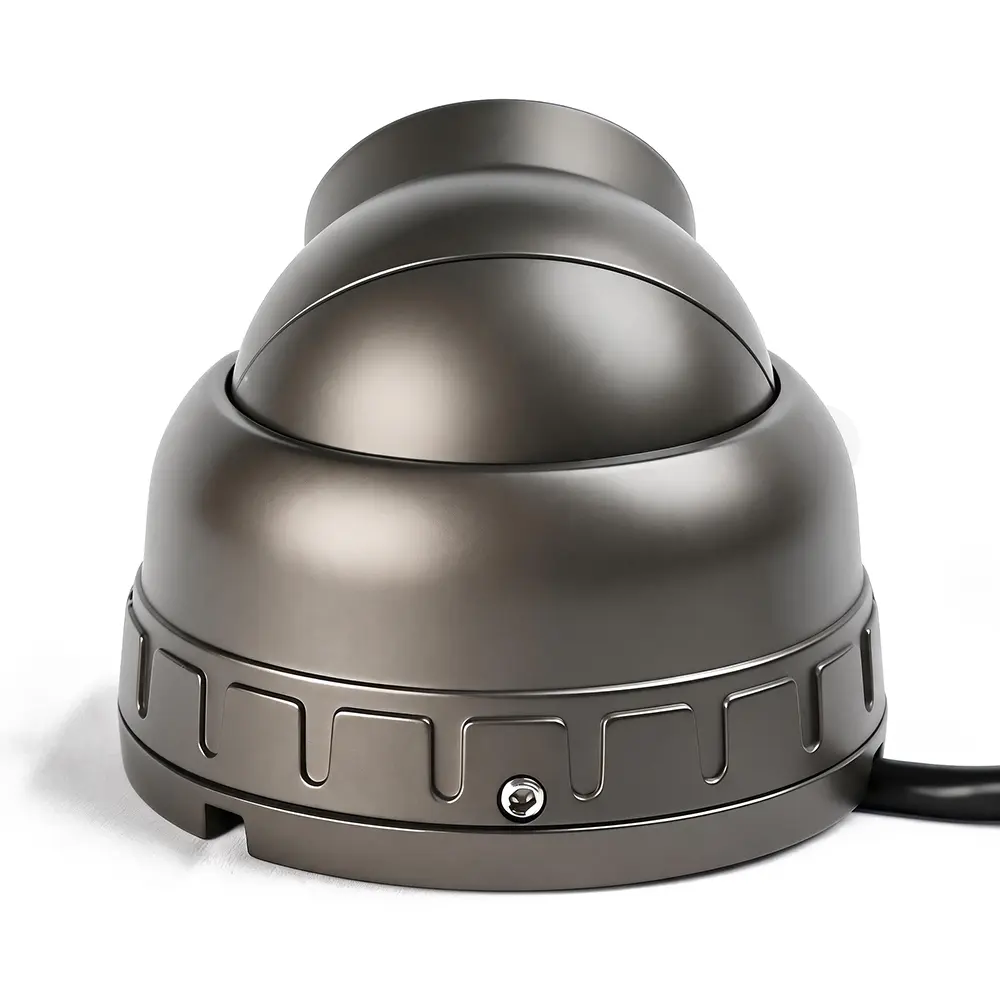

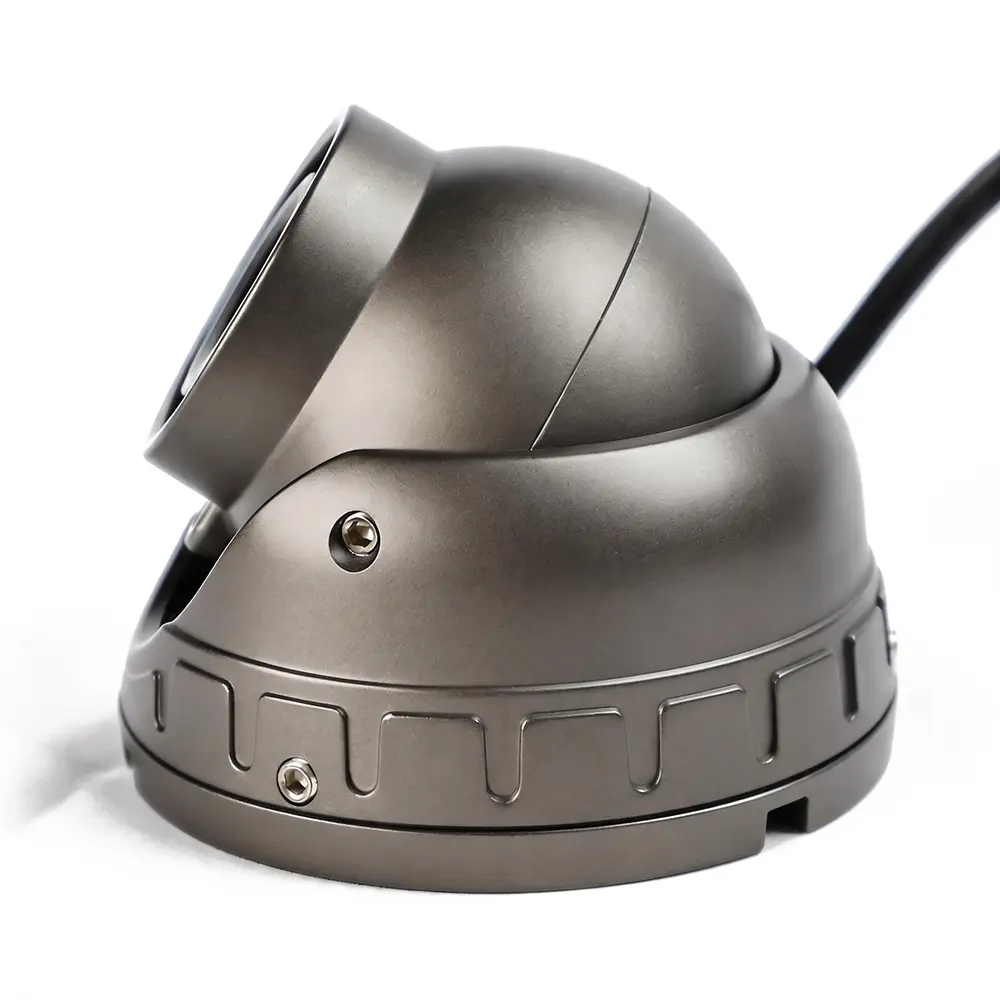

XY-N8812 is an industrial outdoor AHD vehicle-mounted camera built with premium aluminum alloy housing. Adopting starlight-level imaging chip, 12pcs infrared night vision lights, built-in audio pickup, shockproof and anti-fog structure, this camera solves common defects of ordinary vehicle cameras such as picture blurring and unstable signal after long-term bumpy driving. With 110° monitoring viewing angle and stable 12V vehicle power supply adaptation, it supports synchronous audio and video recording, perfectly matching outdoor vehicle monitoring needs.
Item |
Details |
Product Model |
XY-N8812 |
Product Type |
Outdoor AHD Vehicle Monitoring Camera |
Housing Material |
Aluminum Alloy |
Appearance Color |
Black |
Installation Method |
Fixed with self-tapping screws |
Interface Type |
4-core Female Aviation Connector |
Cable Length |
0.6M |
Net Weight |
0.4KG |
Waterproof Grade |
Non-waterproof |
Built-in Function |
HD Audio Pickup |
No. |
Feature Title |
Detailed Description |
1 |
2MP Starlight Dual Resolution Imaging |
Equipped with high-performance 1/2.9" starlight CMOS sensor, supports switchable 1080P and 720P resolution. Restores true color pictures in daytime and clear black-white images at night. |
2 |
Smart Digital Exposure Technology |
Automatically adapts to strong light, backlight and sudden light changes during driving, effectively avoiding picture overexposure and ensuring stable consistent imaging effect. |
3 |
Stable High Temperature Resistance |
Works stably under long-time high-temperature onboard environment, no vertical black stripes or bright stray lines appear during infrared night vision working. |
4 |
Vehicle-grade Shockproof Structure |
Reinforced internal shockproof design, adapts to bumpy road conditions and vehicle vibration, preventing picture jitter and signal interruption during driving. |
5 |
12pcs Infrared LED Night Vision |
Built-in 12 low-power infrared lights, realizing automatic day and night switching, meeting full dark night monitoring requirements without auxiliary lighting. |
6 |
Built-in HD Audio Pickup |
High-sensitivity sound collection module records clear surrounding voice synchronously with video, completing integrated audio-video monitoring evidence. |
7 |
Anti-fog & Long-term Stable Operation |
Professional anti-fog lens design prevents lens fogging in humid environment, no picture blur or attenuation after long-term continuous working. |
Category |
Parameter Item |
Specific Specification |
Imaging System |
Image Sensor |
1/2.9" CMOS |
Signal System |
PAL |
|
Effective Pixels |
1920(H)×1080(V) / 1280(H)×720(V) |
|
Frame Rate |
25fps |
|
Synchronization System |
Internal Synchronization |
|
Minimum Illumination |
0.01Lux @ F1.2 |
|
Horizontal Resolution |
2000TVL |
|
Image Processing |
Auto White Balance |
Automatic |
Electronic Shutter |
AUTO |
|
Exposure Mode |
Global Anti-Exposure |
|
Night Vision Configuration |
IR LED Quantity |
12 pcs |
Viewing Angle |
DFOV (Diagonal View Angle) |
110° |
HFOV (Horizontal View Angle) |
85° |
|
VFOV (Vertical View Angle) |
48° |
|
Video Output |
Video Output Signal |
AHD Analog HD Signal |
Electrical Parameters |
Working Voltage |
DC 12V |
Power Consumption |
250mA @ DC 12V |
|
Environmental Adaptability |
Operating Temperature |
-20℃ ~ 70℃ |
Storage Temperature |
-30℃ ~ 80℃ |
This outdoor vehicle AHD camera is widely applicable for trucks, engineering vehicles, coaches, logistics vehicles, fleet monitoring and other commercial vehicles. It is suitable for outdoor onboard monitoring, driving video recording, fleet safety management and other scenarios, being a cost-effective outdoor monitoring accessory for vehicle monitoring systems.
The camera is widely compatible with various commercial vehicles including trucks, engineering vehicles, coaches, logistics vehicles, and other fleet management setups using a stable 12V DC power supply.
Yes. It features a starlight-level imaging chip and 12 built-in low-power infrared LEDs. The camera automatically switches between day (color) and night (clear black-and-white) modes without needing extra light sources.
This specific model is graded as non-waterproof. It is best suited for semi-sheltered outdoor installations or positions on the vehicle where direct water immersion is avoided.
The XY-N8812 is designed with a vehicle-grade, reinforced shockproof structure that prevents screen jitter, image distortion, and signal dropouts under heavy driving vibrations.
Yes, it features a built-in high-sensitivity HD audio pickup that enables synchronous audio and video recording for comprehensive monitoring and incident evidence collection.
The camera delivers AHD (Analog High Definition) signals and supports switchable 1080P and 720P resolutions with a PAL signal system configuration.
