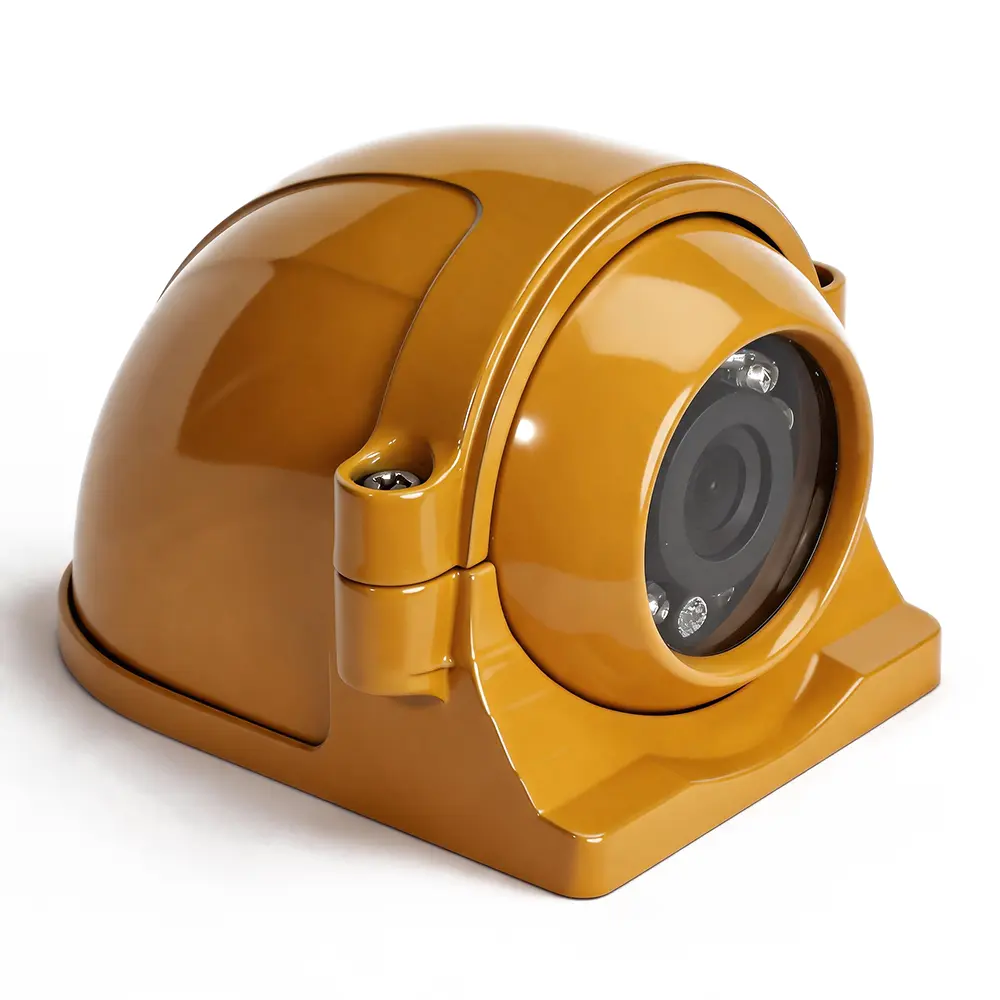

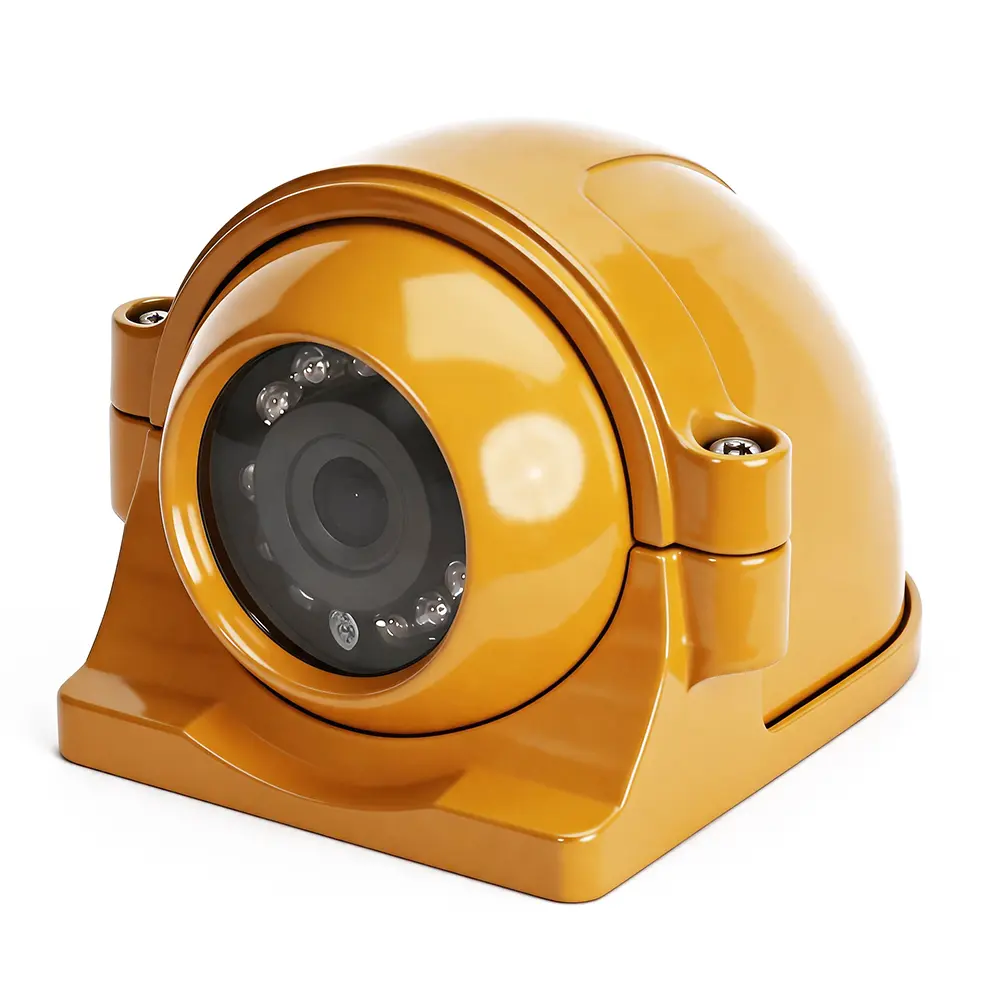

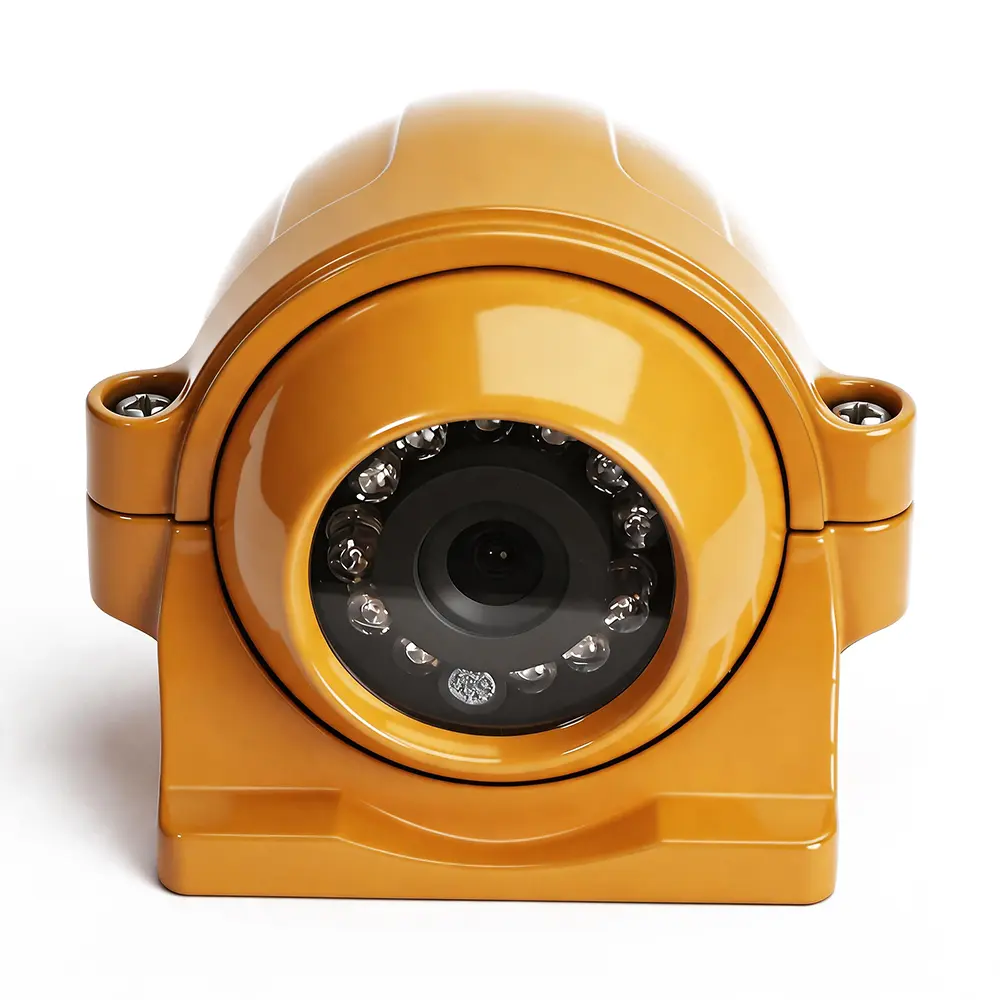

The XY-FS798 is an industrial-grade 1080P full HD vehicle-mounted network camera, professionally designed for harsh and complex vehicle driving environments. Equipped with a high-performance CMOS image sensor and upgraded Smart HDR algorithm, it perfectly solves various imaging problems such as strong light overexposure, low-light noise and motion blur during vehicle driving. With premium zinc alloy housing, shockproof structure, wide voltage compatibility and reliable temperature resistance, this camera maintains stable and high-definition imaging day and night. Adopting side mounting design with simple installation and flexible wiring, it is an ideal monitoring solution for various engineering vehicles, agricultural vehicles, school buses and commercial fleets.
| Item | Details |
|---|---|
| Product Model | XY-FS798 |
| Product Type | 1080P Full HD Vehicle-Mounted Network Camera |
| Application Scenarios | Engineering vehicles, agricultural vehicles, school buses, trucks and various commercial vehicle monitoring systems |

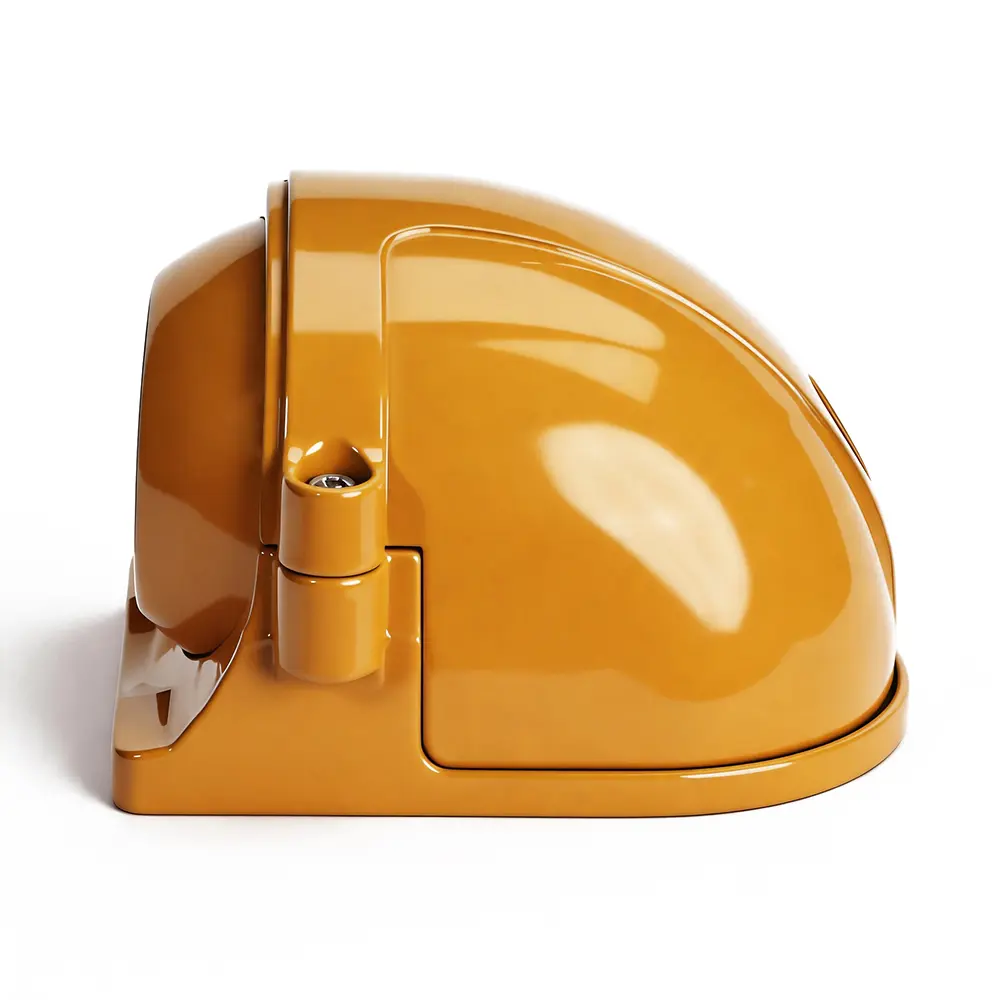

| Housing Material | Zinc Alloy |
| Appearance Color | Black |

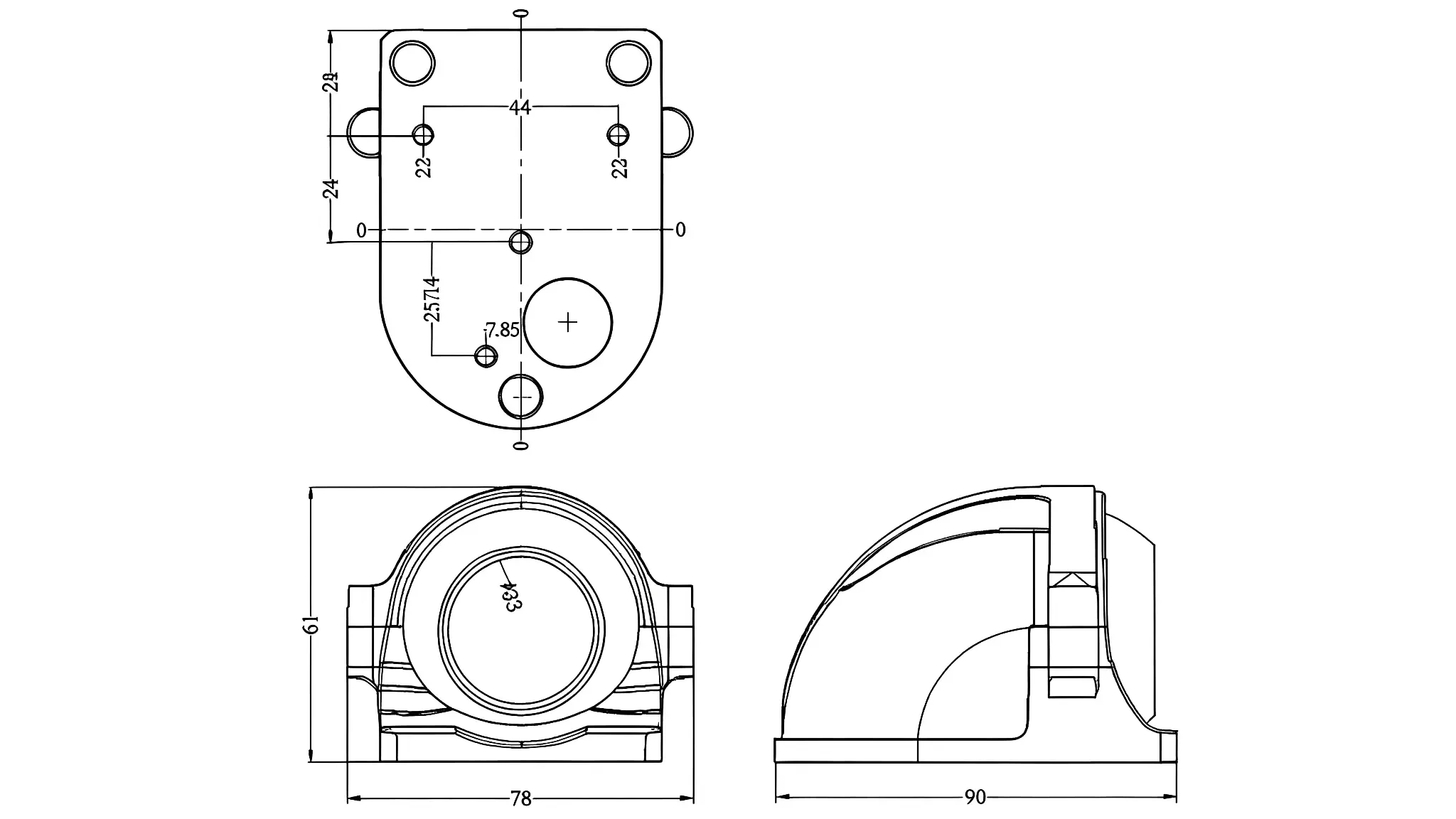

| Installation Method | Side Mounting |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Full HD Imaging & Star-Level Night Vision | Equipped with a 2-megapixel full HD CMOS image sensor, delivering 1920*1080 ultra-clear resolution. Built with 12 low-power infrared LEDs to support outdoor star-level infrared night vision. Adopts anti-fog, shockproof and wide voltage design, effectively solving common problems of ordinary vehicle-mounted cameras such as unstable image quality and gradual picture blurring after long-term operation. |
| 2 | Optimized Digital Exposure Technology | Features upgraded brand-new digital exposure function, which maintains stable and excellent image performance under complex environments with variable light and high contrast. |
| 3 | Superior Temperature Resistance | Supports stable operation in high-temperature working environments. The image dark level remains consistent without vertical black stripes or bright white lines in night vision mode. |
| 4 | Vehicle-Specific Shockproof & Wide Voltage Design | High shock resistance structure with a 10V-15V wide voltage range, professionally customized to adapt to bumpy driving and unstable voltage environments of vehicle monitoring scenarios. |
| 5 | Smart HDR Strong Light Suppression | Powered by advanced Smart HDR algorithm, it effectively avoids image overexposure caused by vehicle headlights, infrared rays and strong sunlight backlight, while retaining complete and clear details in dark areas of the screen. |
| 6 | Smart HDR Intelligent Noise Reduction | Achieves powerful noise suppression for static scenes under low illumination, and thoroughly eliminates motion blur and trailing for dynamic moving scenes. |
| 7 | Forward Light Brightness Optimization | Realizes uniform and balanced picture brightness in both indoor and outdoor monitoring environments, delivering higher definition and more comfortable imaging effect than conventional vehicle cameras. |
| 8 | Smart HDR Low-Light Enhancement | Significantly improves overall imaging quality under dim light and starlight conditions, greatly enriching picture details and realizing ultra-clear night vision monitoring. |
| 9 | Professional Anti-Overexposure Lens | The camera lens glass is processed with special precision technology, which fundamentally prevents picture overexposure and ensures stable imaging in complex light conditions. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Effective Pixels | 1920(H) × 1080(V) | |
| Signal System | PAL / NTSC | |
| Frame Rate | 25 / 30 fps | |
| Minimum Illumination | 0.001LUX/F1.2 | |
| Horizontal Viewing Angle | 100° | |
| Imaging Functions | Synchronization System | Internal Synchronization |
| White Balance | Automatic White Balance | |
| Electronic Shutter | 1/50 (1/60) ~ 1/100000 seconds (adjustable) | |
| Exposure Mode | Global Anti-Exposure | |
| Backlight Compensation | Automatic | |
| Hardware Configuration | Infrared LEDs Quantity | 12 pcs Low-power Infrared LEDs |
| Video Output | 1920*1080 Progressive, RJ45+DC | |
| IP Mode | Auto-adaptive IP | |
| Electrical Parameters | Operating Voltage | DC 12V |
| Power Consumption | Approx. 250MA @ DC 12V | |
| Temperature Resistance | Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +80℃ | |

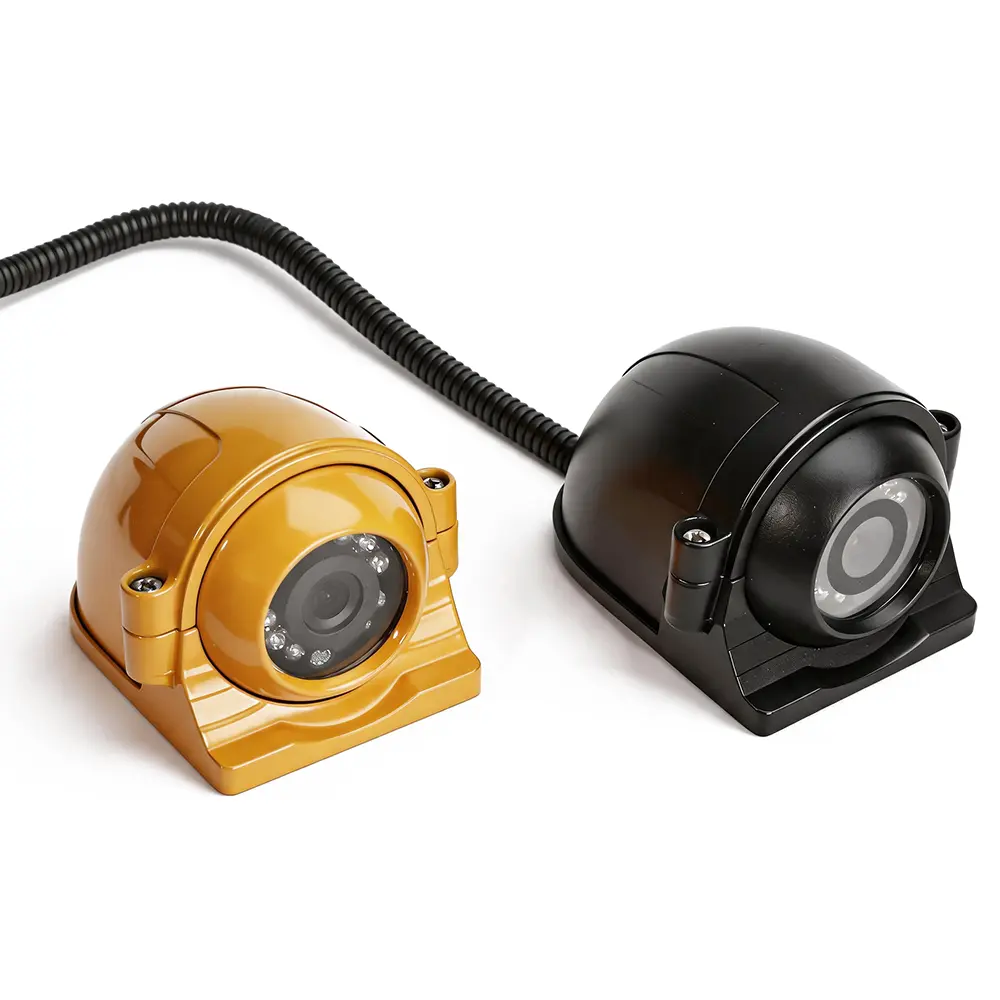

| Installation & Wiring | Cable Length | 60CM |
| Interface Type | RJ45 + DC Dual Interfaces |
| Pin / Port | Signal Definition |
|---|---|
| 1 | TX+ |
| 2 | TX- |
| 3 | RX+ |
| 6 | RX- |
| DC+ | 12V Positive |
| DC- | GND |
| Performance Dimension | Detailed Information |
|---|---|
| Environmental Adaptability | Anti-fog, Shockproof, Wide Voltage Resistant, High & Low Temperature Resistant |
| Core Technology | Smart HDR Intelligent Algorithm |
| Core Functions | Strong light suppression, automatic noise reduction, forward light optimization, low-light enhancement, global anti-exposure |
| Product Advantages | No image blurring after long-term use, no abnormal stripes in night vision, stable all-weather imaging, strong environmental adaptability |
| Applicable Scenarios | Vehicle real-time monitoring, fleet safety management, driving video recording, industrial and commercial vehicle safety supervision |
The camera is designed for harsh driving environments and is ideal for engineering vehicles, agricultural machinery, school buses, and commercial transport fleets.
It features a built-in Smart HDR algorithm and a professional anti-overexposure lens, which suppress strong light and glare while retaining clarity in dark areas.
The XY-FS798 is equipped with 12 low-power infrared LEDs and low-light enhancement tech, providing clear, star-level infrared night vision without vertical stripes.
Yes, it features a heavy-duty zinc alloy housing with a vehicle-specific shockproof structure designed specifically for bumpy road conditions.
The camera supports a wide voltage range of 10V-15V DC (typically operating at 12V DC) to adapt to fluctuating vehicle power grids.
It utilizes a dual RJ45 and DC network interface configuration, ensuring stable video stream output and simple power connections.
