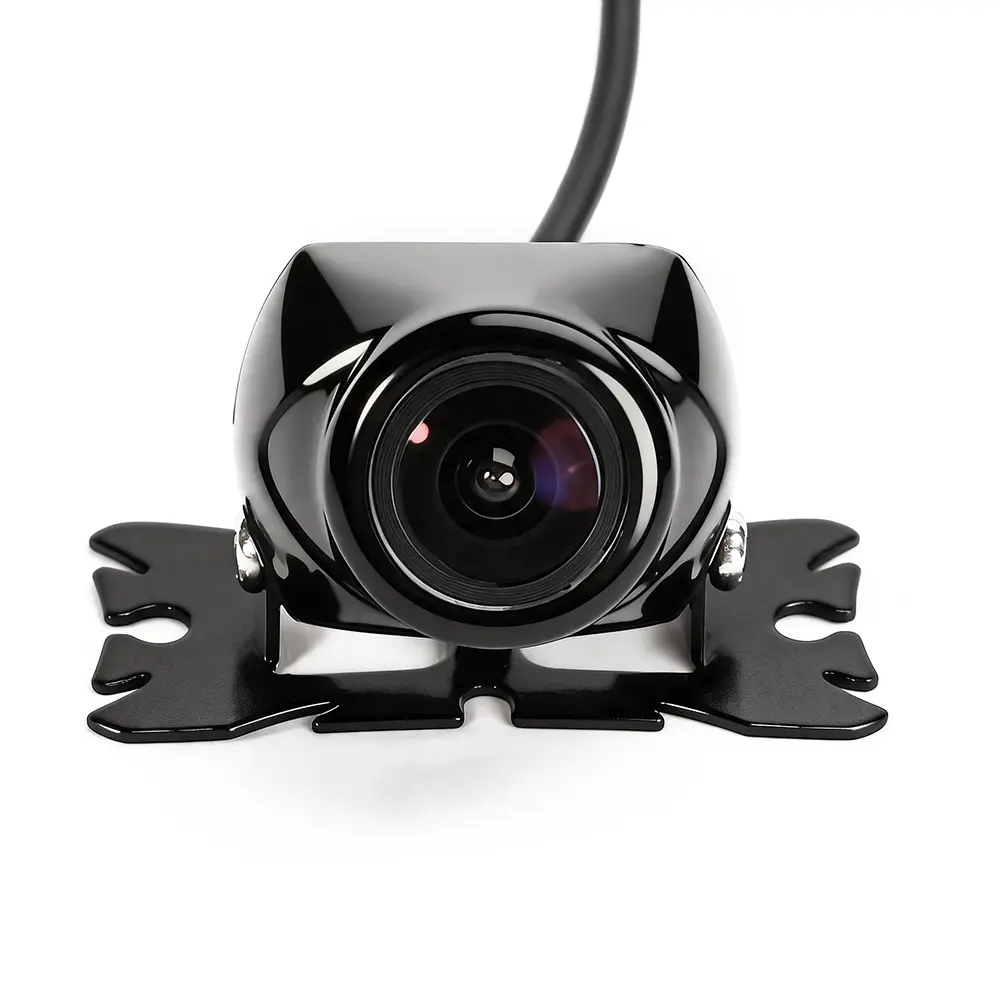

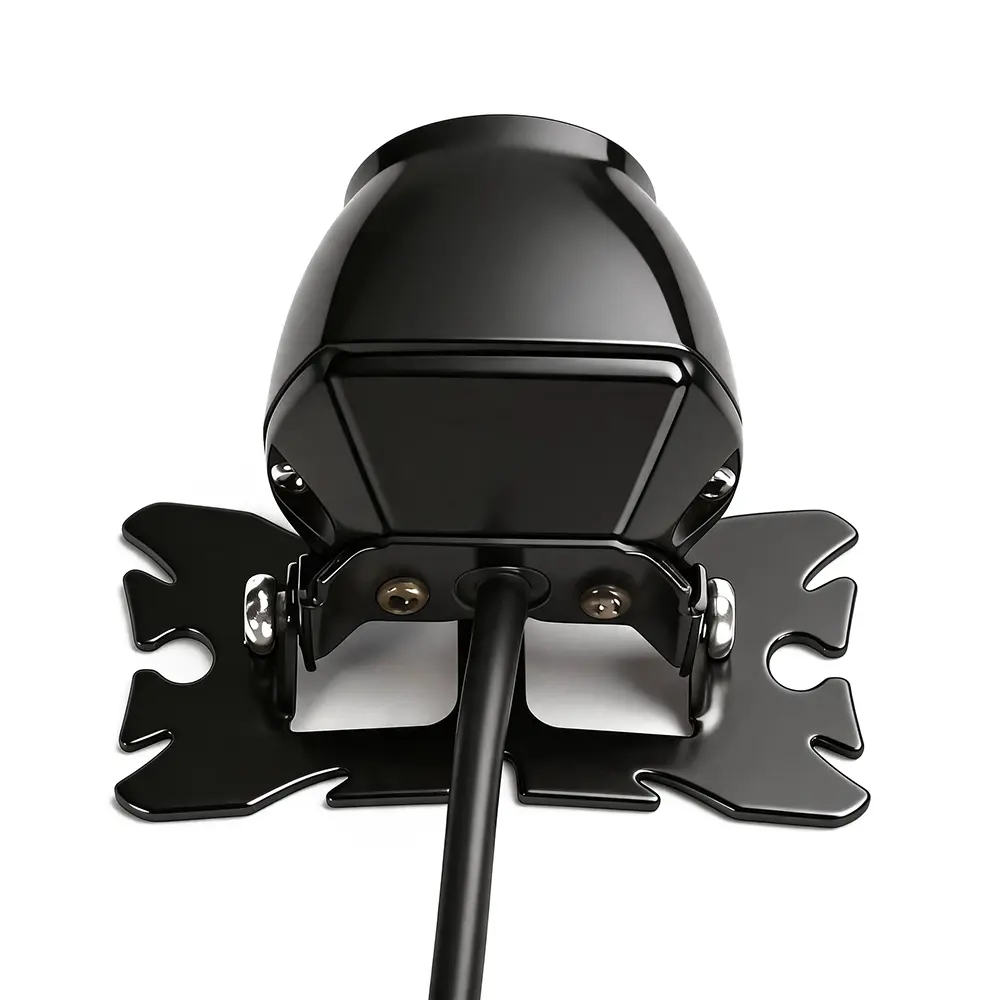

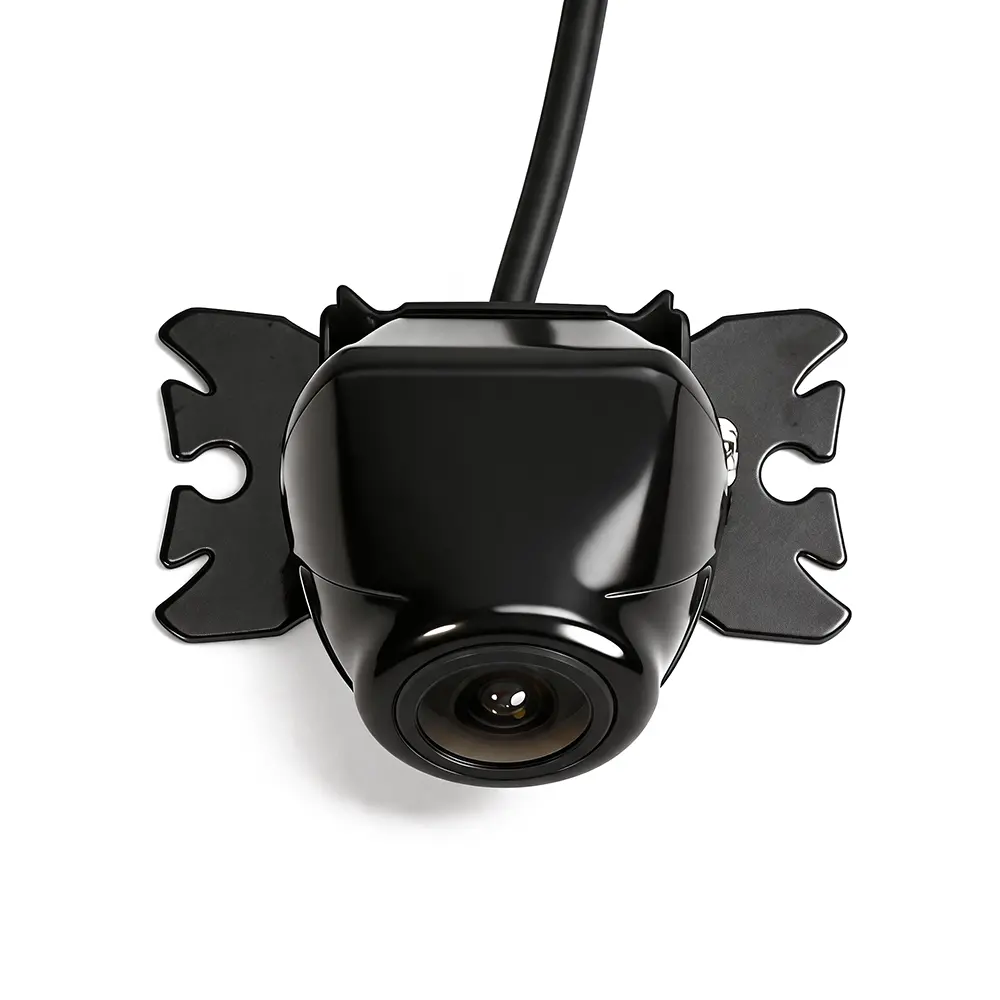

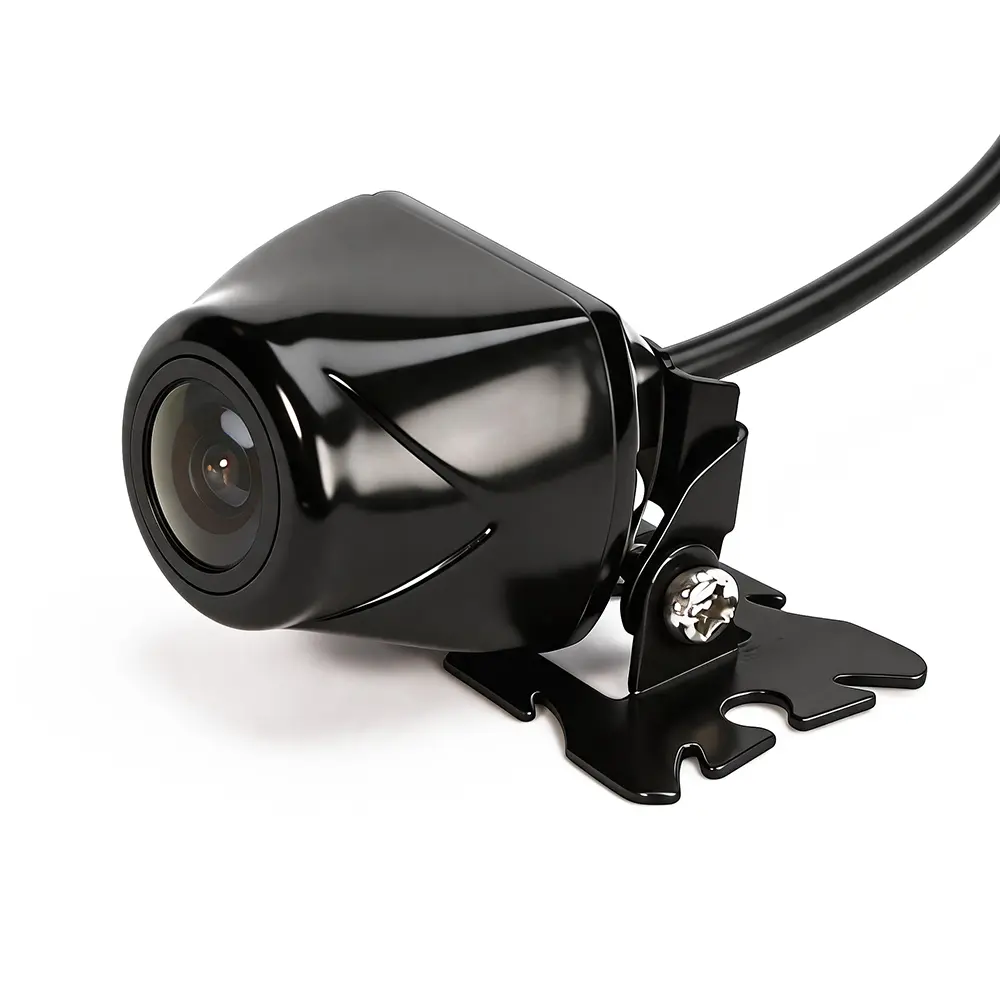

XY-FS200 is a mini all-aluminum AHD exterior vehicle camera designed for compact onboard monitoring installation. Adopting professional starlight imaging chip, ultra-low power consumption, built-in anti-fog lens and vehicle-grade shockproof structure, this camera solves common drawbacks of traditional vehicle cameras such as picture blurring and signal instability after long-time vibration. With dual installation modes, standard IP67 waterproof rating, optional IP69K high waterproof and 180° non-distortion wide-angle lens, it supports flexible customization to match diverse harsh outdoor vehicle monitoring scenes, delivering true-color stable video without infrared color deviation all day long.
| Item | Details |
|---|---|
| Product Model | XY-FS200 |
| Product Type | Mini Exterior AHD Vehicle Monitoring Camera |
| Housing Material | Aluminum Alloy |
| Appearance Color | Black |

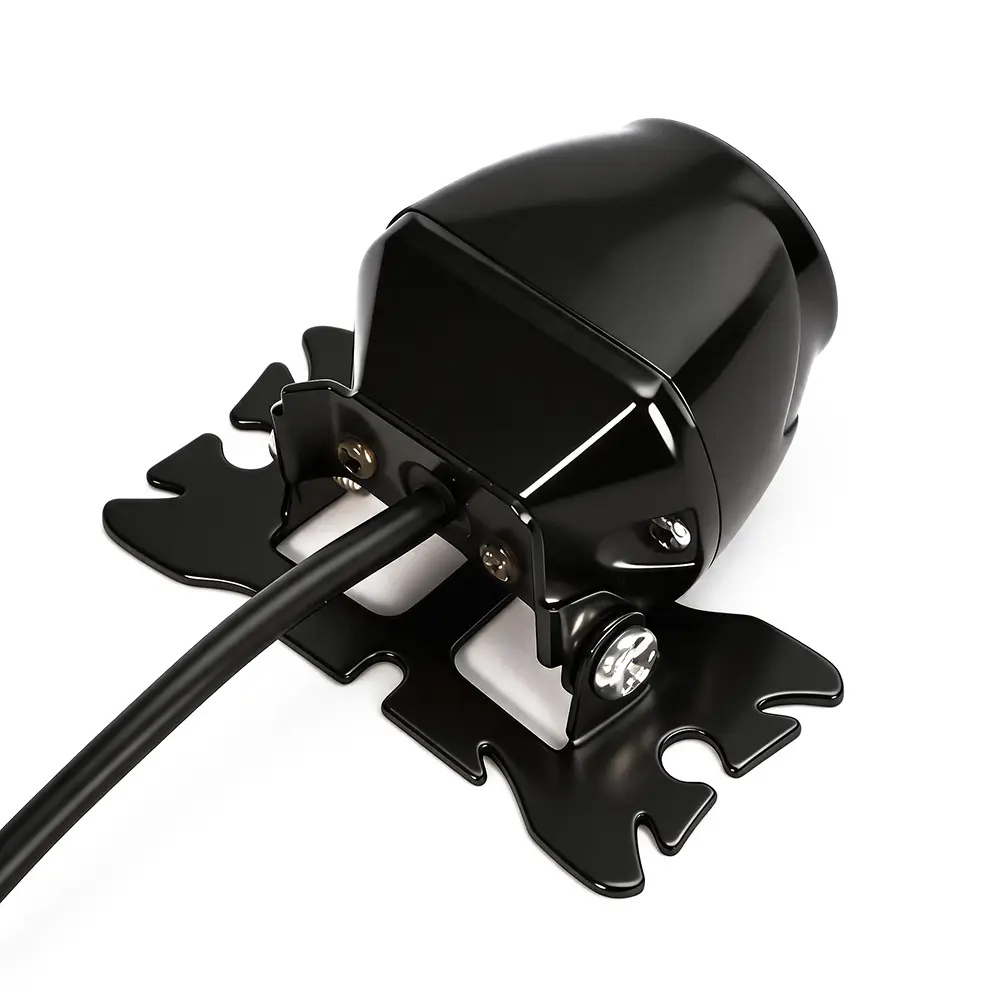

| Installation Method | 3M adhesive tape / Self-tapping screws (dual optional installation) |
| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.2KG |
| Standard Waterproof Grade | IP67 |
| Custom Optional Configuration | IP69K waterproof, 180° non-vignetting ultra-wide lens |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | 2MP Starlight Dual Resolution Imaging | Equipped with high-performance 1/2.9" starlight CMOS sensor, supports switchable 1080P/720P resolution. Restores real and vivid scene colors day and night without infrared color distortion. |
| 2 | Smart Adaptive Exposure Algorithm | Automatically adjusts picture brightness facing strong sunlight, headlight glare and backlight environment, effectively avoiding video overexposure for smooth consistent monitoring images. |
| 3 | Stable High Temperature Resistance | Maintains stable black level under long-time high-temperature working environment inside vehicles; no vertical stripes or abnormal bright spots appear in monitoring videos. |
| 4 | Vehicle-Grade Anti-Vibration Structure | Built-in reinforced shockproof internal structure adapts to bumpy roads and frequent vehicle vibration, ensuring jitter-free video output during driving. |
| 5 | Dual Easy Installation Solutions | Support sticker quick installation and screw firm installation, meeting hidden installation and fixed installation requirements for different vehicle positions. |
| 6 | Dual Waterproof Grade Optional | Standard IP67 waterproof copes with daily rain and dust; upgraded IP69K waterproof supports high-pressure water washing, suitable for sanitation vehicles and engineering vehicles. |
| 7 | Optional 180° No-Vignetting Wide Lens | Customizable 180° ultra-wide viewing angle lens with no edge vignetting and no image distortion, maximizing monitoring range and eliminating dead monitoring angles. |
| 8 | Ultra-Low Power Consumption | Only 80mA working current under DC12V power supply, low power loss, more energy-saving for 24-hour long-term uninterrupted onboard monitoring. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization System | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-Exposure | |
| Night Vision Configuration | IR LED Quantity | None (pure true-color video output) |
| Viewing Angle Parameter | DFOV (Diagonal View Angle) | 110° |
| HFOV (Horizontal View Angle) | 85° | |
| VFOV (Vertical View Angle) | 48° | |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Power Consumption | 80mA @ DC 12V | |
| Environmental Resistance | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |

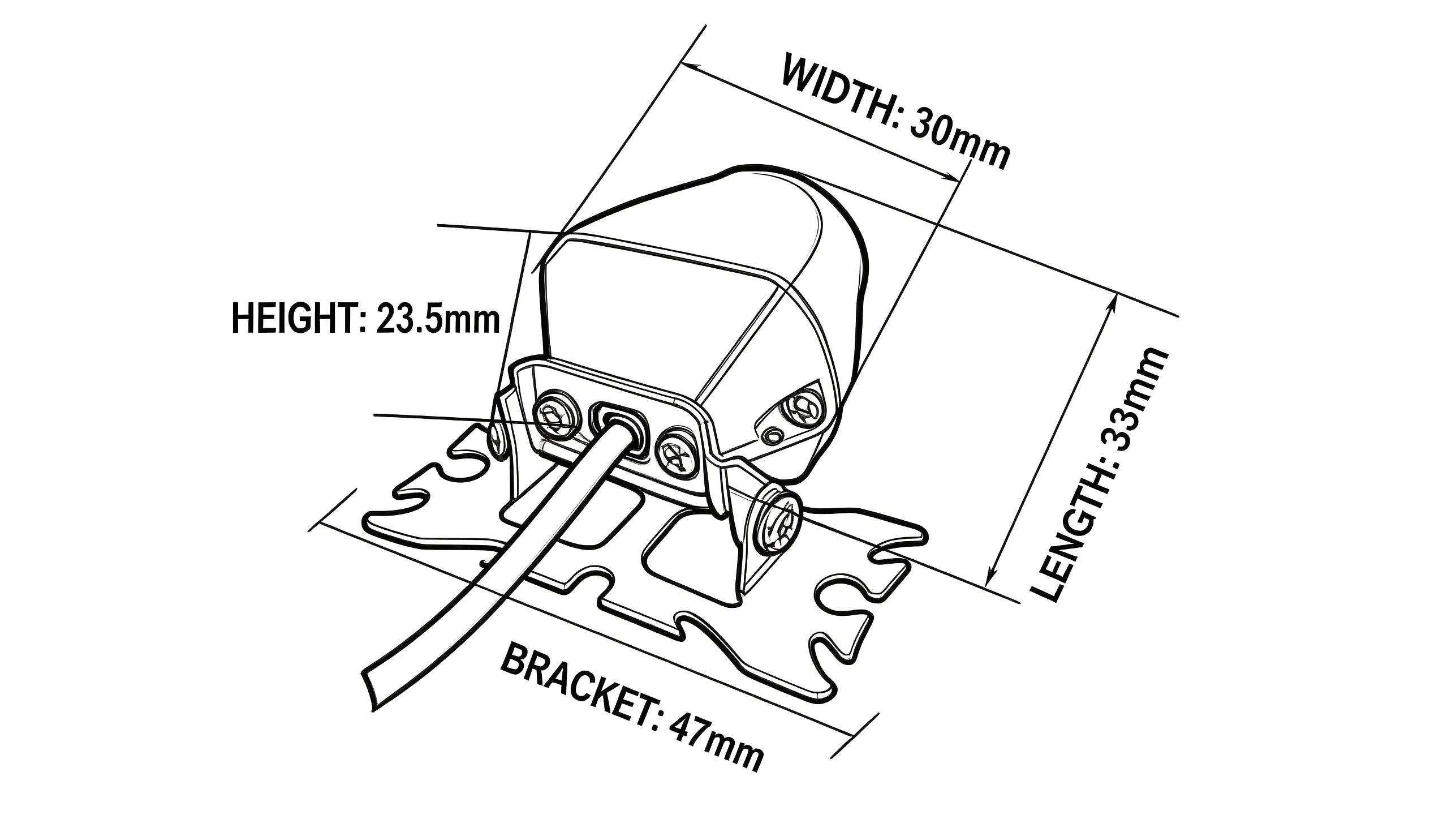

| Dimension Item | Size (mm) |
|---|---|
| Product Length | 33mm |
| Product Width | 30mm |
| Product Height | 23.5mm |
| Mounting Bracket Size | 47mm |
This mini compact exterior vehicle camera is widely suitable for trucks, sanitation vehicles, construction machinery, buses, logistics fleets and other commercial vehicles. It fits narrow hidden installation positions perfectly, ideal for reversing auxiliary monitoring, exterior real-time road monitoring and fleet long-term driving recording, especially matching vehicle projects requiring true-color video without infrared light interference.
