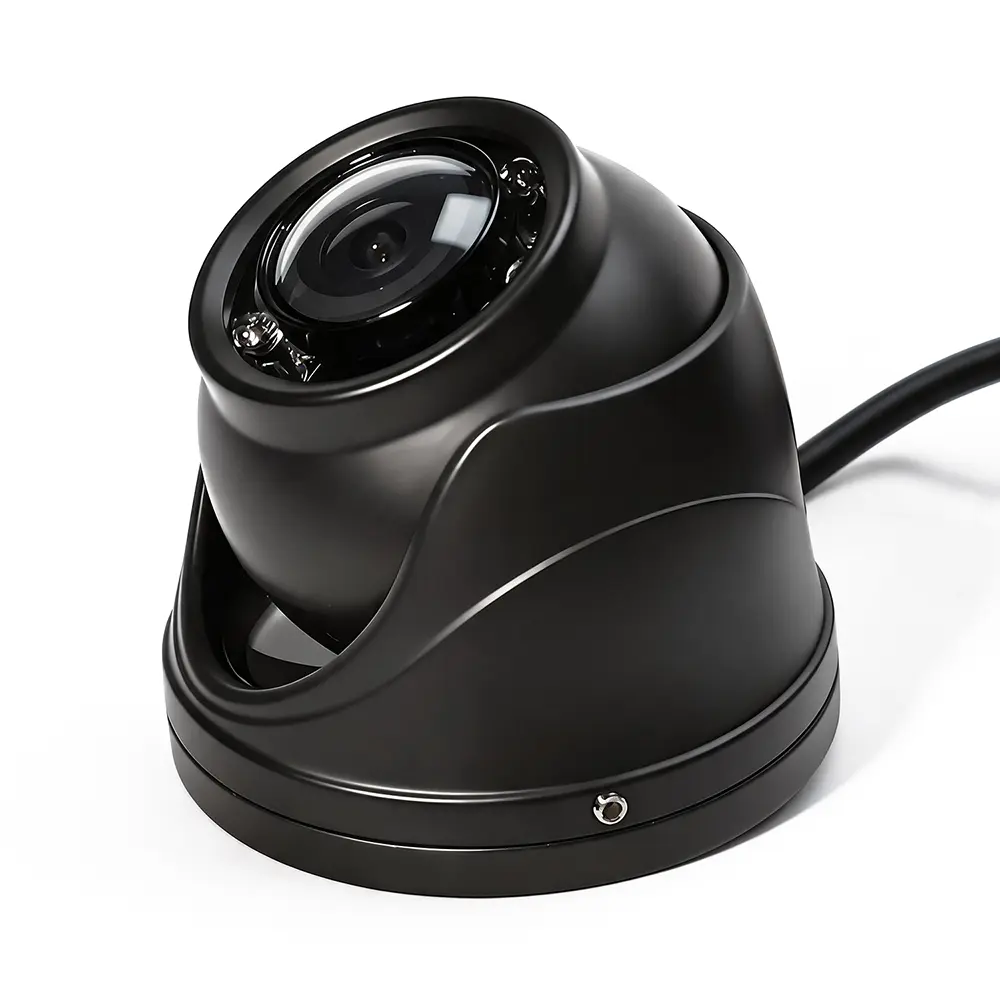

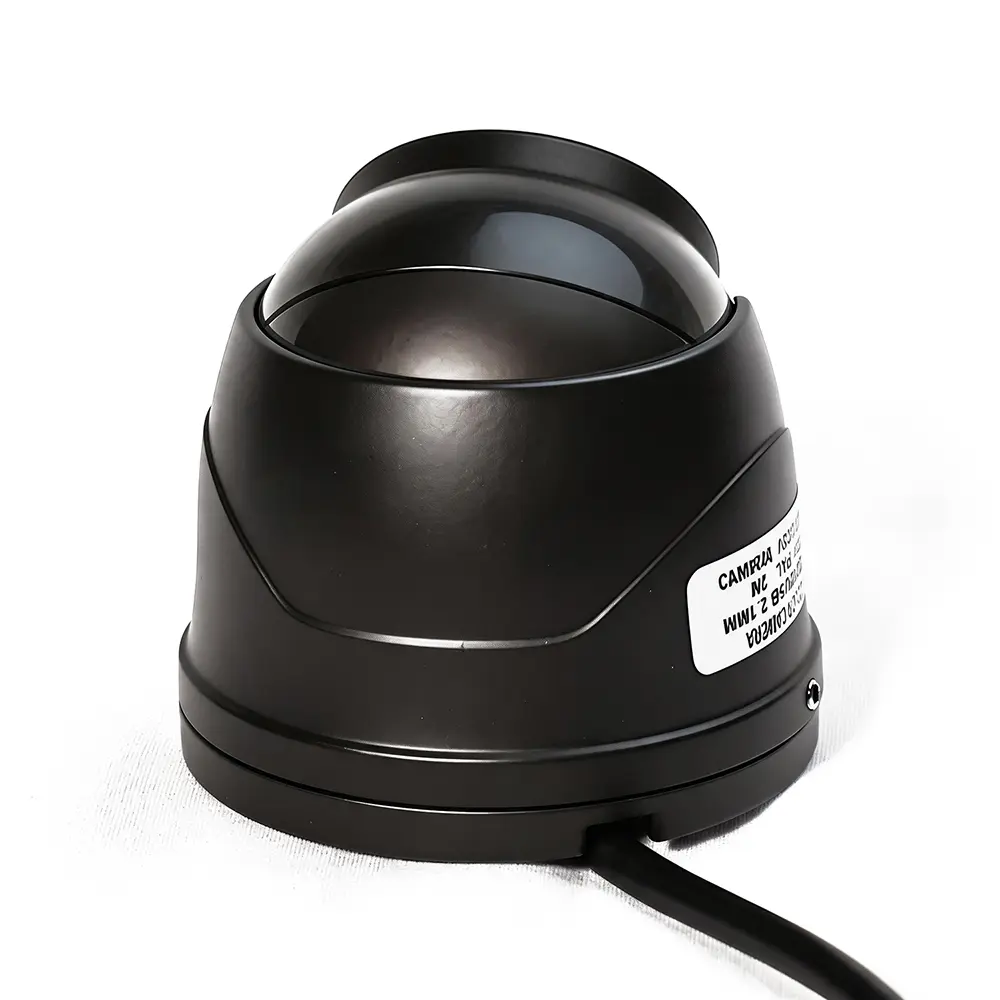

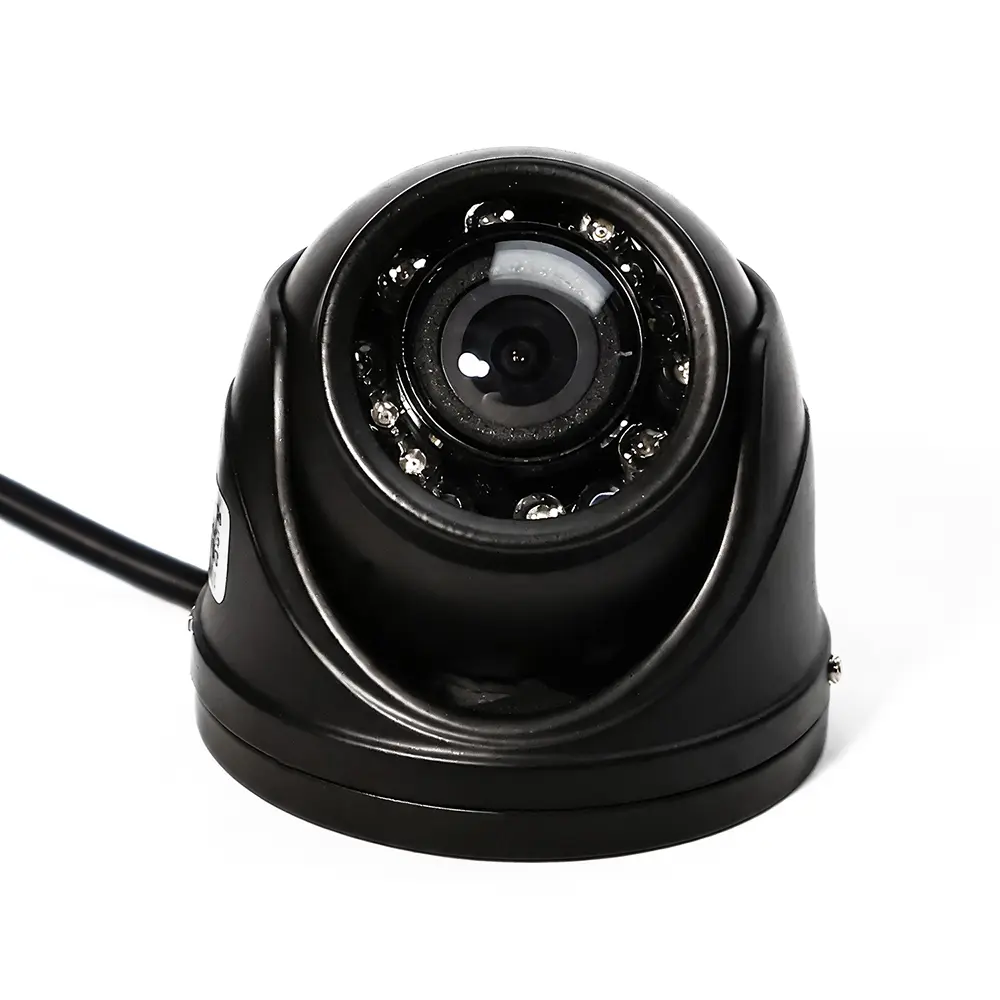

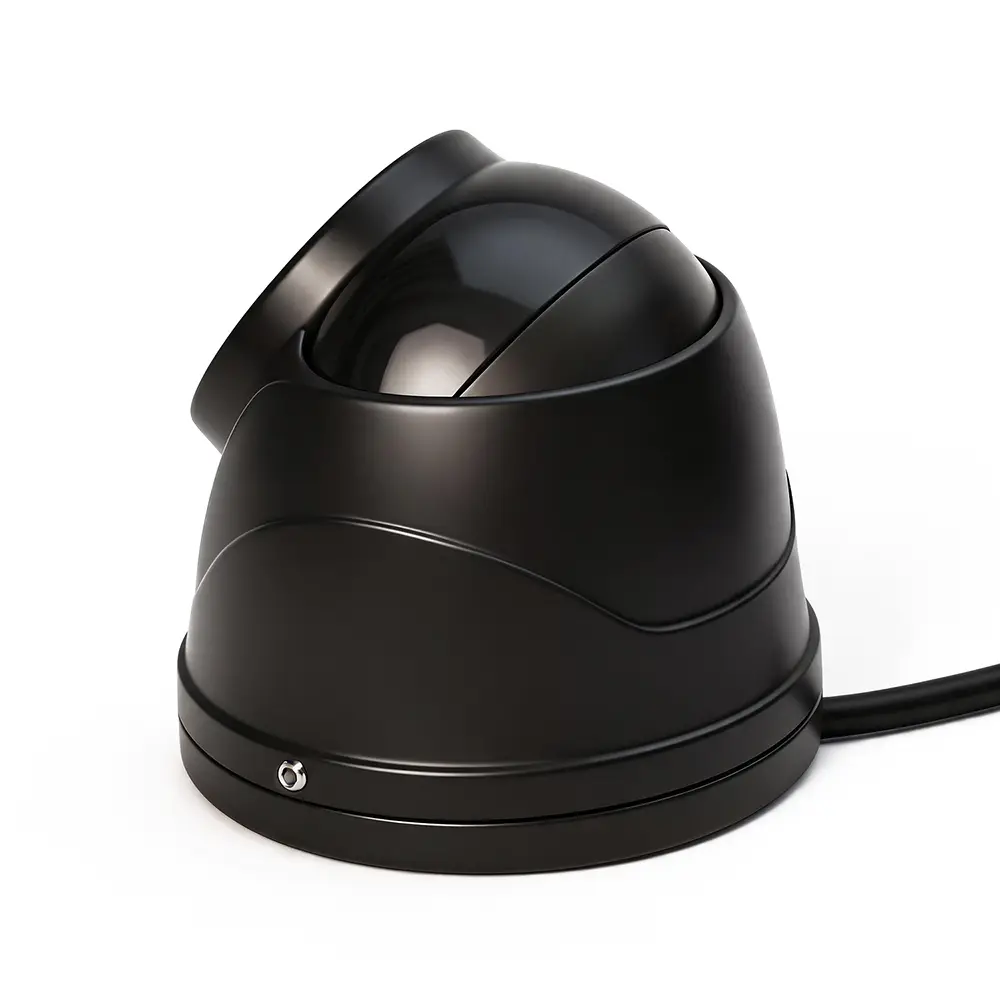

The XY-N8812USB is a professional industrial-grade vehicle-mounted USB high-definition camera, tailor-made for vehicle monitoring and intelligent recognition scenarios. Equipped with a 2MP star-level CMOS sensor and 12 low-power infrared LEDs, it achieves clear 1080P full HD imaging and excellent star-level night vision performance. Adopting advanced digital exposure technology and automatic white balance, it adapts to various complex light environments on the road.
With 4V-6V wide voltage compatibility, high shock resistance and excellent temperature stability, this aluminum alloy camera can operate stably in harsh vehicle environments. It features low power consumption, anti-tampering structure and standard USB 2.0 UVC plug-and-play design for easy installation and use. Optimized for behavior recognition, it is a high-stability and cost-effective monitoring solution for various vehicle equipment and intelligent fleet systems.
| Item | Details |
|---|---|
| Product Model | XY-N8812USB |
| Product Type | 1080P Star-level Vehicle-Mounted USB HD Camera |
| Core Application | Vehicle real-time monitoring, intelligent vehicle behavior recognition |
| Housing Material | Aluminum Alloy |
| Appearance Color | Grey |
| Installation Method | Fixed with self-tapping screws |
| Main Interface | USB 2.0 |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Star-level Full HD Day & Night Imaging | Adopts high-performance 2-megapixel star-level full HD CMOS image sensor, with 2 million effective pixels per frame. It delivers ultra-high definition and delicate imaging effects both in bright daytime and dim night environments. |
| 2 | Adaptive Digital Exposure Technology | Built-in advanced digital exposure system, which automatically adjusts imaging parameters to maintain stable and excellent image quality under complex conditions of variable light and high contrast. |
| 3 | Stable High Temperature Resistance | Possesses outstanding environmental temperature adaptability. The image dark level remains stable during long-term high-temperature operation, without vertical black stripes or bright white lines in night vision mode. |
| 4 | Vehicle-Specific Shockproof & Wide Voltage Design | Features high shock resistance, adapting to bumpy vehicle driving environments. With a 4V-6V wide working voltage range, it is professionally customized for special vehicle monitoring scenarios. |
| 5 | Dual Resolution Optional Specification | Standard 1080P star-level imaging specification, supporting optional 720P resolution to meet different definition and bandwidth usage requirements. |
| 6 | Standard USB 2.0 Transmission | Equipped with universal USB 2.0 interface and compliant with UVC protocol, featuring plug-and-play, fast and stable signal transmission, simple connection and strong compatibility. |
| 7 | Low Power & Energy Saving | Adopts low-current and low-power consumption circuit design, which effectively reduces vehicle power consumption and realizes energy-saving and durable operation. |
| 8 | Anti-Tampering Safety Structure | Comes with professional anti-tampering screw design, which prevents accidental disassembly and damage, improving the overall safety and service life of the equipment. |
| 9 | Strict Quality & Stable Performance | All products adopt high-quality components from well-known international brands and pass strict factory aging tests, ensuring consistent quality, ultra-low failure rate and long-term stable operation. |
| 10 | Optimized for Behavior Recognition | The imaging algorithm is specially optimized for vehicle personnel behavior recognition scenarios, with clearer picture details and higher recognition accuracy than ordinary cameras. |

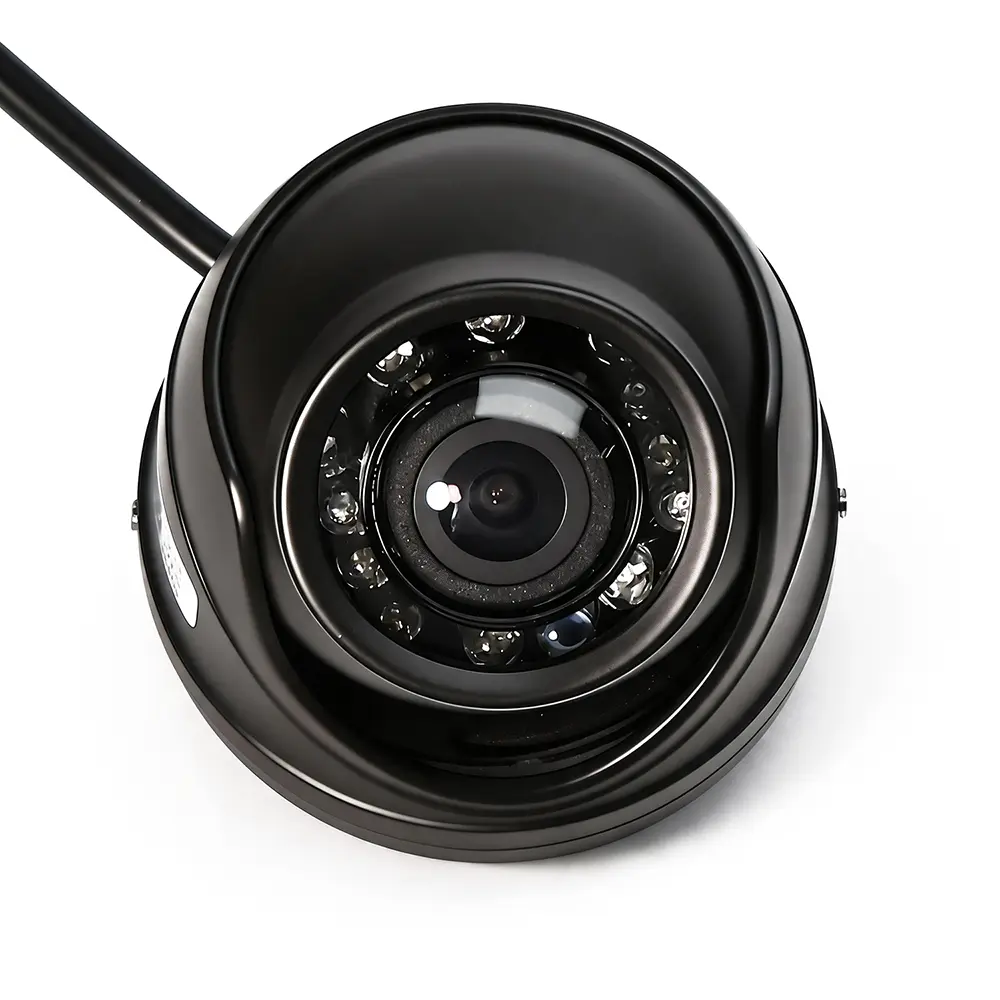

| 11 | Fog-proof & Stable Night Vision | Built with 12 low-power infrared LED lights, supporting outdoor infrared night vision monitoring. The anti-fog and shockproof design perfectly solves common problems of ordinary vehicle cameras such as unstable image quality and gradual blurring after long-term use. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging Parameters | Image Sensor | 1/2.9" CMOS |
| Signal System | NTSC | |
| Effective Resolution | 1080P (720P optional) | |
| Frame Rate | 30 fps | |
| Minimum Illumination | 0.001 LUX/F1.2 | |
| White Balance | Automatic White Balance | |
| Electronic Shutter | Automatic | |
| Signal-to-Noise Ratio | ≥50dB | |
| Hardware & Protocol | Processing Protocol | USB 2.0, UVC Protocol |
| Video Output | USB 2.0 | |
| Lens Specification | 2.1mm In-vehicle Professional Lens | |
| Electrical Parameters | Standard Operating Voltage | DC 5V |
| Working Voltage Range | DC 4V - 6V | |
| Environmental Resistance | Operating Temperature & Humidity | -10°C ~ +60°C, RH 65% |
| Storage Temperature | -20°C ~ +80°C | |
| Functional & Accessories | IR Cut Filter Mode | Controlled by external infrared lights |
| Cable Length | 3-meter USB Cable | |
| Custom Function | Horizontal Mirror (Customizable) | - |
| Performance Dimension | Detailed Information |
|---|---|
| Environmental Adaptability | Anti-fog, Shockproof, Wide voltage compatible, High and low temperature resistant |
| Core Product Strengths | Star-level night vision, ultra-low illumination imaging, low power consumption, anti-tampering design, high signal-to-noise ratio |
| Professional Optimization | Specially optimized for vehicle personnel behavior recognition, higher recognition accuracy |
| Quality Guarantee | International brand components + strict aging test, stable and durable |
| Applicable Scenarios | All kinds of vehicle monitoring, fleet safety management, intelligent behavior recognition system |
