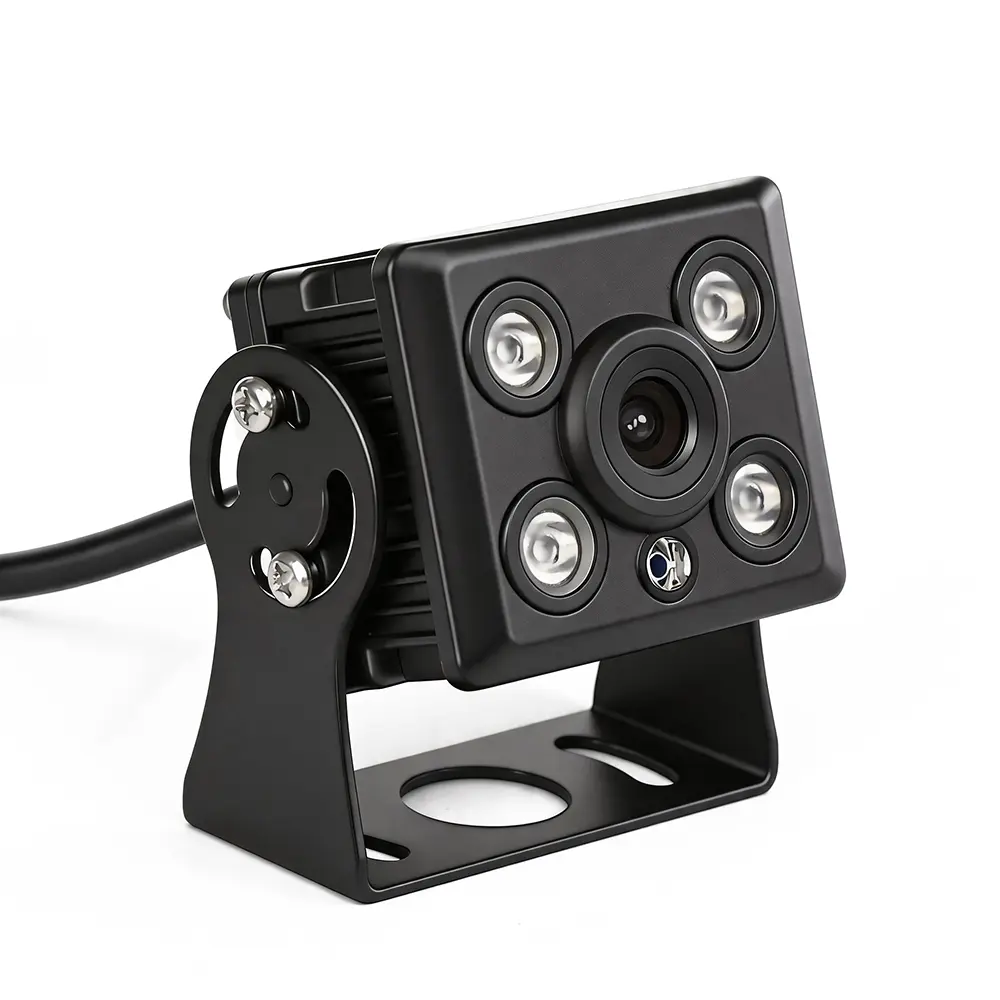

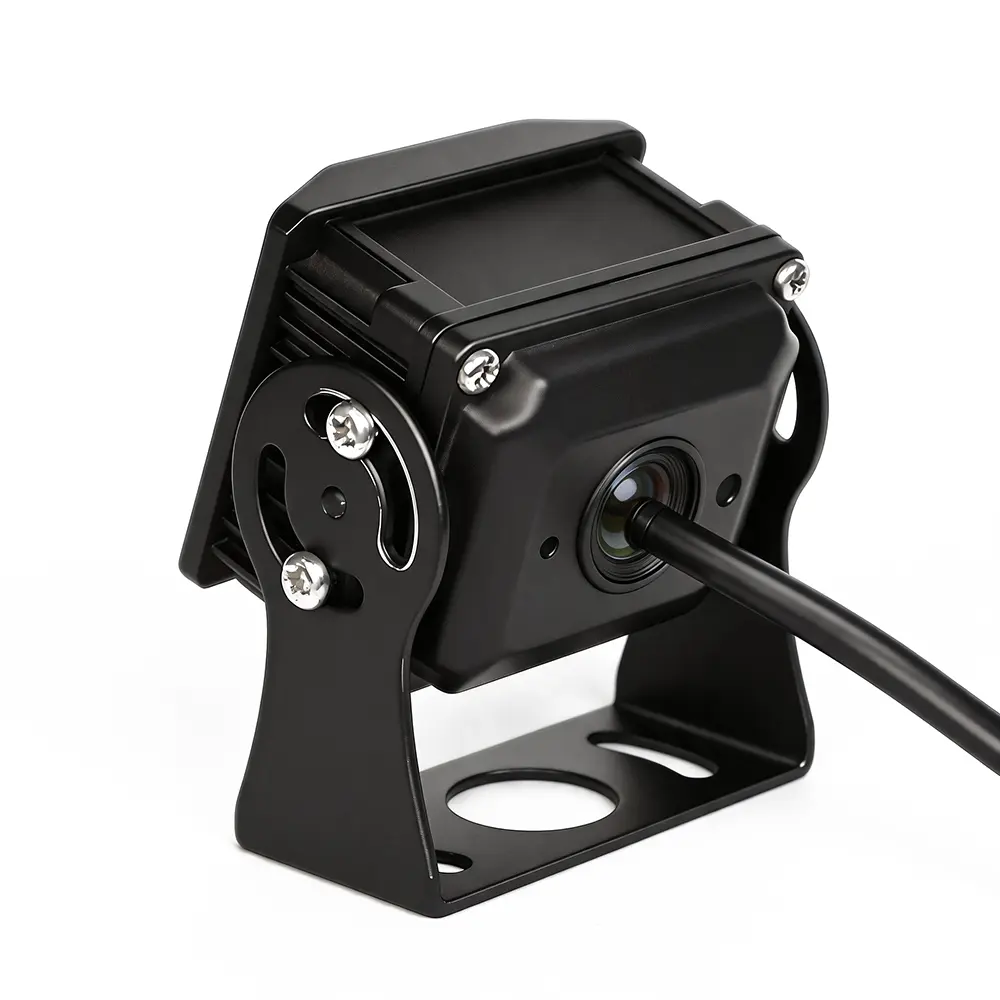

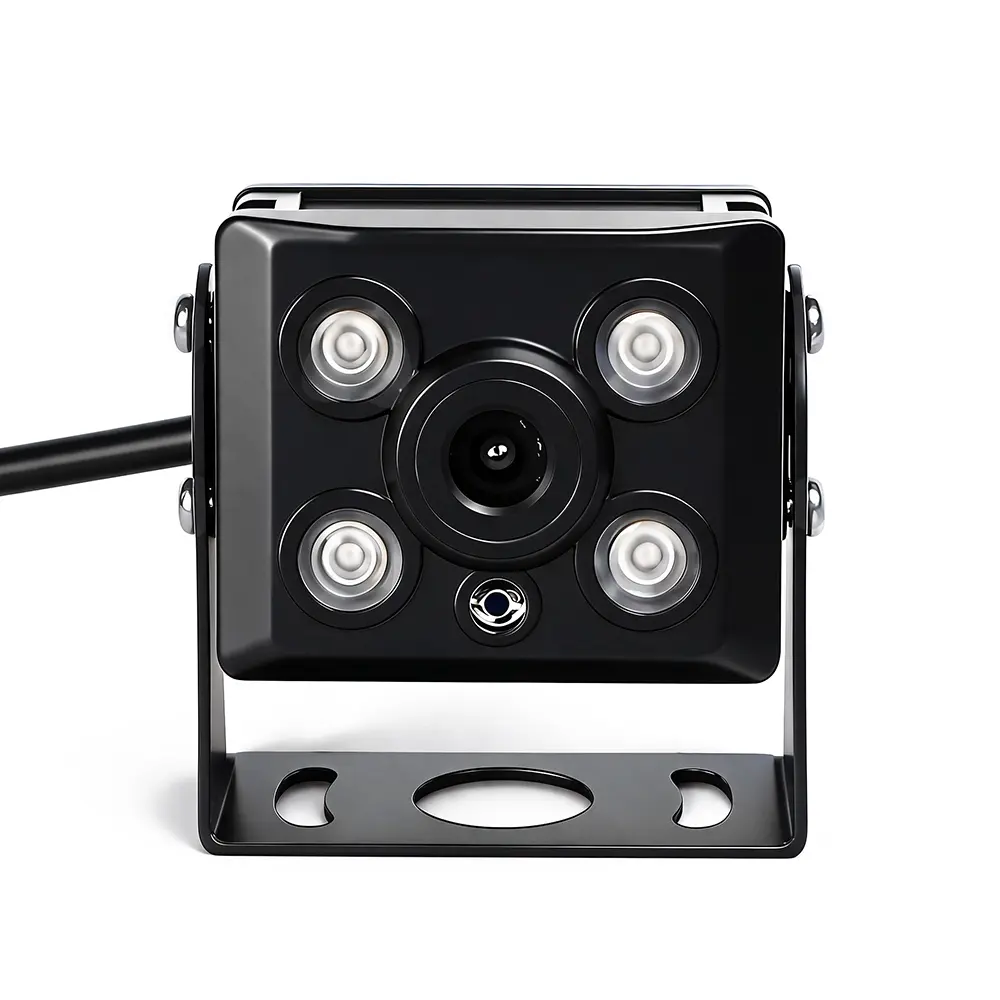

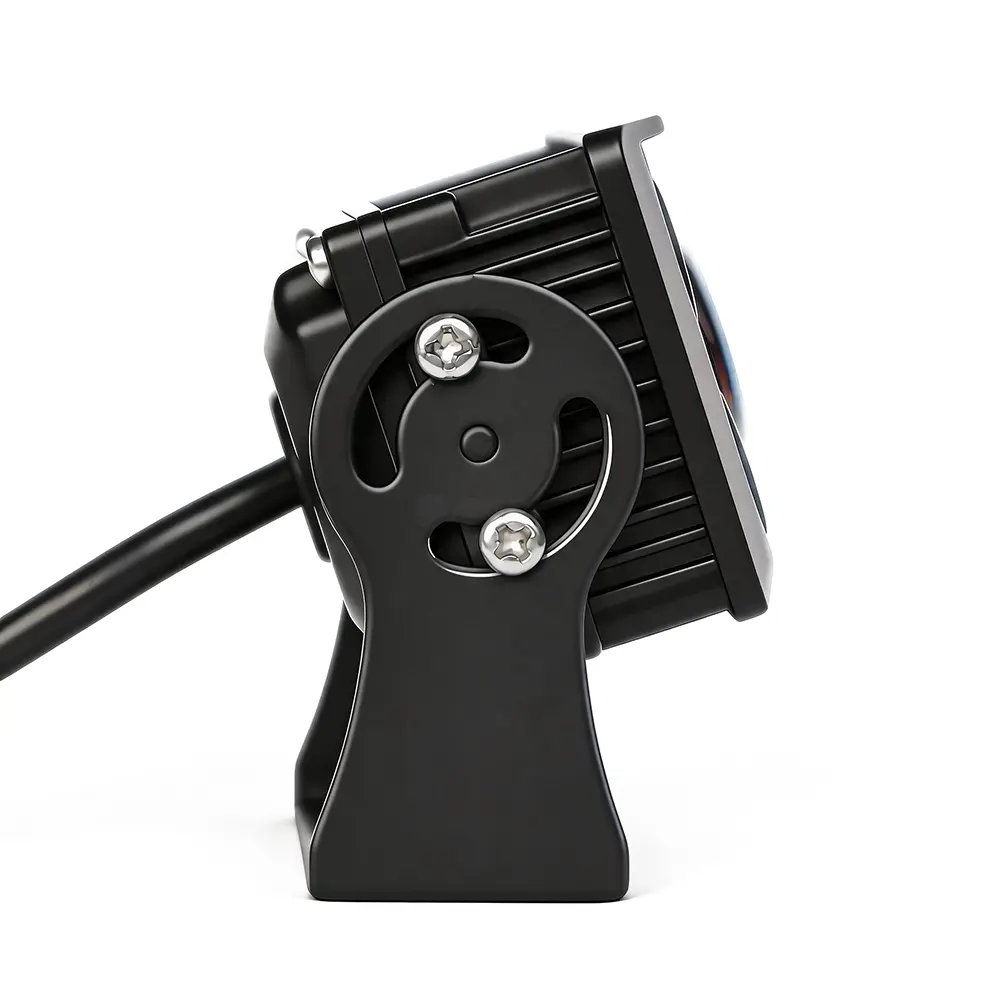

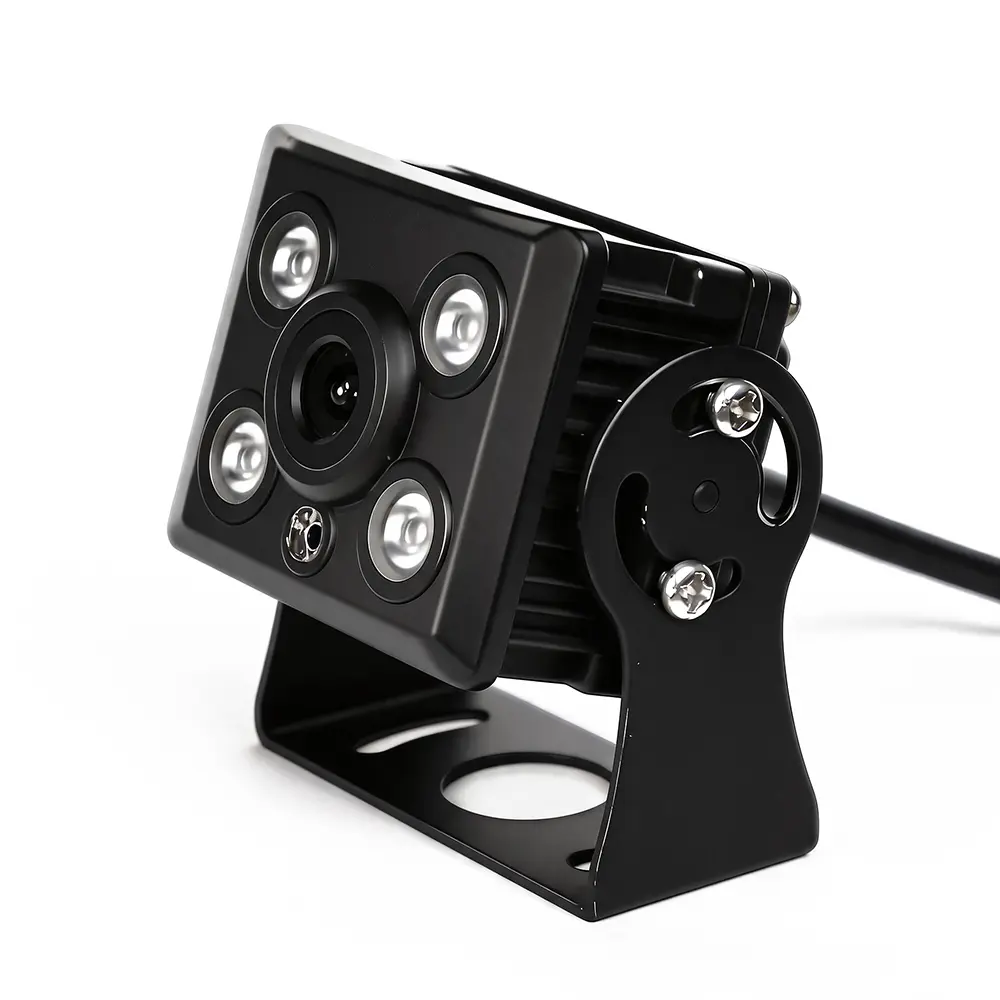

XY-DSM361 is a professional AHD in-vehicle camera specially optimized for DMS (Driver Monitoring System). Adopting starlight-level imaging sensor, invisible dot-matrix infrared night vision design, paired with shockproof, anti-fog and DC12V wide voltage performance, this camera fixes common defects of ordinary vehicle cameras including unstable image output and gradual picture blurring after long-time driving. With customized image algorithm for driver behavior recognition and IP67 waterproof rating, it offers non-intrusive in-cabin monitoring without dazzling drivers, perfectly matching commercial vehicle driver fatigue monitoring and distraction detection projects.
| Item | Details |
|---|---|
| Product Model | XY-DSM361 |
| Product Type | DMS In-Vehicle Driver Behavior Recognition Camera |
| Housing Material | Aluminum Alloy |
| Appearance Color | Black |
| Installation Method | Fixed with self-tapping screws |
| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.4KG |
| Waterproof Grade | IP67 |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | 2MP Starlight Dual Resolution Imaging | Built-in high-performance 1/2.9" starlight CMOS sensor, supports switchable 1080P/720P dual resolution. Delivers high-definition and delicate facial images day and night for accurate driver monitoring. |
| 2 | Smart Digital Exposure Technology | Automatically adapts to sudden light changes and high-contrast light environments inside the car, avoiding picture overexposure or underexposure and keeping stable imaging effect. |
| 3 | Excellent High Temperature Stability | Maintains stable picture dark level under long-term high temperature inside vehicle cabin. No vertical black stripes or stray bright lines appear during infrared night vision working. |
| 4 | Vehicle-Grade Shockproof & Wide Voltage | Reinforced shockproof internal structure resists vehicle bump and vibration. Matches standard DC12V vehicle power supply, adapting to unstable onboard power environment. |
| 5 | 4pcs Invisible Dot-Matrix IR LEDs | Adopts invisible dot-matrix infrared fill lights, achieving hidden night vision monitoring. No dazzling red light to disturb drivers during night driving, more humanized for in-cabin use. |
| 6 | DMS Algorithm Special Optimization | Image processing algorithm is specially calibrated for driver fatigue detection, phone use detection and distraction recognition, greatly improving DMS system recognition accuracy. |
| 7 | IP67 Waterproof & Anti-Fog Design | IP67 waterproof housing plus anti-fog lens effectively prevents lens fogging caused by temperature difference inside the car, ensuring long-term clear monitoring without picture blur. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization System | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-Exposure | |
| Night Vision | IR LED Quantity & Type | 4pcs, Invisible Dot-matrix Infrared Lights |
| Viewing Angle | DFOV (Diagonal View Angle) | 65° |
| HFOV (Horizontal View Angle) | 56° | |
| VFOV (Vertical View Angle) | 31° | |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical | Working Voltage | DC 12V |
| Power Consumption | 250mA @ DC 12V | |
| Environmental | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |

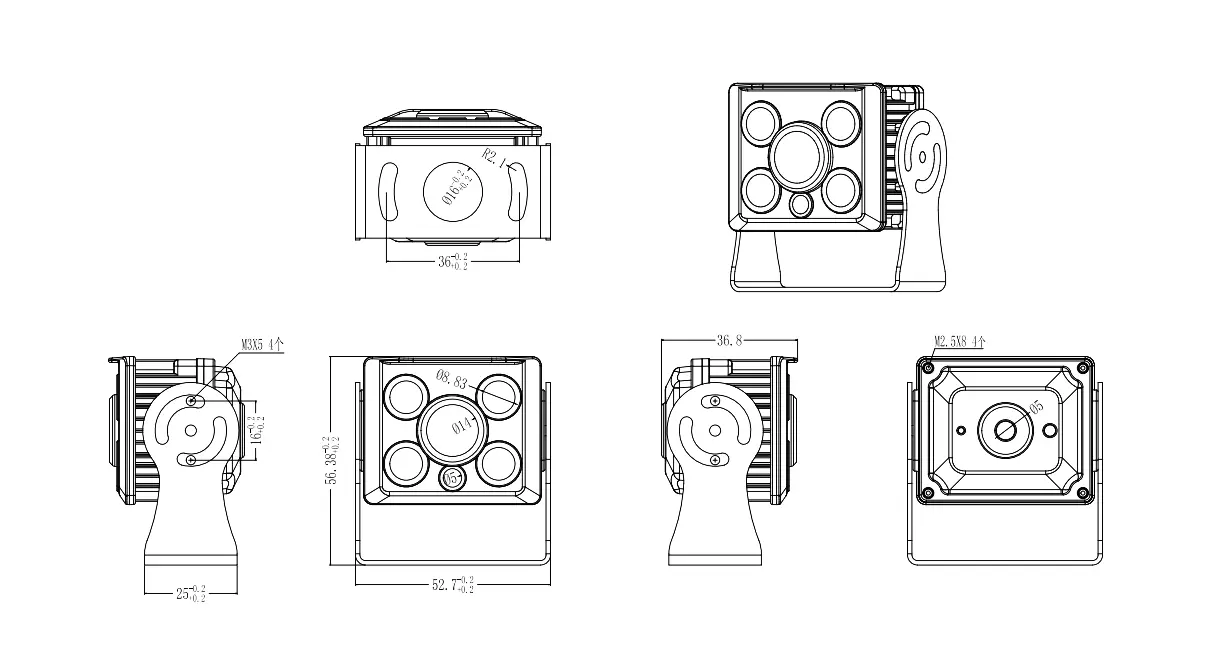

| Dimension Item | Specification |
|---|---|
| Main Product Size | 36.8mm, 52.72mm, 88.99mm |
| Matching Mounting Screw 1 | M2.5×8, 4pcs |
| Matching Mounting Screw 2 | M3×5, 4pcs |
This dedicated DMS in-vehicle camera is mainly applied to buses, trucks, logistics vehicles, taxis and various commercial vehicles. It focuses on driver status monitoring, including driver fatigue detection, distracted driving identification, phone calling monitoring and other in-cabin safety monitoring scenarios, perfectly matching fleet intelligent monitoring management systems.
