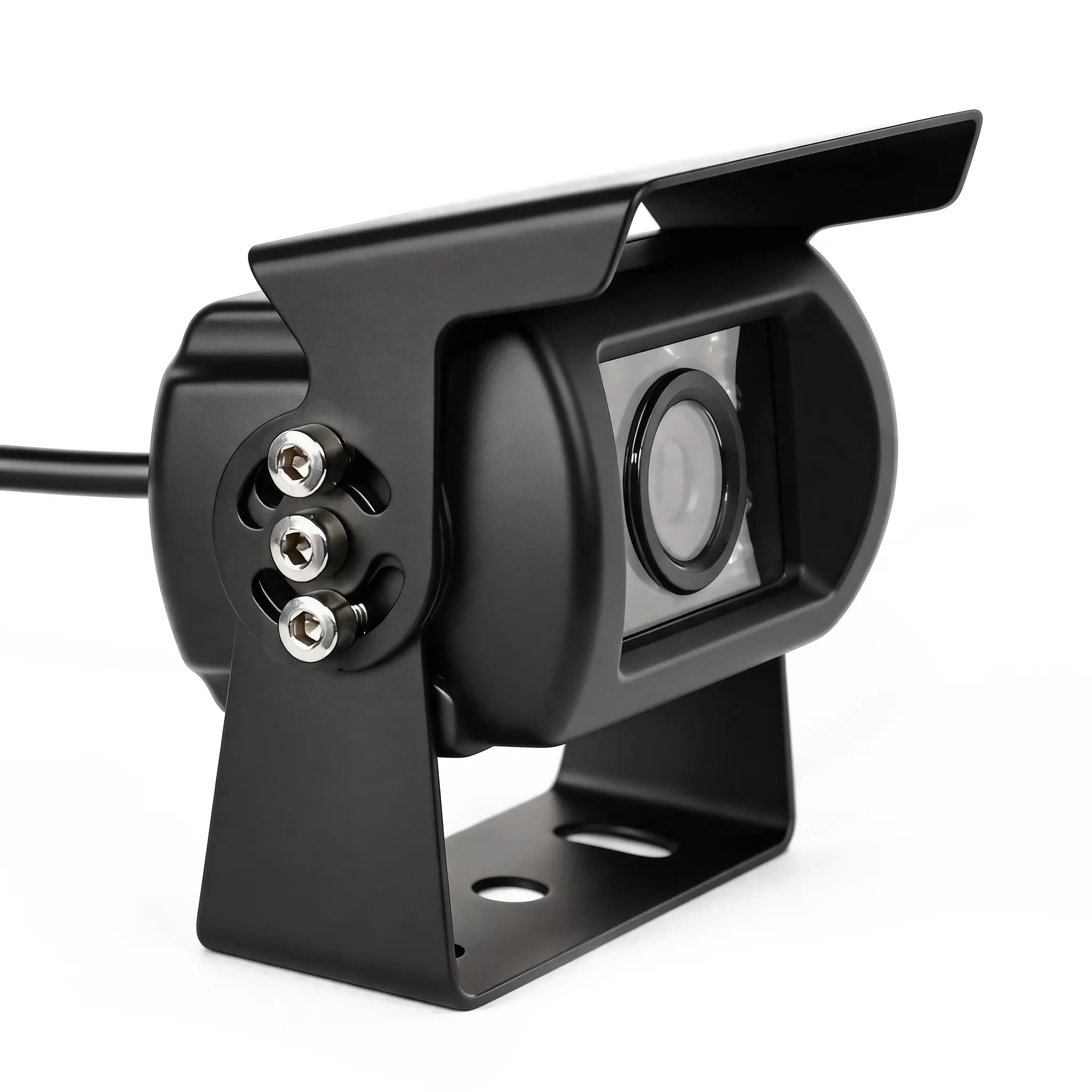

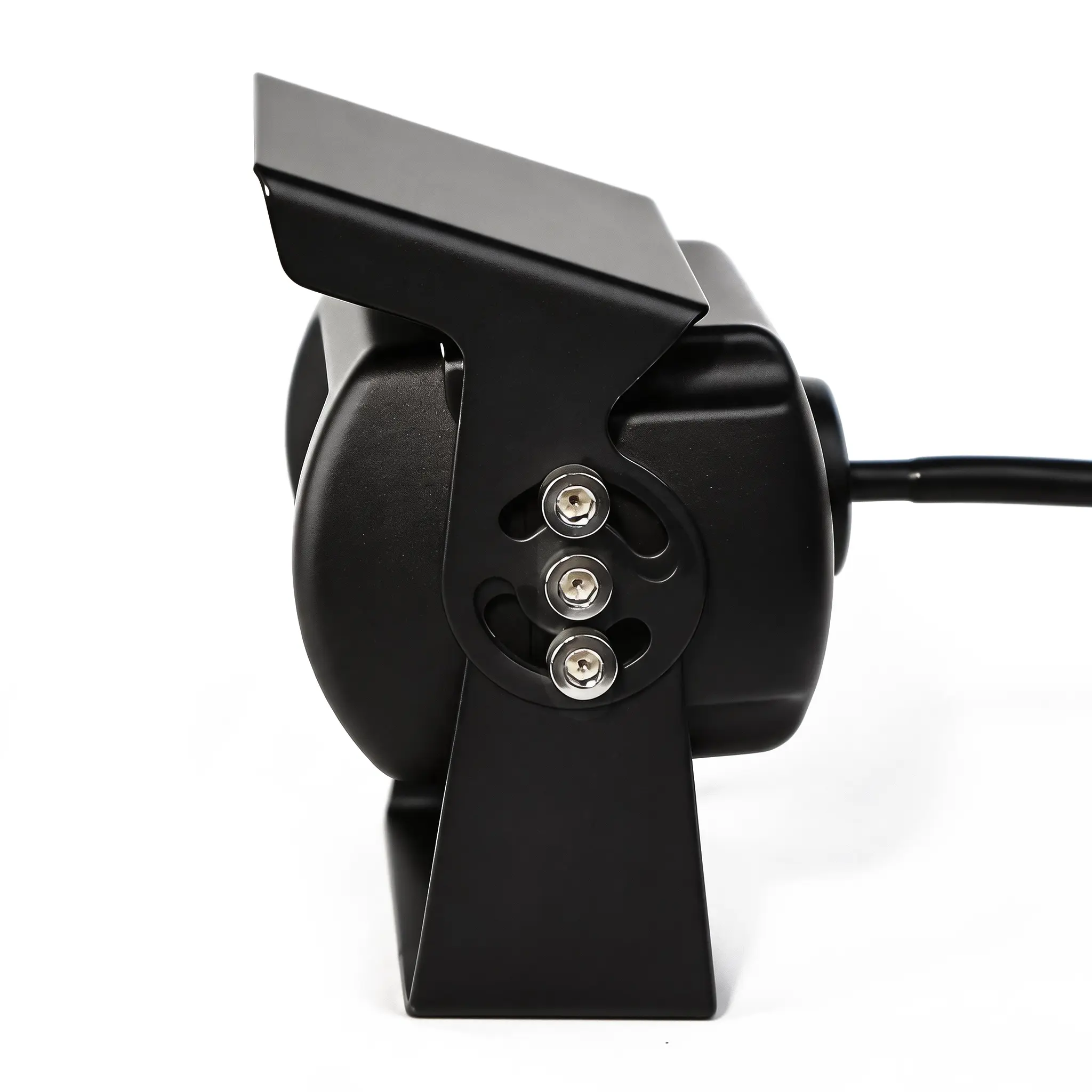

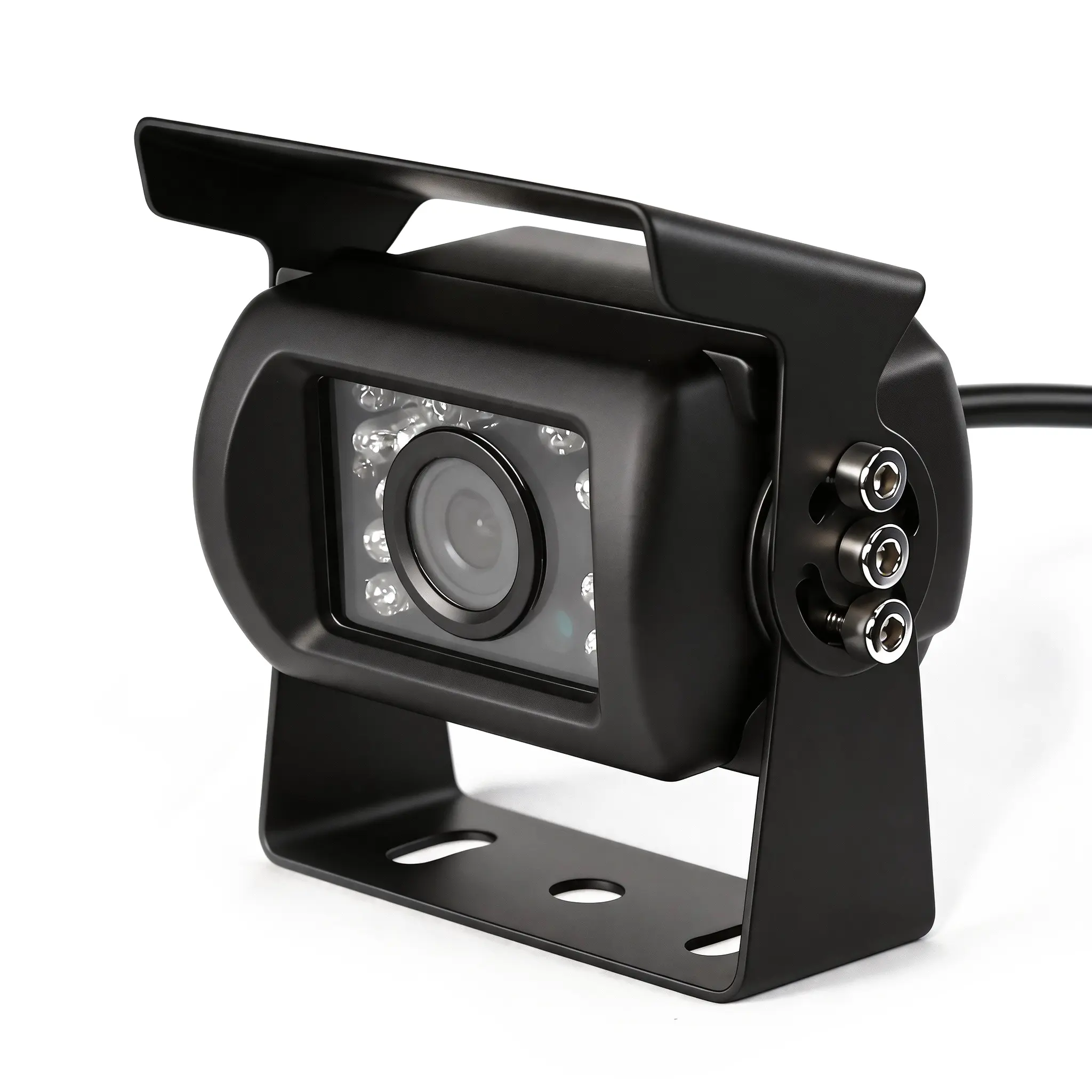

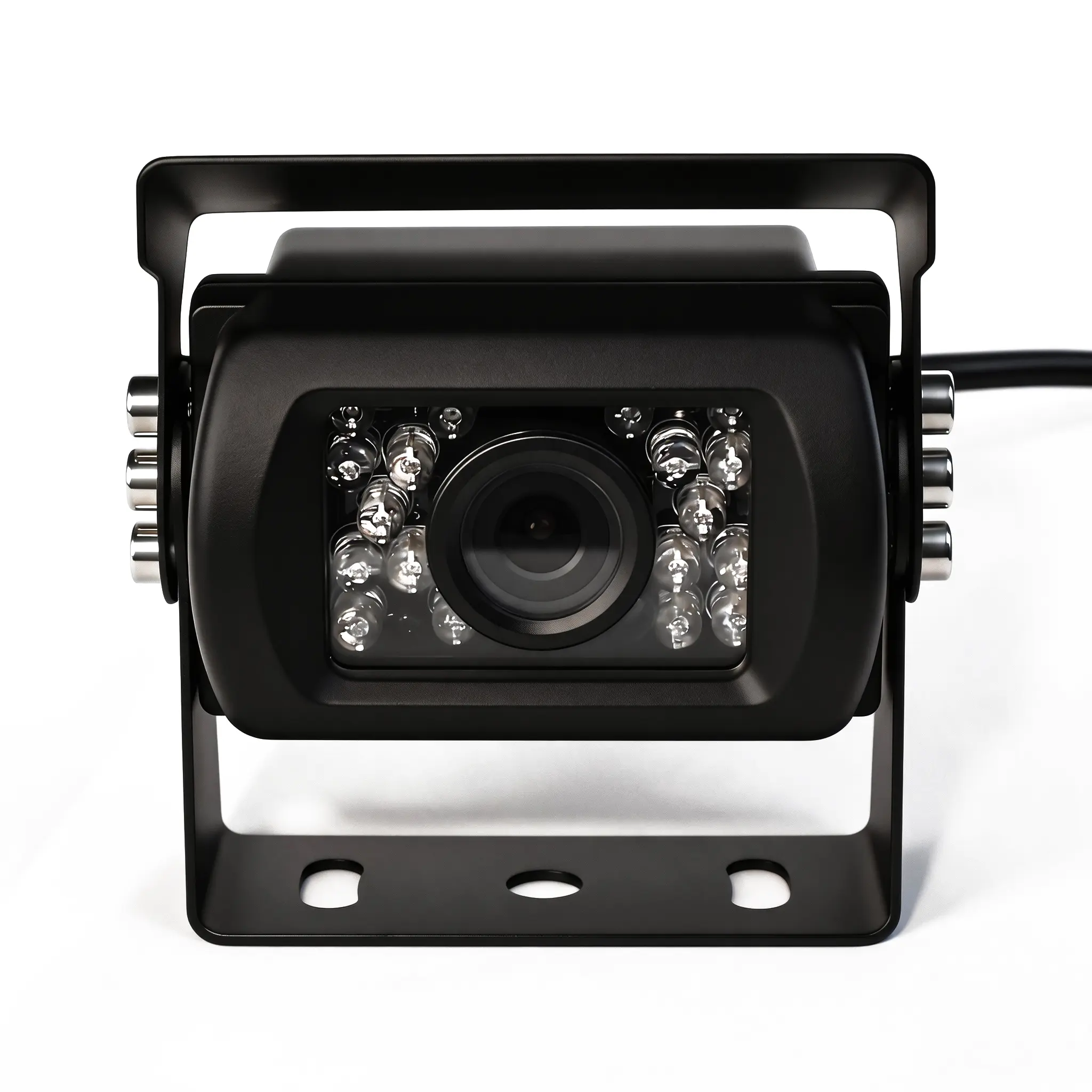

The XY-FS750 STM-750-1080P IPC is a professional industrial-grade vehicle-mounted camera designed for complex vehicle operation environments. Equipped with high-performance CMOS sensor and upgraded Smart HDR algorithm, it solves various imaging problems of traditional vehicle cameras. With industrial zinc alloy housing, shockproof and wide-voltage design, and excellent temperature resistance, this camera maintains stable and high-definition imaging effect all day long. It is easy to install and highly adaptable, being the ideal monitoring equipment for various engineering vehicles, commercial vehicles and special vehicles.
| Item | Specification |
|---|---|
| Product Name | 1080P Full HD Vehicle-Mounted IPC Camera |
| Model | XY-FS750 / STM-750-1080P IPC |
| Product Type | Industrial Vehicle Monitoring Network Camera |
| Application Scenarios | Engineering vehicles, excavators, agricultural vehicles, school buses, trucks and various commercial vehicles |
| Housing Material | Zinc Alloy |
| Color | Black |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Full HD Imaging & Star-Level Night Vision | Adopts 2-megapixel full HD CMOS image sensor with 1920×1080 effective resolution. Equipped with 18 low-power infrared LEDs to support outdoor star-level infrared night vision. Features fog-proof, shockproof and wide-voltage performance, effectively solving common defects of ordinary vehicle-mounted cameras such as unstable image quality and gradual blurring after long-term use. |
| 2 | Professional Digital Exposure Technology | Built-in brand-new digital exposure function, which can present excellent and stable image effects under variable lighting conditions and high-contrast complex environments. |
| 3 | Superior Temperature Resistance | Possesses outstanding high and low temperature resistance. The dark level of the image remains stable even at high operating temperatures, without vertical black bars or bright white lines in night vision mode. |
| 4 | Vehicle-Specific Shockproof & Wide Voltage Design | Adopts professional shockproof structure, with a wide voltage range of 10V-15V. It is tailor-made for vehicle monitoring systems, adapting to unstable voltage and bumpy driving environments of vehicles. |
| 5 | Smart HDR Strong Light Suppression | Based on advanced Smart HDR algorithm, it effectively avoids image overexposure caused by vehicle headlights, infrared light and strong sunlight backlight, and retains clear and complete details in dark areas of the picture. |
| 6 | Smart HDR Noise Suppression | Achieves excellent noise reduction performance for static scenes under low illumination. It completely eliminates motion trailing and ghosting for moving scenes, ensuring smooth and clear footage. |
| 7 | Smart HDR Front Light Optimization | Optimizes front light through Smart HDR algorithm to realize uniform picture brightness. It delivers higher definition and more balanced imaging effects than ordinary cameras for both indoor and outdoor vehicle monitoring scenarios. |
| 8 | Smart HDR Low-Light Enhancement | Greatly improves the overall image performance under dim light and starlight conditions, enriching picture details and realizing ultra-clear night vision monitoring. |
| 9 | Anti-Overexposure Lens Design | The lens glass is specially treated, matching the global anti-overexposure mode to fundamentally prevent picture overexposure and ensure stable imaging in complex light. |
| Category | Parameter Item | Specific Parameter |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Effective Pixels | 1920(H) × 1080(V) | |
| Signal System | PAL / NTSC | |
| Frame Rate | 25fps / 30fps | |
| Minimum Illumination | 0.001LUX/F1.2 | |
| Horizontal View Angle | 100° | |
| Imaging Functions | Sync Mode | Internal Synchronization |
| White Balance | Auto White Balance | |
| Electronic Shutter | 1/50(1/60)~1/100000s (Adjustable) | |
| Exposure Mode | Global Anti-overexposure | |
| Backlight Compensation | Automatic | |
| Hardware Configuration | IR LED Quantity | 18pcs Low-power Infrared LEDs |
| Video Output | 1080P Progressive, RJ45+DC | |
| IP Mode | Auto-adaptive IP | |
| Electrical Parameters | Operating Voltage | DC 12V |
| Power Consumption | Approx. 250MA@DC12V | |
| Temperature Resistance | Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -20℃~+80℃ | |

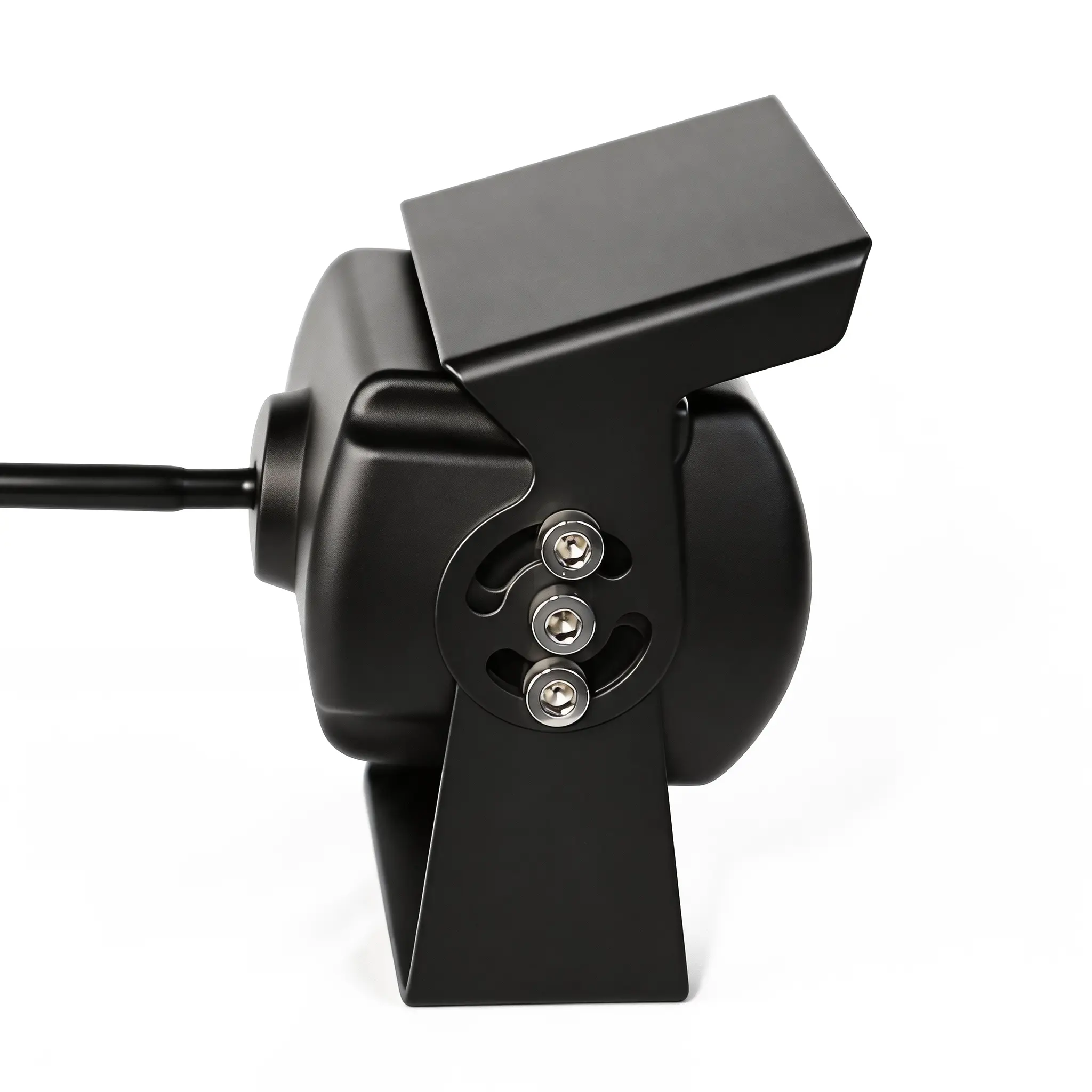

| Installation & Wiring | Installation Method | Top Mounting |
| Cable Length | 60CM | |
| Interface Type | RJ45 + DC Dual Interfaces |
| Pin / Port | Signal Definition |
|---|---|
| 1 | TX+ |
| 2 | TX- |
| 3 | RX+ |
| 6 | RX- |
| DC+ | 12V Positive |
| DC- | GND |
| Performance Dimension | Details |
|---|---|
| Environmental Adaptability | Fog-proof, Shockproof, Wide Voltage Resistant, High & Low Temperature Resistant |
| Core Algorithm Technology | Smart HDR (Strong Light Suppression, Noise Reduction, Low-Light Enhancement, Front Light Optimization) |
| Product Advantages | No image blurring after long-term use, no black bars/white lines in night vision, effective anti-overexposure, ultra-clear day and night imaging |
| Recommended Usage | Vehicle real-time monitoring, fleet safety management, driving video recording, industrial vehicle safety supervision |
