1 / 5
| Item | Details |
| Product Model | XY-FS208 |

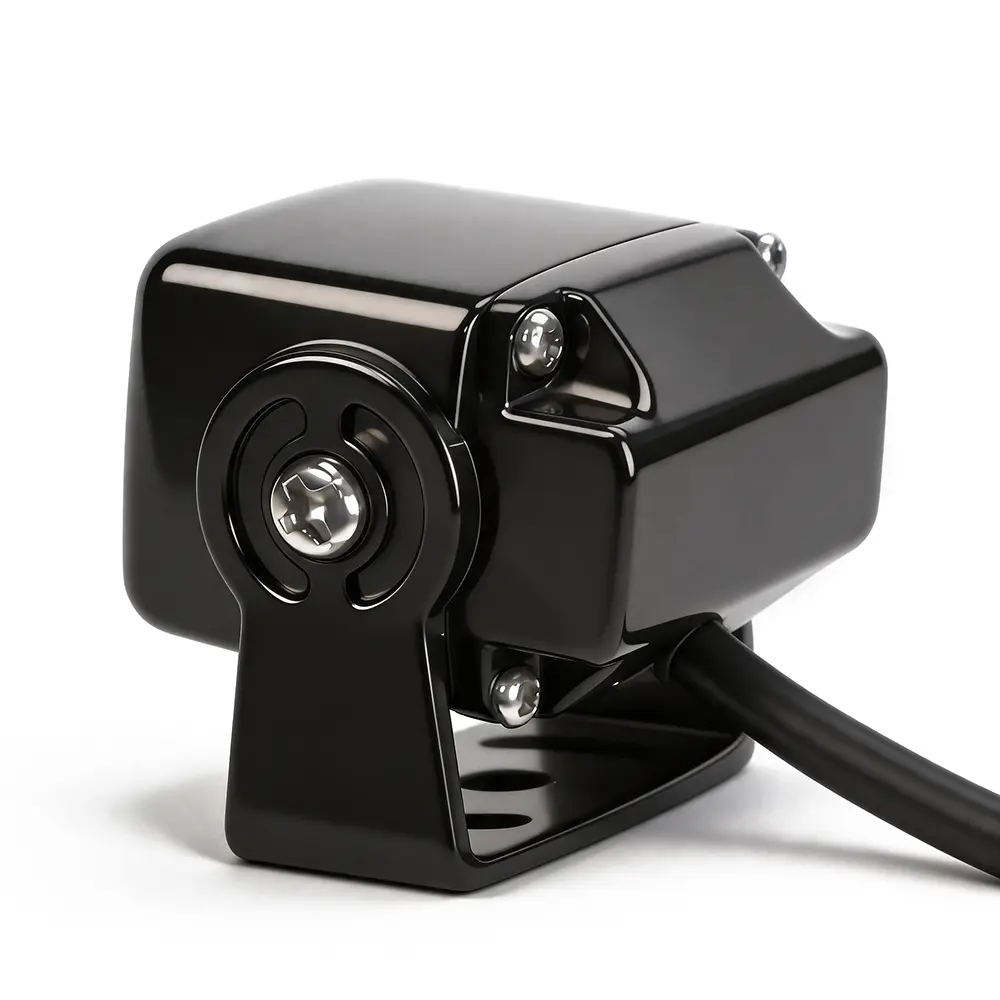

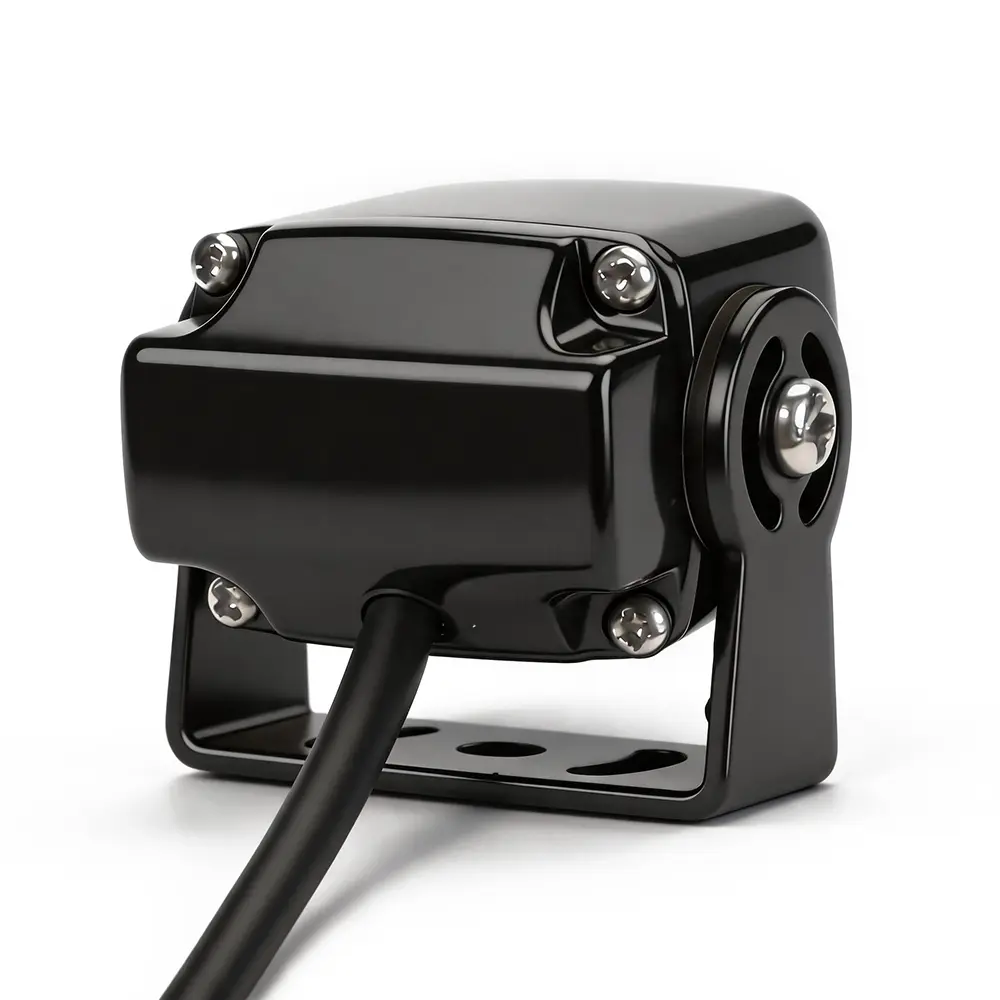

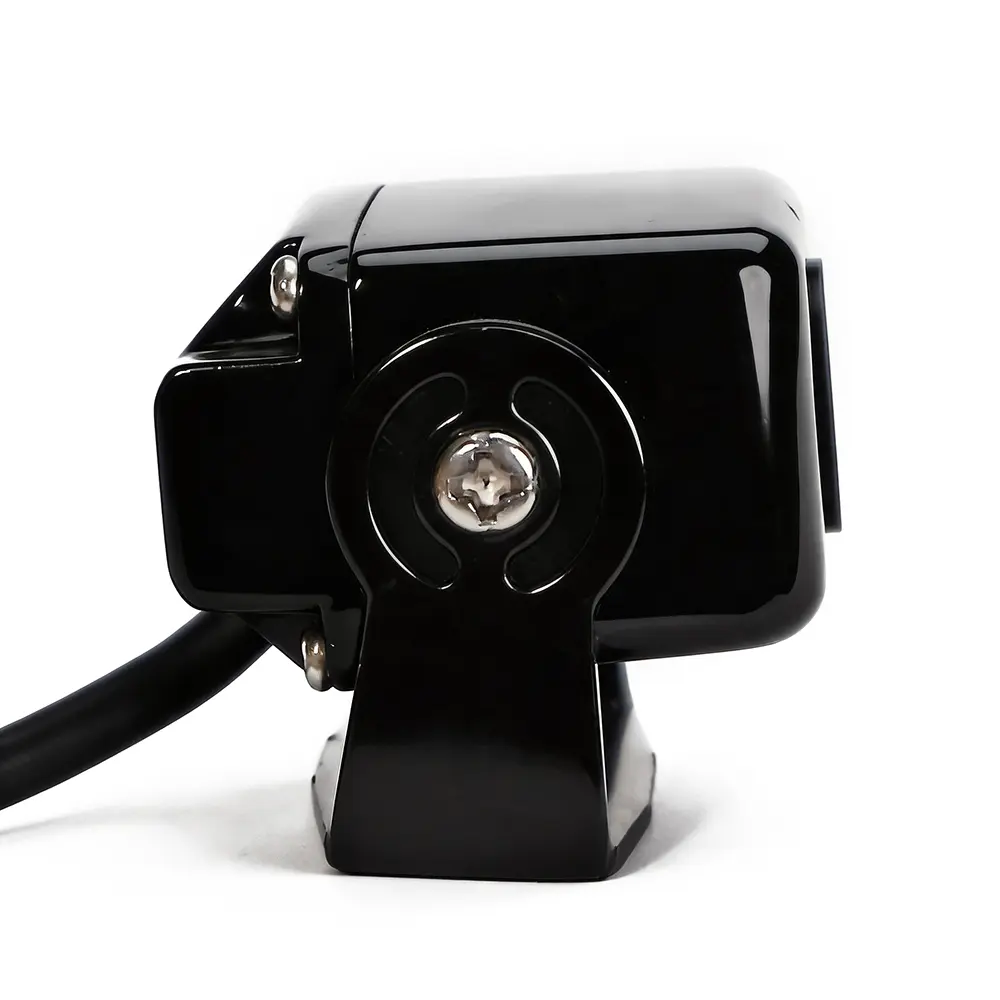

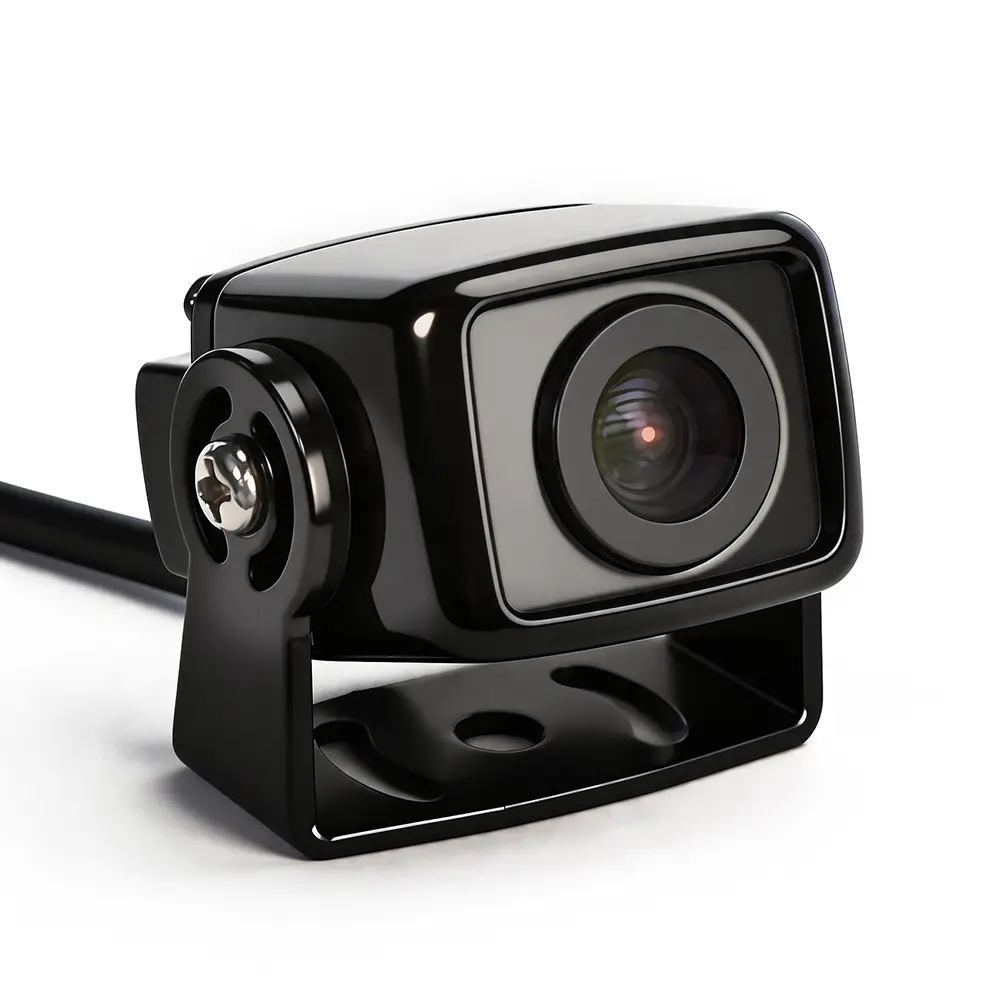

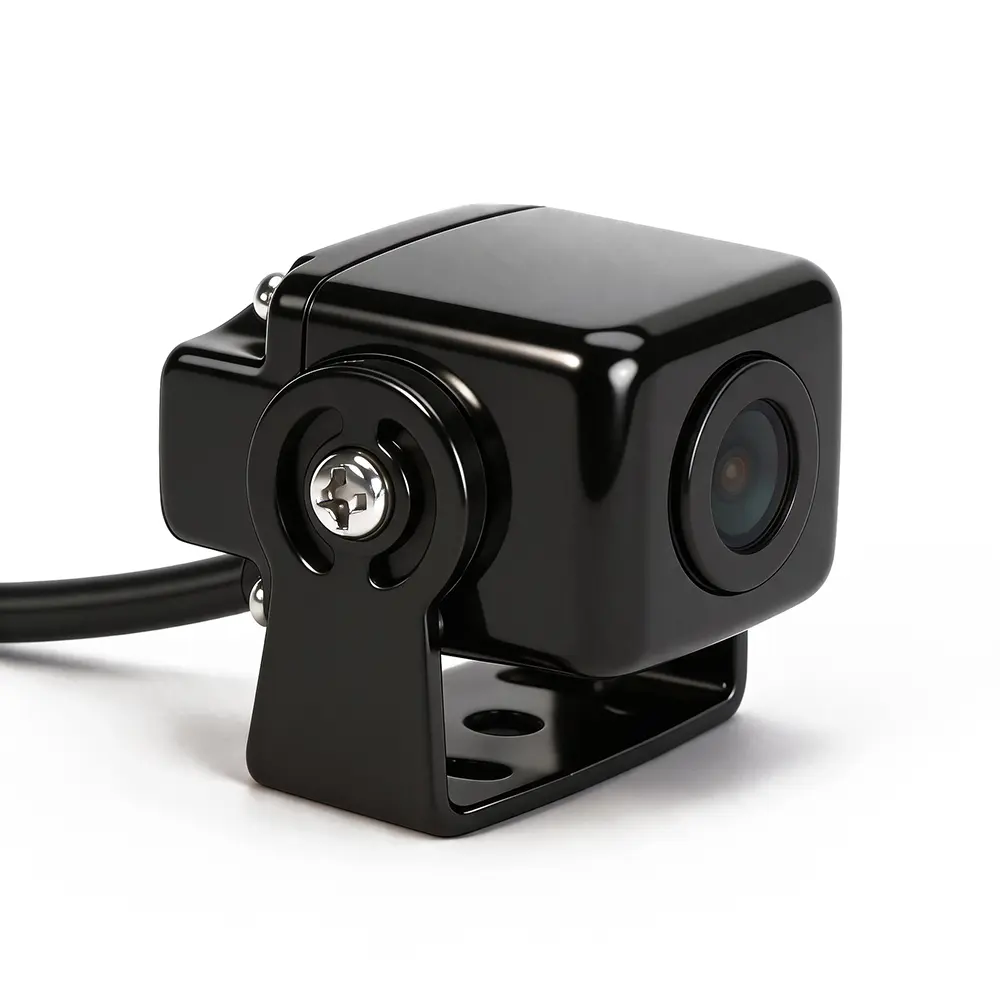

| Product Type | All-metal Exterior Vehicle Monitoring Camera |
| Housing Material | Full Aluminum Alloy |
| Appearance Color | Black |
| Installation Method | 3M adhesive tape / Self-tapping screws (dual optional ways) |
| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.2KG |
| Standard Waterproof Rating | IP67 |
| Custom Waterproof Option | IP69K waterproof rating available on request |
| No. | Feature Title | Detailed Description |
| 1 | 2MP Starlight Dual Resolution Imaging | Adopts premium 1/2.9" starlight CMOS sensor, supports switchable 1080P/720P resolution. Restores true and natural scene colors day and night without infrared color distortion. |
| 2 | Adaptive Digital Exposure Algorithm | Automatically adjusts image brightness under strong light, backlight and complex road lighting conditions, avoiding overexposure and ensuring consistent clear imaging effect. |
| 3 | Stable High-Temperature Anti-Interference | Keeps stable image dark level during long-time high-temperature working inside vehicles. No vertical black stripes or abnormal bright lines appear in monitoring images. |
| 4 | Vehicle-Grade Shockproof Structure | Built-in reinforced shockproof structure adapts to bumpy roads and vehicle vibration, ensuring smooth video output without picture jitter during driving. |
| 5 | Ultra-wide Viewing Angle Selection | Standard 110° diagonal viewing angle for daily monitoring; maximum viewing angle can be expanded to 180° to eliminate monitoring blind spots fully. |
| 6 | Dual Flexible Installation Ways | Supports sticker installation with 3M adhesive tape and screw fixing installation, meeting quick mounting and firm fixed installation demands for different vehicles. |
| 7 | Full Metal Durable Housing | Integrated full aluminum alloy casing features high hardness, strong compression resistance and collision resistance, longer service life than plastic cameras. |
| 8 | Ultra-Low Power Consumption | Only 80mA working current under DC12V power supply, greatly reduces vehicle power loss, suitable for long-term uninterrupted onboard monitoring. |
| 9 | Hierarchical Waterproof Customization | Standard IP67 waterproof meets daily outdoor rain and dust resistance; optional IP69K high waterproof adapts to high-pressure water washing harsh working environment. |
| Category | Parameter Item | Specific Specification |
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization System | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-Exposure | |
| Night Vision Configuration | IR LED Quantity | None (no infrared light, restore true color) |
| Viewing Angle | DFOV (Diagonal View Angle) | 110°, expandable to 180° |
| HFOV (Horizontal View Angle) | 85° | |
| VFOV (Vertical View Angle) | 48° | |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Power Consumption | 80mA @ DC 12V | |
| Environmental Resistance | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |

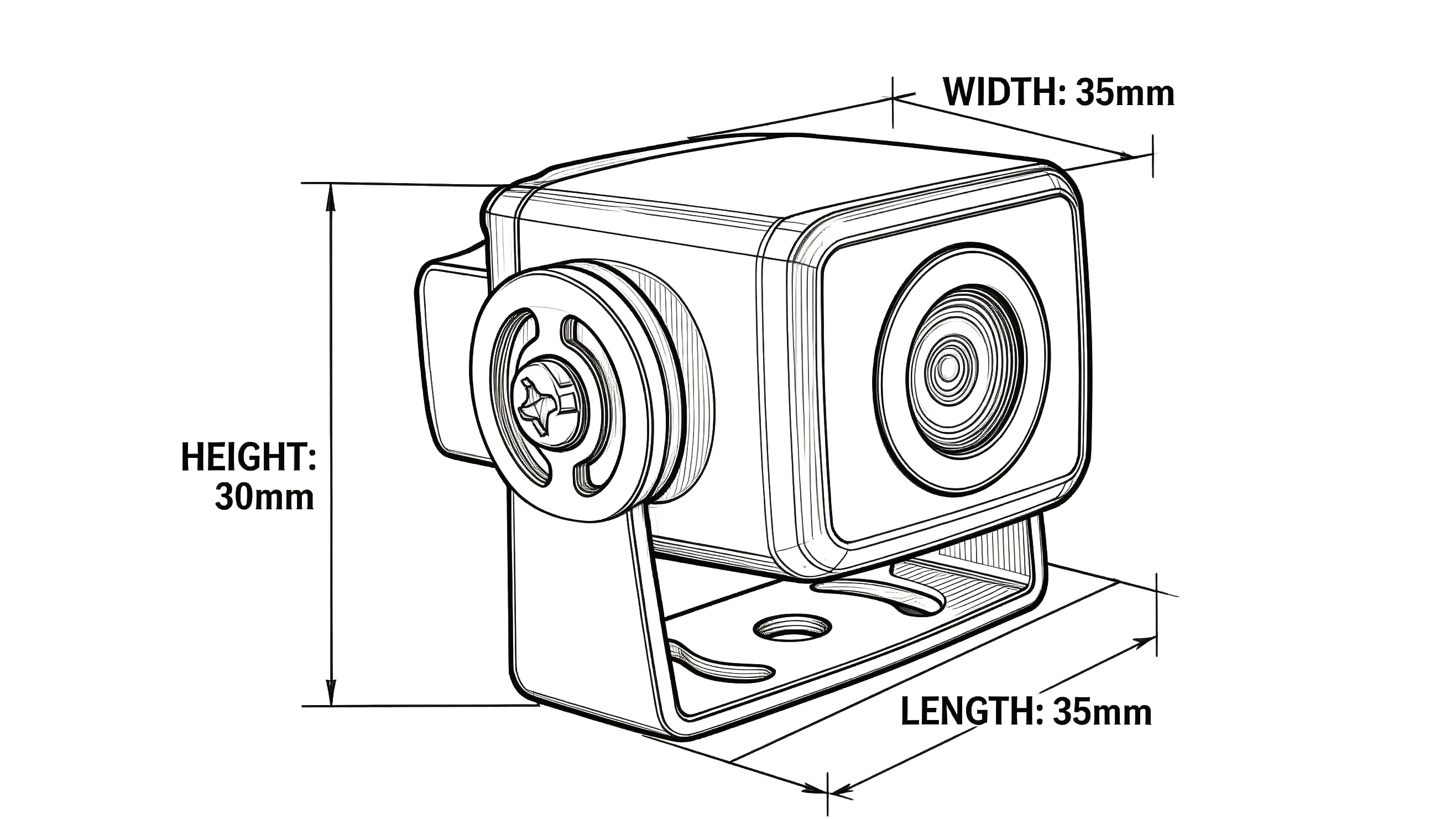

| Dimension Item | Size (mm) |
| Product Length | 35mm |
| Product Width | 35mm |
| Product Height | 30mm |
