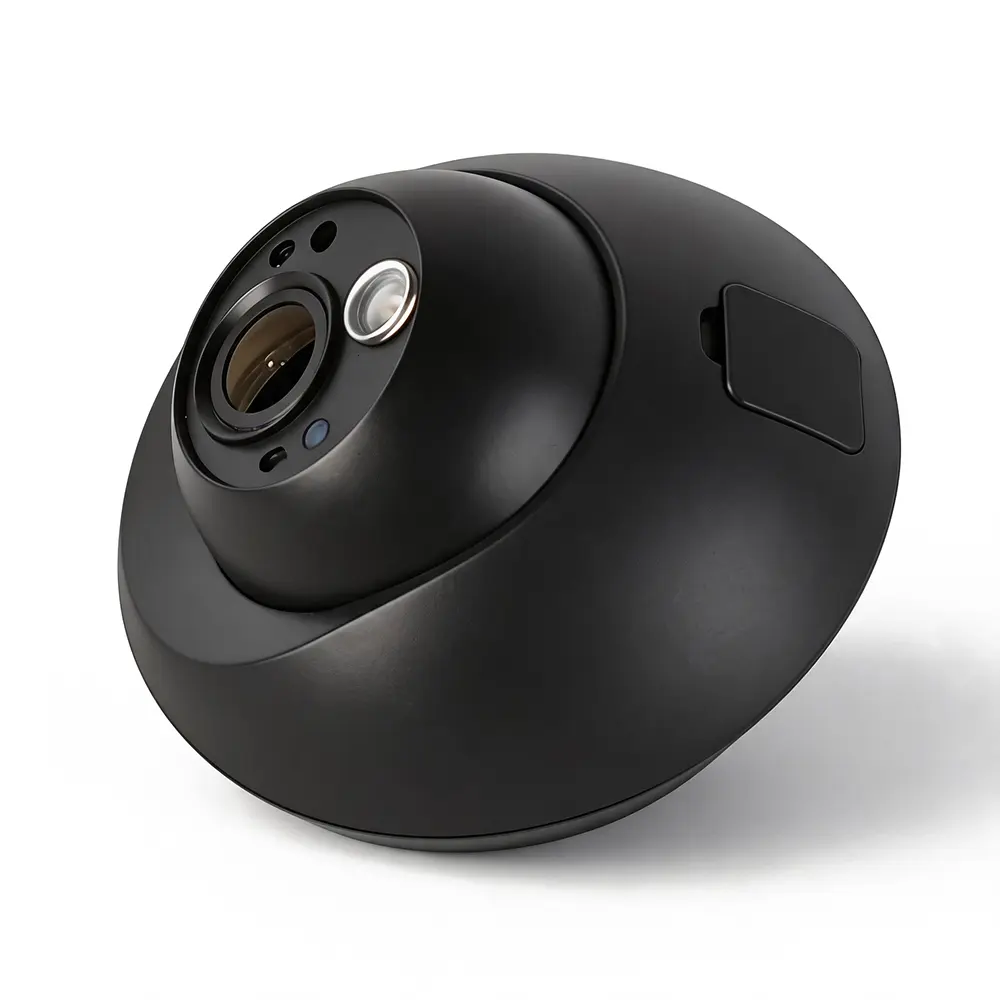

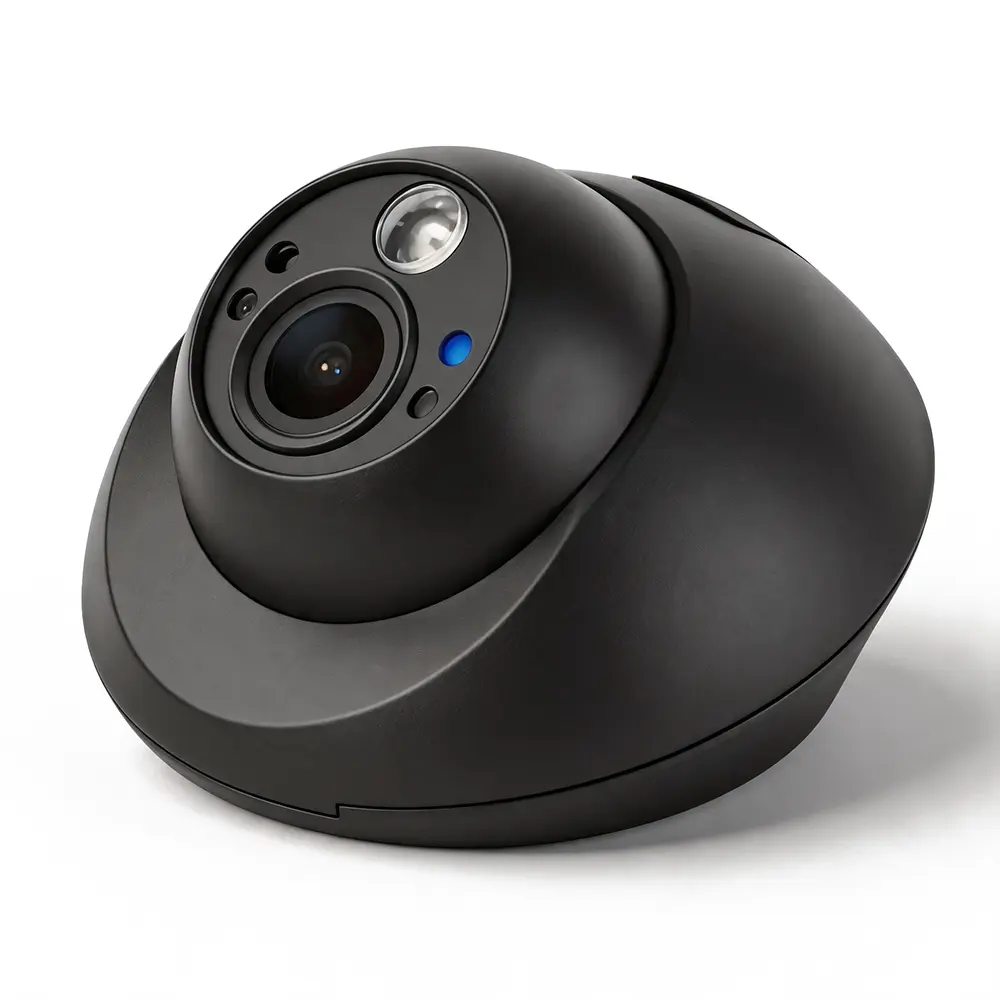

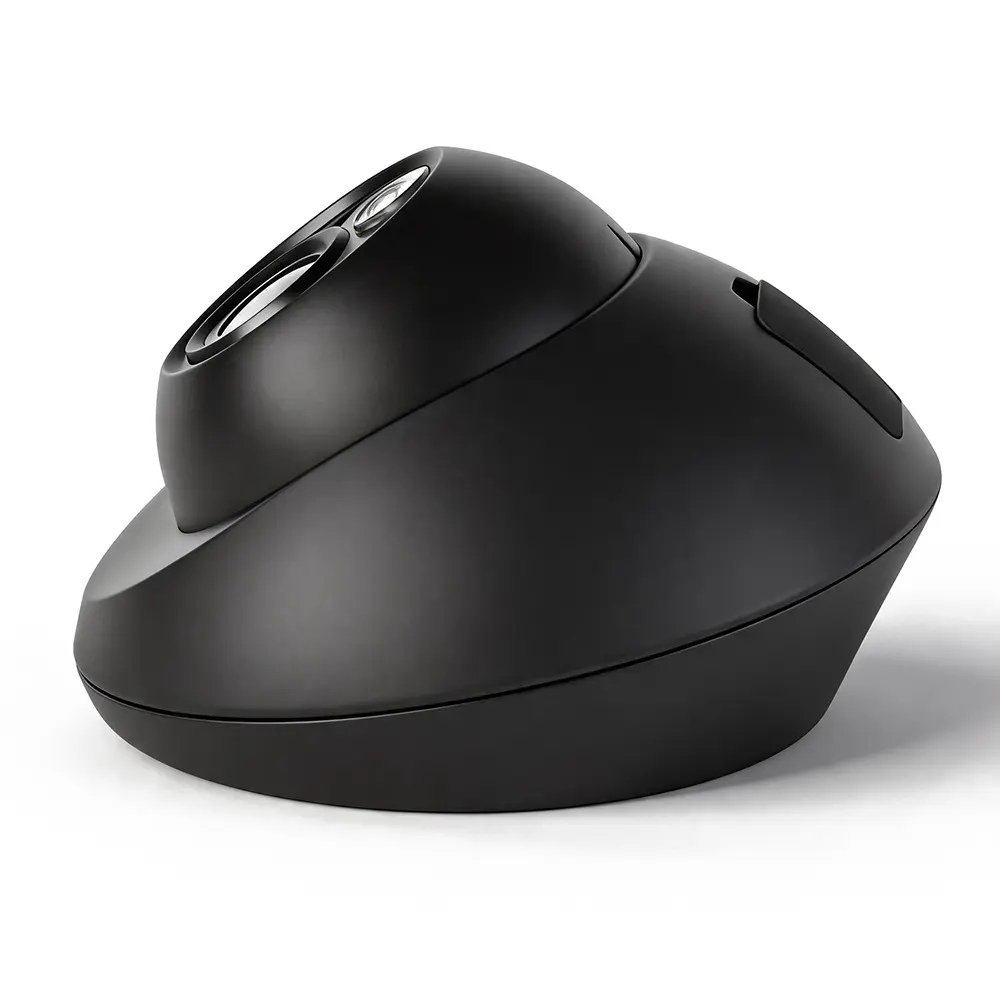

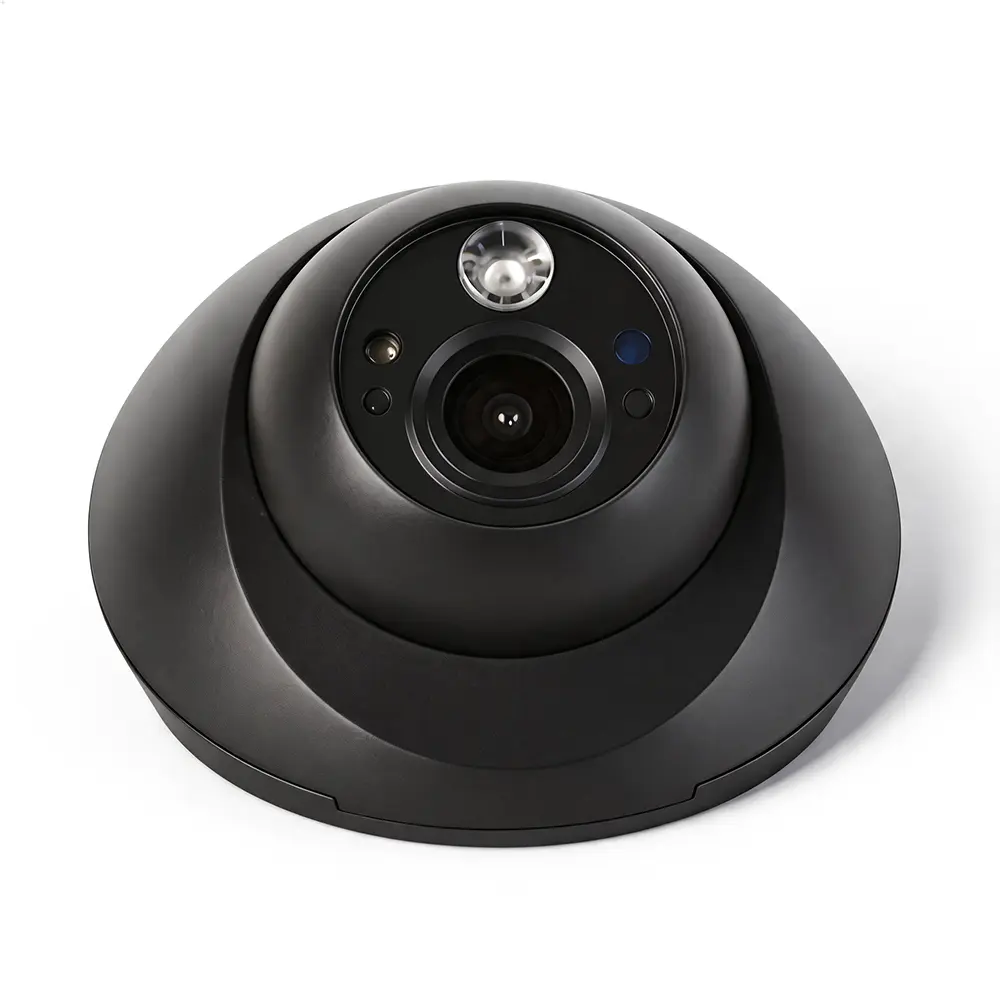

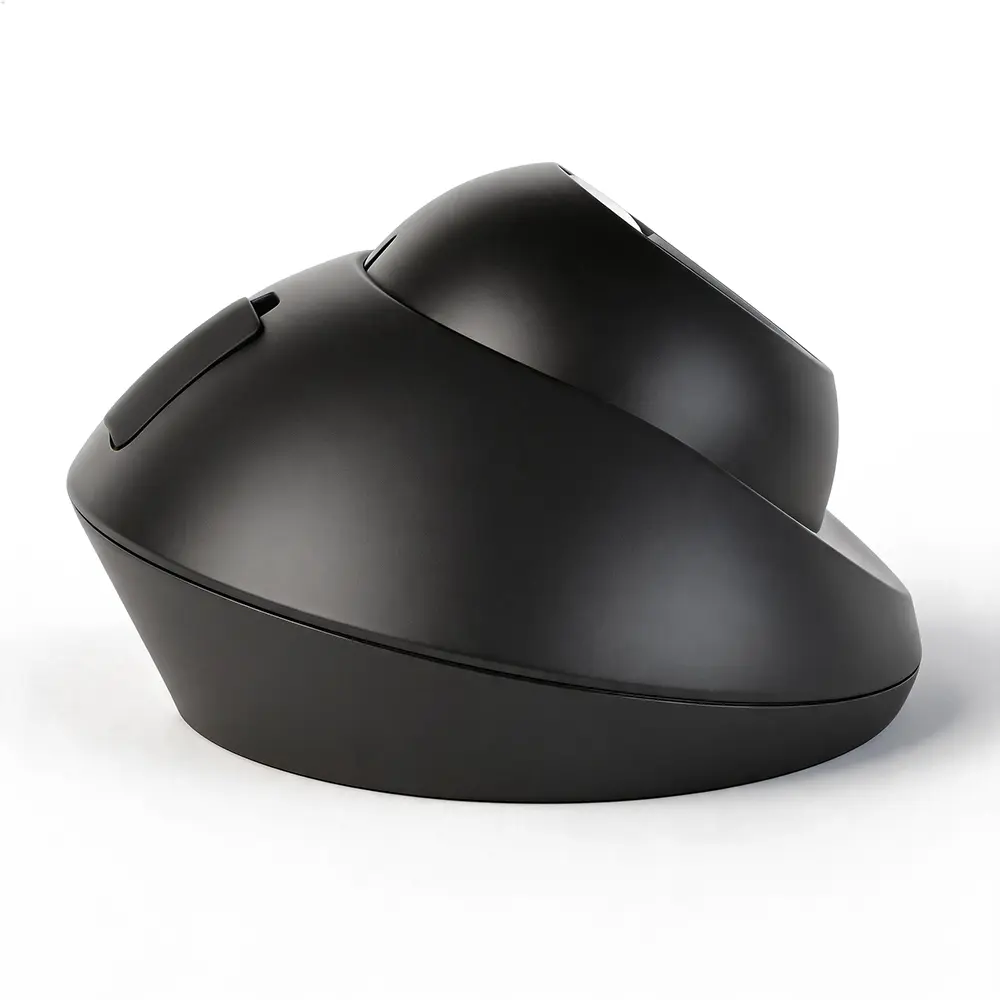

XY-N8823 is a high-definition megapixel AHD vehicle camera equipped with ultra-wide viewing angle and starlight-level night vision imaging. Adopting low power consumption, anti-fog, shockproof and wide voltage design, this camera effectively solves common problems of ordinary vehicle cameras, including unstable image quality and gradual picture blurring after long-term onboard operation. It supports synchronous audio and video recording, perfectly matching daily vehicle monitoring and fleet safety recording demands.
| Item | Details |
|---|---|
| Product Model | XY-N8823 |
| Product Type | AHD In-Vehicle Monitoring Camera |
| Housing Material | Plastic |
| Appearance Color | Black |
| Installation Method | Fixed with self-tapping screws |
| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.2KG |
| Waterproof Level | Non-waterproof |
| Built-in Function | HD Audio Pickup |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | 2MP Starlight Full HD Imaging | Adopts professional 2MP starlight-grade CMOS sensor with 1920×1080 high resolution, delivering ultra-clear and smooth monitoring images both day and night. |
| 2 | Advanced Digital Exposure Technology | Built-in optimized digital exposure system, automatically adjusting picture brightness to maintain stable imaging under complex light and high contrast road environments. |
| 3 | Excellent High-Temperature Stability | Keeps stable picture dark level during long-time high-temperature working. No vertical black stripes or bright white lines appear in night vision mode. |
| 4 | Shockproof & DC12V Wide Voltage Design | Customized shockproof structure adapts to bumpy vehicle driving roads. Standard DC 12V wide voltage input fits most vehicle power supply systems. |
| 5 | Ultra-Wide Viewing Angle | Supports 157° diagonal ultra-wide viewing angle, covering larger monitoring area without blind spots for full vehicle visual monitoring. |
| 6 | Built-in HD Audio Pickup | Integrated high-sensitivity audio pickup module, realizing synchronous video recording and audio recording for complete driving evidence. |
| 7 | Reliable Long-term Working Performance | With anti-fog and low power consumption design, this camera runs stably for a long time without picture blurring or signal loss. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H) × 1080(V) | |
| Frame Rate | 25fps | |
| Synchronization System | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Imaging Function | White Balance | Auto White Balance |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-Exposure | |
| Infrared Configuration | Number of IR LEDs | 1 pc |
| Viewing Angle | DFOV (Diagonal View) | 157° |
| HFOV (Horizontal View) | 130° | |
| VFOV (Vertical View) | 70° | |
| Video Output | Video Output Mode | AHD |
| Electrical Parameters | Operating Voltage | DC 12V |
| Power Consumption | 250mA @ DC 12V | |
| Temperature Resistance | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |

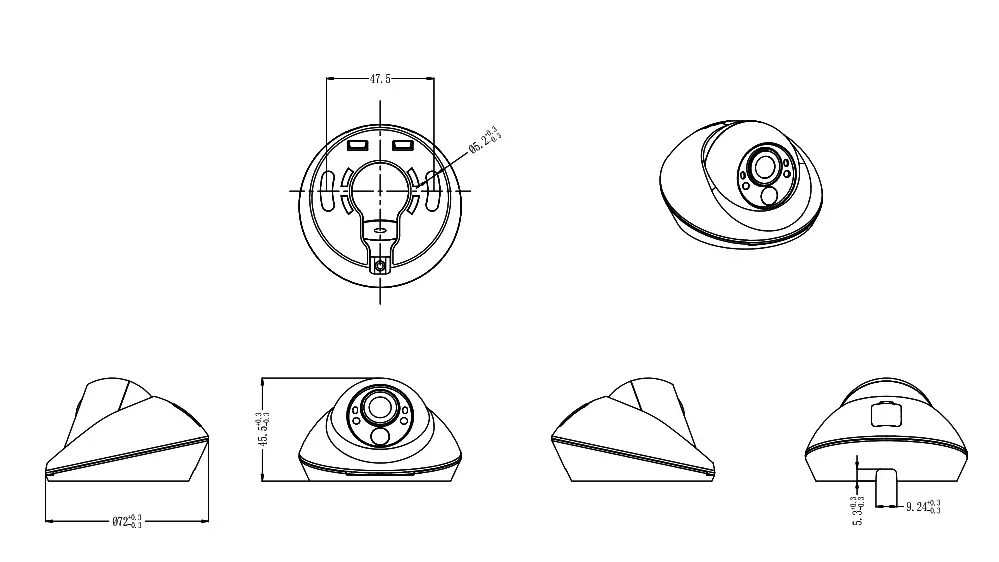

| Dimension Item | Size (mm) |
|---|---|
| Main Body Size | 47.5mm |
| Side Length 1 | 24.3mm |
| Side Length 2 | 9.24mm |
This AHD vehicle camera is widely used for all kinds of commercial vehicles, trucks, engineering vehicles, buses and fleet monitoring systems. It supports clear day & night monitoring plus synchronous audio-video recording, being a cost-effective solution for onboard safety monitoring and driving evidence recording.
The XY-N8823 features 1080P Full HD resolution (1920x1080 effective pixels) utilizing a 1/2.9" CMOS image sensor, ensuring sharp and clear monitoring footage.
Yes, the camera comes with a built-in high-definition audio pickup module, allowing for synchronized audio and video recording for comprehensive driver evidence.
This camera is classified as non-waterproof and is designed primarily for in-cabin vehicle installation and indoor monitoring environments.
It features an ultra-wide viewing angle, supporting 157° Diagonal Field of View (DFOV), 130° Horizontal Field of View (HFOV), and 70° Vertical Field of View (VFOV) to minimize blind spots.
The camera operates on a standard DC 12V voltage input and maintains low power consumption of approximately 250mA, ensuring reliable long-term performance.
Equipped with starlight-level night vision capability, a minimum illumination of 0.01Lux @ F1.2, and 1 IR LED, it delivers high-quality monitoring images under dark conditions.
