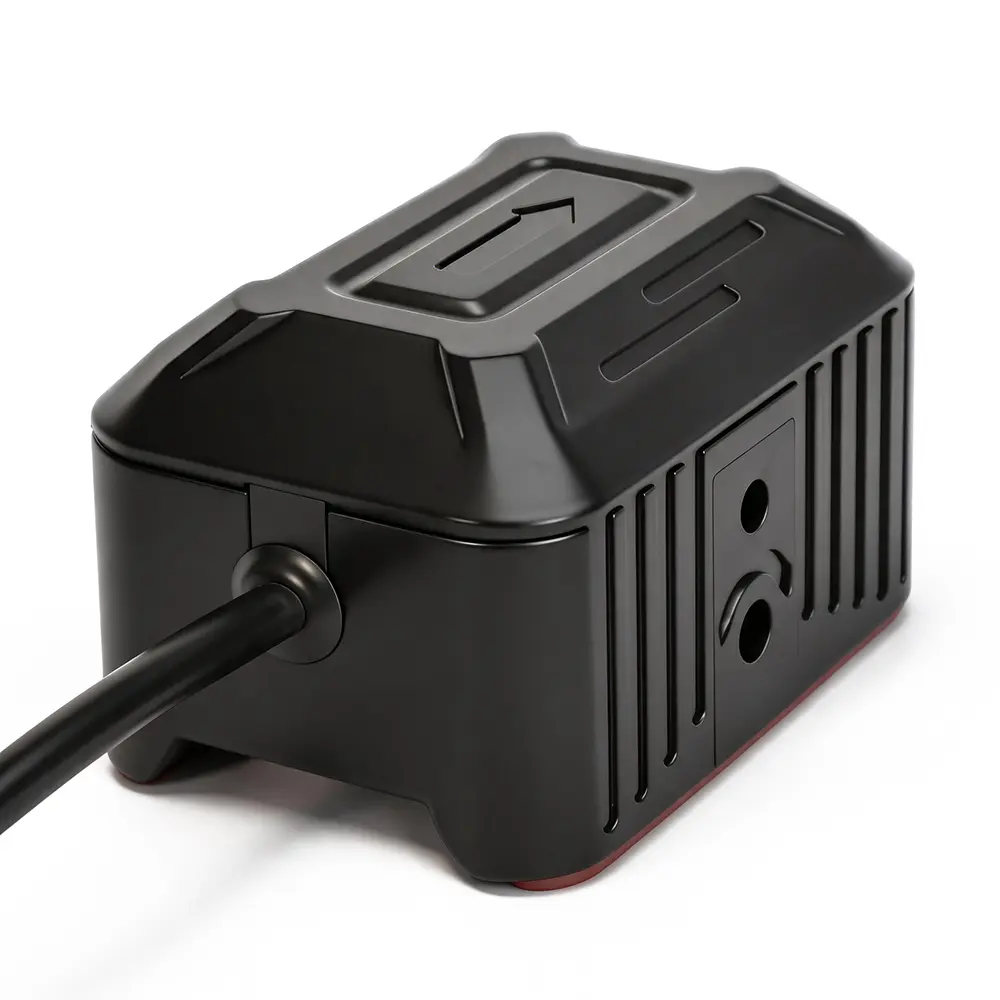

XY-NV52 is a professional front windshield ADAS road monitoring camera, specially designed for commercial vehicle driving behavior analysis and intelligent road safety warning. Adopting advanced 2MP starlight-level CMOS sensor with ultra-low 0.008Lux illumination sensitivity, it delivers ultra-clear road imaging in dawn, dusk and low-light environments. Equipped with exclusive road optimization exposure algorithm, vehicle-grade shockproof structure and stable 8-14V narrow voltage design, it effectively solves common problems such as overexposure, unstable picture and long-term image blur of ordinary vehicle cameras.
Featuring 30° professional narrow road viewing angle and no infrared anti-glare design, it accurately captures lane lines, road obstacles and driving status without invalid background interference. Supporting PAL/NTSC dual signal switching and non-destructive 3M adhesive adjustable installation, it is perfectly compatible with global vehicle ADAS and MDVR systems, widely used in trucks, buses, logistics vehicles and engineering fleets.
| Item | Details |
|---|---|
| Product Model | XY-NV52 |
| Product Type | Professional ADAS Front Road Monitoring Camera |
| Housing Material | High-quality ABS Plastic |
| Appearance Color | Black |
| Viewing Angle | DFOV 50° / HFOV 30° (Road Dedicated Narrow Angle) |
| Infrared LED | None (Anti-glare road shooting design) |
| Resolution | 2MP (2560×1440) |
| Signal System | PAL / NTSC Optional Dual Mode |
| Working Voltage | DC 8V~14V (Rated 12V Stable Voltage) |
| Video Output | Progressive AHD, 4-pin Aviation Connector |
| Cable Length | 0.6m |
| Image Orientation | Normal Original Image (Non-flipped) |
| Installation Method | 3M Adhesive Non-destructive Mounting + Hex Screw Angle Adjustable |
| Installation Position | Front Windshield Lower Area |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | 0.008Lux Ultra-low Light Starlight Imaging | Equipped with high-end 2MP starlight CMOS sensor, the ultra-low illumination of 0.008Lux ensures clear and delicate road outline shooting at dawn, dusk and dark night environments. No infrared fill light is required, realizing natural and real road scene restoration. |
| 2 | 30° Narrow ADAS Dedicated Lens | Industry-customized narrow horizontal viewing angle focuses precisely on forward lane lines and road obstacle information. It filters out irrelevant roadside scenery interference, effectively improving the recognition accuracy of ADAS lane departure and forward collision warning algorithms. |
| 3 | PAL/NTSC Dual Signal Global Compatibility | Supports free switching of two mainstream global video signal modes, perfectly compatible with domestic and foreign brand vehicle MDVR, ADAS host and fleet monitoring systems, meeting diversified market deployment needs. |
| 4 | Road-Tailored Anti-overexposure Algorithm | Intelligent global adaptive exposure technology independently optimized for road scenes. It automatically suppresses strong sunlight reflection and light-dark alternation at tunnel entrances/exits, avoiding road surface overexposure and detail loss to prevent ADAS system misjudgment. |
| 5 | High-Temperature Stable Imaging Performance | Optimized industrial circuit design adapts to long-term high-temperature closed environment inside the windshield. It maintains stable dark-level signal output without vertical black stripes, screen flicker or abnormal bright lines during long-time night vision operation. |
| 6 | 8-14V Narrow Stable Voltage Adaptation | Professional vehicle-level voltage design targets 12V commercial vehicle power supply characteristics, resisting slight voltage fluctuations during vehicle driving. It ensures long-term stable startup and continuous operation of the camera without additional voltage stabilizer. |
| 7 | Infrared-Free Anti-Glare Structure | No infrared LED design eliminates lens reflection interference caused by opposite vehicle headlights at night, ensuring pure and clear road monitoring pictures and providing high-quality raw data for intelligent driving analysis. |

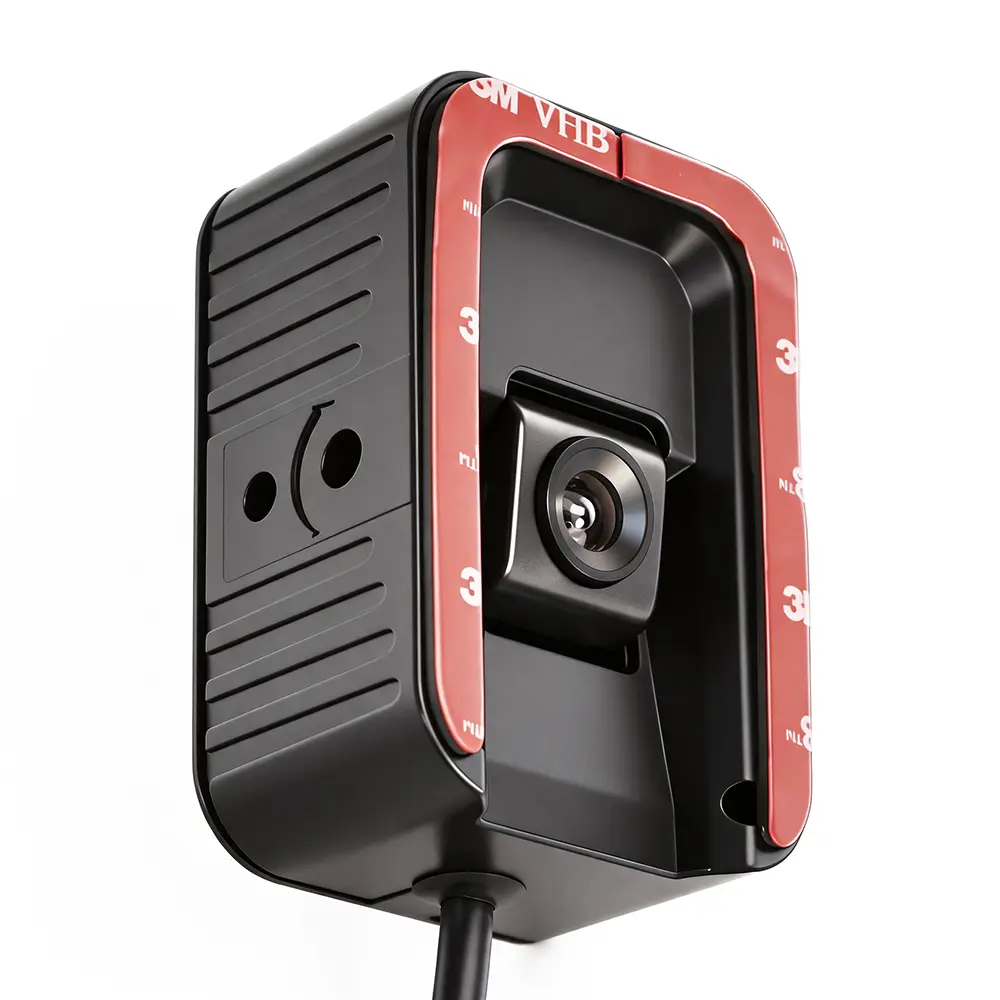

| 8 | Adjustable Non-destructive Installation | High-viscosity 3M adhesive realizes drill-free and non-destructive windshield installation without damaging the original vehicle interior. Equipped with hex screw angle adjustment structure, it supports precise calibration of shooting angle to meet different vehicle installation requirements. |

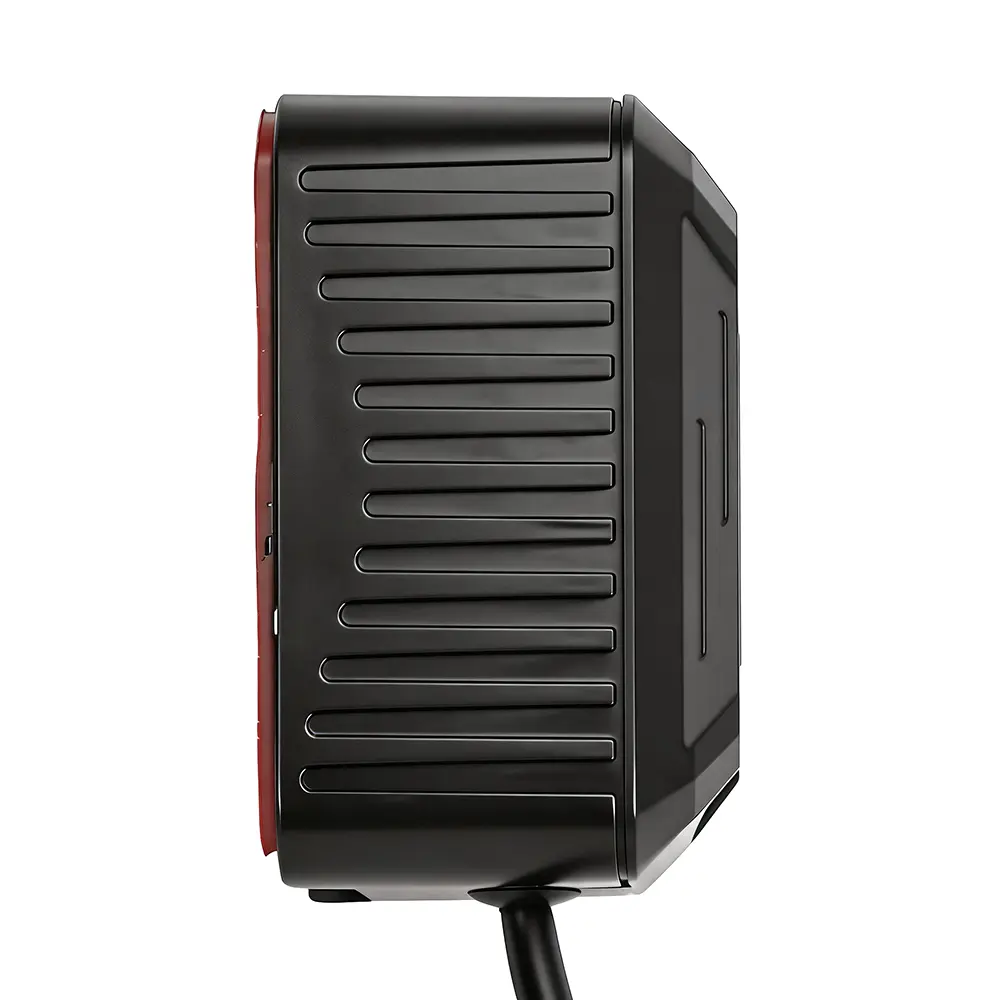

| 9 | Light Shockproof ABS Housing | Lightweight high-strength ABS plastic housing with internal reinforced anti-vibration structure. It effectively resists picture jitter caused by bumpy road driving, ensuring smooth and continuous road video stream output. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" Starlight CMOS |
| Effective Pixels | 2560(H) × 1440(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.008 Lux @ F1.2 | |
| Signal System | PAL / NTSC Optional | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | Auto | |
| Exposure Mode | Global Anti-Overexposure (Road Optimized) | |
| Lens Parameter | Viewing Angle | DFOV 50° / HFOV 30° |
| Night Vision Configuration | IR LED | None |
| Video Output | Output Interface & Format | Progressive AHD, 4-pin Aviation Connector |
| Electrical Parameters | Operating Voltage | DC 8V ~ 14V |
| Environmental Parameters | Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -20℃ ~ +80℃ | |
| Appearance & Installation | Housing Material | ABS Plastic |
| Cable Length | 0.6m | |
| Image Display Mode | Normal Original Image |

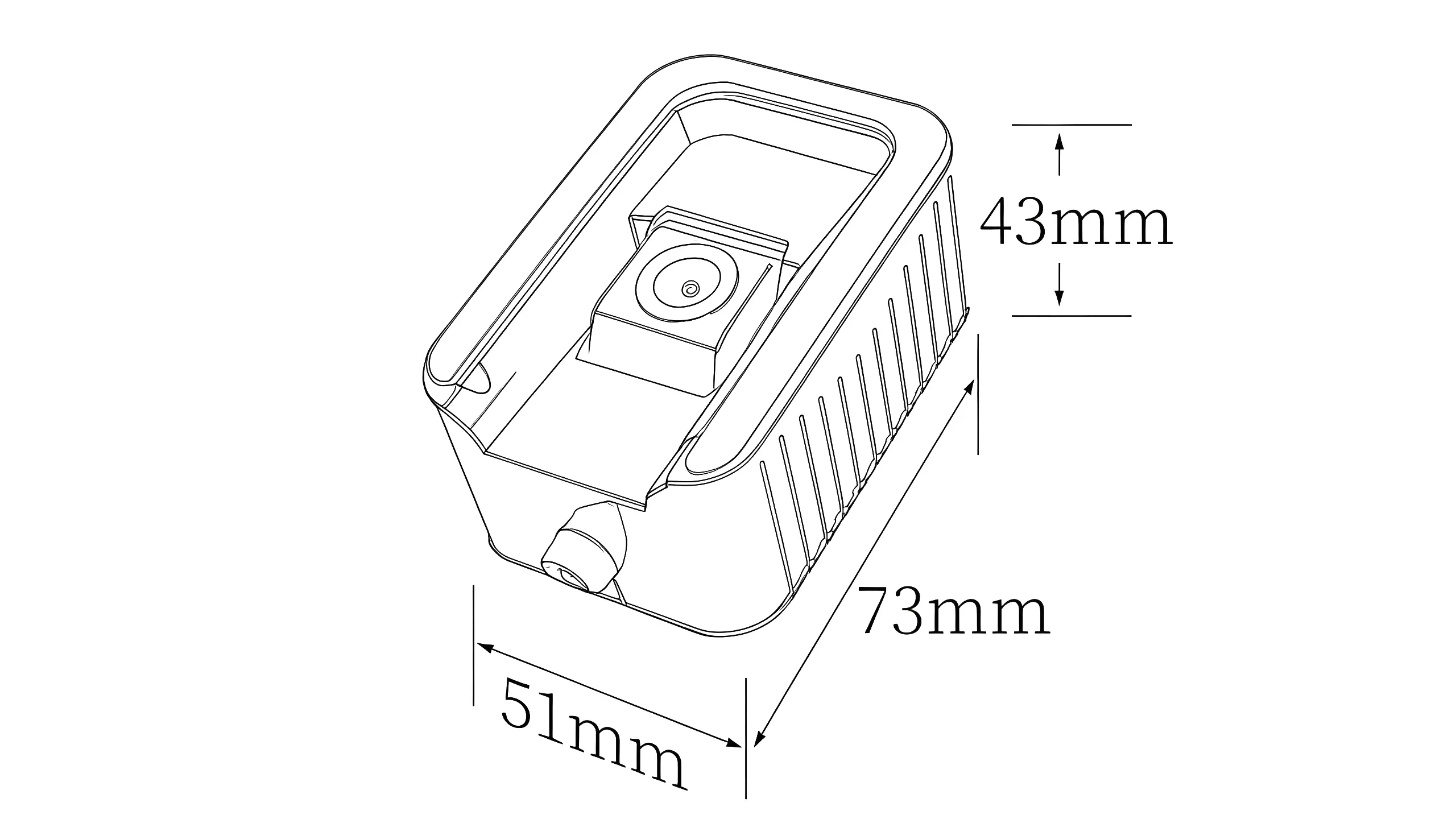

| Dimension Item | Remarks |
|---|---|
| Overall Outline Size | Refer to official engineering drawing for accurate millimeter data |
| Structural Features | Mini lightweight body, concealed windshield installation, support precise angle adjustment |
| Step | Installation & Commissioning Details |
|---|---|
| Step 1 | Connect the camera aviation connector to the vehicle ADAS/MDVR host terminal, power on and confirm normal AHD video output to verify equipment integrity. |

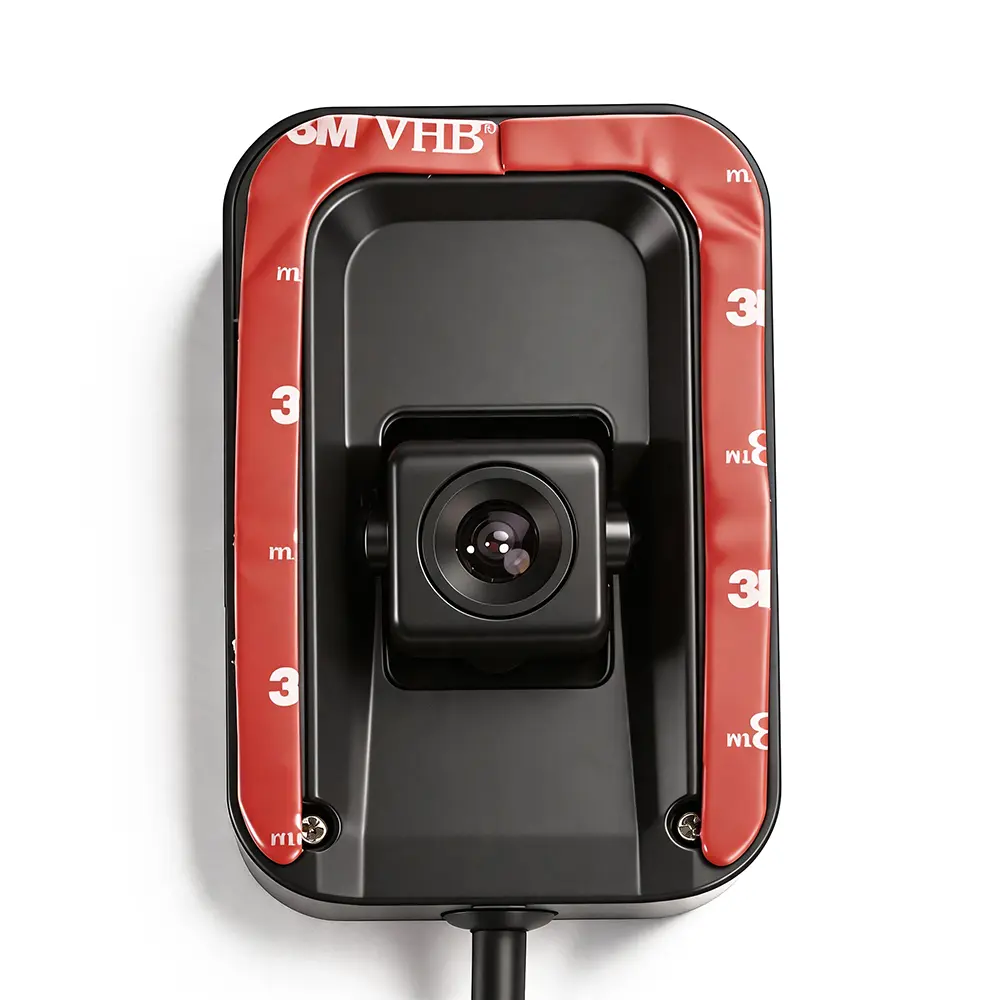

| Step 2 | Peel off the protective film of the 3M adhesive tape on the camera back, and firmly attach the camera to the clean lower area of the front windshield. |
| Step 3 | Adjust the camera shooting angle with a matched hex screwdriver to ensure the lens accurately captures the forward road and lane area, then fix the angle completely. |
XY-NV52 is a high-precision professional ADAS front road camera. With ultra-low light starlight imaging, road-specialized narrow-angle lens and global signal compatibility, it provides high-precision and stable raw image data for vehicle intelligent driving assistance systems. Featuring non-destructive adjustable installation and vehicle-grade stable performance, it is the preferred matching camera for commercial vehicle intelligent safety fleets.
