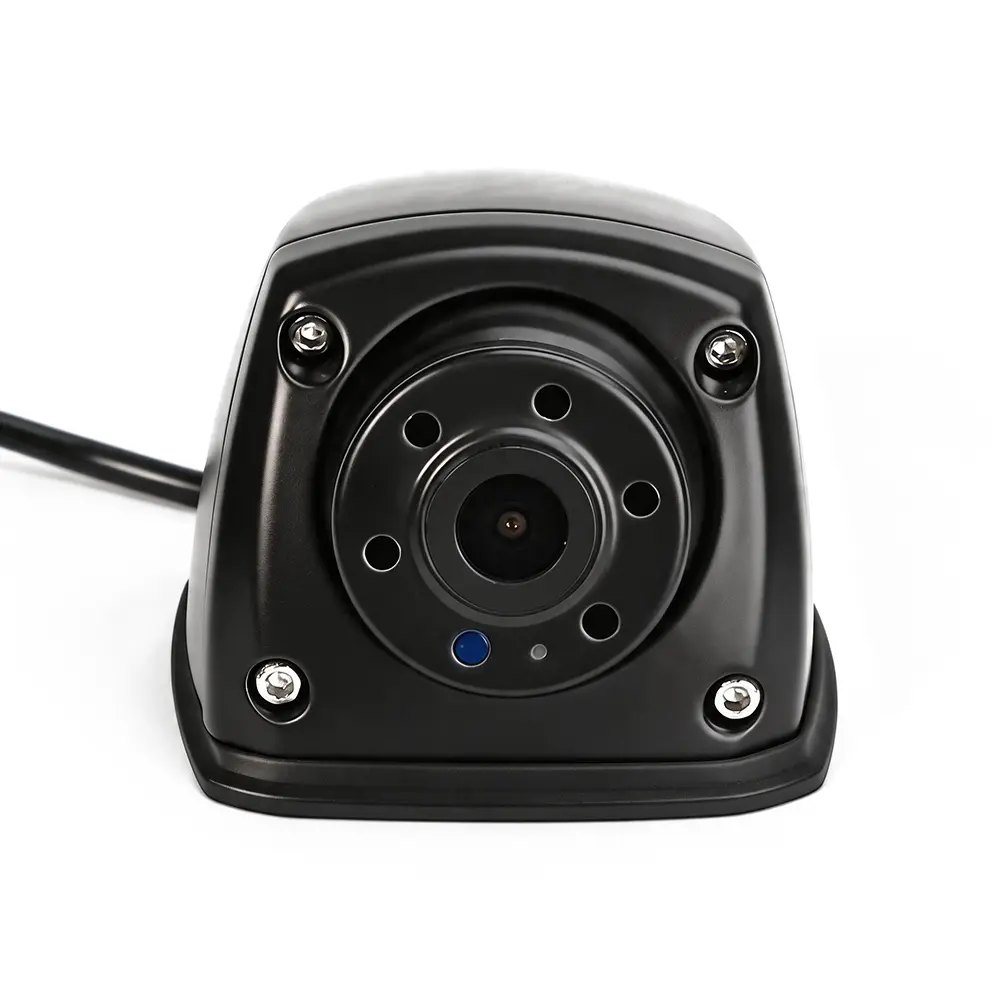

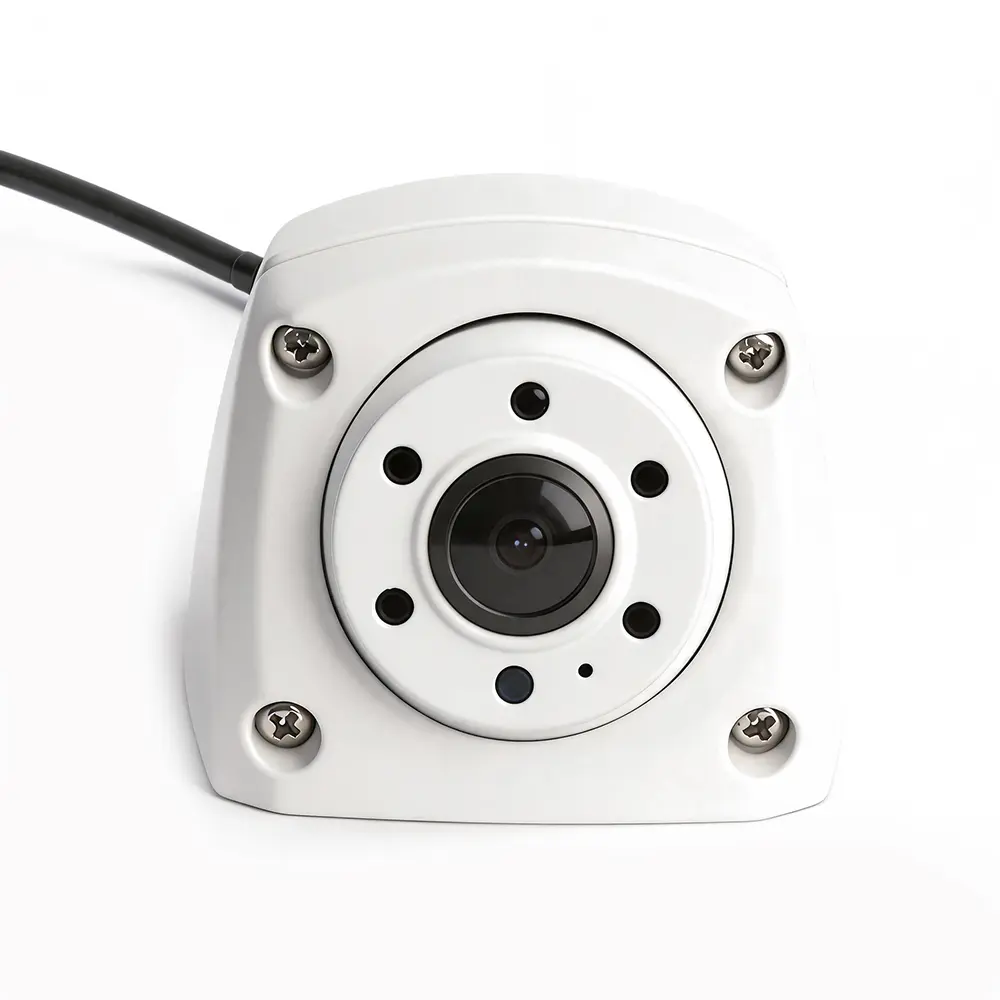

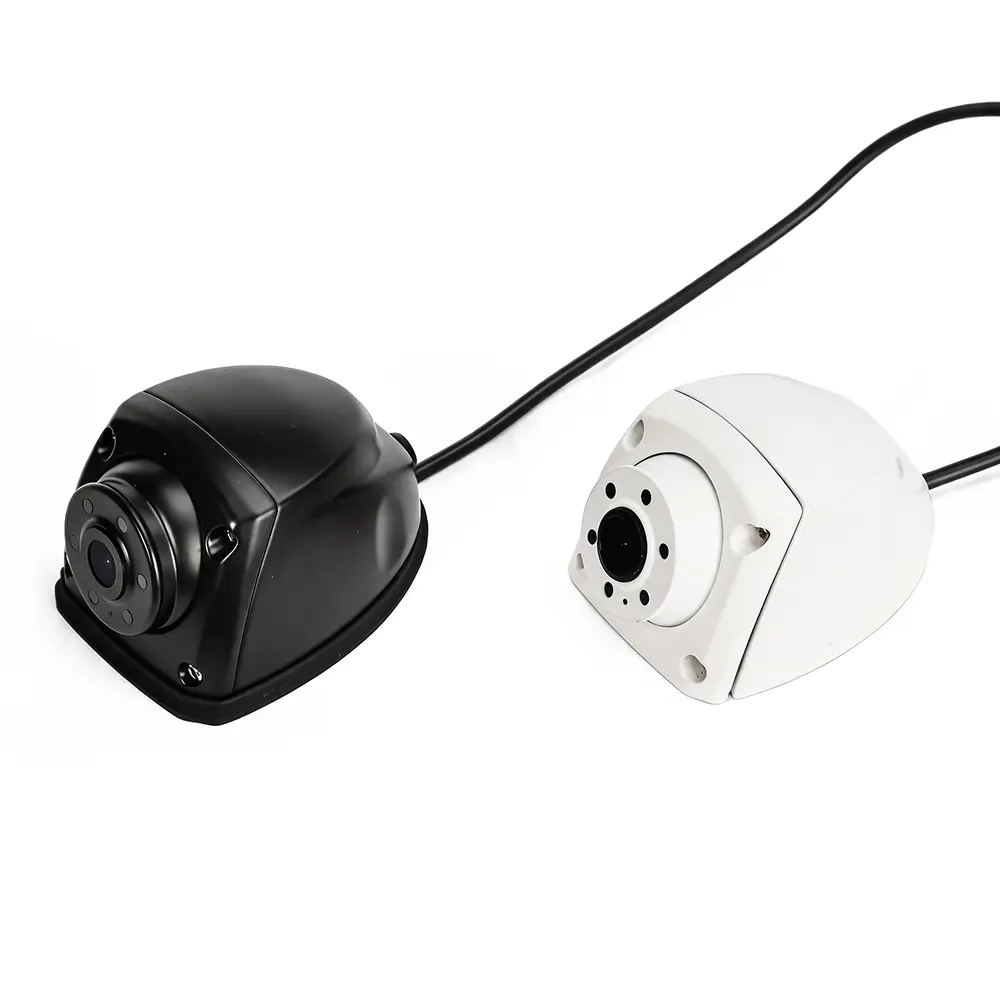

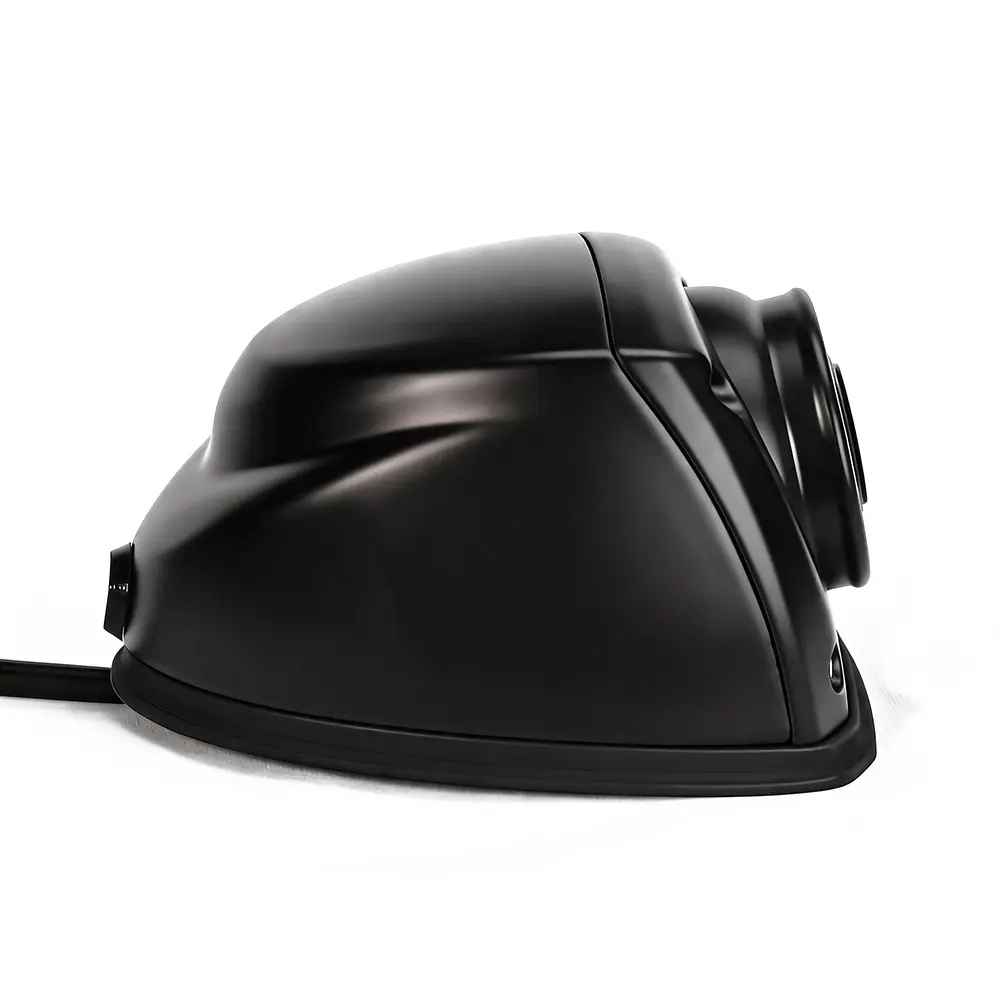

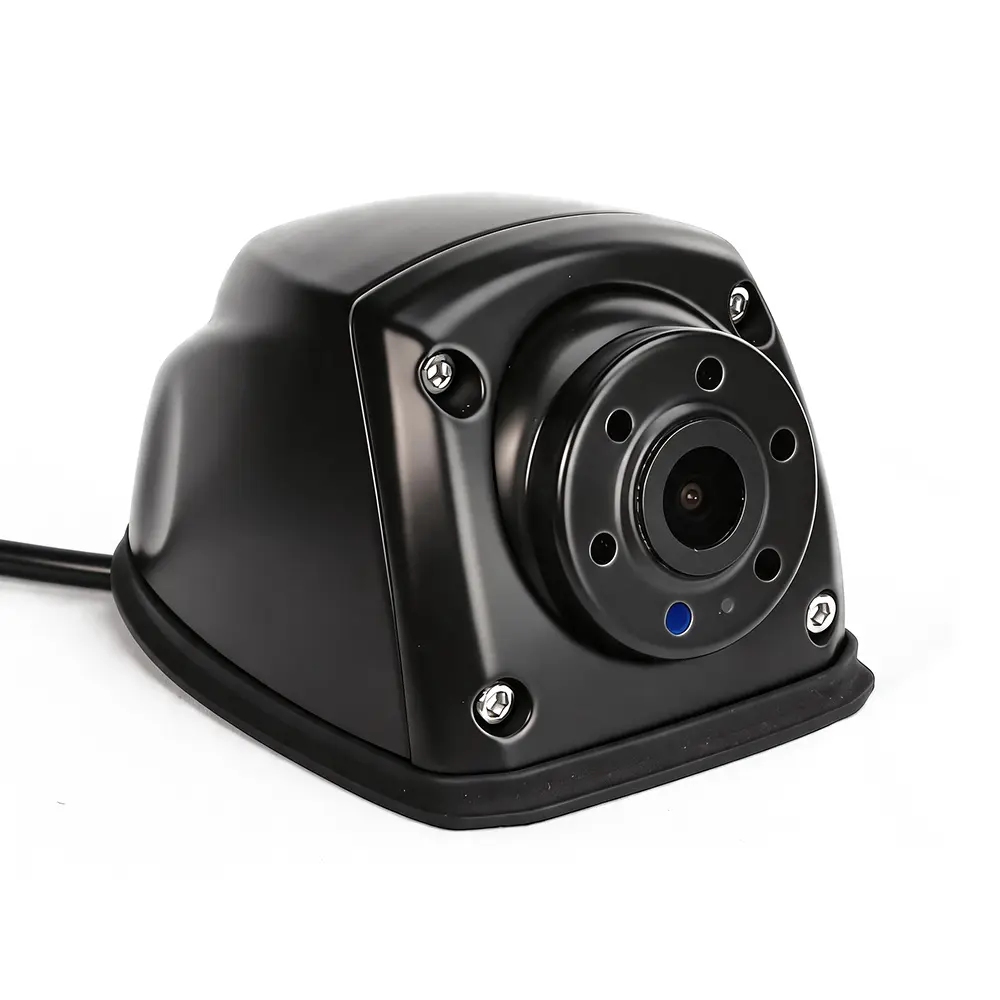

XY-FS710 is a mini compact side-mounted AHD vehicle camera, tailor-made for blind spot monitoring of large commercial vehicles. Adopting premium 2MP starlight CMOS sensor, this camera supports dual 720P/1080P resolution switching and ultra-wide viewing angle design, effectively eliminating driving blind spots on both sides of vehicles.
Built with durable aluminum alloy sealed housing, it comes with standard IP67 waterproof and dustproof grade, and customized IP69K high-pressure water washing version is optional. Equipped with vehicle-specific shockproof structure and built-in global anti-overexposure algorithm, it stably outputs clear images in complex light environments and bumpy driving conditions. Featuring ultra-small lightweight body and simple screw installation, it is the optimal cost-effective solution for truck, bus and engineering vehicle side blind spot monitoring.
| Item | Details |
|---|---|
| Product Model | XY-FS710 |
| Product Type | Mini Side-mounted Waterproof AHD Vehicle Camera |
| Housing Material | High-strength Aluminum Alloy |
| Appearance Color | Black |
| Standard Waterproof Grade | IP67 |
| Optional Waterproof Grade | IP69K (customized for high-pressure washing) |
| Viewing Angle | DFOV 125° / HFOV 95° / VFOV 52° |
| IR LED Quantity | 5pcs low-power infrared night vision lights |
| Working Voltage | DC 12V |
| Rated Working Current | 250mA @ DC12V |
| Connector Type | 4-core aviation connector |
| Default Cable Length | 0.6m |
| Net Weight | Approx. 0.2KG |
| Installation Method | Self-tapping screw side fixed mounting |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Dual Resolution Starlight Night Vision | Built-in 1/2.9-inch starlight CMOS sensor, supports free switching between 720P and 1080P resolution. 0.01Lux ultra-low illumination keeps clear color images even in dim night environments, realizing 24-hour uninterrupted monitoring. |
| 2 | Ultra-wide Angle for Blind Spot Elimination | 125° ultra-wide diagonal viewing angle covers vehicle side blind spot area completely, helping drivers observe side road conditions in real time and effectively avoid side scraping and collision accidents during lane changing and turning. |
| 3 | Global Anti-overexposure Technology | Intelligent adaptive exposure algorithm automatically balances picture brightness under strong sunlight, tunnel glare and backlight driving scenes. It avoids local overexposure or dark shadow loss, restoring real road monitoring details perfectly. |
| 4 | High Temperature Stable Image Output | Optimized industrial circuit design adapts long-time high-temperature outdoor working environment. No vertical black stripes, screen flickering or abnormal bright lines occur during long-term night vision monitoring. |
| 5 | Vehicle-grade Anti-vibration Performance | Reinforced internal shockproof structure resists continuous vibration from bumpy roads, ensuring stable and smooth video transmission without picture jitter or signal dropout during long-distance driving. |
| 6 | Dual Waterproof Rating Optional | Standard IP67 waterproof meets daily outdoor rain and dust protection needs; optional IP69K high-pressure waterproof version supports high-temperature and high-pressure water flushing, suitable for vehicles needing frequent cleaning. |
| 7 | Mini Size & Easy Installation | Ultra-small lightweight body saves side installation space of vehicles; simple screw fixing requires no complicated brackets, realizing fast and firm installation without damaging vehicle body. |
| 8 | Universal Plug and Play | Standard DC12V power supply and universal 4-pin aviation connector are highly compatible with all mainstream vehicle MDVR monitoring hosts, no extra debugging required after connection. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" Starlight CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Resolution | Horizontal Resolution | 2000TVL |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| View Angle Parameter | Diagonal / Horizontal / Vertical View Angle | 125° / 95° / 52° |
| Night Vision Configuration | IR LED Quantity | 5pcs |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Working Current | 250mA | |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ | |
| Protection Grade | Waterproof & Dustproof Standard | IP67 standard, optional IP69K |
| Dimension Item | Size Remark |
|---|---|

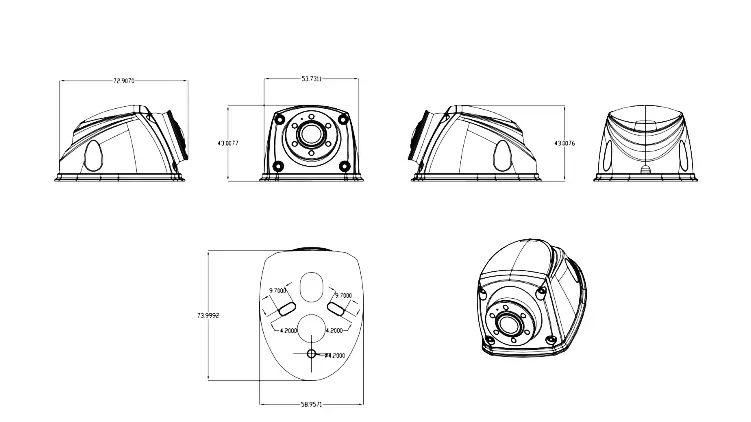

| Overall Product Size | Mini compact body, please refer to official engineering drawing for accurate millimeter size data |
| Note | Tiny machining tolerance exists for mini aluminum alloy housing |
This mini side view camera is specially optimized for vehicle blind spot monitoring scenarios. With wide viewing angle, stable imaging and flexible installation, it is a cost-effective peripheral monitoring accessory for full-range commercial vehicle fleet safety systems.
