| Item | Details |

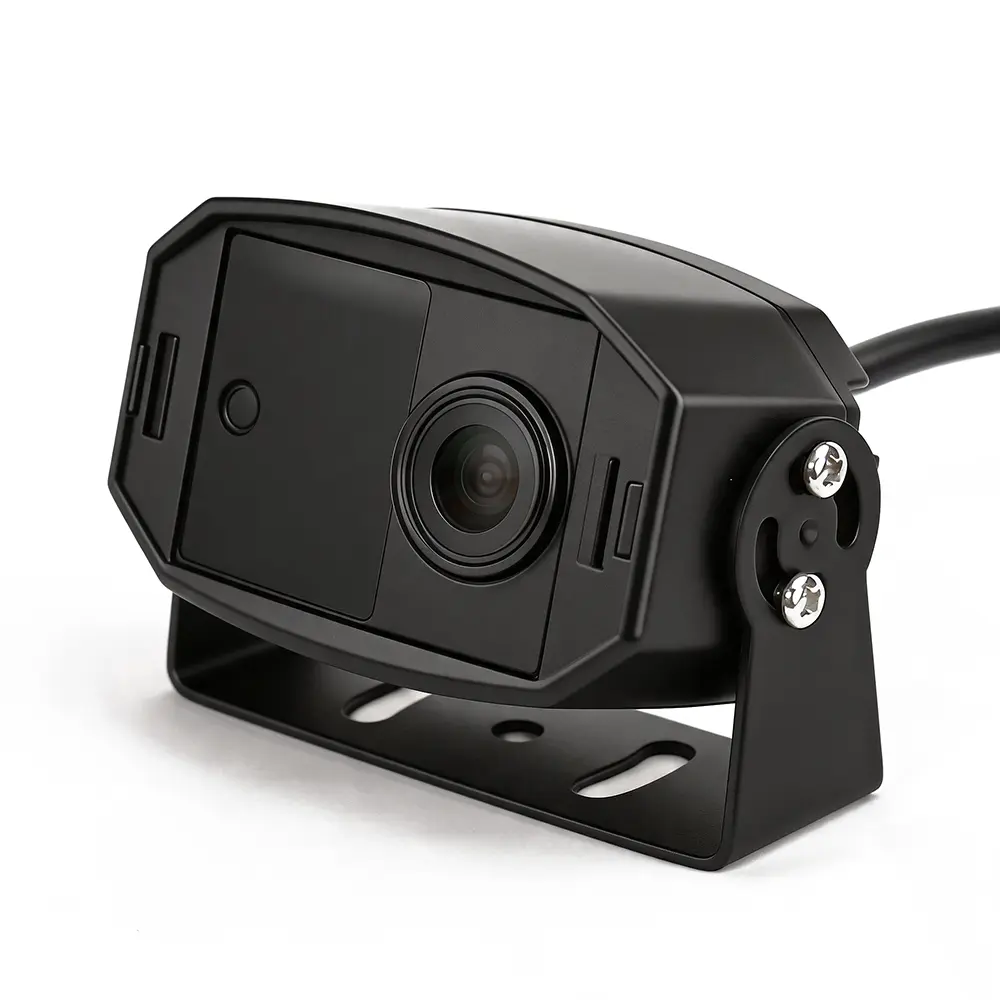

| Product Model | XY-FS7510 |
| Product Type | Exterior Dot-matrix Infrared Vehicle Camera |
| Housing Material | Aluminum Alloy |
| Appearance Color | Black |
| Installation Method | Self-tapping screws |
| Connector | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.4KG |
| Waterproof Rating | IP67 |
| IR Configuration | 4pcs Dot-matrix Infrared LEDs |
| No. | Feature Title | Detailed Description |
| 1 | 2MP Starlight Dual-resolution Imaging | Adopts high-performance 1/2.9" starlight CMOS sensor, supporting switchable 1080P/720P HD resolution. With 0.01Lux ultra-low illumination capability, it captures clear and delicate monitoring images day and night. |
| 2 | Global Anti-overexposure Algorithm | Built-in advanced digital exposure function, automatically optimizes image brightness under strong backlight, sunlight glare and high-contrast road environments, avoiding picture overexposure and ensuring balanced imaging effect. |
| 3 | Stable High-temperature Image Performance | Maintains stable dark level signal under long-time high-temperature outdoor working conditions. No vertical black stripes or abnormal bright white lines appear during night vision monitoring. |
| 4 | Vehicle-grade Shockproof Design | Reinforced shockproof internal structure adapts to bumpy roads and continuous vehicle vibration, keeping stable and jitter-free video output during driving. |
| 5 | Uniform Dot-matrix IR Night Vision | Equipped with 4 professional dot-matrix infrared LEDs, achieving even and soft night supplementary lighting. It delivers clear night vision footage without local overexposure, perfect for dark outdoor road monitoring. |
| 6 | 110° Wide Monitoring Viewing Angle | Standard 110° diagonal wide viewing angle expands monitoring coverage, effectively reduces exterior monitoring blind spots and improves driving safety during reversing and traveling. |
| 7 | IP67 Waterproof & Durable Alloy Housing | Integrated aluminum alloy shell features excellent heat dissipation and compression resistance. IP67 waterproof grade adapts to rainy, snowy and dusty harsh outdoor environments. |
| 8 | Low Power Consumption & Easy Installation | Stable DC12V working voltage with 250mA low power consumption, supporting 24-hour uninterrupted monitoring. Simple self-tapping screw mounting realizes fast and firm installation. |
| Category | Parameter Item | Specific Specification |
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Night Vision System | Dot-matrix IR LED Quantity | 4pcs |
| Viewing Angle Parameter | DFOV (Diagonal View Angle) | 110° |
| HFOV (Horizontal View Angle) | 85° | |
| VFOV (Vertical View Angle) | 48° | |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Working Current | 250mA @ DC 12V | |
| Environmental Adaptability | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Dimension Item | Size (mm) |

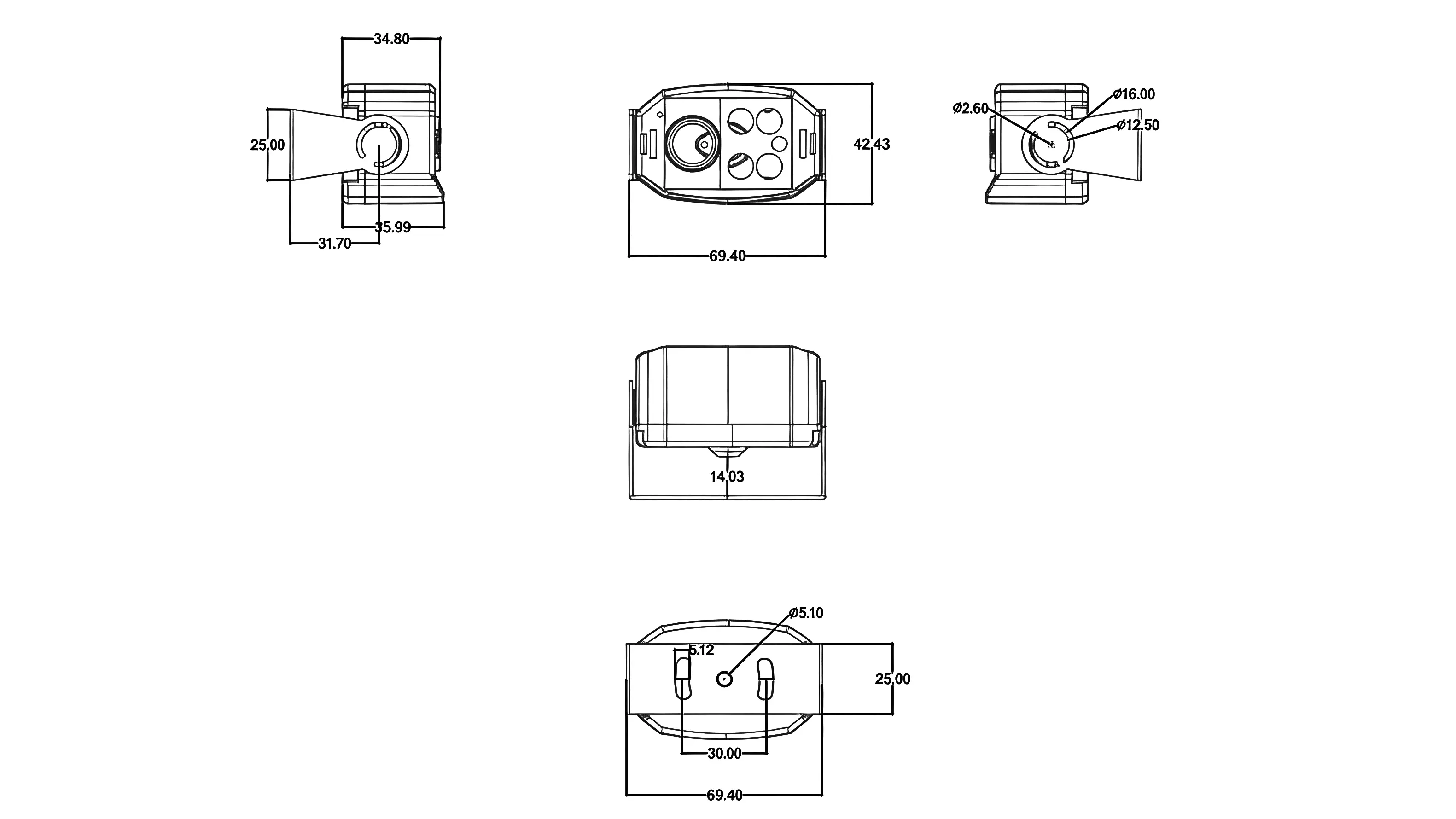

| Overall Product Size | Refer to attached dimension drawing |
