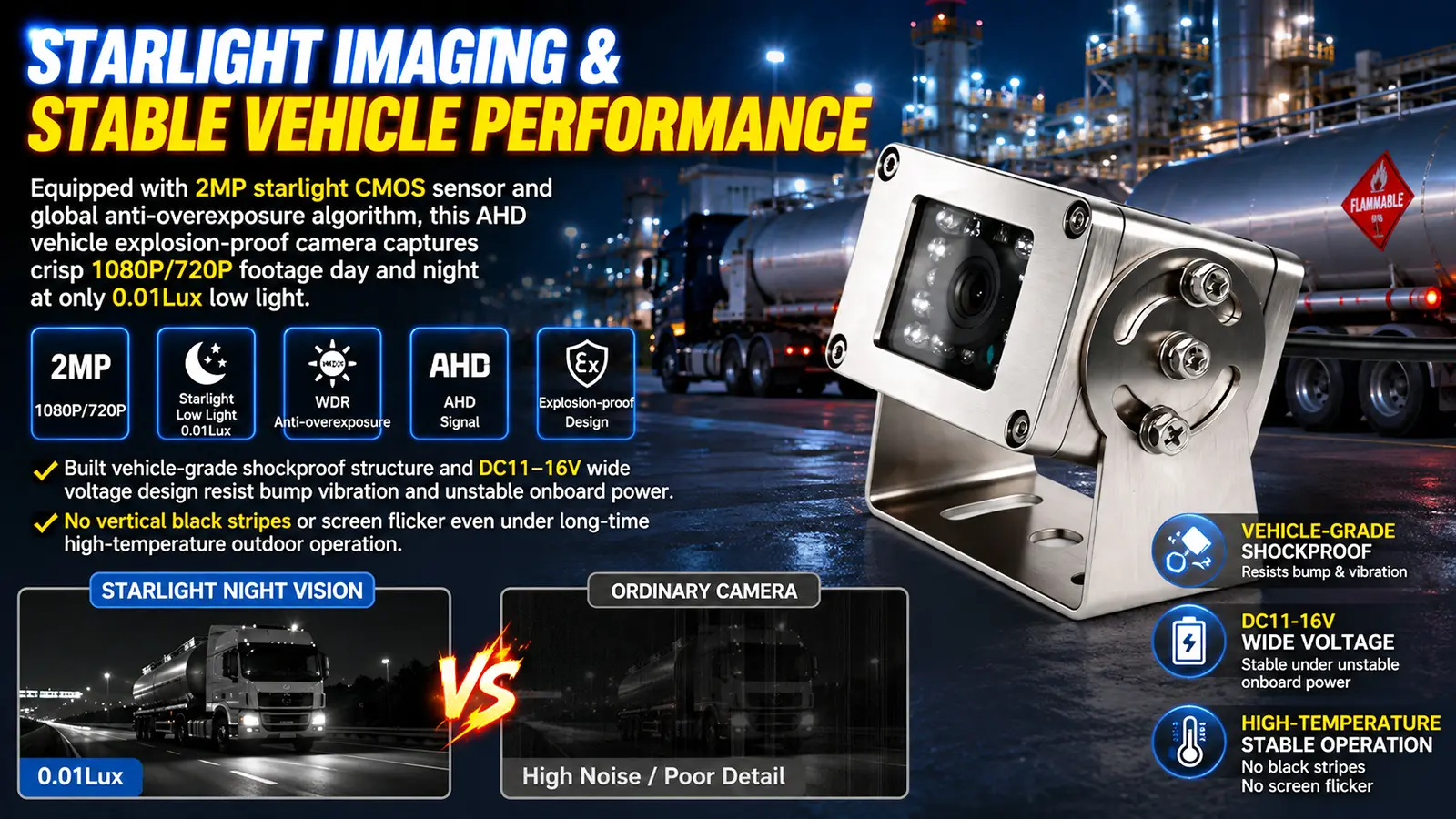

XY-FB515 is a compact miniature explosion-proof vehicle camera customized for hazardous material transport vehicles. Its flameproof enclosure strictly complies with GB3836.1-2010 and GB3836.2-2010 international explosion-proof standards. This camera can work safely in Zone 1/2 flammable gas hazardous areas (Gas Group: IIA, IIB, IIC; Temperature Class: T1-T6) and Zone 20/21/22 combustible dust hazardous areas (Temperature Class: T1-T6).
Built with durable 304 stainless steel housing and IP67 waterproof rating, this starlight AHD camera adopts 2pcs low-power infrared LEDs, supporting 1080P/720P dual resolution switch, 11-16V wide voltage input, anti-fog and vehicle-grade shockproof design. Equipped with global anti-overexposure algorithm, it effectively fixes common problems such as unstable video signal and gradual image blurring of ordinary vehicle cameras. It is widely used for oil tankers, chemical transport vehicles, offshore ships, drilling platforms and other special industrial vehicles.
| Item | Details |
|---|---|
| Product Model | XY-FB515 |
| Product Type | Mini Explosion-Proof Exterior Vehicle Camera |

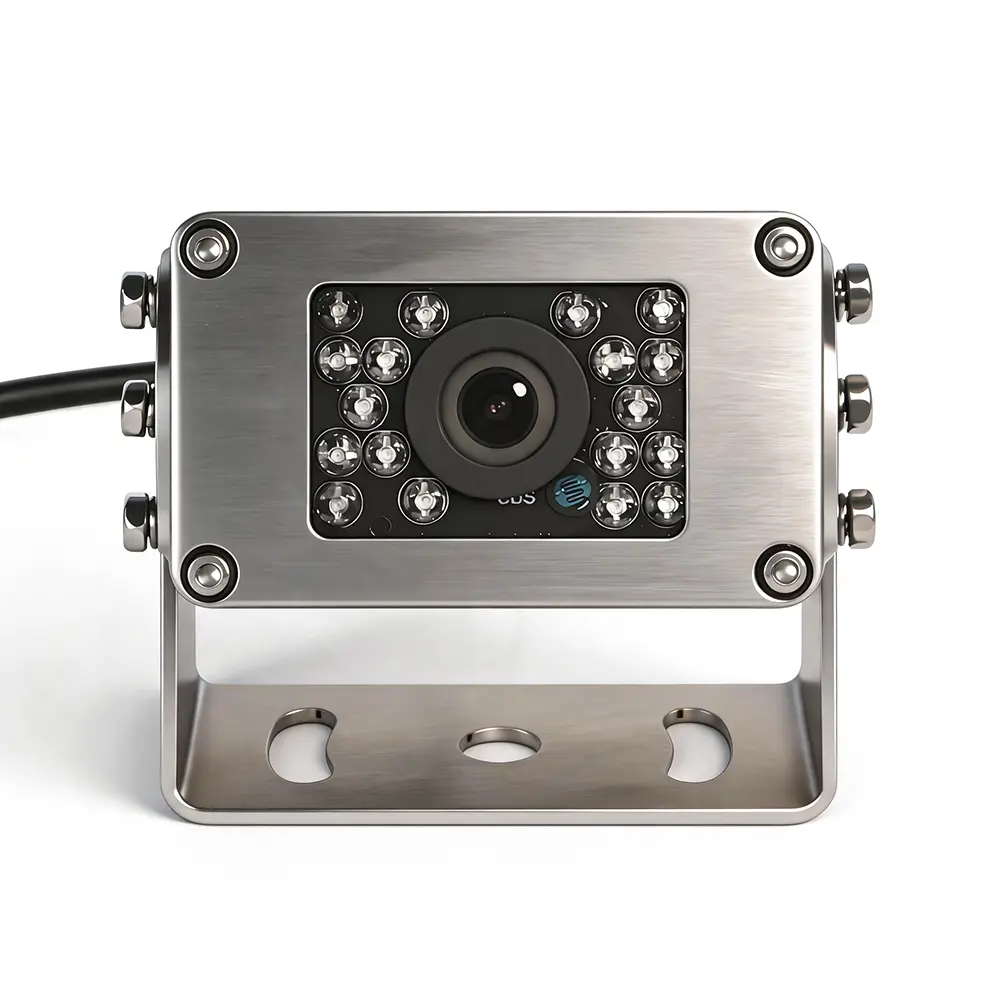

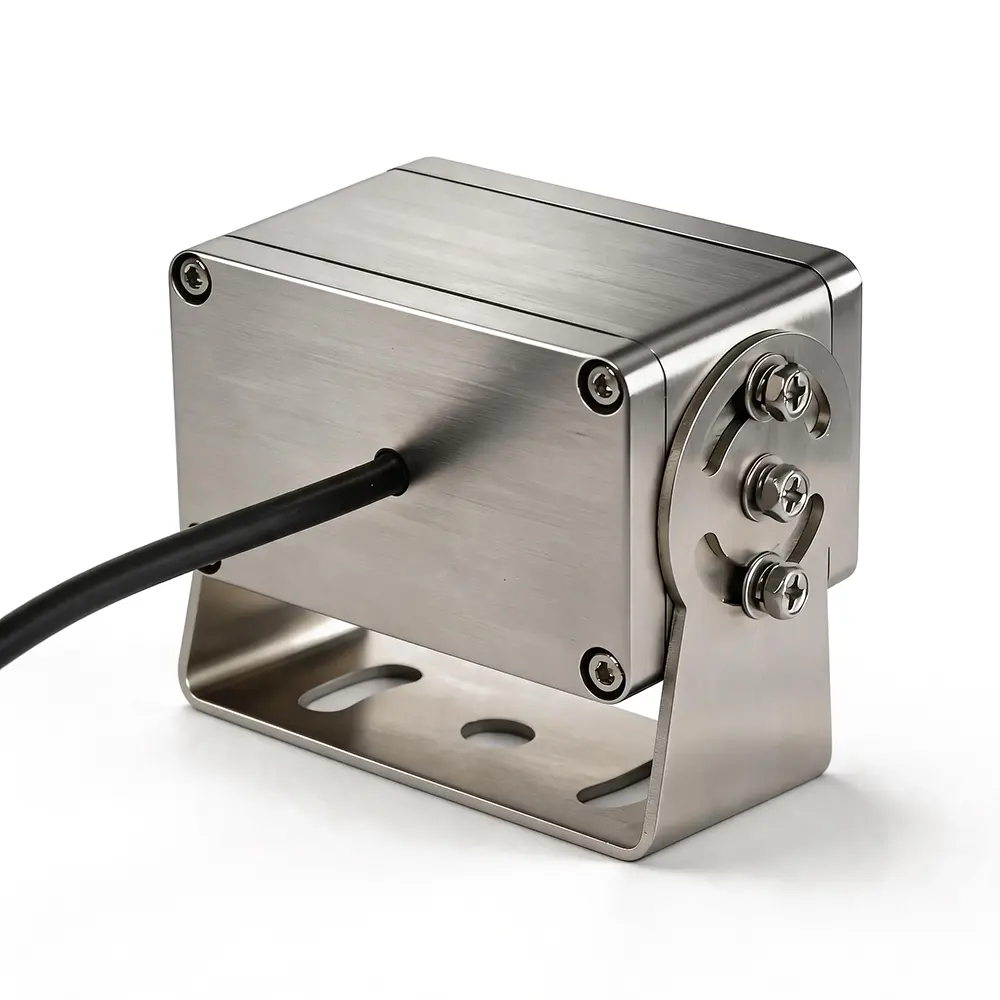

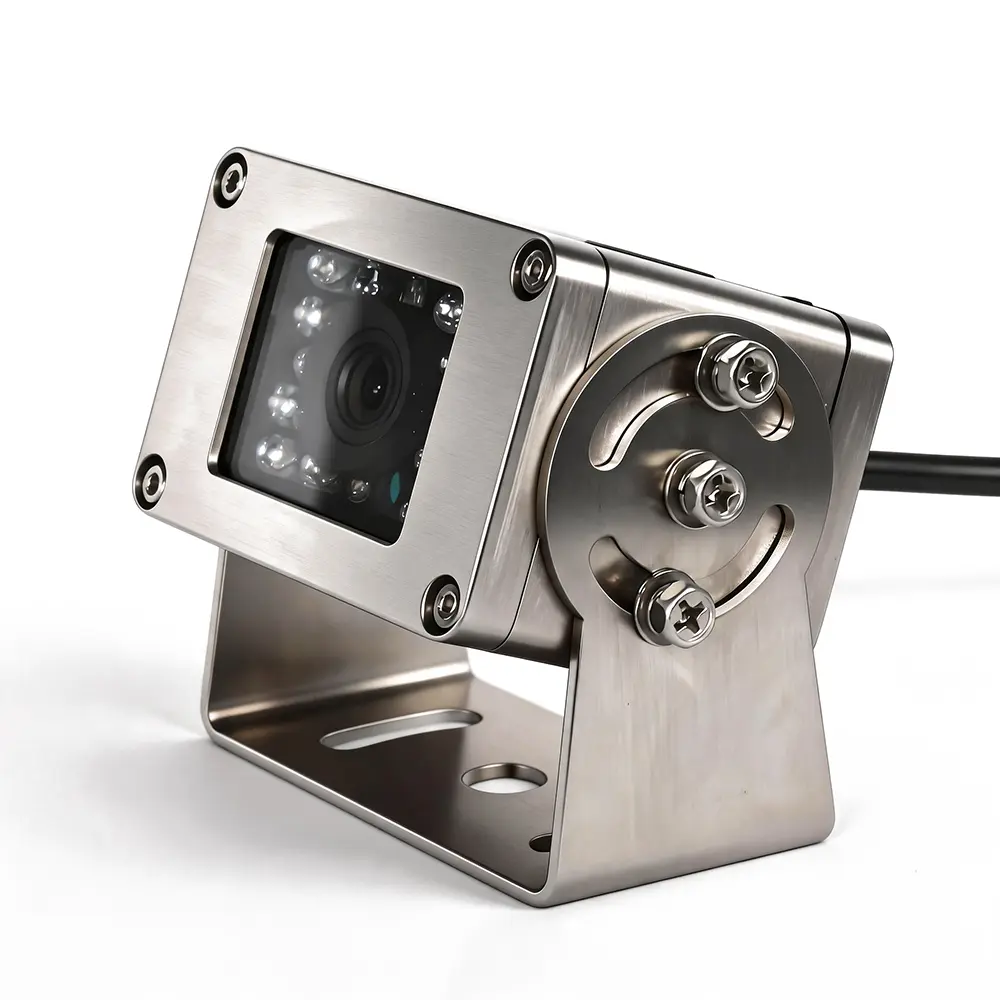

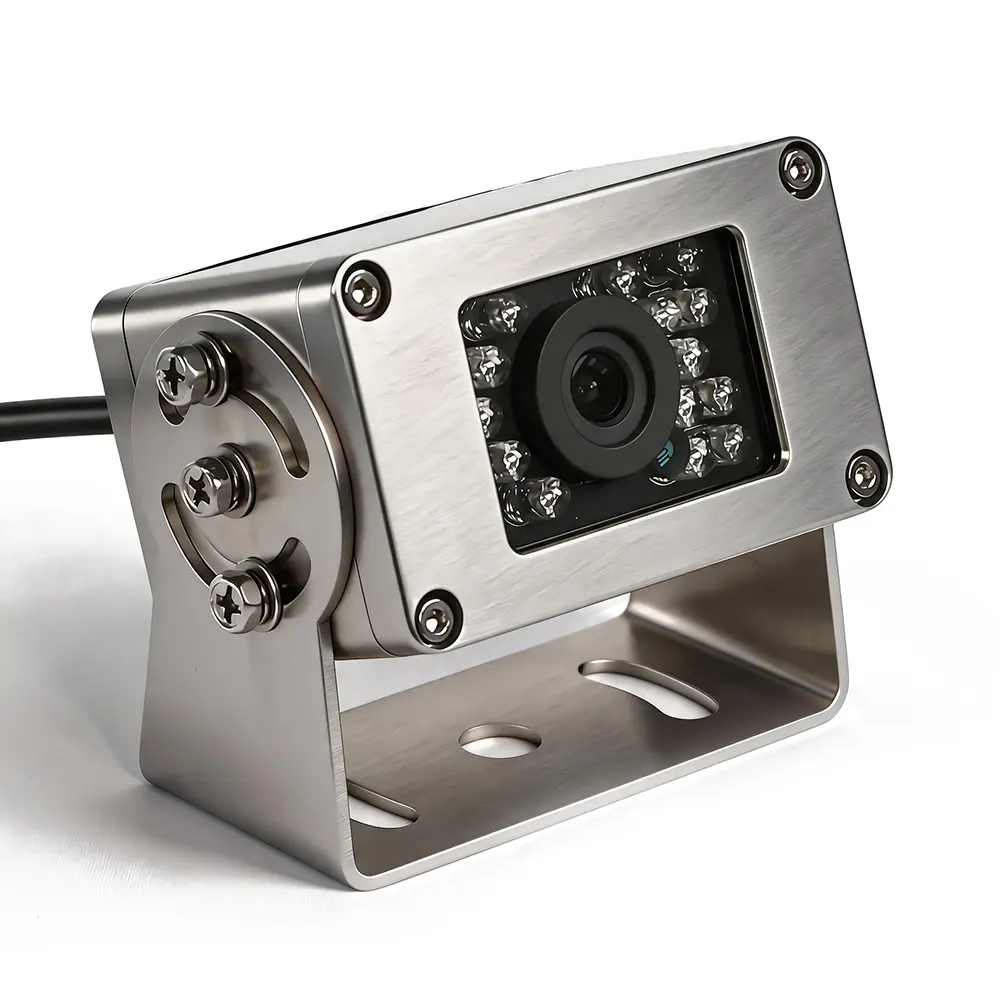

| Housing Material | 304 Thickened Stainless Steel |
| Appearance Color | Silvery-white |
| Explosion-Proof Grade | ExdⅡCT6 GB/tD A21 IP66 80℃ |
| Waterproof Rating | IP67 |
| Lens Parameter | 3.6mm fixed lens, 85° horizontal viewing angle (±5% tolerance) |
| IR LED Quantity | 2pcs low-power high-brightness infrared lights |
| Working Voltage Range | DC 11V-16V (Rated DC12V) |
| Audio Function | No built-in microphone, silent version |
| Connector Type | 4-core Female Aviation Connector |

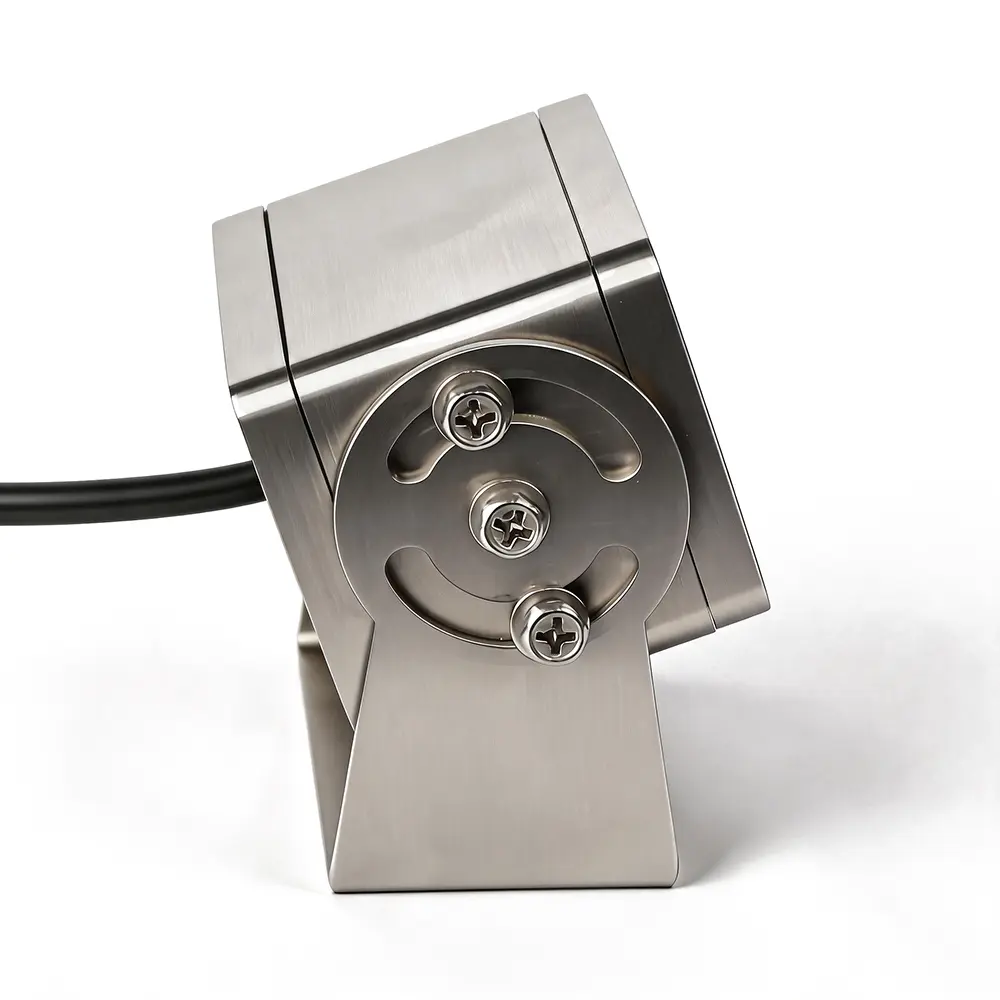

| Installation Method | Self-tapping screw fixed mounting |
| Net Weight | Approx. 2KG |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Authoritative Explosion-Proof Certification | Conforms to GB3836.1-2010 and GB3836.2-2010 flameproof standards. Isolate internal electric sparks completely to prevent ignition of flammable gas and combustible dust, ensuring safe operation in explosive hazardous environments. |
| 2 | 2MP Starlight All-Day HD Imaging | Adopts 1/2.9" starlight CMOS sensor, supports switchable 1080P/720P dual resolution. 0.01Lux ultra-low illumination delivers clear and delicate images day and night, adapting to complex outdoor light changes. |
| 3 | Global Anti-overexposure Technology | Built-in intelligent digital exposure algorithm, automatically balances picture brightness under strong backlight, sunlight glare and high contrast scenes, avoiding image overexposure and missing key monitoring details. |
| 4 | High Temperature Stable Night Vision Performance | Maintains stable dark signal under long-term high-temperature closed vehicle environment. No vertical black stripes or abnormal bright white lines appear during continuous night vision recording. |
| 5 | Vehicle Shockproof + Wide Voltage Adaptation | Reinforced internal shockproof structure resists vibration from bumpy roads; 11-16V wide voltage design adapts to unstable original power supply of special engineering vehicles without extra voltage regulator. |
| 6 | IP67 All-Weather Waterproof Protection | IP67 waterproof rating prevents rainwater, dust and mud splashes, suitable for long-term outdoor exterior installation on vehicle body in all harsh weather conditions. |
| 7 | PAL/NTSC Dual Signal Optional | Supports switchable PAL and NTSC signal modes, compatible with global mainstream vehicle monitoring hosts, meeting overseas market matching requirements. |
| 8 | Mini Compact Body & Easy Installation | Mini lightweight stainless steel body saves installation space; self-tapping screw mounting ensures firm fixation, not easy to loosen during long-distance bumpy transportation. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL / NTSC Optional | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps(PAL) / 30fps(NTSC) | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Lens Configuration | Lens & Viewing Angle | 3.6mm, 85° horizontal viewing angle (±5% tolerance) |
| Night Vision System | IR LED Quantity | 2pcs |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 11V-16V (Rated DC12V) |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Waterproof Grade | Protection Level | IP67 |
| Explosion-Proof Parameter | Standard & Grade | GB3836.1-2010, GB3836.2-2010; ExdⅡCT6 GB/tD A21 IP66 80℃ |

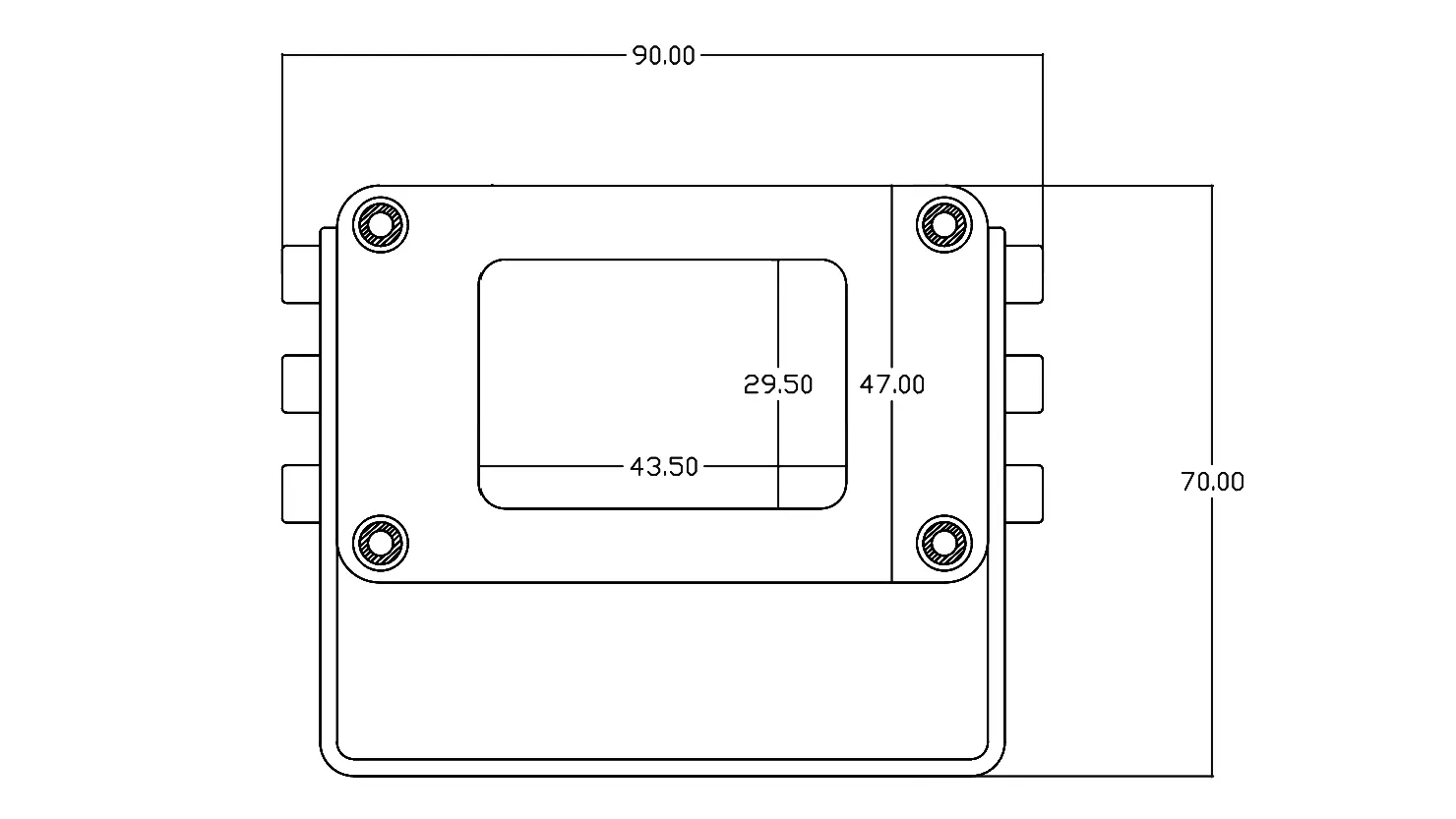

| Dimension Item | Size (mm) |
|---|---|
| Overall Product Size | 90mm * 70mm * 47mm |
| Note | Slight machining tolerance exists; please refer to official dimension drawing for precise data |
This mini explosion-proof vehicle camera provides full-process, safe and stable video monitoring for vehicles running in flammable, explosive and dust-prone hazardous environments, meeting strict industrial safety monitoring standards.
