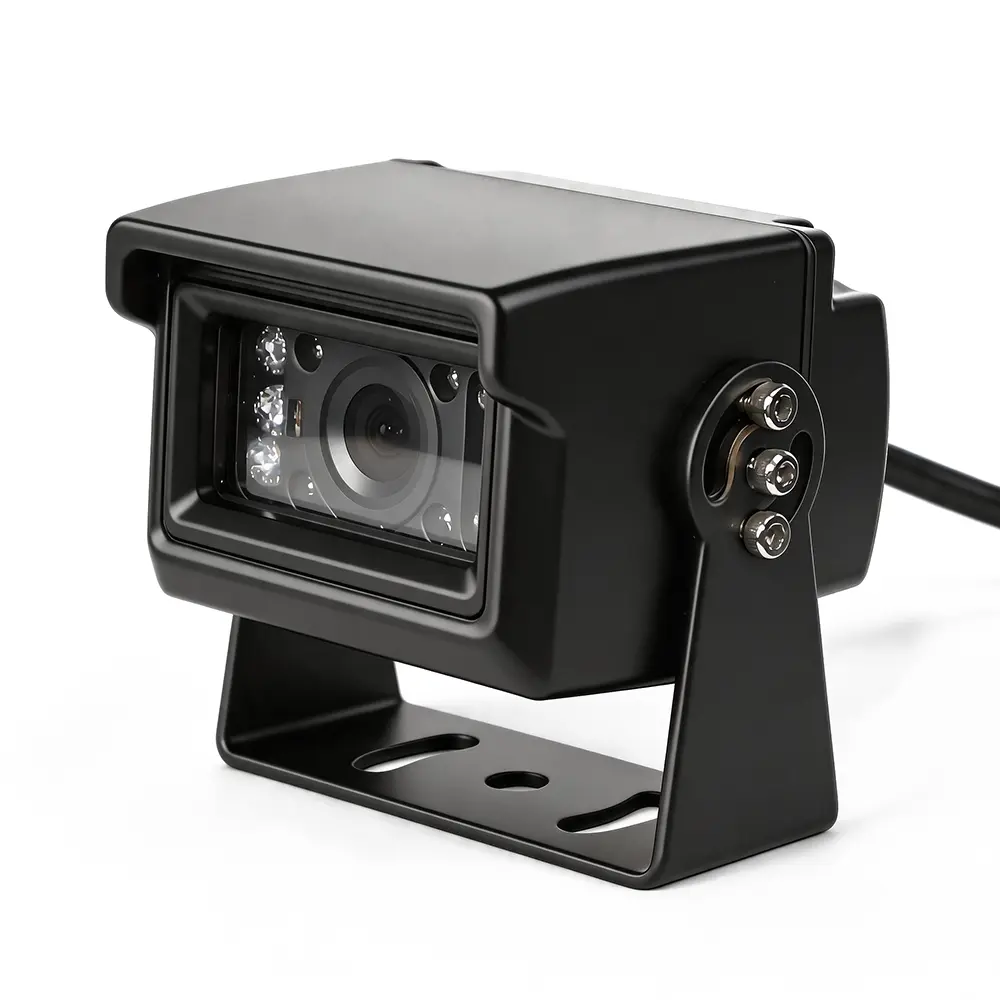

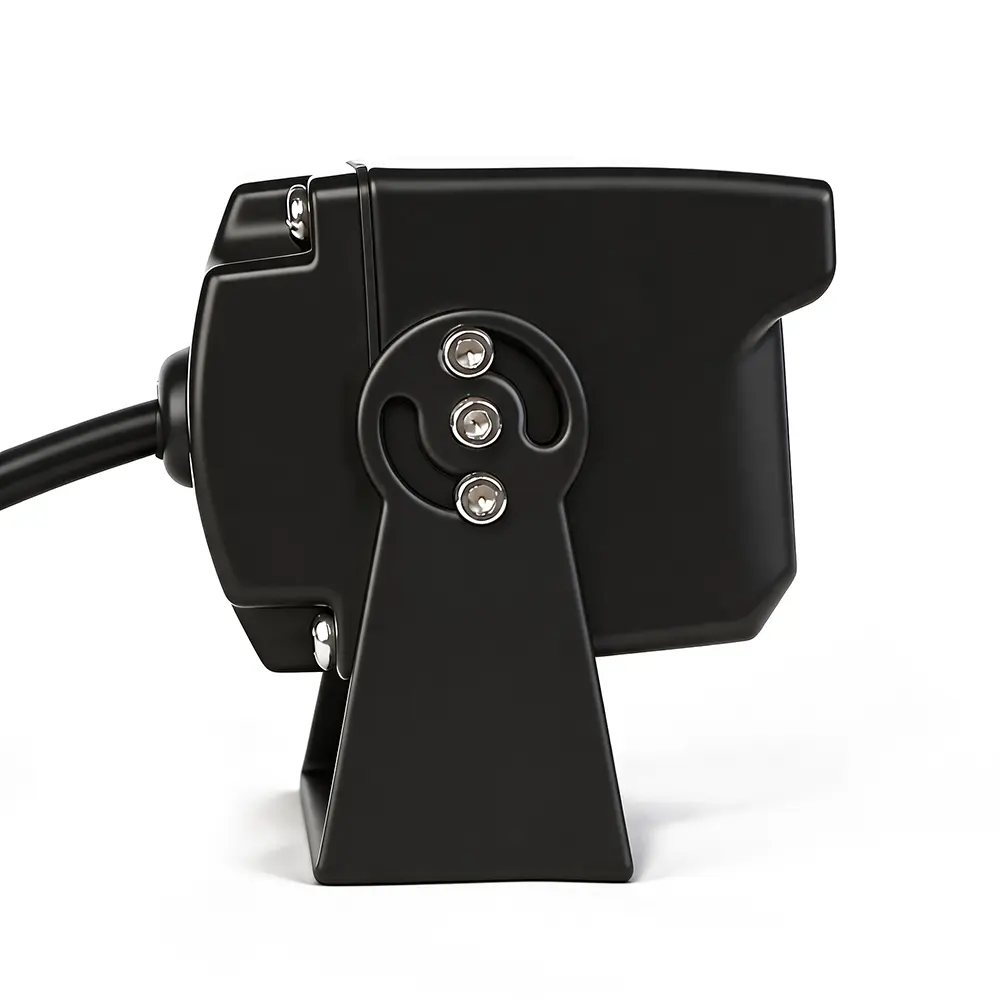

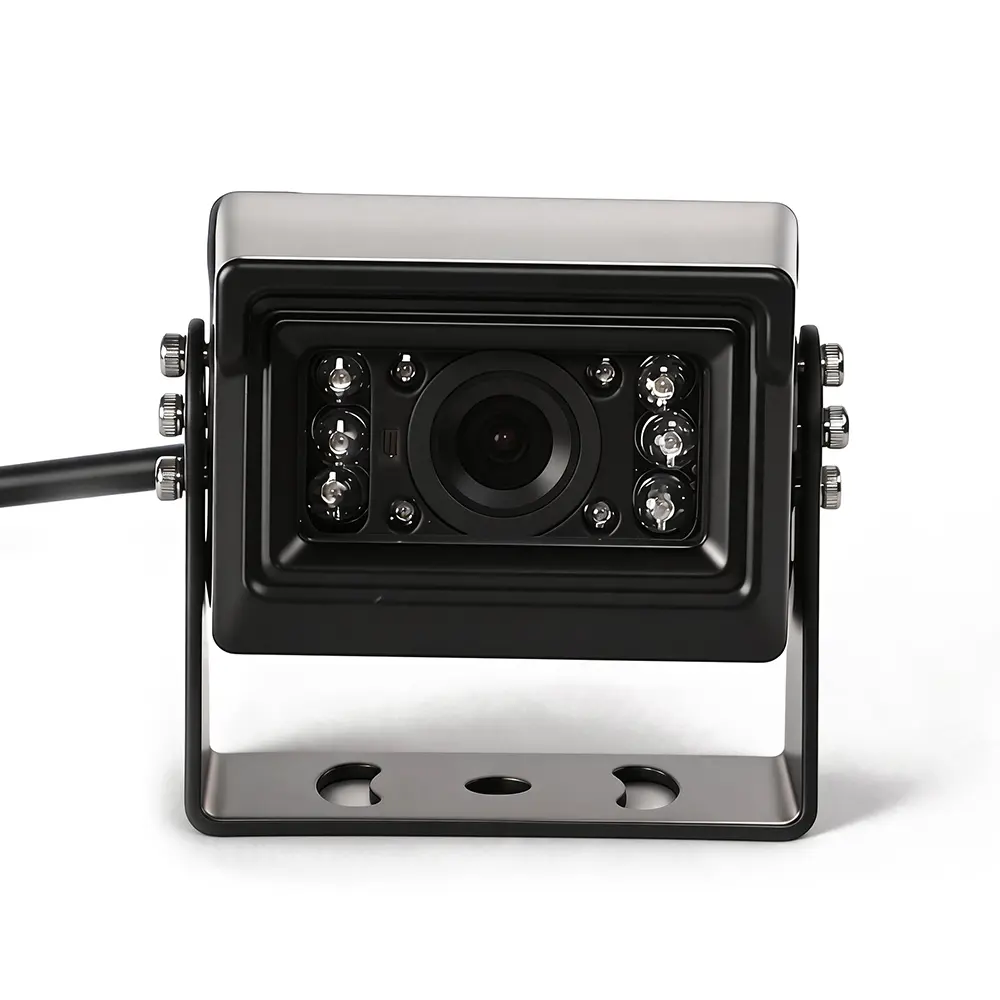

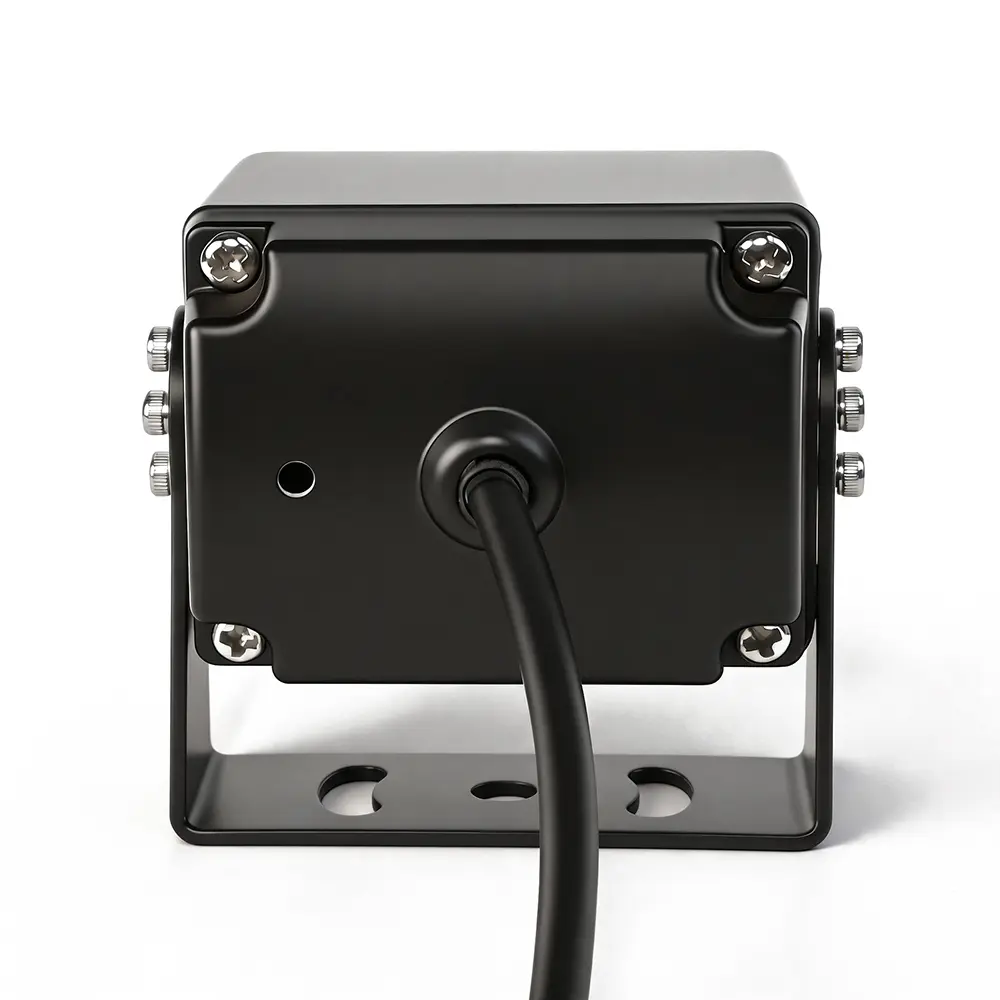

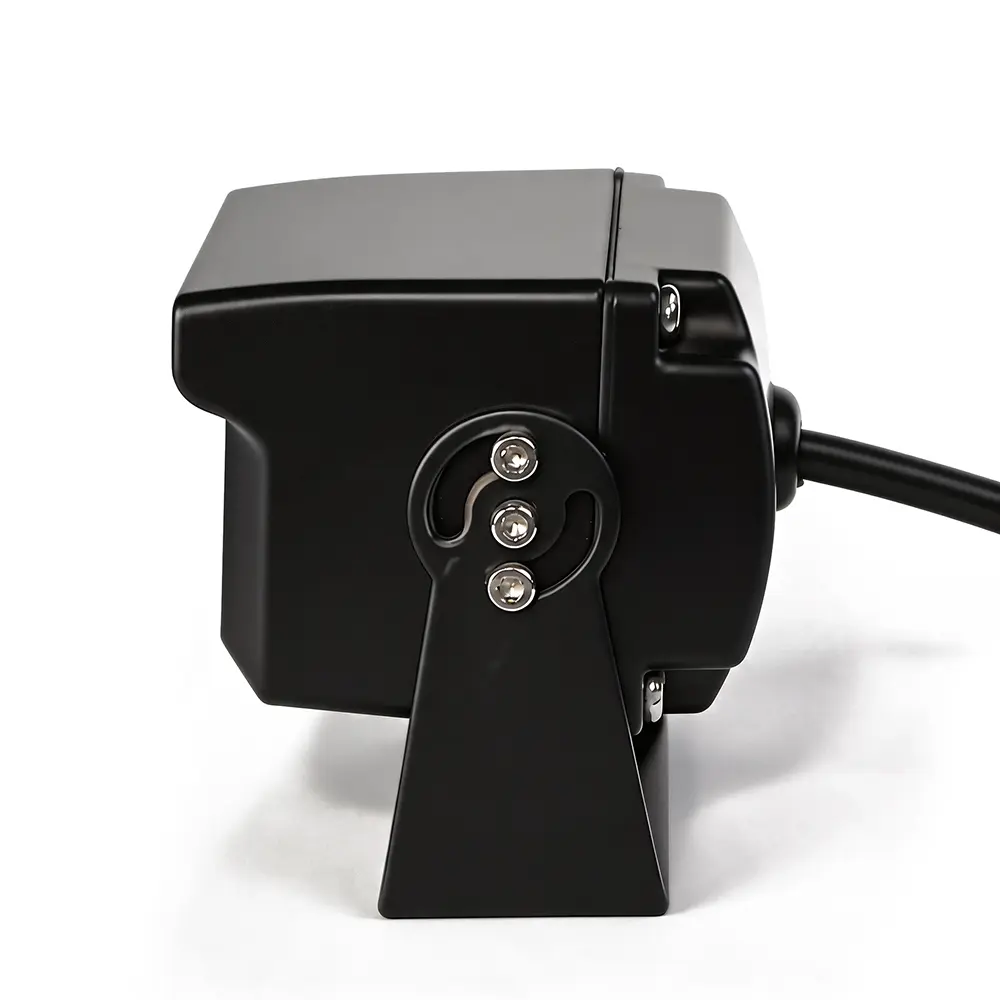

XY-FS730 is a cost-effective full-featured exterior waterproof AHD vehicle camera, designed for rear reversing assistance and full-time external road monitoring of medium and large commercial vehicles. Equipped with high-performance 2MP starlight CMOS sensor and 12 high-brightness infrared fill lights, it delivers clearer night vision effect compared with ordinary vehicle cameras.
Adopting fully sealed high-strength aluminum alloy housing, this camera reaches IP67 professional waterproof and dustproof grade, which can resist rain erosion, mud splash and outdoor dust invasion. Built-in vehicle-grade shockproof structure and global anti-overexposure algorithm effectively solve common industry pain points such as screen overexposure, signal jitter and picture stripes during long-term driving. With standard aviation connector and simple screw installation, it is a universal and reliable monitoring accessory for various commercial vehicles and engineering machinery.
| Item | Details |
|---|---|
| Product Model | XY-FS730 |
| Product Type | IP67 Waterproof Exterior AHD Vehicle Camera |
| Housing Material | High-strength Aluminum Alloy |
| Appearance Color | Black |
| Waterproof & Dustproof Grade | IP67 |
| Viewing Angle | DFOV 110° / HFOV 85° / VFOV 48° |
| IR LED Quantity | 12pcs high-brightness infrared night vision lights |
| Working Voltage | DC 12V |
| Rated Working Current | 250mA @ DC12V |
| Connector Type | 4-core aviation connector |
| Default Cable Length | 0.6m |
| Net Weight | Approx. 0.4KG |
| Installation Method | Self-tapping screw fixed mounting |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Dual Resolution Starlight Clear Imaging | Adopts professional 1/2.9-inch starlight CMOS image sensor, supports free switching between 720P and 1080P high-definition resolution. 0.01Lux ultra-low illumination ensures clear color images in dark environments, achieving day and night seamless monitoring. |
| 2 | Enhanced Infrared Night Vision | Equipped with 12pcs high-brightness infrared LEDs, longer night vision monitoring distance and clearer night picture compared with conventional 8LED vehicle cameras, meeting full dark outdoor monitoring demands. |
| 3 | Global Anti-overexposure Algorithm | Intelligent automatic exposure adjustment effectively suppresses strong light glare, backlight interference and tunnel light contrast. It avoids partial overexposure and dark area loss, restoring real and complete road scene details. |
| 4 | Stable Image Output at High Temperature | Optimized industrial-grade circuit design adapts long-time high-temperature outdoor working conditions. No vertical black stripes, screen flicker or abnormal bright lines appear during long-duration night vision monitoring. |
| 5 | Vehicle-grade Anti-vibration Structure | Reinforced built-in shockproof structure resists continuous vibration and jitter from bumpy roads, ensuring stable and smooth video transmission without signal interruption during long-distance vehicle driving. |
| 6 | IP67 All-weather Waterproof Protection | Fully sealed aluminum alloy housing achieves IP67 dustproof and waterproof performance, perfectly coping with rainy days, muddy roads and dusty harsh outdoor environments for long-term external vehicle installation. |
| 7 | Universal Compatibility & Plug and Play | Standard DC12V working voltage and universal 4-pin aviation connector are highly compatible with all mainstream vehicle MDVR monitoring hosts worldwide, no extra program debugging needed after connection. |
| 8 | Durable & Easy Installation | Wear-resistant and corrosion-resistant metal housing prolongs service life; compact body matches simple screw installation, firm fixation without falling off during vehicle operation. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" Starlight CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Resolution | Horizontal Resolution | 2000TVL |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| View Angle Parameter | Diagonal / Horizontal / Vertical View Angle | 110° / 85° / 48° |
| Night Vision Configuration | IR LED Quantity | 12pcs |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Working Current | 250mA | |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ | |
| Protection Grade | Waterproof & Dustproof Standard | IP67 |

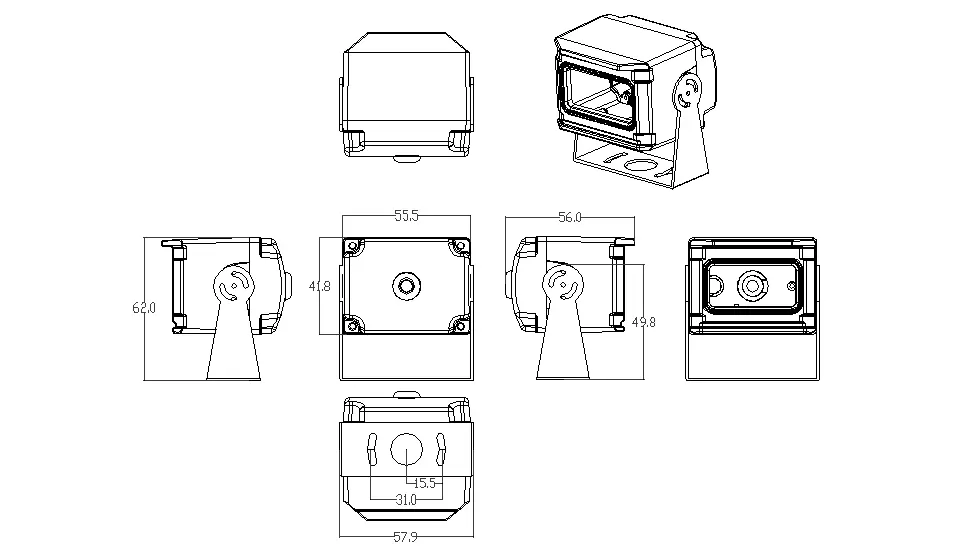

| Dimension Item | Size Remark |
|---|---|
| Overall Product Size | Please refer to official engineering drawing for accurate millimeter dimension data |
| Note | Minor machining tolerance exists on aluminum alloy housing |
XY-FS730 exterior waterproof camera delivers stable 24-hour high-definition monitoring performance, with stronger night vision capability than ordinary vehicle cameras. It is a high cost-performance monitoring solution for commercial fleet unified matching and batch procurement.
A: The camera reaches IP67 professional dustproof and waterproof grade, which allows it to resist rain erosion, mud splashes, and dust invasion in tough outdoor environments.
A: It is equipped with a 1/2.9-inch starlight CMOS image sensor and 12 high-brightness infrared night vision lights, ensuring clear image details even under 0.01Lux ultra-low illumination.
A: No. With its optimized industrial-grade circuit design, the camera output remains stable without vertical black stripes, screen flicker, or abnormal bright lines, even during continuous high-temperature outdoor operations.
A: Yes, it features a built-in vehicle-grade shockproof structure that prevents signal interruption, jitter, and screen stripes, ensuring stable video transmission during long-term commercial vehicle driving.
A: The camera uses a standard DC 12V working voltage and a universal 4-core aviation connector, making it highly compatible with mainstream vehicle MDVR monitoring hosts worldwide for plug-and-play installation.
A: It is widely used in medium and large commercial fleets, including logistics vans, box trucks, heavy trucks, sanitation trucks, sprinklers, and small engineering machinery like construction vehicles and forklifts.
