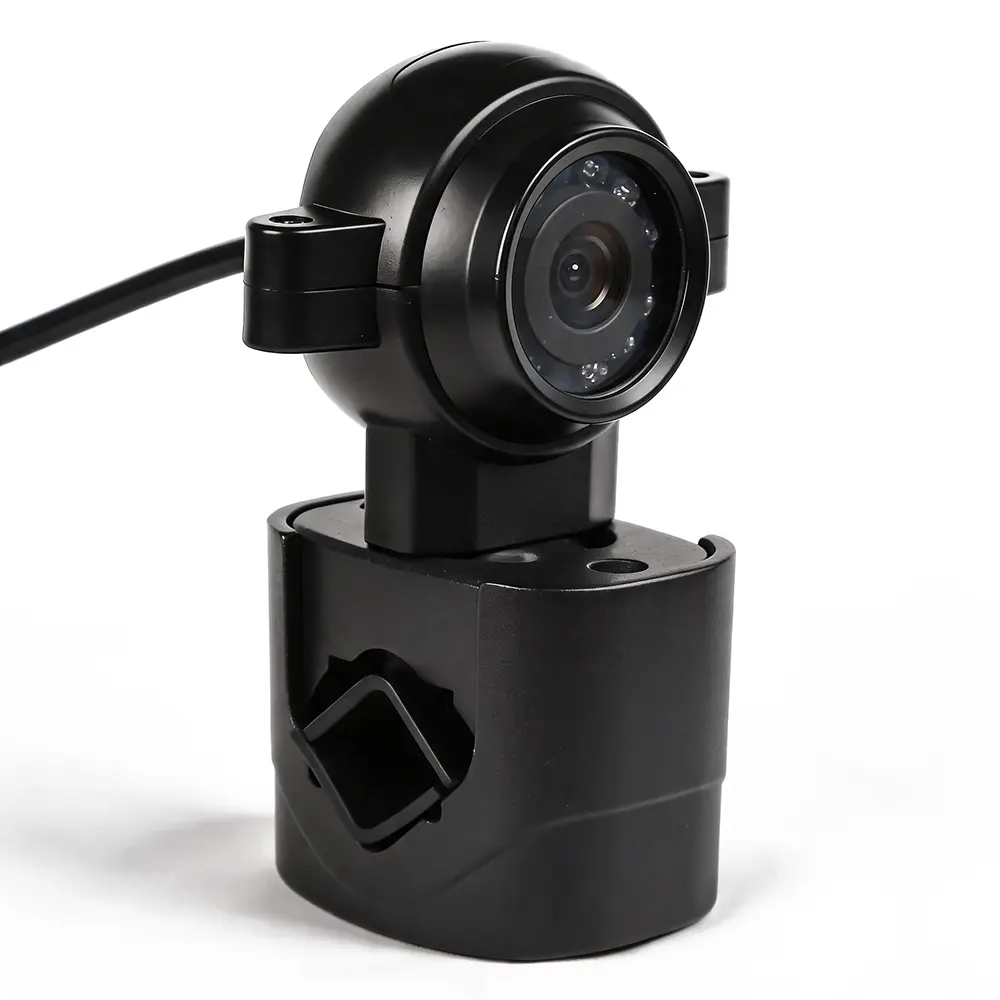

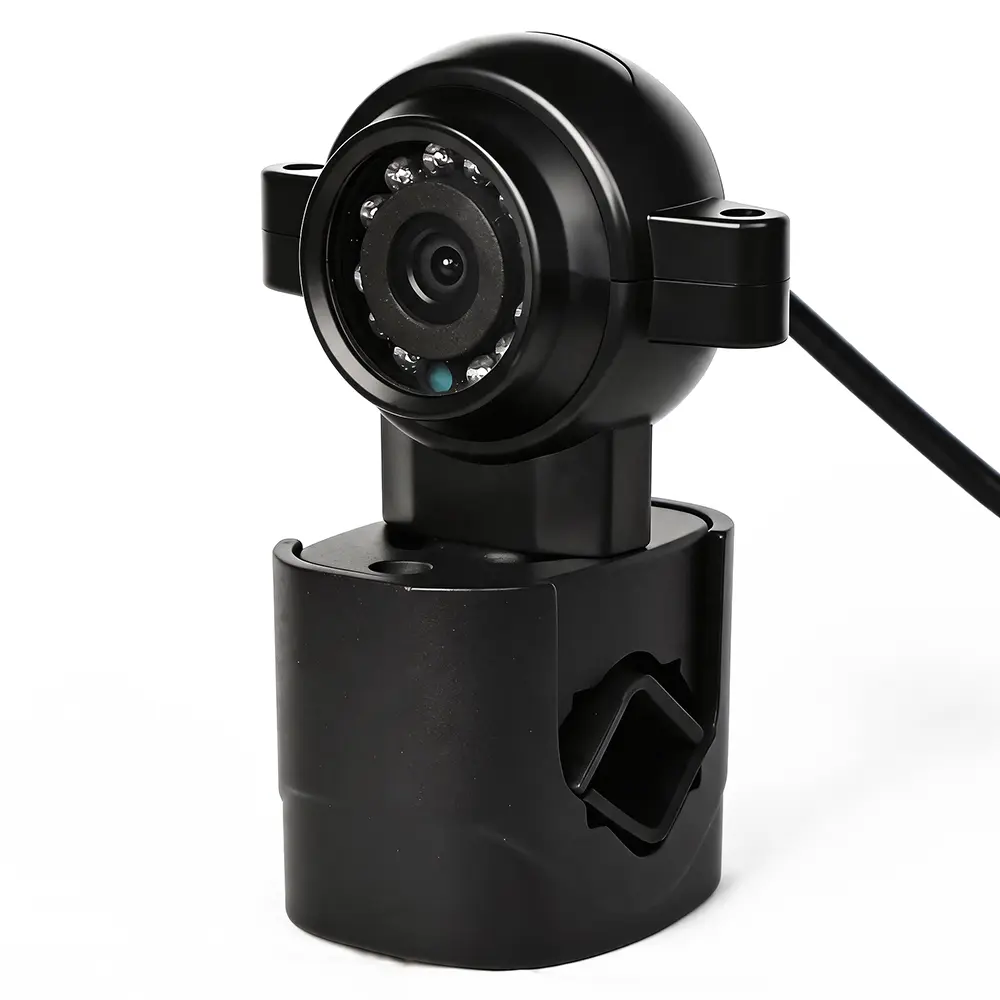

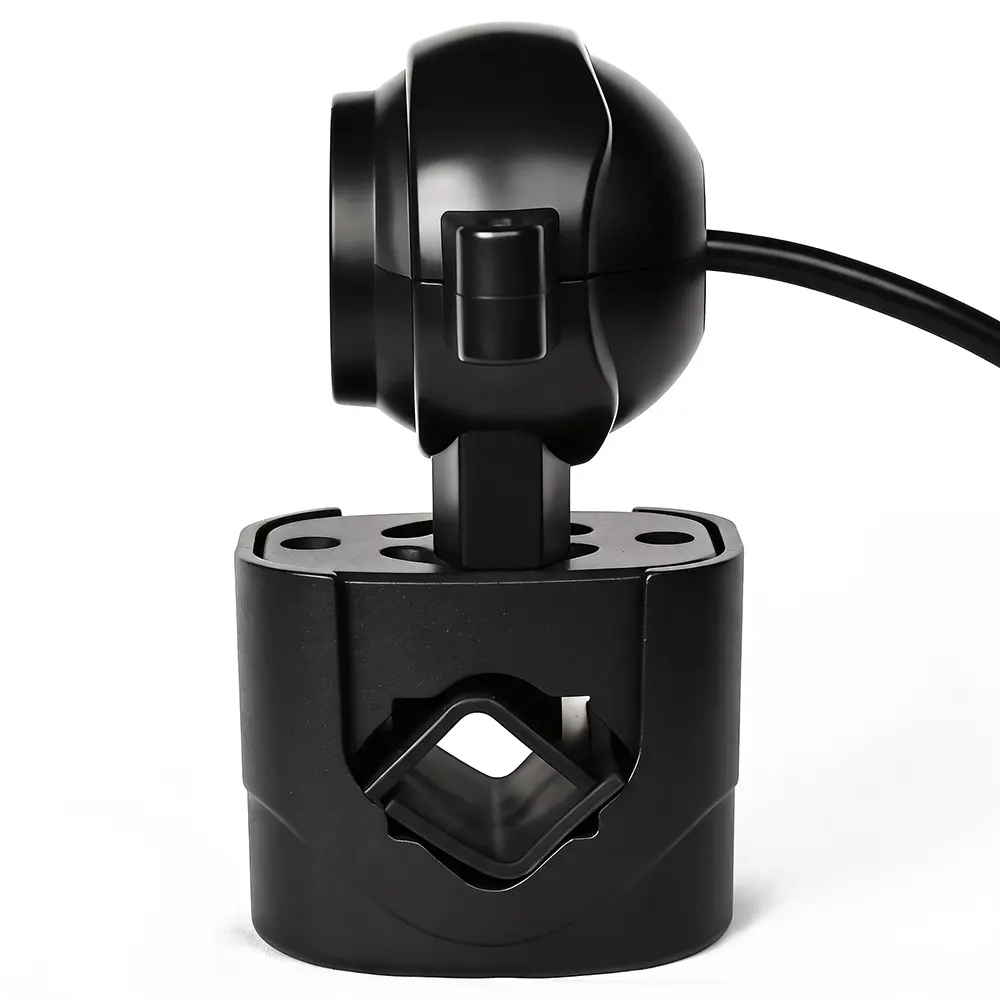

XY-FS799 is a cost-effective wide-angle exterior vehicle monitoring camera developed for commercial vehicle road monitoring and reversing assistance. Adopting professional starlight low-light imaging sensor, this camera is equipped with anti-fog optical lens, vehicle-grade shockproof internal structure and stable DC12V power supply. It effectively solves common industry problems of traditional vehicle cameras, including unstable video signal output and gradual picture blurring after long-time driving on bumpy roads. With durable aluminum alloy housing, 12 built-in infrared fill lights and firm screw mounting design, it delivers stable clear monitoring footage day and night, perfectly matching daily exterior monitoring demands for various commercial vehicles.
| Item | Details |
|---|---|
| Product Model | XY-FS799 |
| Product Type | Wide-angle Exterior Vehicle Monitoring Camera |
| Housing Material | Integrated Aluminum Alloy |
| Appearance Color | Black |
| Installation Method | Self-tapping Screw Fixed Installation |
| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.4KG |
| Waterproof Rating | Non-waterproof |
| Night Vision Configuration | 12pcs Infrared LED Fill Lights |
| Working Current | 250mA @ DC 12V |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | 2MP Starlight Dual-resolution HD Imaging | Built-in 1/2.9" starlight-grade CMOS sensor, supporting switchable 1080P and 720P dual resolution. 0.01Lux ultra-low illumination realizes sharp and delicate video recording both day and night, adapting to complex outdoor light changes. |
| 2 | Global Anti-overexposure Algorithm | Adopts advanced digital exposure technology, automatically balancing picture brightness under strong sunlight glare, backlight and high-contrast road environments. Effectively avoids image overexposure and retains complete road monitoring details. |
| 3 | Excellent High-temperature Image Stability | Maintains stable dark level signal under long-term high-temperature working environment. No vertical black stripes or abnormal bright white lines appear during night vision monitoring, keeping consistent and stable imaging effect. |
| 4 | Vehicle-grade Shockproof Structure | Reinforced internal shockproof design can effectively resist continuous vibration from bumpy roads, ensuring stable and jitter-free video signal transmission during vehicle driving. |
| 5 | 110° Ultra-wide Viewing Angle | 110° diagonal wide viewing angle covers broader exterior monitoring range, greatly reduces vehicle reversing blind spots and improves overall driving safety for commercial vehicles. |

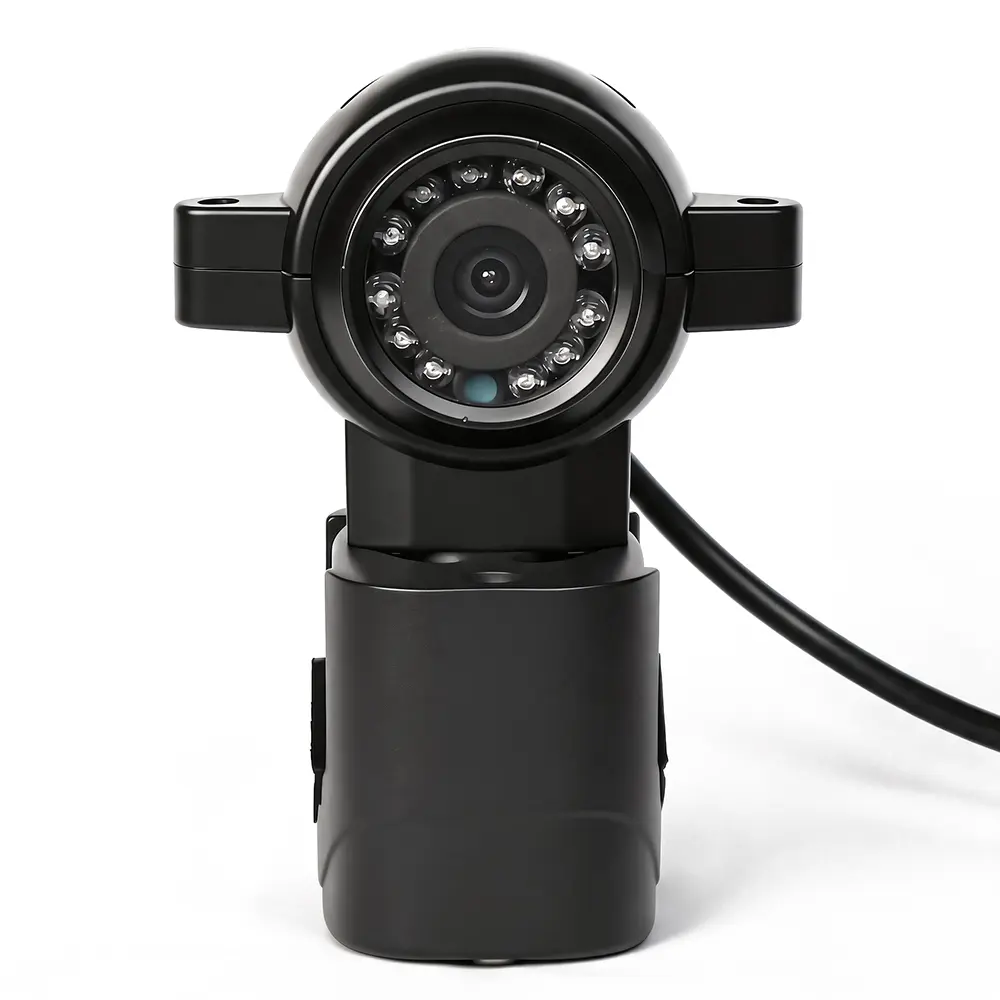

| 6 | 12 IR LEDs Stable Night Vision | 12 built-in infrared supplementary lights provide uniform soft fill light for dark environments, capturing clear exterior road images at night without monitoring dead angles. |
| 7 | Durable Aluminum Alloy Housing | High-strength aluminum alloy shell features good heat dissipation performance and compression resistance, extending the whole camera service life for long-term outdoor use. |
| 8 | Low Power Consumption & Easy Installation | Low 250mA working current supports 24-hour uninterrupted monitoring with low power loss. Standard self-tapping screw mounting ensures firm exterior installation without loose displacement. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Viewing Angle Parameter | DFOV (Diagonal View Angle) | 110° |
| HFOV (Horizontal View Angle) | 85° | |
| VFOV (Vertical View Angle) | 48° | |
| Night Vision System | IR LED Quantity | 12pcs |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Working Current | 250mA @ DC 12V | |
| Environmental Adaptability | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Dimension Item | Remarks |
|---|---|
| Overall Product Size | Please refer to official dimension drawing for accurate size data |
XY-FS799 wide-angle exterior vehicle camera is widely applicable to trucks, buses, sanitation vehicles, construction machinery and various commercial fleets. It is mainly used for vehicle exterior road real-time monitoring and reversing auxiliary video recording, providing stable all-day monitoring video data for fleet safety management and driving risk prevention.
