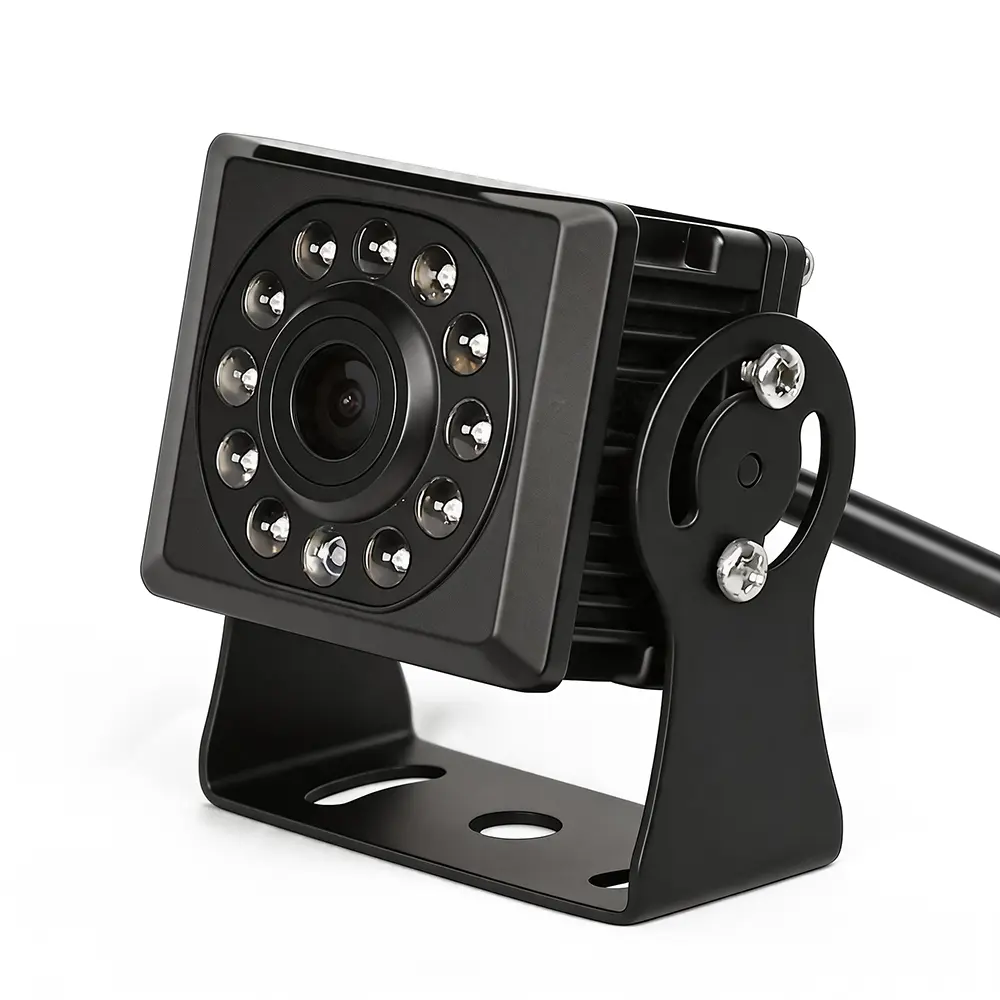

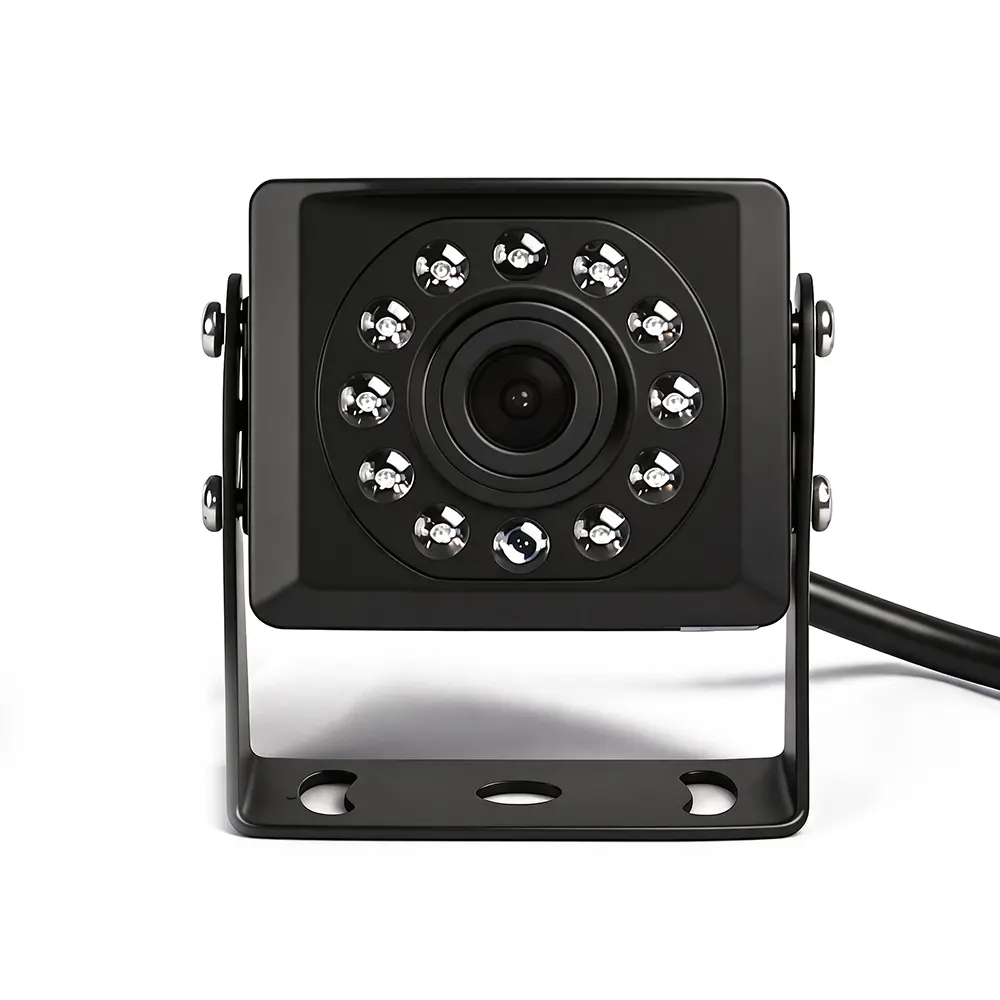

XY-FS360 is a professional AHD high-definition exterior vehicle camera tailored for commercial vehicle outdoor monitoring and reversing assistance. Built with premium aluminum alloy housing and standard IP67 waterproof performance, this camera adopts starlight low-light CMOS sensor, paired with 11pcs infrared fill lights for steady night vision monitoring. It integrates anti-fog optical lens, vehicle-grade shockproof structure and stable DC12V power supply design, perfectly solving common drawbacks of ordinary vehicle cameras such as unstable image transmission and gradual picture blurring after long-term driving.
This model supports two customized upgrades: IP69K high-pressure waterproof grade and 150° ultra-wide viewing angle lens, meeting diverse harsh working environment demands. With simple self-tapping screw installation, it is a cost-effective monitoring solution for trucks, sanitation vehicles, construction machinery and various commercial fleets.
| Item | Details |
|---|---|
| Product Model | XY-FS360 |
| Product Type | Waterproof Exterior Vehicle Monitoring Camera |
| Housing Material | Integrated Aluminum Alloy |
| Appearance Color | Black |
| Standard Waterproof Rating | IP67 |
| Customized Waterproof Option | Support customized IP69K high-pressure washing waterproof grade |
| Standard Viewing Angle | DFOV 110°, HFOV 85°, VFOV 48° |
| Customized Lens Option | Support customized 150° ultra-wide viewing angle lens |
| IR LED Quantity | 11pcs high-brightness infrared fill lights |
| Operating Voltage | DC 12V |
| Working Current | 250mA @ DC 12V |
| Connector Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.4KG |
| Installation Method | Self-tapping screw fixed installation |
Equipped with 1/2.9" starlight-grade CMOS image sensor, supporting switchable 1080P/720P dual resolution. 0.01Lux ultra-low illumination achieves clear video output day and night.
Adopts upgraded digital exposure technology, automatically balancing picture brightness under strong sunlight, backlight, and high-contrast environments.
Keeps stable dark signal output under long-term high-temperature working environment. No vertical black stripes or abnormal bright white lines appear.
Reinforced internal shockproof design effectively resists continuous vibration from bumpy roads, preventing video jitter and signal interruption.
Standard DC12V working voltage matches all mainstream vehicle monitoring hosts, dedicatedly customized for vehicle monitoring compatibility.
Standard IP67 protection handles rain and mud. Optional IP69K grade supports high-pressure water washing for vehicles needing frequent cleaning.
Default 110° wide viewing angle covers regular monitoring range; customized 150° ultra-wide lens greatly reduces vehicle reversing blind spots.
High-strength aluminum alloy shell features good heat dissipation and compression resistance. Simple self-tapping screw mounting ensures firm installation.
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Viewing Angle Parameter | Diagonal View Angle (DFOV) | 110° |
| Horizontal View Angle (HFOV) | 85° | |
| Vertical View Angle (VFOV) | 48° | |
| Night Vision Configuration | IR LED Quantity | 11pcs |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Working Current | 250mA | |
| Environmental Temperature | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ | |
| Waterproof Performance | Protection Grade | Standard IP67, Customizable IP69K |

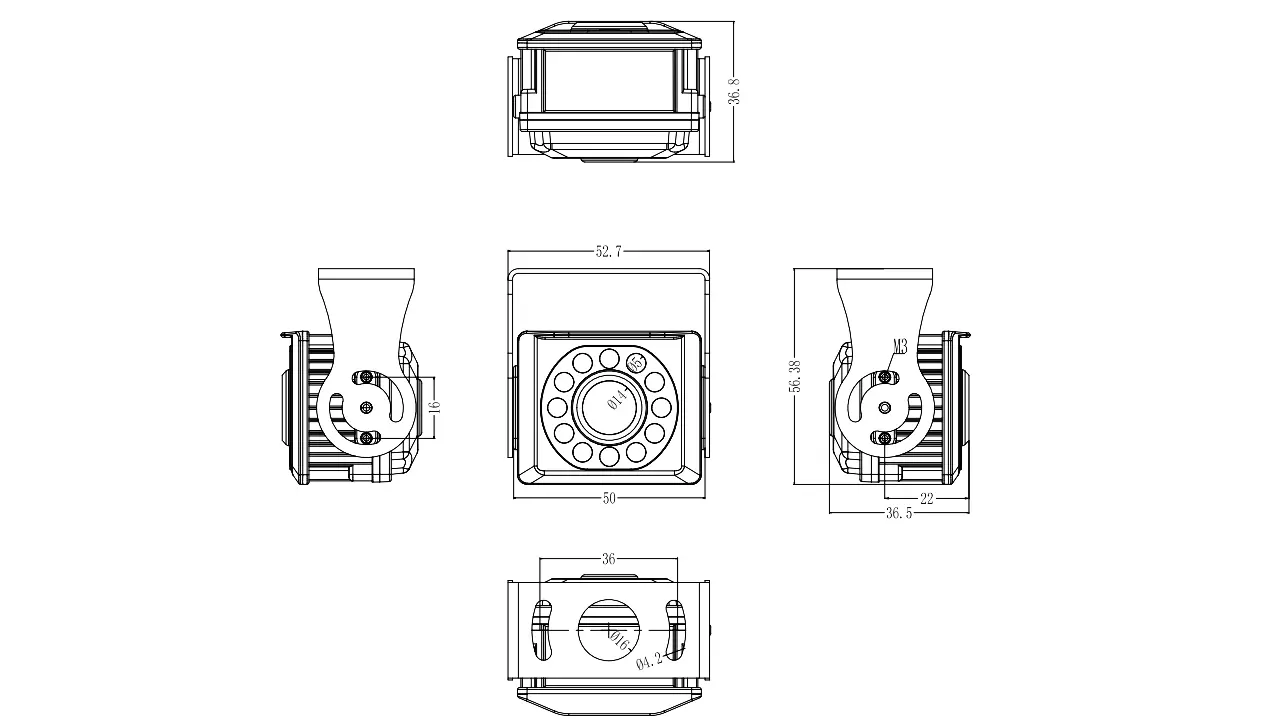

| Dimension Item | Remarks |
|---|---|
| Overall Product Size | Please refer to official product dimension drawing for accurate size data |
XY-FS360 waterproof exterior vehicle camera is widely applied to various commercial vehicles and engineering equipment, including heavy-duty trucks, logistics vans, buses, sanitation vehicles, construction machinery and other fleets. It is mainly used for vehicle exterior road real-time monitoring and reversing auxiliary video recording. With customizable waterproof grade and wide-angle lens, it can perfectly match customized monitoring projects for special fleets and harsh working environments.
The standard waterproof rating of the XY-FS360 is IP67, which effectively protects the camera from rain and mud. For extreme conditions, we support a customized IP69K upgrade, which allows the camera to withstand high-pressure water washing.
The camera is built with a high-performance 1/2.9" starlight CMOS sensor. It supports switchable dual-resolution outputs of 1080P and 720P high-definition analog AHD signals to meet diverse system requirements.
Thanks to its 1/2.9" starlight-grade CMOS sensor (0.01Lux minimum illumination) and 11pcs high-brightness infrared (IR) fill lights, the camera provides clear and stable monitoring capabilities even in complete darkness.
Yes. The standard configuration offers a diagonal viewing angle (DFOV) of 110°. For reversing assistance and wider monitoring coverage, a customized 150° ultra-wide angle lens option is available.
Yes, it features a vehicle-grade reinforced internal shockproof structure to prevent video jitter on bumpy roads. It is also designed with an integrated aluminum alloy housing for reliable heat dissipation and steady signal output in temperatures ranging from -20°C to 70°C.
The camera operates on a stable DC 12V voltage and utilizes a standard 4-core female aviation connector with a 0.6-meter cable, ensuring high compatibility with mainstream mobile DVRs and monitors.
