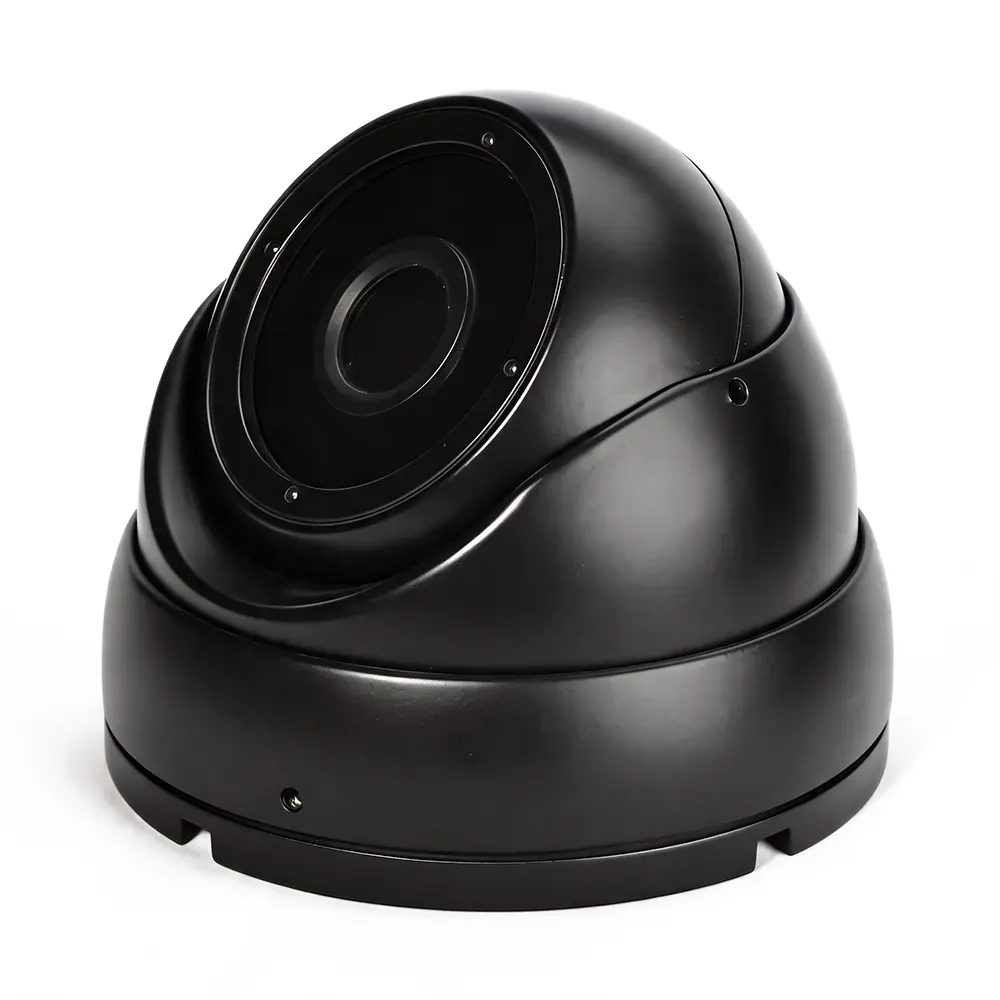

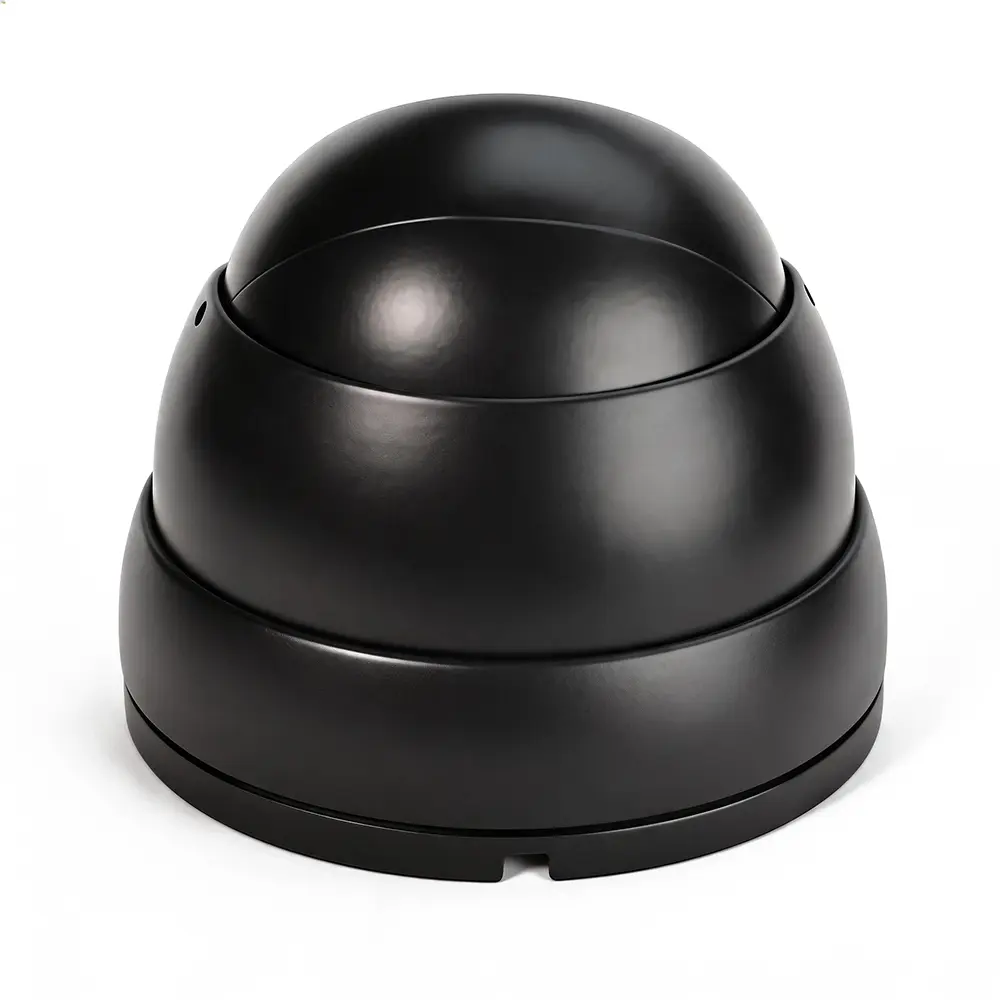

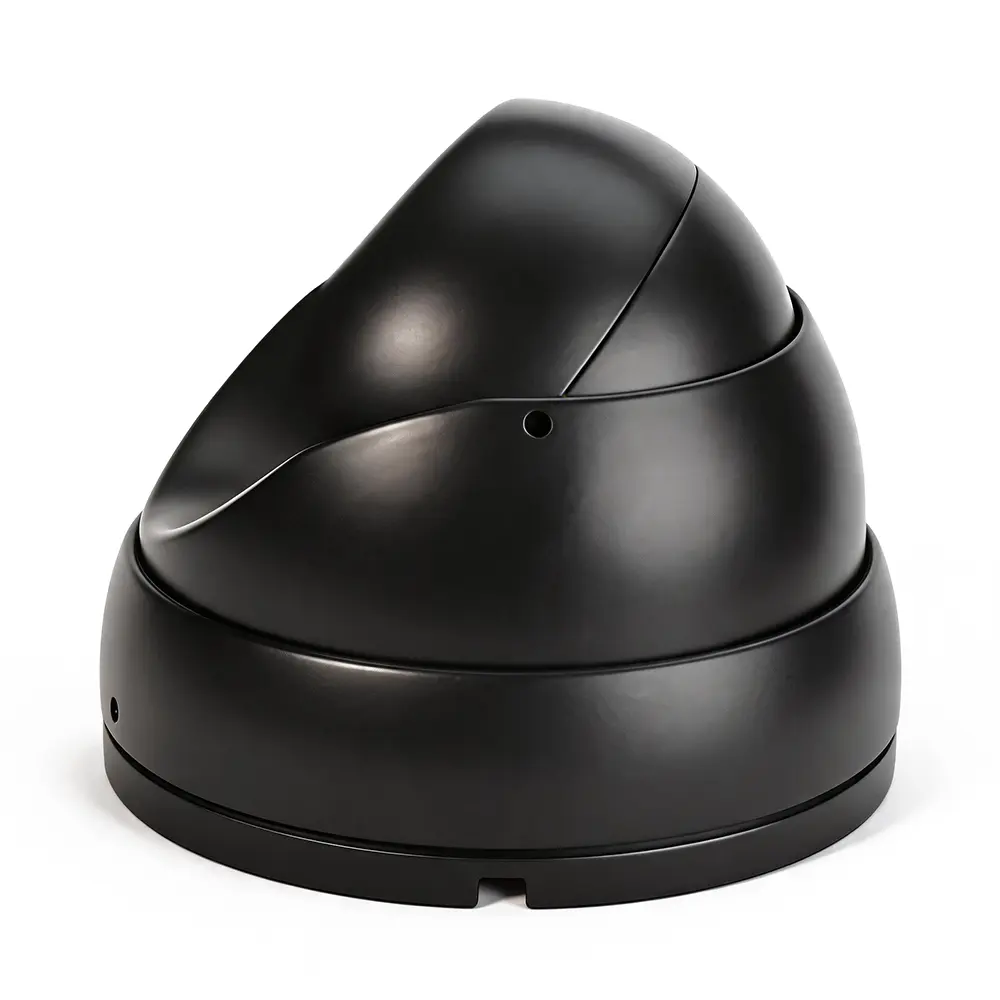

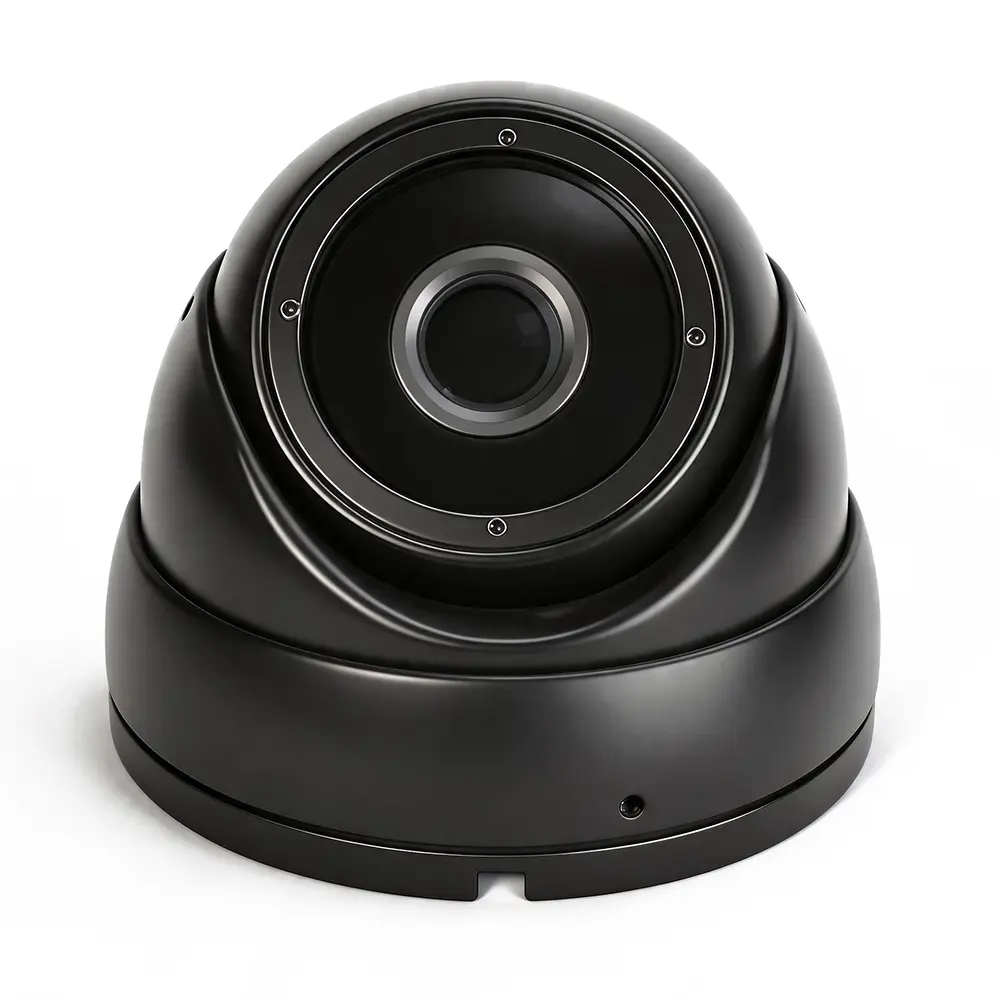

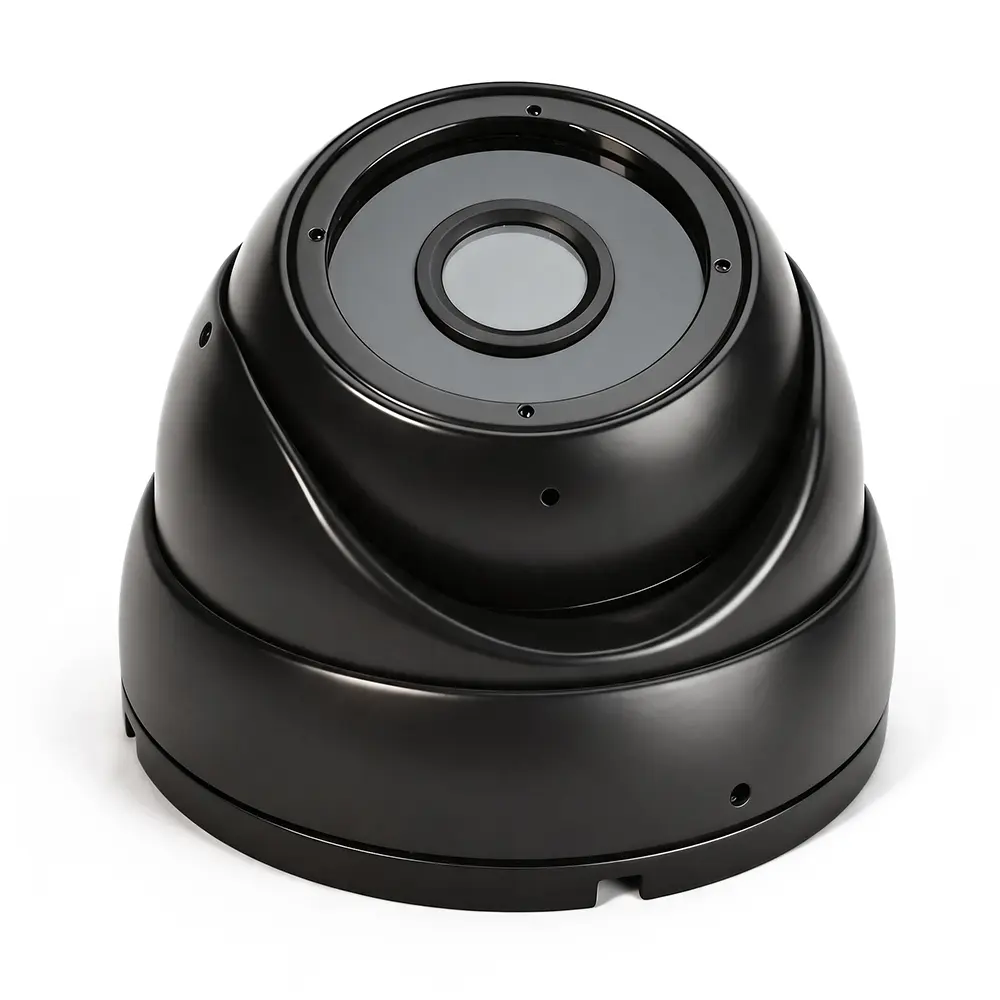

XY-N8825 is a high-end metal dome in-vehicle interior surveillance camera, adopting full aluminum alloy metal housing design, which features better heat dissipation, impact resistance and longer service life than ordinary plastic dome cameras. Equipped with 2MP starlight-grade CMOS sensor and 24 high-density infrared night vision lights, it delivers ultra-clear 1080P high-definition monitoring images day and night.
This camera supports DC 9-16V ultra-wide vehicle voltage and built-in high-definition pickup microphone to realize synchronous audio and video recording. With global anti-overexposure image algorithm, vehicle-grade shock resistance and high-temperature stable imaging performance, it effectively solves common problems such as picture overexposure, jitter and long-term blurring. Adopting ceiling screw fixing installation, it is widely used in buses, school buses, taxis, online car-hailing and logistics commercial vehicles for all-weather cabin safety monitoring.
| Item | Details |
|---|---|
| Product Model | XY-N8825 |
| Product Type | Metal Dome Starlight AHD In-Vehicle Interior Camera with Audio |
| Housing Material | Full Aluminum Alloy Metal |
| Appearance Color | Black |
| Viewing Angle | DFOV 110° / HFOV 85° / VFOV 48° |
| IR LED Quantity | 24pcs High-density Infrared Night Vision Lights |
| Audio Function | Built-in High-definition Microphone (Synchronous A/V Recording) |
| Working Voltage | DC 9V~16V (Rated 12V Wide Voltage) |
| Working Current | 250mA @ DC12V |
| Signal System | PAL |
| Video Output | AHD Analog HD |
| Connector Type | 4-core Aviation Connector |
| Cable Length | 0.6m |
| Net Weight | 0.3KG |
| Waterproof Grade | Non-waterproof (Special for Vehicle Interior) |
| Installation Method | Self-tapping Screw Ceiling Fixed Installation |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Full Aluminum Alloy Metal Housing | Upgraded integral metal dome structure features excellent heat dissipation, high temperature resistance and impact resistance. Compared with plastic housings, it is not easy to deform or aging in high-temperature closed cabin environment, effectively extending the whole camera service life. |
| 2 | 2MP Starlight Day & Night HD Imaging | Equipped with 1/2.9-inch starlight CMOS sensor, supporting 1080P/720P dual resolution switching. With 0.01Lux ultra-low illumination sensitivity, it presents clear and delicate color images in daytime and stable high-definition black-and-white pictures in dark night, realizing 24-hour uninterrupted monitoring. |
| 3 | 24pcs High-density Infrared Night Vision | 24 high-density infrared fill lights are evenly distributed, forming a full-range no-blind-spot light source inside the cabin. It effectively compensates dark areas in full darkness and delivers uniform and clear night vision monitoring effect without shadow dead angles. |
| 4 | Synchronous Audio & Video Recording | Built-in high-sensitivity pickup microphone can clearly capture cabin dialogue and driving ambient sound. Synchronous audio-video storage provides complete and effective evidence for fleet safety management and traffic dispute handling. |
| 5 | 9-16V Ultra-wide Voltage Adaptation | Supports DC 9V-16V wide voltage working range, perfectly adapting to unstable voltage fluctuation of 12V commercial vehicles. No additional voltage stabilizer is required, ensuring stable startup and long-term continuous operation of the camera. |
| 6 | Global Anti-overexposure Algorithm | Intelligent adaptive exposure technology automatically identifies complex light changes such as strong outdoor light transmission and cabin light and shadow contrast. It suppresses local overexposure, compensates shadow details, and restores real and layered cabin monitoring scenes. |
| 7 | High-temperature Stable Imaging Performance | Optimized industrial circuit design adapts to long-term high-temperature working environment inside the vehicle. It maintains stable dark-level signal output without black vertical stripes, screen flicker or abnormal bright lines in night vision mode. |
| 8 | Vehicle-grade Shockproof Structure | Reinforced internal anti-vibration structure effectively resists jitter and impact caused by vehicle bumping and driving vibration. The video output is smooth and stable without picture shaking, fully adapting to long-distance and bumpy driving scenarios of commercial vehicles. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9 Inch CMOS Starlight Sensor |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Lens Angle | Diagonal / Horizontal / Vertical View Angle | 110° / 85° / 48° |
| Night Vision | IR LED Quantity | 24pcs |
| Audio Function | Recording Mode | Built-in Microphone, Synchronous Audio & Video Recording |
| Video Output | Output Signal Format | AHD Analog HD |
| Electrical | Operating Voltage | DC 9V~16V |
| Working Current | 250mA | |
| Environmental | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ | |
| Protection Grade | Waterproof Performance | Non-waterproof (For Interior Use Only) |
| Appearance | Housing Material | Full Aluminum Alloy Metal |
| Color | Black |
| Dimension Item | Remarks |
|---|---|

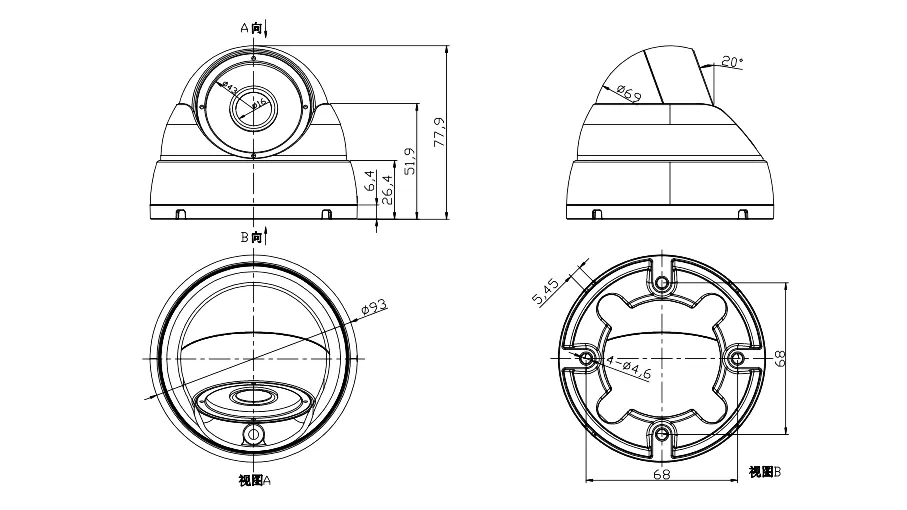

| Overall Product Size | Refer to official engineering dimension drawing for accurate millimeter data |
| Structural Features | Mini metal dome compact structure, high hardness, durable, suitable for ceiling concealed installation |
XY-N8825 metal dome in-vehicle camera takes high-quality aluminum alloy as the main housing material, with outstanding durability and heat dissipation performance. Equipped with starlight HD imaging, high-density infrared night vision and synchronous audio pickup functions, it adapts to complex and long-term vehicle operating environments. It is a high-stability and long-life professional monitoring solution for high-standard commercial vehicle fleets.
A: The full aluminum alloy metal housing provides superior heat dissipation, high temperature resistance, and impact resistance compared to standard plastic dome cameras. It helps prevent deformation and aging in closed vehicle cabins, greatly extending the lifespan of the device.
A: Yes. The camera features a built-in high-definition pickup microphone that synchronizes audio with video recording, providing comprehensive and effective evidence for fleet safety and dispute resolution.
A: It is equipped with a 2MP starlight-grade CMOS sensor with 0.01Lux illumination sensitivity and 24 high-density infrared night vision lights. This combination delivers uniform and clear night vision monitoring even in complete darkness.
A: Absolutely. It supports a DC 9V-16V wide working voltage range, protecting it against the typical voltage fluctuations of 12V commercial vehicle electrical systems without the need for an external voltage stabilizer.
A: No, the XY-N8825 is a non-waterproof model designed specifically for interior monitoring inside the cabin, such as in buses, school buses, taxis, and cargo vans.
A: The camera uses an intelligent global anti-overexposure image algorithm. It adjusts automatically to lighting changes, suppressing overexposed areas and compensating shadow details for a clear view of the cabin.
