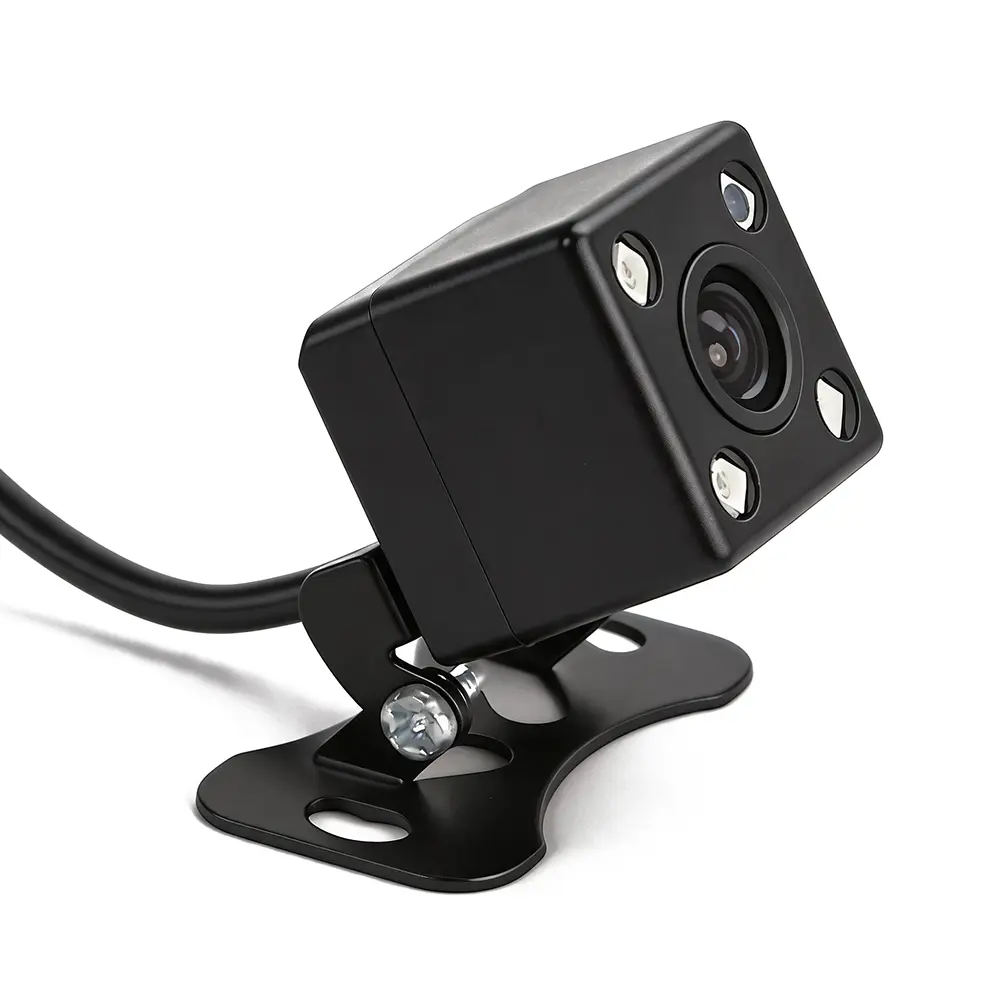

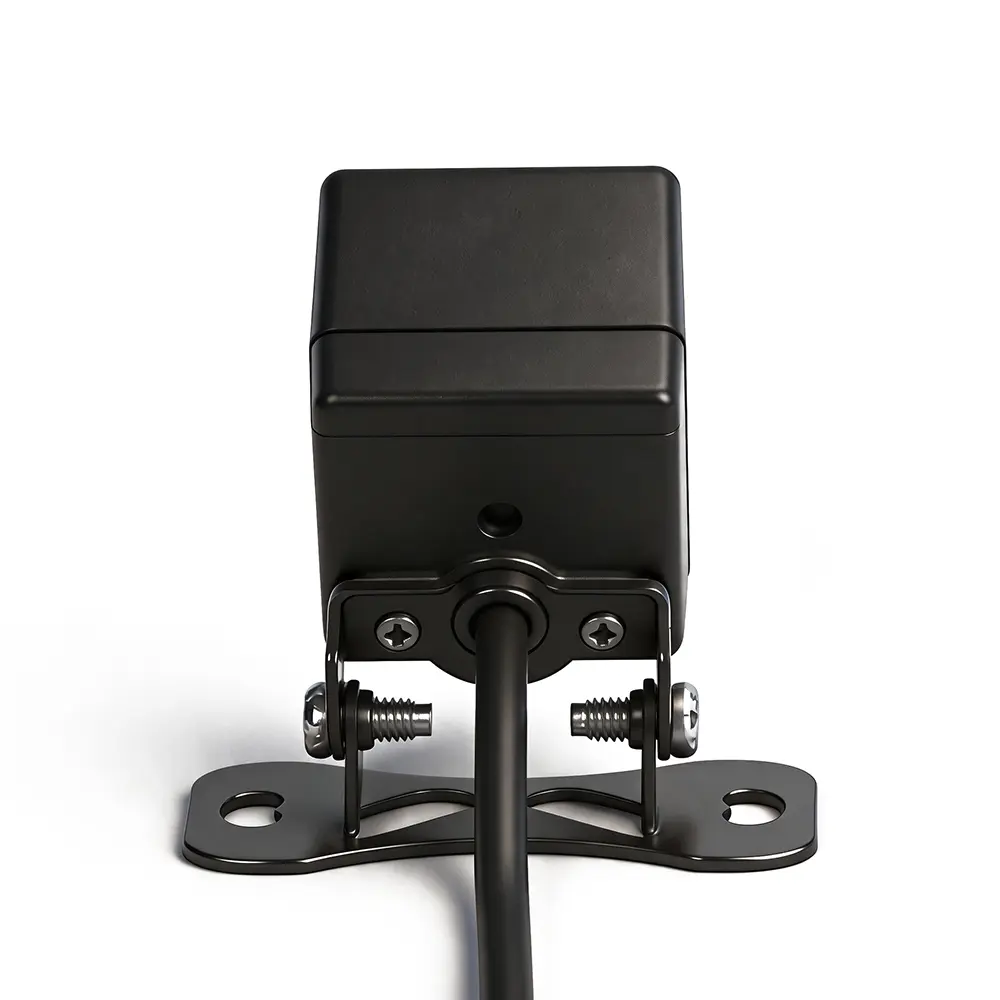

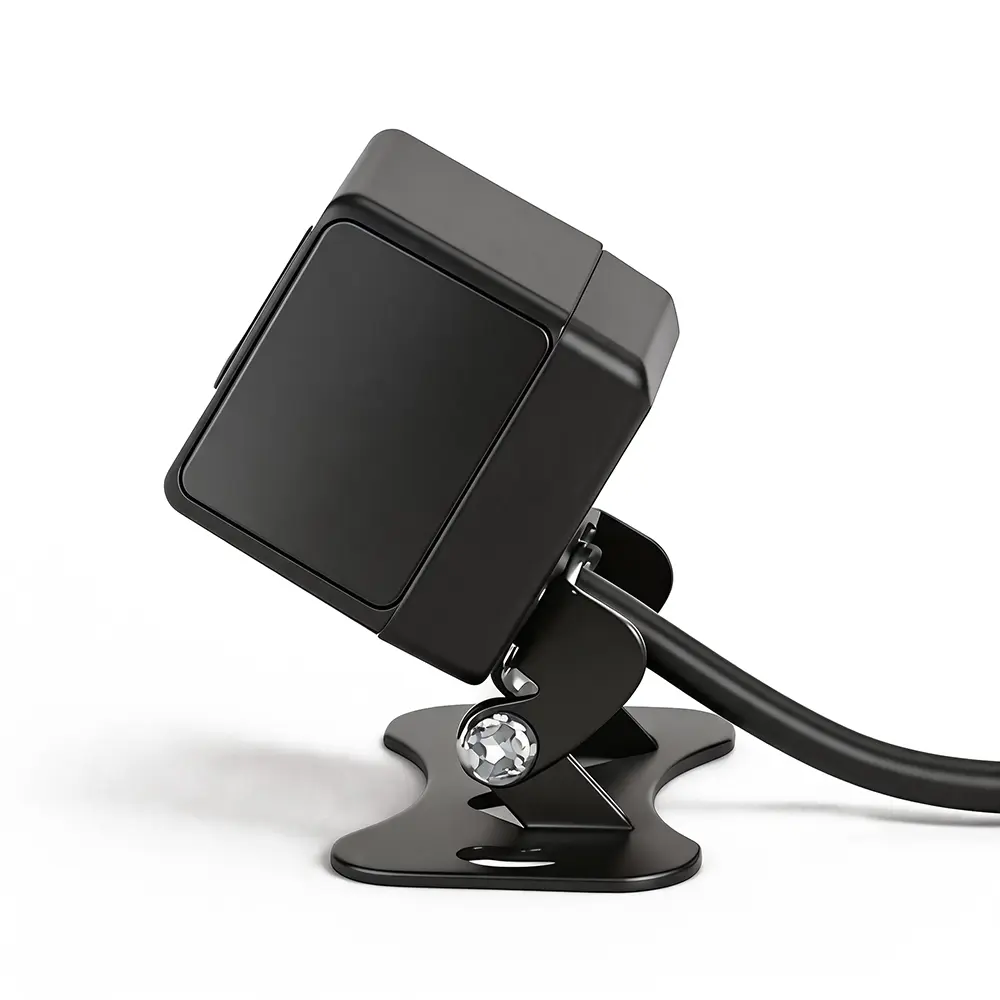

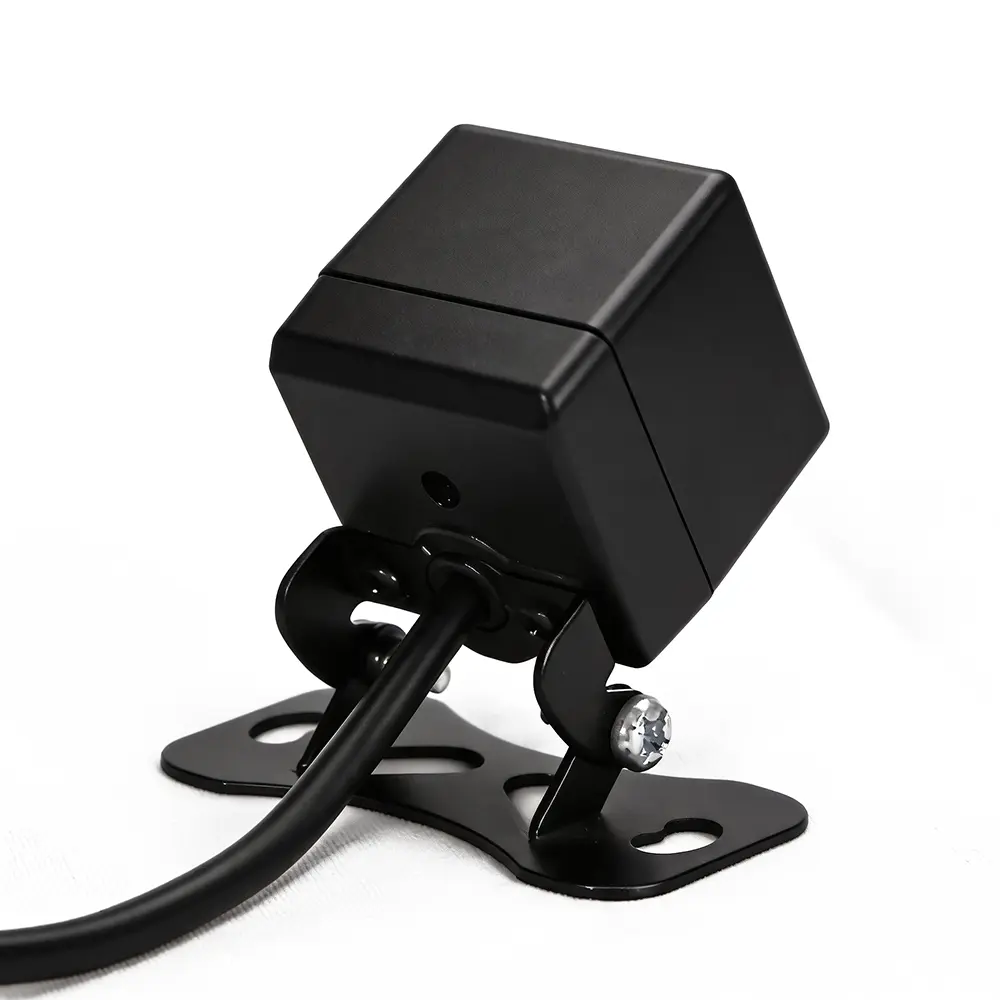

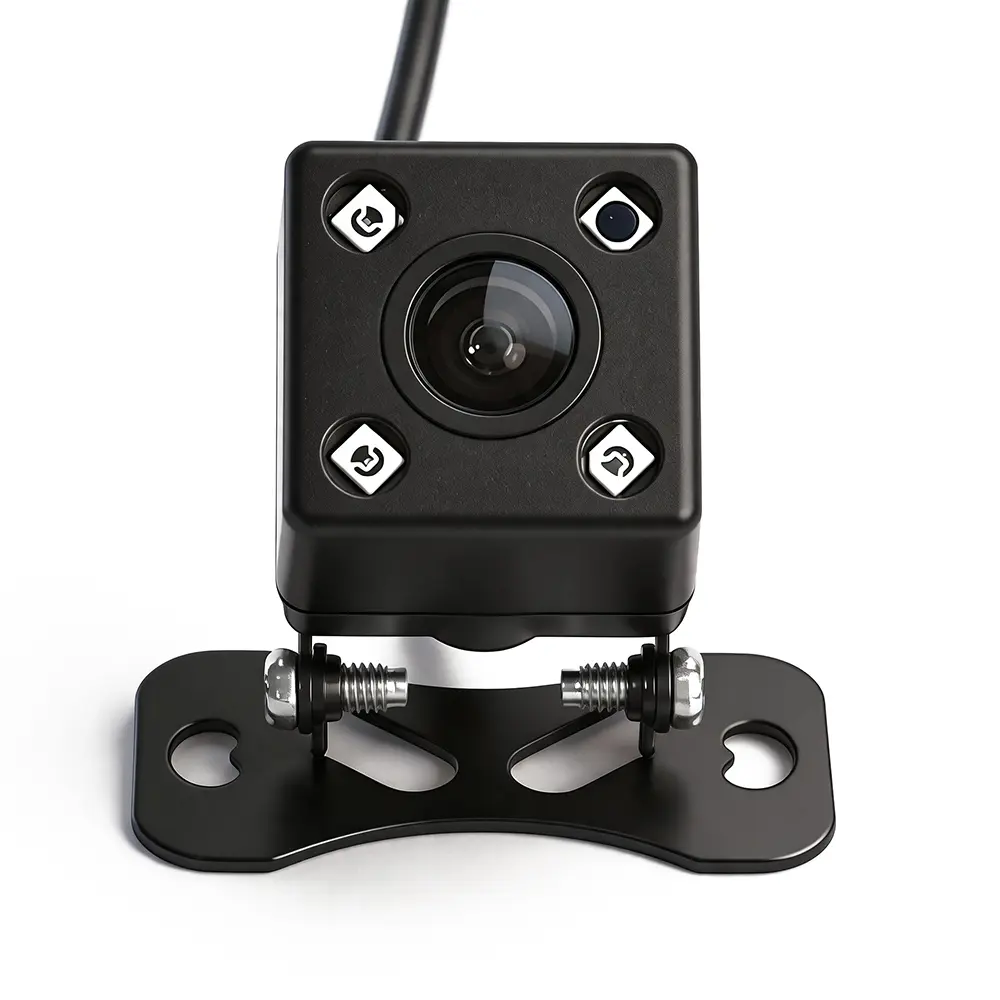

XY-FS209 is a professional outdoor vehicle-mounted reversing camera designed for commercial vehicle exterior monitoring and reversing assistance. Adopting premium starlight imaging chip, this camera supports ultra-wide viewing angle coverage, built-in full-color night vision with white fill lights, vehicle-grade shockproof structure and 9-36V ultra-wide voltage design. It solves common pain points of traditional vehicle cameras such as gradual picture blurring and unstable signal after long-term driving. With IP67 waterproof rating, dual installation methods and mirror image output, this camera fits all harsh outdoor vehicle working environments perfectly.
| Item | Details |
|---|---|
| Product Model | XY-FS209 |
| Product Type | Exterior Vehicle Reversing Monitoring Camera |
| Housing Material | High-strength Plastic |
| Appearance Color | Black |
| Installation Method | 3M adhesive tape / Self-tapping screws |
| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.2KG |
| Waterproof Rating | IP67 |
| Image Mode | Mirror Image |
| Auxiliary Fill Light | 3pcs White Supplementary Lights |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-exposure | |
| Night Vision Configuration | Fill Light Type & Quantity | 3pcs White Supplementary Lights, Full-color Night Vision |
| Viewing Angle Parameter | DFOV (Diagonal View Angle) | 150° |
| HFOV (Horizontal View Angle) | 120° | |
| VFOV (Vertical View Angle) | 55° | |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 9-36V (Rated DC12V) |
| Power Consumption | 120mA @ DC 12V | |
| Environmental Resistance | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |

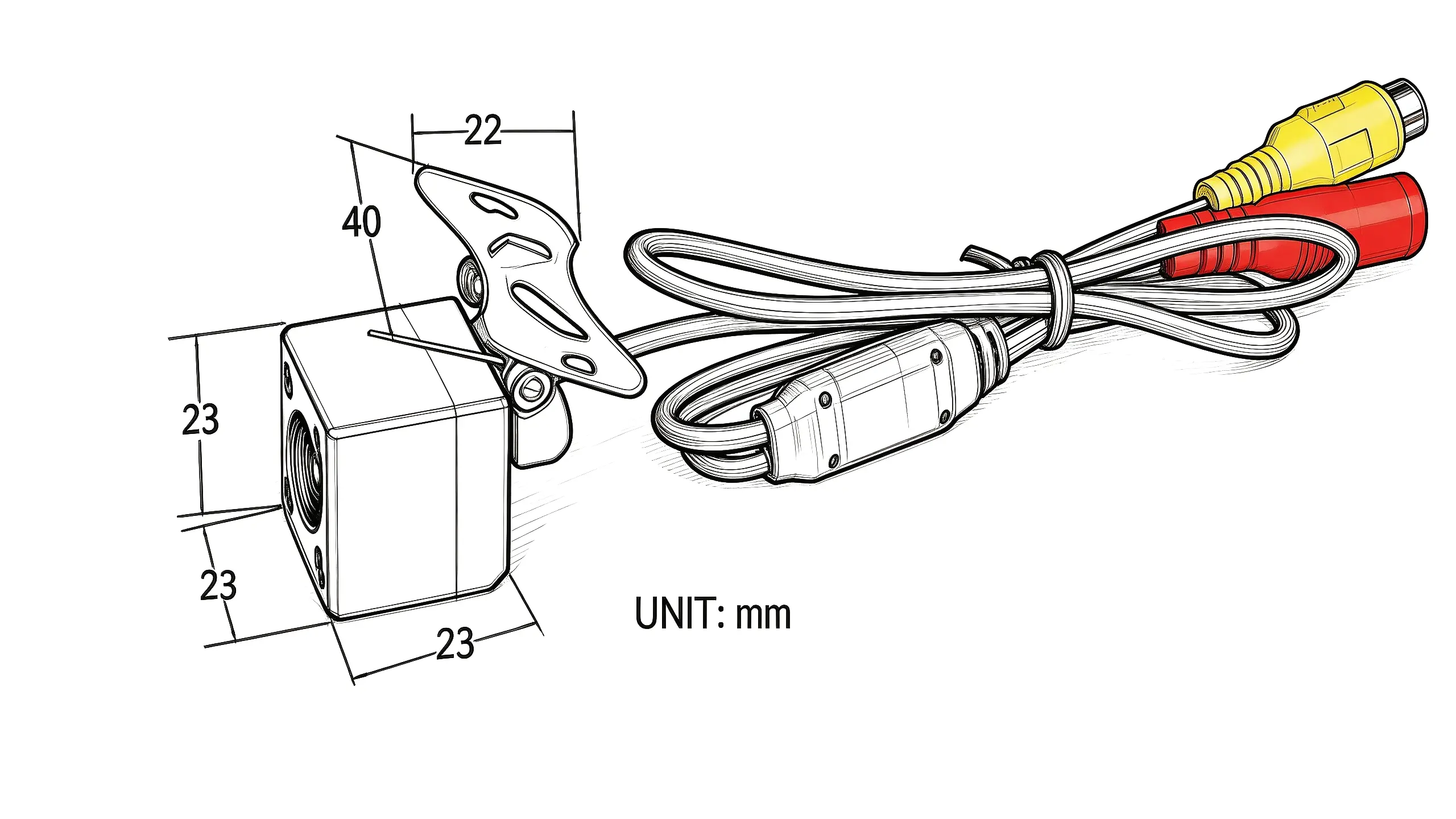

| Dimension Item | Size (mm) |
|---|---|
| Product Thickness | 23mm |
This IP67 waterproof vehicle-mounted reversing camera is widely used for trucks, buses, sanitation vehicles, construction machinery, logistics fleets and other commercial vehicles. With ultra-wide viewing angle, full-color night vision, ultra-wide voltage and all-weather waterproof performance, it is perfectly suitable for vehicle rear reversing assistance and exterior real-time road monitoring.
