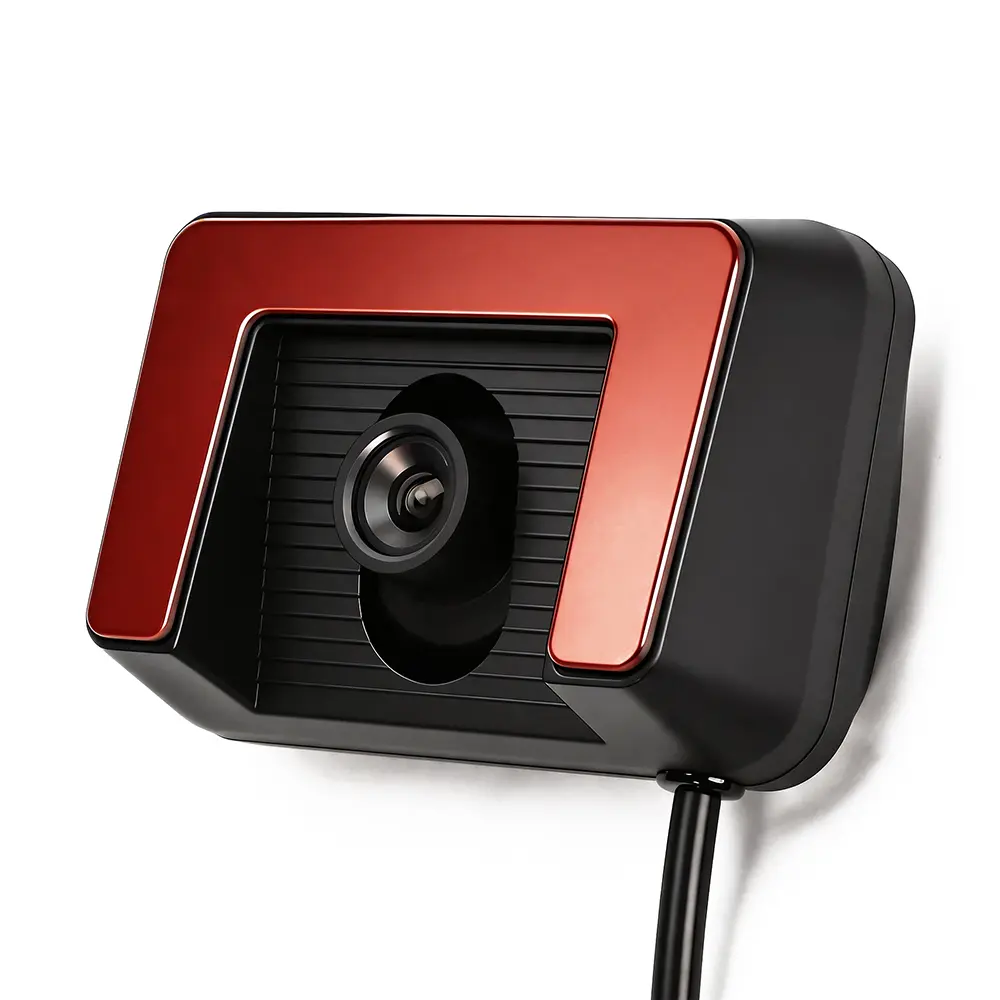

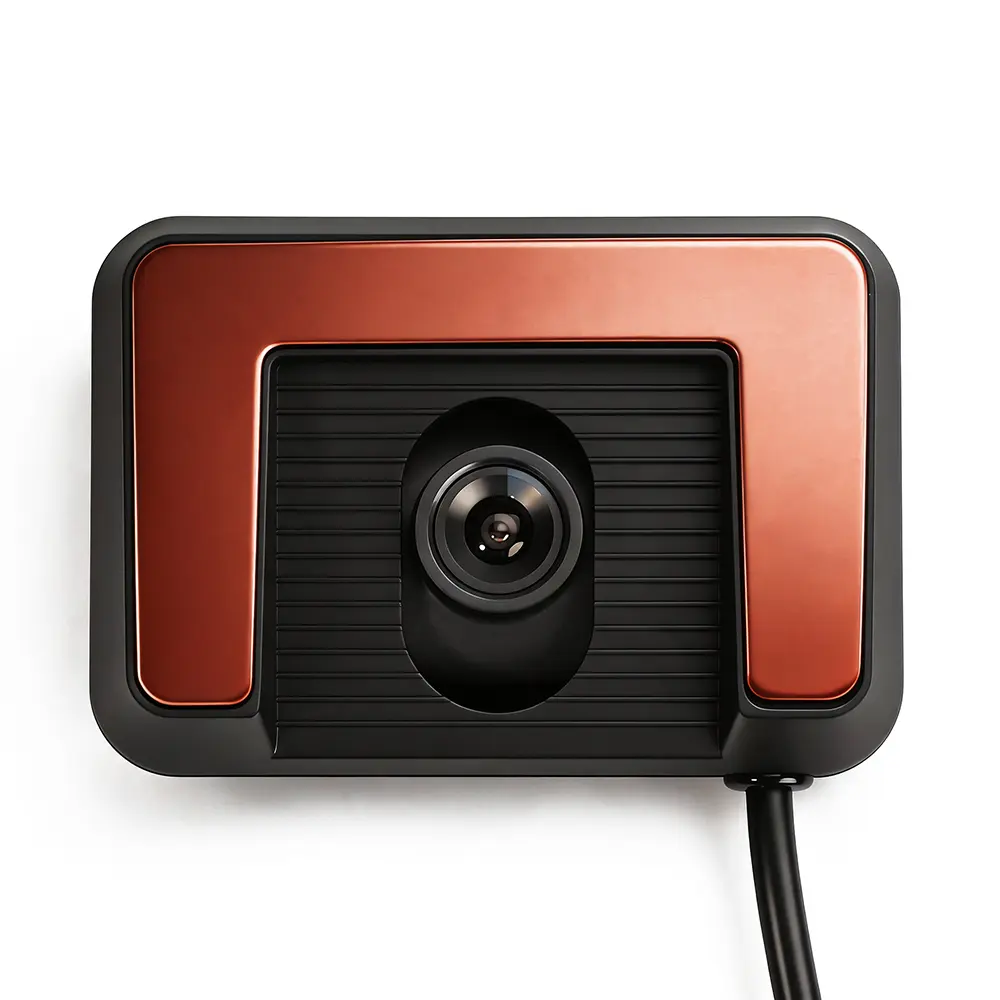

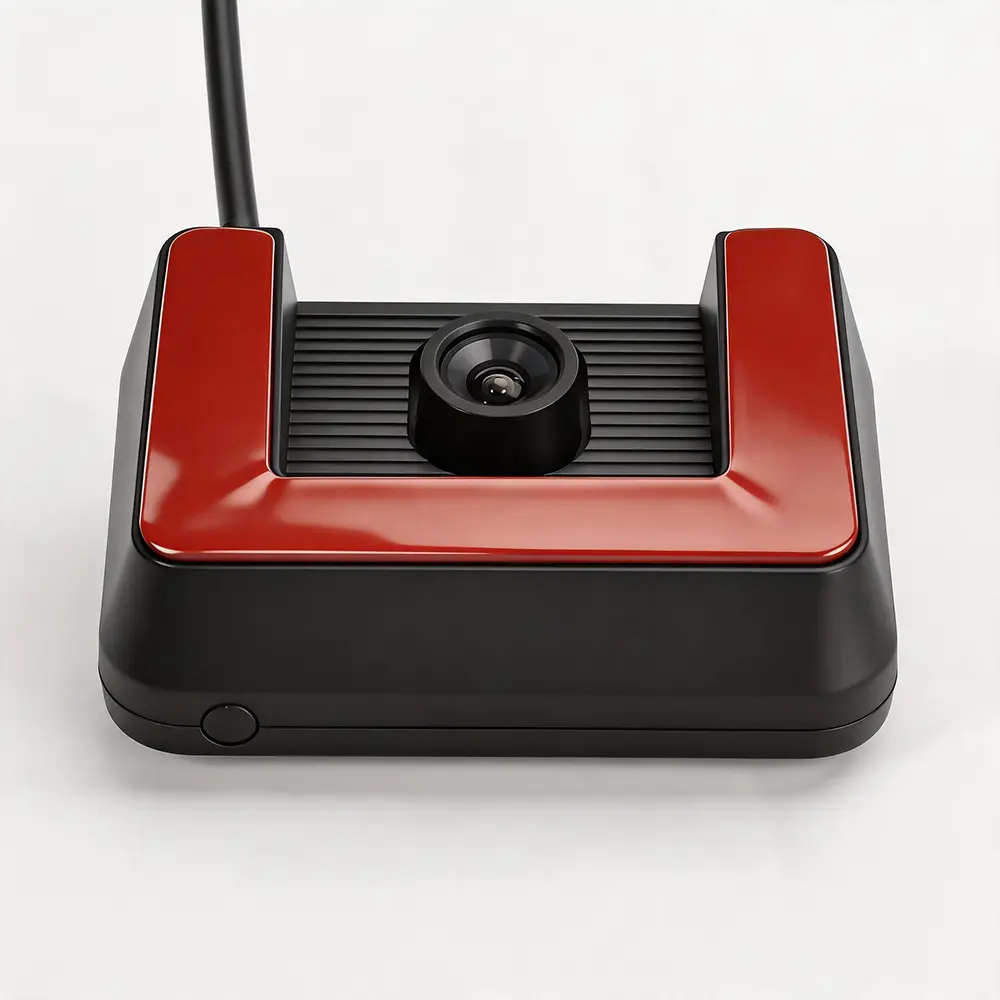

XY-NV53 is a professional dedicated front ADAS road monitoring camera, specially designed for intelligent driving assistance of various commercial vehicles. Equipped with high-performance 2MP starlight CMOS sensor featuring ultra-low illumination of 0.008Lux, it can capture clear and complete road outlines under dawn, dusk and dim driving conditions.
This camera adopts a 30° horizontal narrow lens optimized for road scenes, with no infrared design to avoid headlight reflection interference at night. Built-in road-tuned global anti-overexposure algorithm and vehicle-grade shockproof ABS housing, it supports DC 8V-14V stable vehicle voltage and PAL/NTSC dual video signal switching. With non-destructive 3M adhesive windshield installation and Allen screw angle fine-tuning function, it outputs high-definition progressive AHD raw images for ADAS lane departure warning, forward collision warning and other intelligent algorithms, widely applicable to trucks, passenger buses and logistics vehicle fleets.
| Item | Details |
| Product Model | XY-NV53 |
| Product Type | Specialized ADAS Road Monitoring Front Camera |
| Housing Material | High-strength ABS Plastic |
| Appearance Color | Black |
| Viewing Angle | DFOV 50° / HFOV 30° (Road dedicated narrow angle) |
| Infrared LED | None (Anti-glare night road shooting design) |
| Resolution | 2MP 2560×1440 |
| Signal System | PAL / NTSC Switchable |
| Working Voltage | DC 8V ~ 14V (Rated DC12V) |
| Video Output | Progressive AHD, 4-pin aviation connector |
| Cable Length | 0.6m |
| Image Orientation | Normal non-flipped image |
| Installation Method | 3M adhesive sticker + Allen screw angle adjustment |
| Mount Position | Lower area of front windshield |
| No. | Feature Title | Detailed Description |
| 1 | 0.008Lux Ultra-Light 2MP Starlight Sensor | 2560×1440 high pixel resolution, ultra-low illumination capability can capture complete road outlines without infrared fill light under weak light driving scenes such as dawn and dusk. |
| 2 | 30° ADAS Optimized Narrow Lens | Eliminate redundant roadside scenery interference, focus on lane lines and front obstacle information, significantly improve ADAS algorithm recognition accuracy and reduce system misjudgment rate. |
| 3 | PAL & NTSC Dual Global Signal Compatibility | Two mainstream video signal formats can be freely switched, compatible with all mainstream domestic and overseas vehicle MDVR and ADAS host devices. |
| 4 | Road Adaptive Global Anti-overexposure Algorithm | Intelligently balance strong sunlight, tunnel light and light-dark alternation, avoid road surface overexposure and loss of lane detail information. |
| 5 | High-Temperature Stable Circuit Performance | Maintain stable dark signal output under high-temperature closed windshield environment, no vertical black stripes or screen flicker during long-time continuous monitoring. |
| 6 | 8-14V Stable Narrow Voltage Design | Fully adapt slight voltage fluctuation of 12V vehicle power supply, no need to match additional voltage stabilizer accessories. |
| 7 | IR-Free Anti-Glare Optical Design | No infrared lamp avoids lens reflection caused by opposite vehicle headlights at night, ensuring pure and clear raw road image data. |
| 8 | Adjustable Non-Destructive Installation | 3M adhesive will not scratch the windshield; equipped with Allen screw structure to accurately calibrate vertical and horizontal shooting angles. |
| 9 | Vehicle Shockproof ABS Housing | Internal reinforced anti-vibration bracket effectively resists picture jitter caused by bumpy road driving, ensuring smooth continuous video stream. |
| Category | Parameter Item | Specific Specification |
| Imaging System | Image Sensor | 1/2.9" Starlight CMOS |
| Effective Pixels | 2560(H) × 1440(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Sync | |
| Minimum Illumination | 0.008 Lux @ F1.2 | |
| Signal System | PAL / NTSC Optional | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | Auto | |
| Exposure Mode | Global Anti-Overexposure (Road Optimized) | |
| Lens Parameter | Diagonal / Horizontal View Angle | 50° / 30° |
| Night Vision | IR LED Configuration | None |
| Video Output | Signal Format | Progressive AHD, aviation connector output |
| Electrical Parameters | Operating Voltage | DC 8V ~ 14V |
| Environmental Parameters | Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -20℃ ~ +80℃ | |
| Appearance & Install | Housing Material | ABS Plastic |
| Cable Length | 0.6m | |
| Image Mode | Normal Original Image |
| Dimension Item | Remarks |

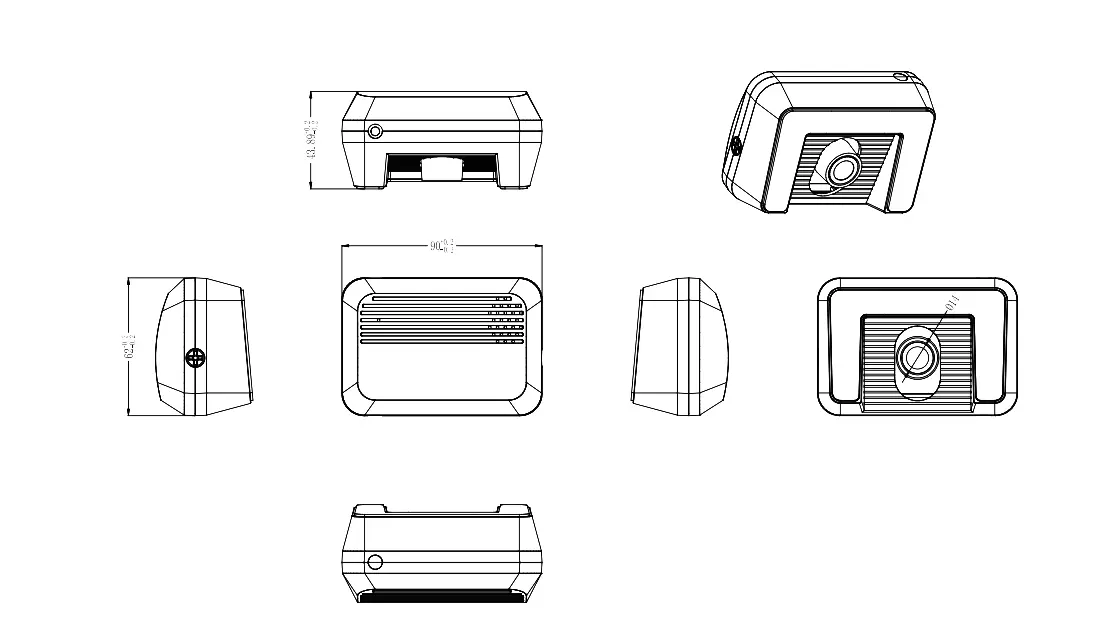

| Overall Outline Size | Refer to official engineering drawing for accurate millimeter dimension data |

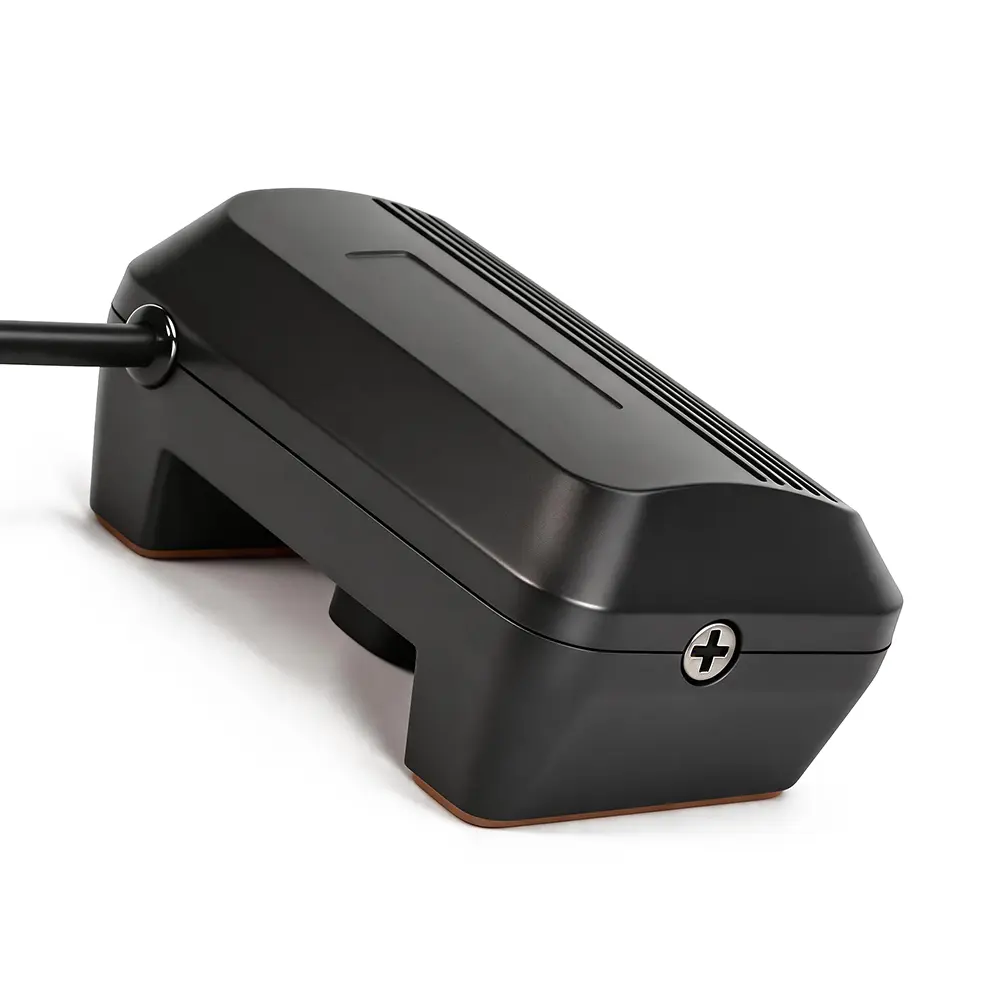

| Structural Feature | Mini lightweight ABS body, hidden windshield mounting, adjustable angle bracket |
| Step No. | Operation Content |
| Step 1 | Connect camera aviation cable to vehicle ADAS/MD host, test and confirm normal AHD video signal output. |
| Step 2 | Tear off protective film on 3M adhesive, attach the camera firmly to clean lower front windshield surface. |
| Step 3 | Use matching Allen screwdriver to adjust vertical & horizontal shooting angle, lock bracket after aligning complete forward road lanes. |
XY-NV53 is a cost-effective dedicated ADAS front camera with starlight low-light performance and road-specific narrow lens. Non-destructive adjustable windshield mounting provides high-fidelity raw road data for all intelligent driving auxiliary systems, serving as standardized matching equipment for commercial vehicle safety fleets.
