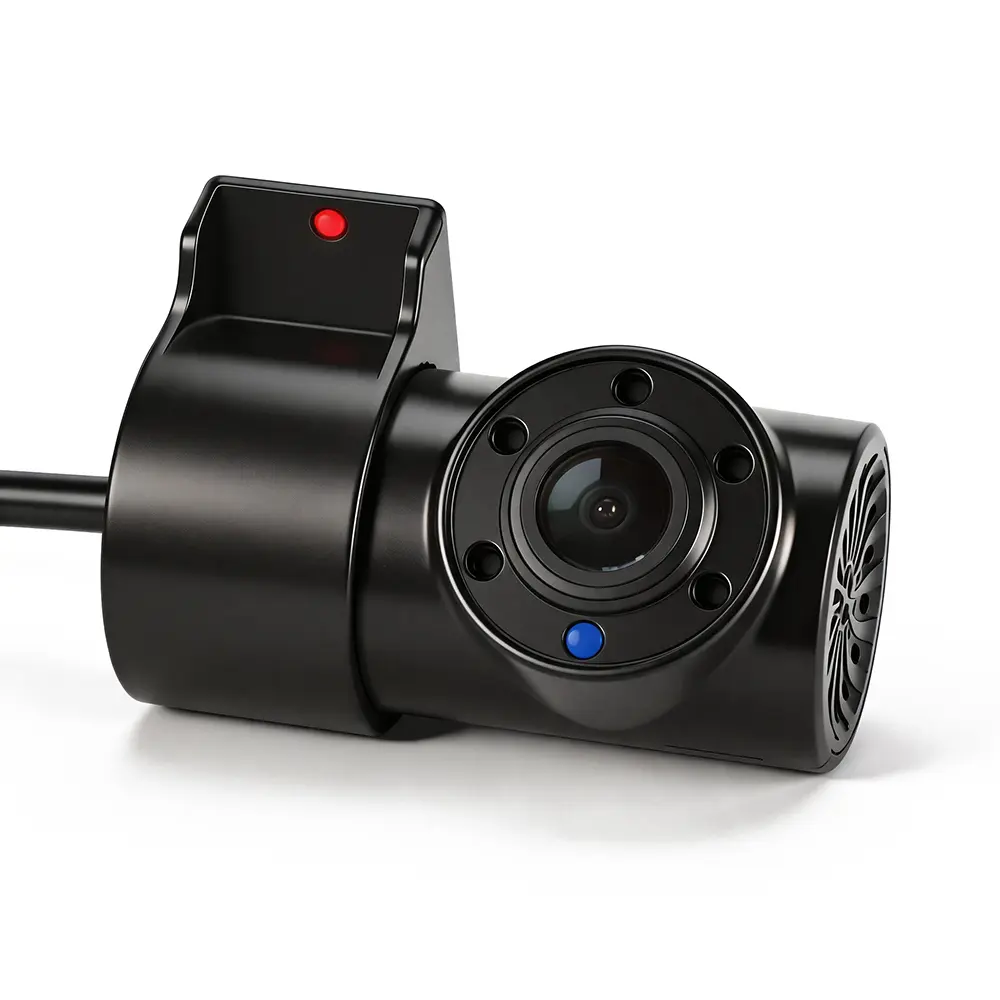

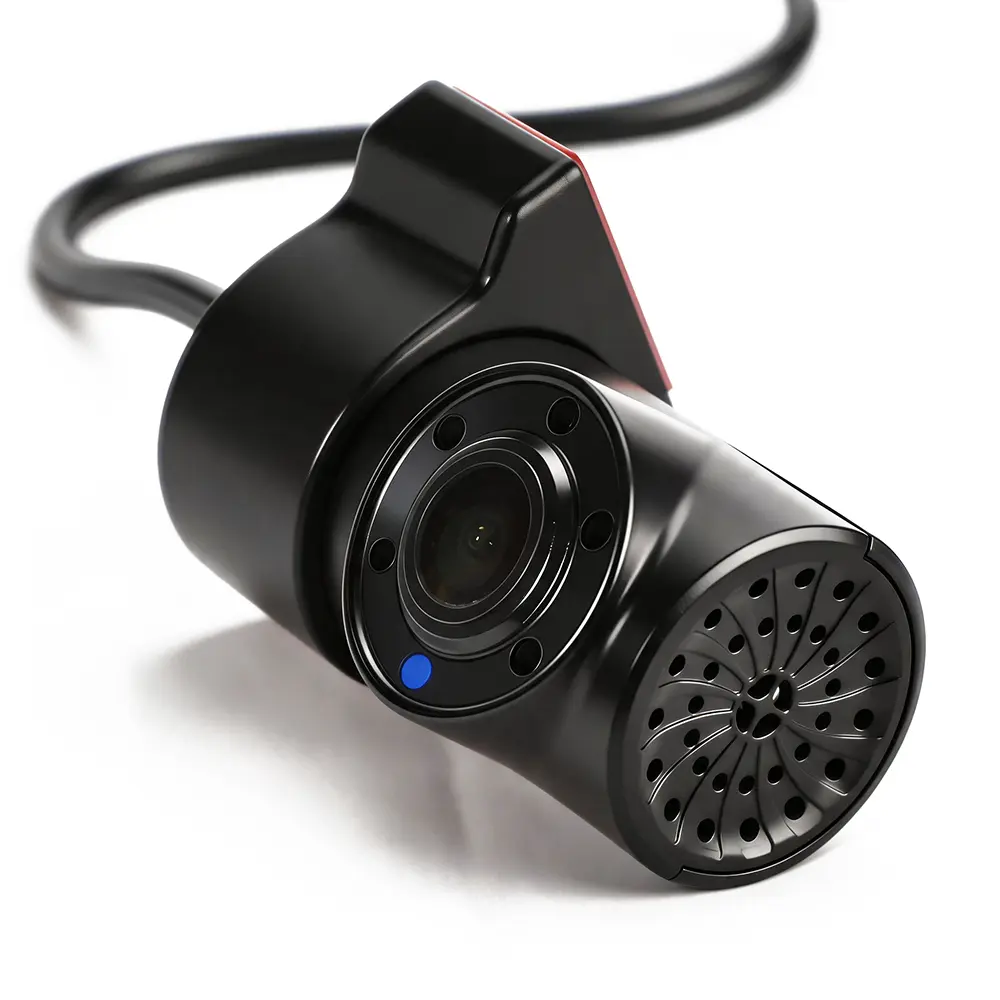

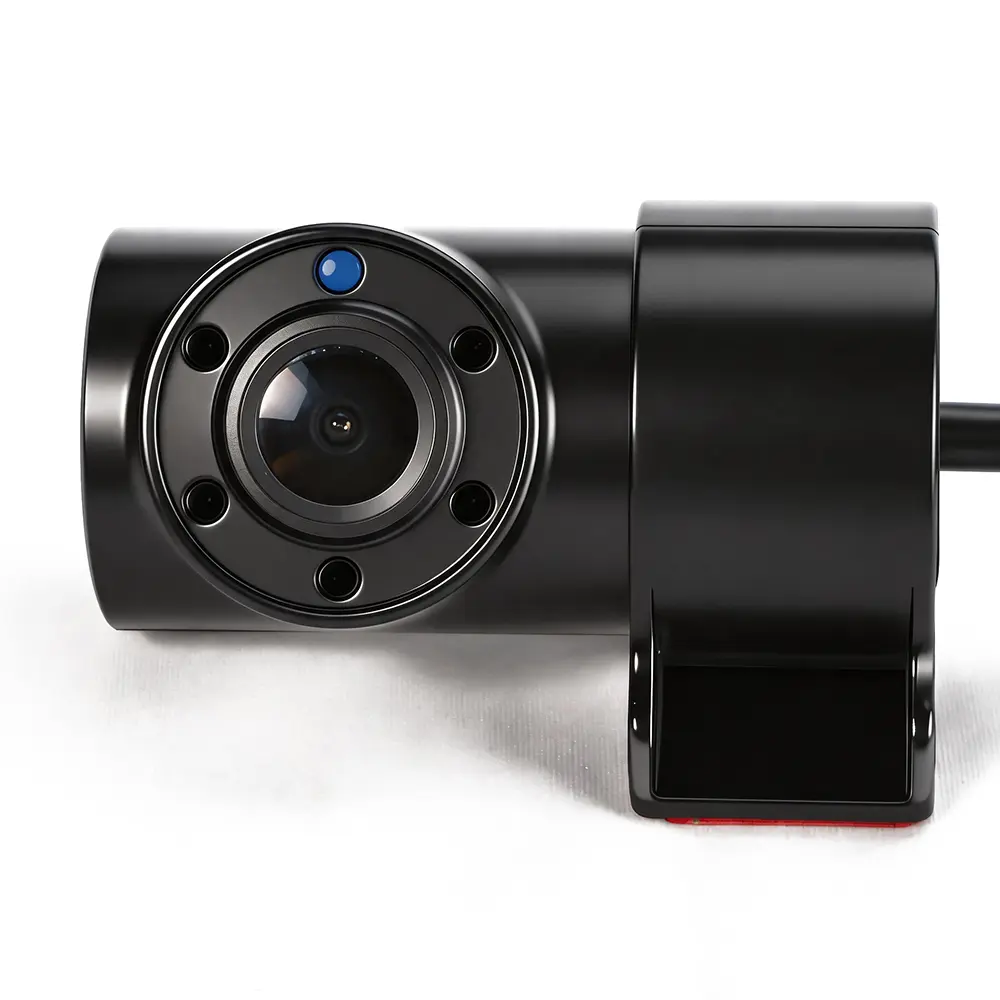

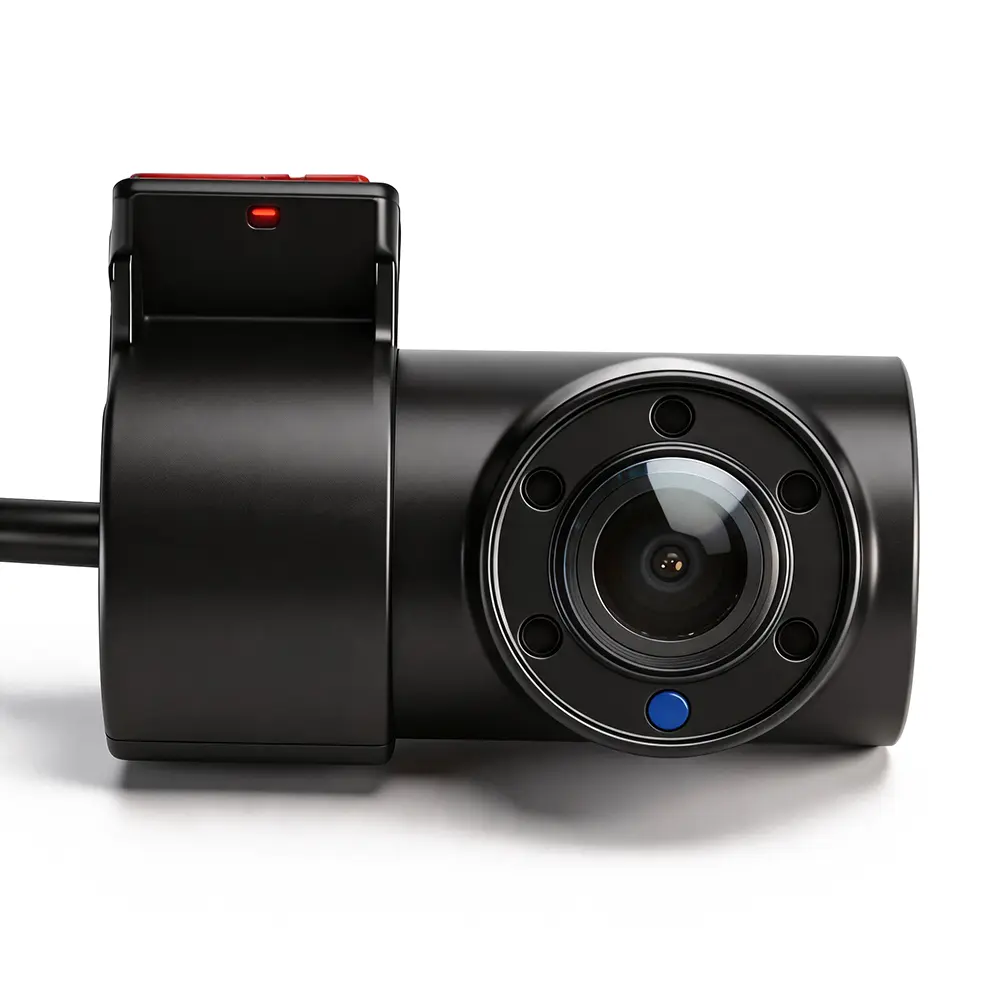

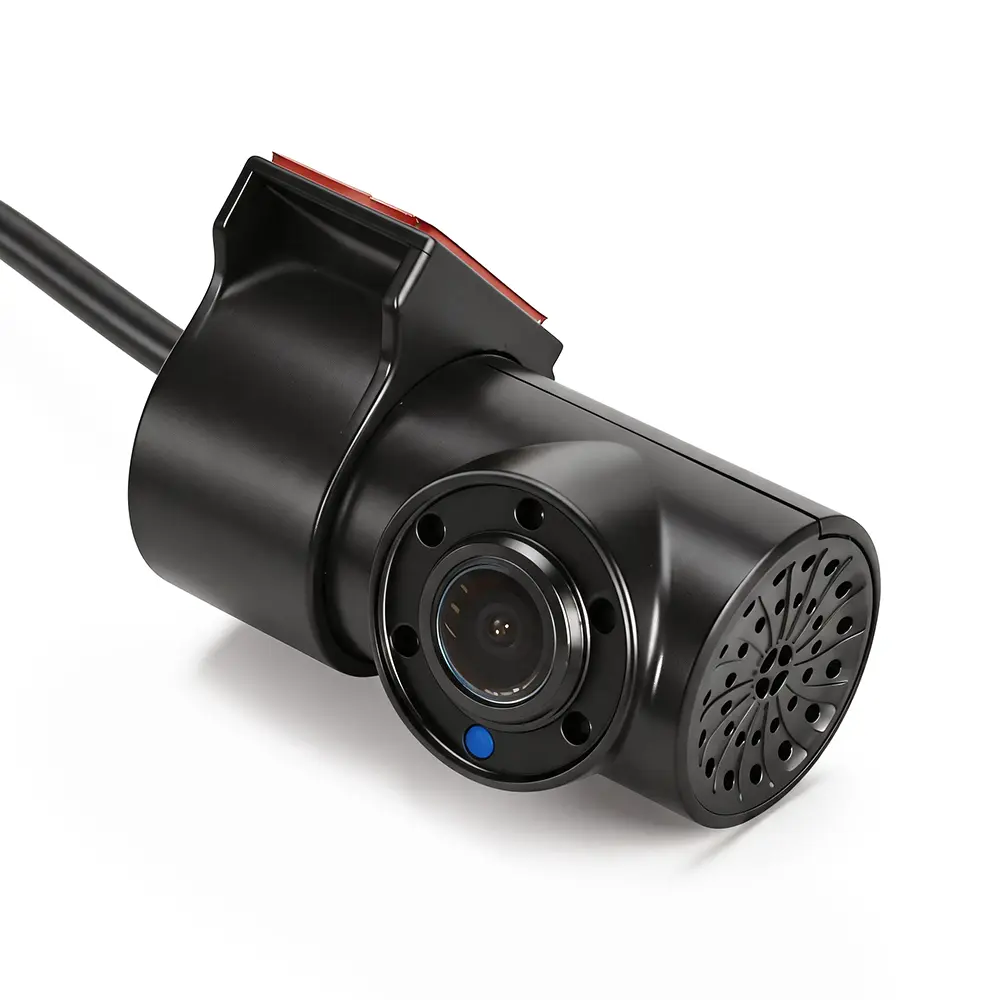

XY-N7502 is a cost-effective wide-angle interior vehicle monitoring camera built for full in-cabin surveillance. Equipped with starlight low-light imaging lens, this camera integrates ultra-wide viewing angle, anti-fog optical design, vehicle-grade shockproof structure and stable DC12V power supply. It effectively fixes common drawbacks of traditional vehicle cameras, including unstable video output and gradual picture blurring after long-term bumpy driving. Adopting lightweight ABS plastic housing, built-in 5 infrared LEDs and drill-free 3M adhesive installation, it delivers clear day-and-night monitoring footage, perfectly matching daily interior monitoring demands for various commercial vehicles.
| Item | Details |
|---|---|
| Product Model | XY-N7502 |
| Product Type | Wide-angle In-Cabin Monitoring Camera |
| Housing Material | High-strength ABS Plastic |
| Appearance Color | Black |
| Installation Method | 3M Adhesive Tape Mounting (Drill-free & No Damage) |
| Connector Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.4KG |
| Waterproof Rating | Non-waterproof (Only for indoor in-cabin use) |
| Night Vision Configuration | 5pcs Infrared LED Fill Lights |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Night Vision System | IR LED Quantity | 5pcs |
| Viewing Angle Parameter | DFOV (Diagonal View Angle) | 110° |
| HFOV (Horizontal View Angle) | 85° | |
| VFOV (Vertical View Angle) | 48° | |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Working Current | 150mA @ DC 12V | |
| Environmental Adaptability | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |

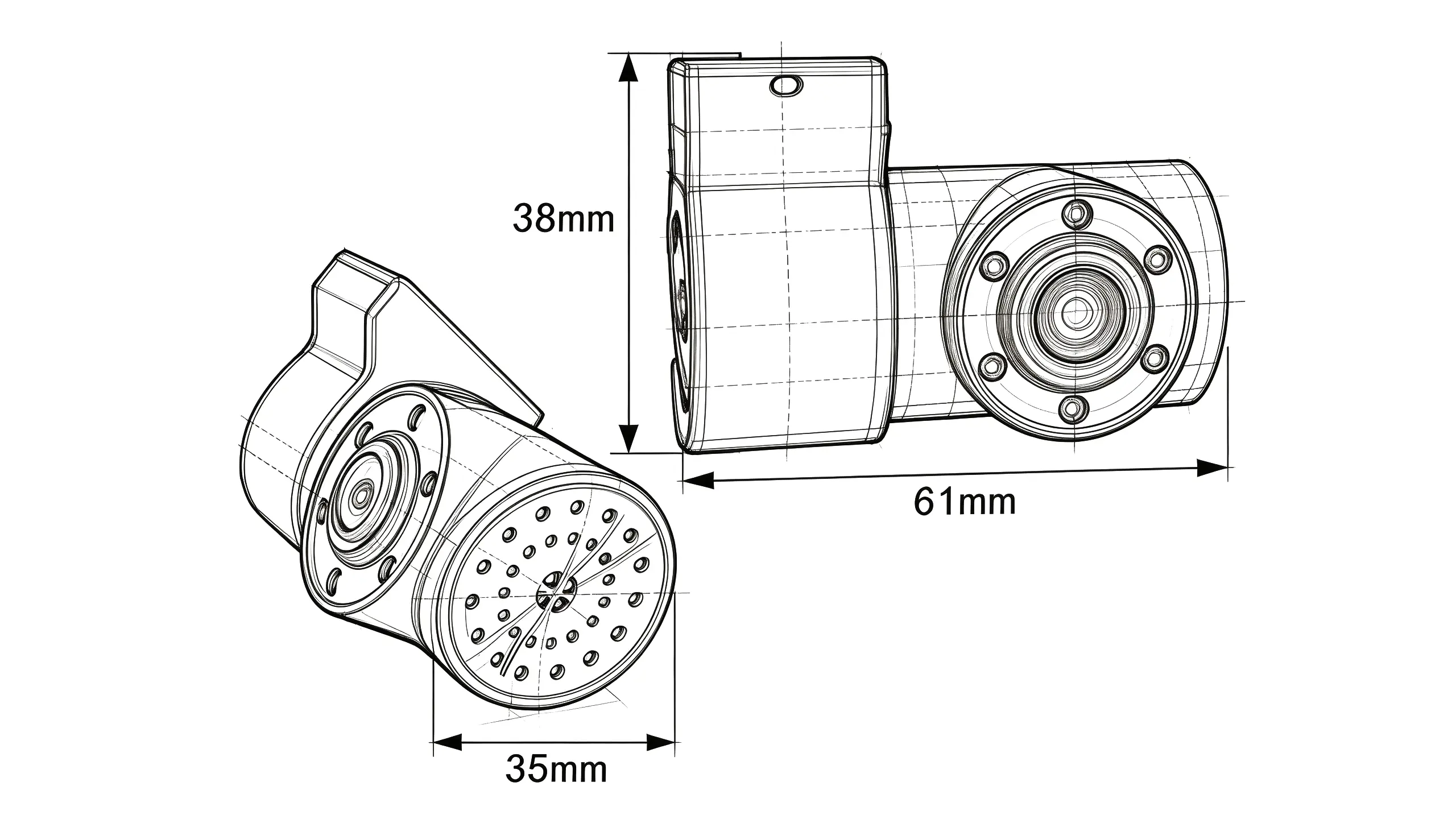

| Dimension Item | Size (mm) |
|---|---|
| Length | 61mm |
| Width | 38mm |
| Height | 35mm |
| Note | Slight dimensional tolerance exists; please refer to the official dimension drawings. |
This non-waterproof wide-angle in-cabin camera is suitable for all kinds of commercial vehicles, including buses, coaches, taxis, logistics trucks and passenger transport fleets. It is widely used for passenger status monitoring, in-vehicle real-time video recording, cabin safety inspection and daily fleet video surveillance, providing stable and reliable full-day & night monitoring solutions for fleet management.
