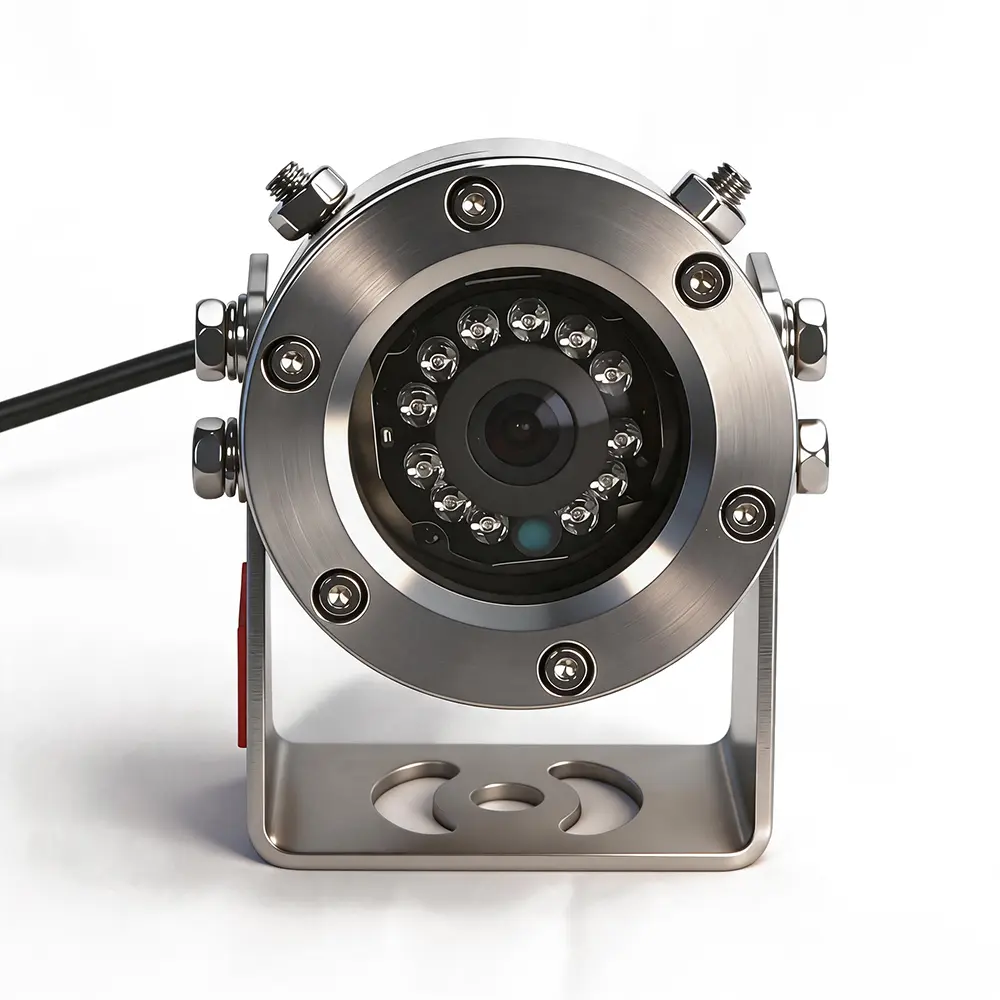

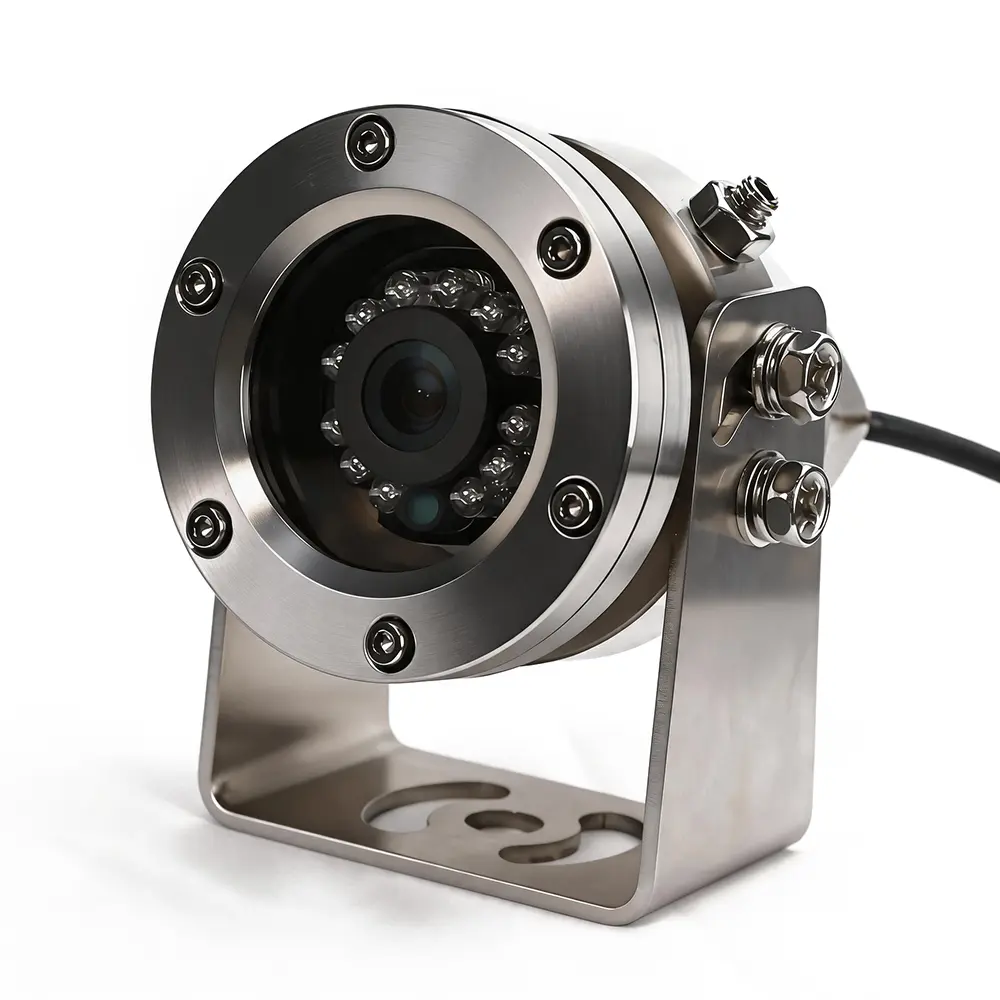

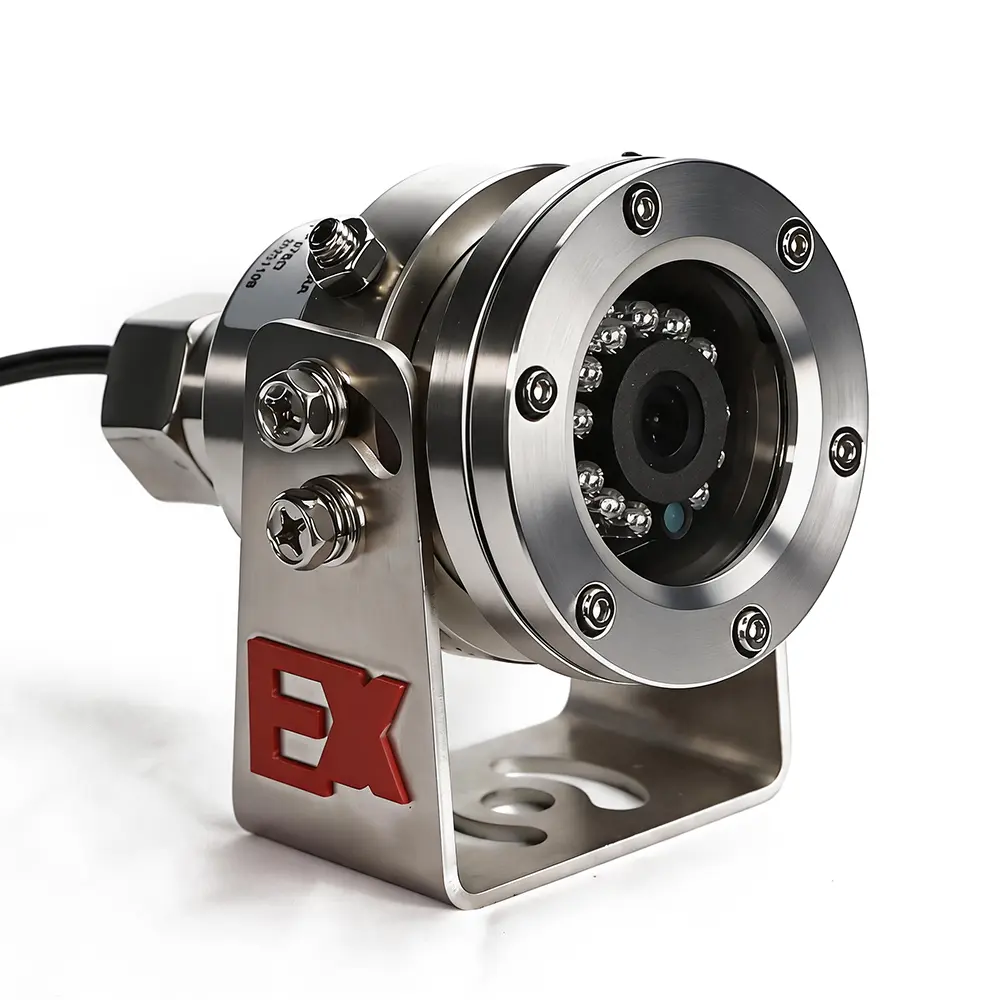

XY-FB6835 is a heavy-duty explosion-proof exterior vehicle camera customized for hazardous environment transportation monitoring. It adopts integrated 304 stainless steel flameproof housing, fully complying with GB3836.1-2010 and GB3836.2-2010 international explosion-proof standards. This camera can work safely and stably in Zone 1/2 flammable gas hazardous areas and Zone 20/21/22 combustible dust hazardous areas.
Equipped with 2MP starlight low-light CMOS sensor and 12 built-in low-power infrared fill lights, this camera supports 1080P/720P dual resolution switch, IP67 waterproof rating, vehicle-grade shockproof structure and 11-16V wide voltage input. Built-in global anti-overexposure algorithm optimizes imaging under complex high-contrast light conditions, effectively solving common defects of ordinary vehicle cameras such as unstable video signal and long-term picture blurring. It is the ideal monitoring equipment for dangerous goods transport vehicles and special engineering vehicles.
| Item | Details |
|---|---|
| Product Model | XY-FB6835 |
| Product Type | Explosion-Proof Exterior Vehicle Monitoring Camera |

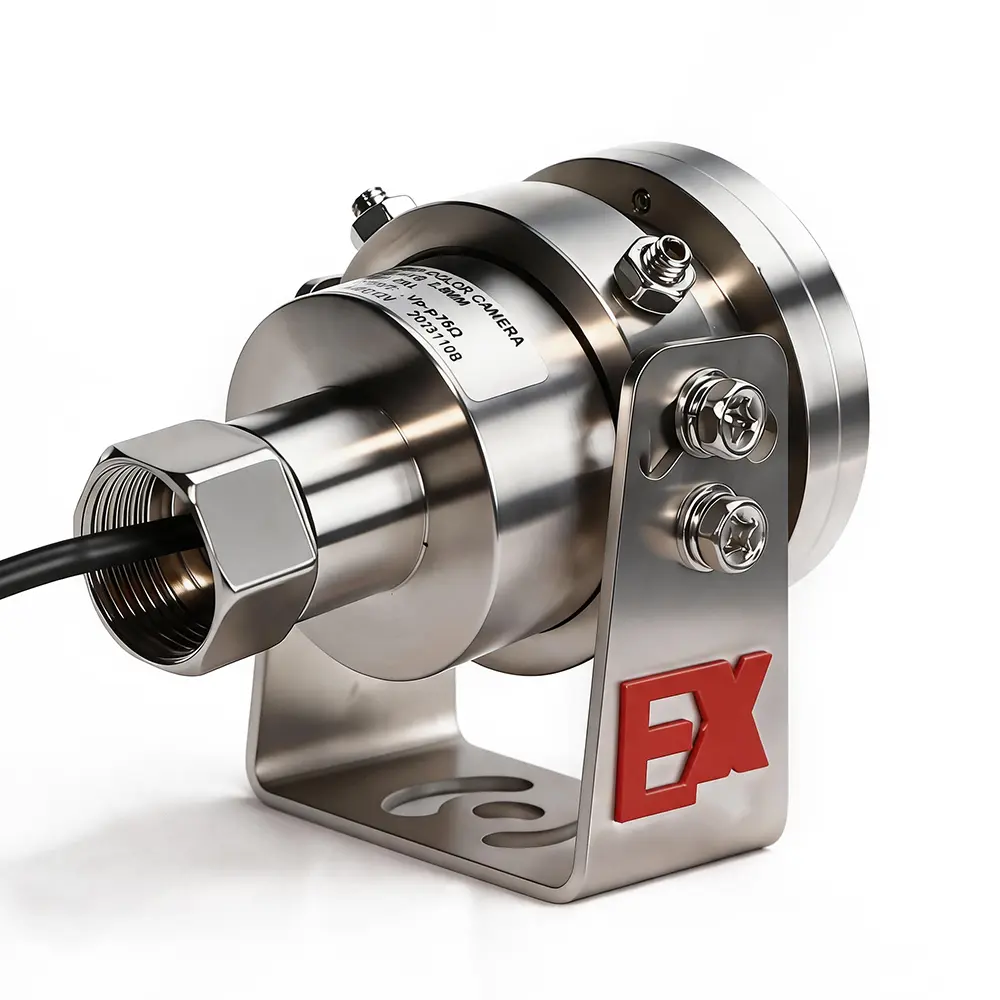

| Housing Material | 304 Thickened Stainless Steel |
| Appearance Color | Silvery-white |
| Explosion-Proof Grade | ExdⅡCT6 GB/tD A21 IP66 80℃ |
| Waterproof Rating | IP67 |
| Lens Parameter | 3.6mm lens, 85° horizontal viewing angle (±5% tolerance) |
| IR LED Quantity | 12pcs low-power high-brightness infrared lights |
| Working Voltage | DC 11V-16V (Rated DC12V) |
| Audio Function | No built-in microphone (silent version) |

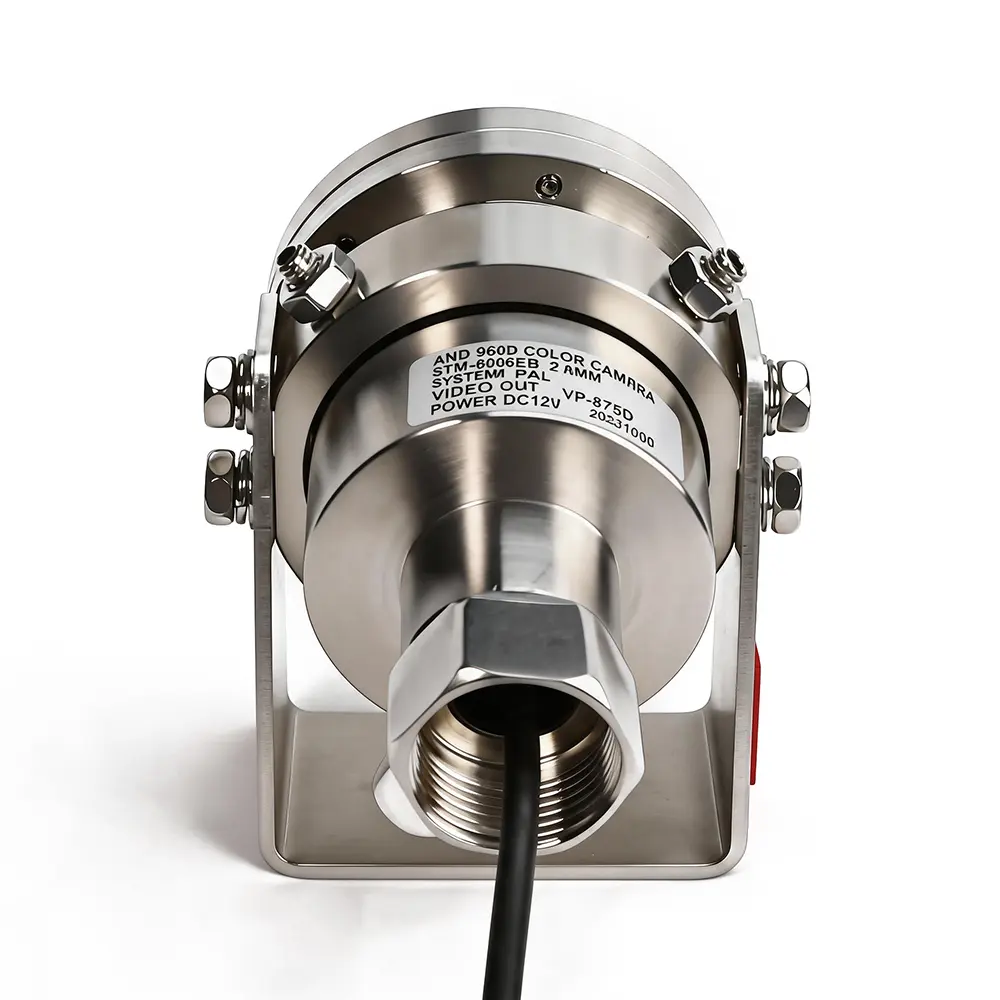

| Connector Type | 4-core Female Aviation Connector |
| Installation Method | Self-tapping screw fixed installation |
| Net Weight | Approx. 2KG |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Professional Explosion-Proof Compliance | Strictly meets GB3836.1-2010 and GB3836.2-2010 explosion-proof standards. Qualified for Zone 1/2 flammable gas environments and Zone 20/21/22 combustible dust environments, covering IIA, IIB, IIC gas groups and T1-T6 temperature grades. |
| 2 | 2MP Starlight All-day Clear Imaging | Adopts 1/2.9" starlight CMOS sensor, supporting switchable 1080P/720P dual resolution. 0.01Lux ultra-low illumination ensures clear video output day and night, matching all-weather vehicle monitoring demands. |
| 3 | Global Anti-overexposure Technology | Intelligent digital exposure algorithm automatically adjusts picture brightness under strong backlight, sunlight glare and high-contrast road scenes, avoiding image overexposure and retaining complete monitoring details. |
| 4 | High Temperature Stable Imaging Performance | Maintains stable dark signal under long-term high-temperature outdoor working environment. No vertical black stripes or abnormal bright white lines appear during night vision monitoring, keeping stable picture quality. |
| 5 | Vehicle-grade Shockproof Structure | Reinforced internal shockproof design effectively resists continuous vibration from bumpy roads, ensuring stable and jitter-free video transmission during vehicle driving. |
| 6 | 11-16V Ultra-wide Voltage Adaptation | Wide voltage input adapts to unstable original power supply of special vehicles, perfectly compatible with various vehicle monitoring host systems without additional voltage regulator. |
| 7 | IP67 Waterproof & Dustproof Protection | IP67 waterproof and dustproof grade copes with rainy, snowy, dusty and muddy harsh outdoor working conditions, suitable for long-term external vehicle installation. |
| 8 | PAL/NTSC Dual Signal Optional | Supports switchable PAL and NTSC signal modes, compatible with global mainstream vehicle monitoring equipment, meeting overseas market matching needs. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL / NTSC Optional | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps(PAL) / 30fps(NTSC) | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Lens & Viewing Angle | Lens & Horizontal View Angle | 3.6mm, 85° (±5% tolerance) |
| Night Vision Configuration | IR LED Quantity | 12pcs |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 11V-16V (Rated DC12V) |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Waterproof Grade | IP67 | |
| Explosion-Proof Standard | Certification Standard & Grade | GB3836.1-2010, GB3836.2-2010; ExdⅡCT6 GB/tD A21 IP66 80℃ |

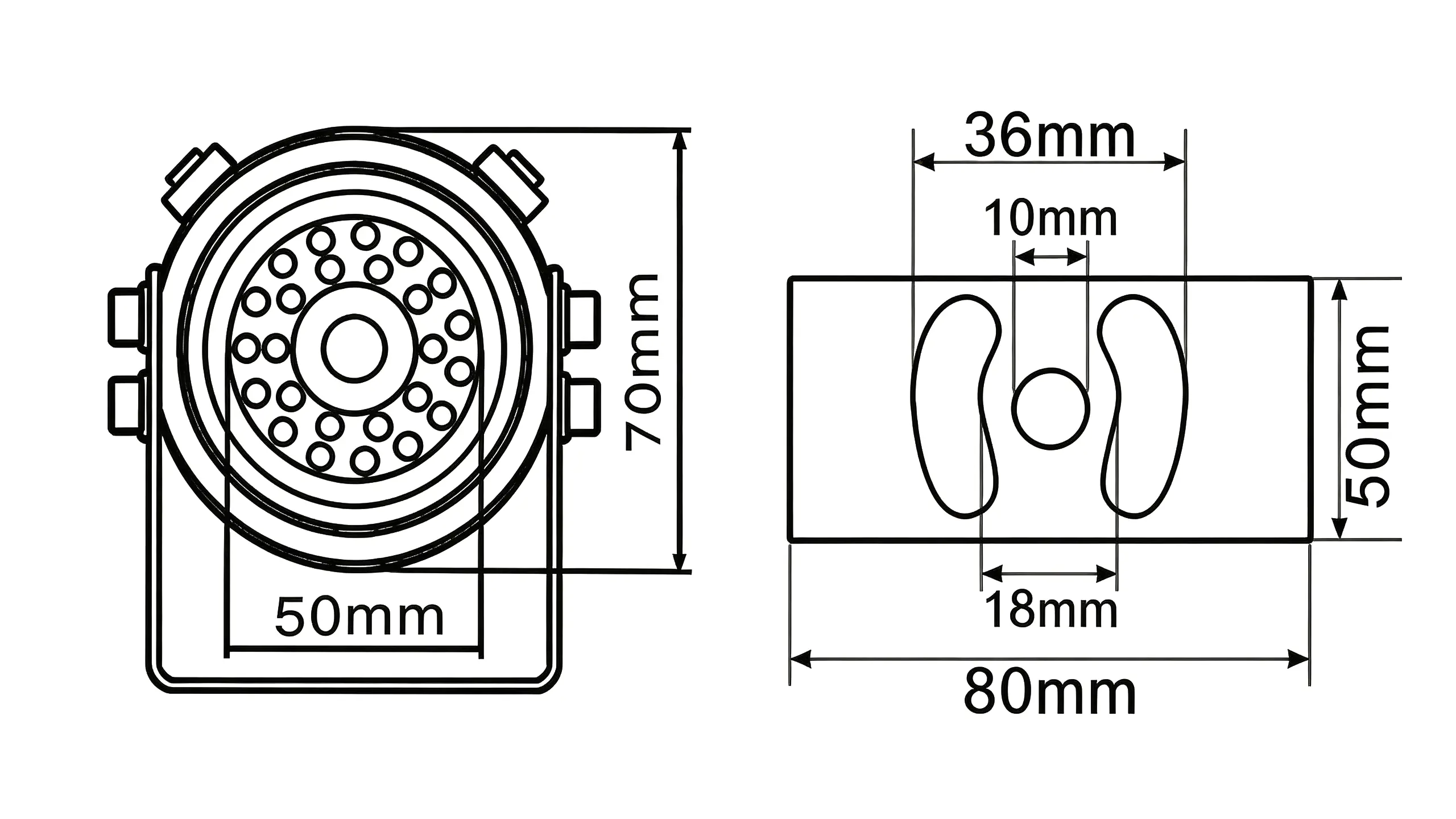

| Dimension Item | Size (mm) |
|---|---|
| Overall Product Size | 80mm * 50mm * 36mm |
| Note | Slight machining tolerance exists; please refer to official drawing for precise data |
This explosion-proof vehicle camera is specially designed for monitoring in flammable, explosive and dust-prone hazardous environments, widely applied to multiple industries:
It provides safe, stable and uninterrupted video monitoring for full-process transportation of hazardous materials, meeting strict safety monitoring requirements of special industrial vehicles.
Q1: Which explosion-proof zones is the XY-FB6835 camera certified for?
A1: This camera is qualified for Zone 1 and Zone 2 flammable gas hazardous environments, as well as Zone 20, 21, and 22 combustible dust hazardous environments. It fully complies with GB3836.1-2010 and GB3836.2-2010 standards.
Q2: How does the camera handle harsh lighting conditions on the road?
A2: The camera features a built-in global anti-overexposure algorithm and digital exposure control, which prevents screen blinding under intense backlight, high beams, or direct sunlight glare, ensuring clear monitoring details.
Q3: Is the XY-FB6835 camera suitable for outdoor marine or extreme weather use?
A3: Yes, it is housed in integrated 304 thickened stainless steel and features an IP67 waterproof and dustproof rating, making it highly resistant to rain, snow, salt spray, and extreme dust on ships, oil platforms, or heavy-duty vehicles.
Q4: Does the camera support both PAL and NTSC video signals?
A4: Yes, the camera supports dual signal output, allowing switchable PAL and NTSC modes to ensure complete compatibility with different global vehicle monitoring monitors and recorders.
Q5: Can it handle the voltage fluctuations typical of heavy machinery and transport trucks?
A5: Absolutely. It features an ultra-wide voltage adaptation range of DC 11V to 16V (rated at DC12V) that safeguards the camera against power spikes and fluctuations commonly found in commercial vehicles.
Q6: Does this model include a built-in microphone for audio recording?
A6: No, this product is the silent version with no built-in microphone, specifically designed for video-only monitoring applications.
