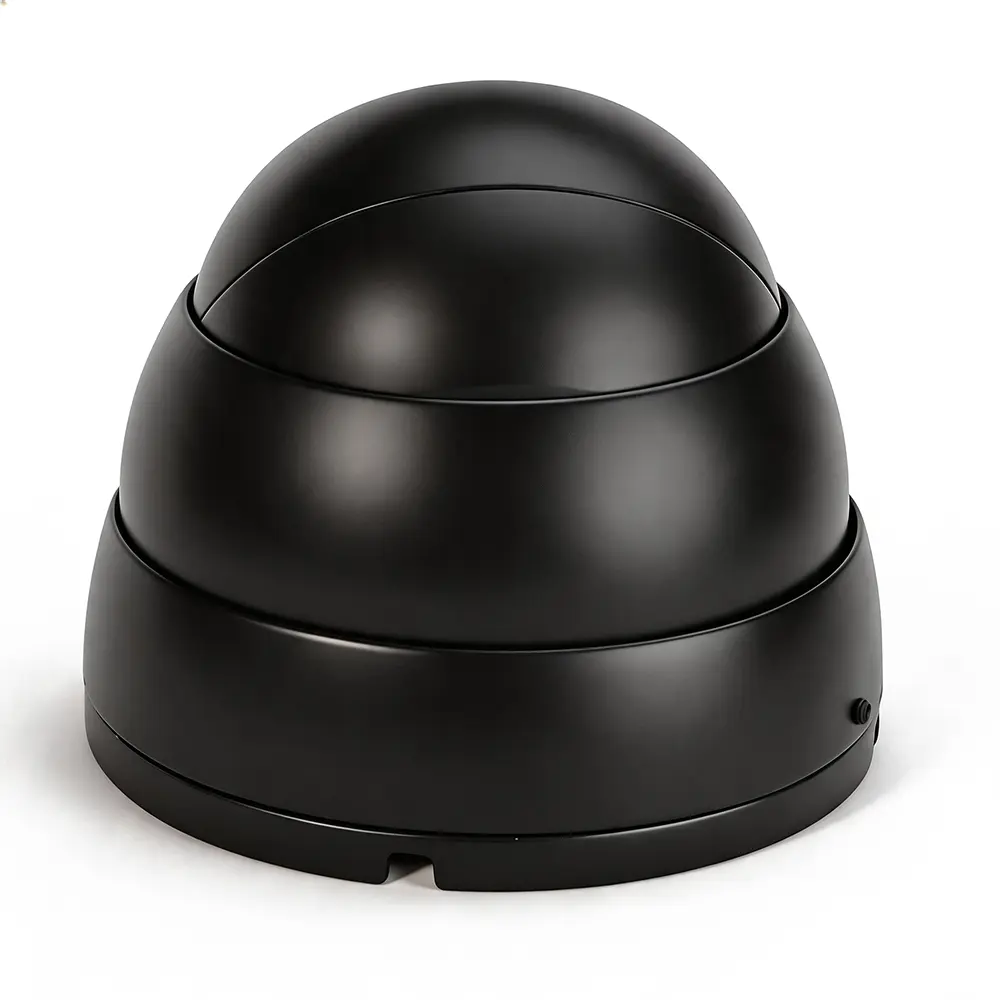

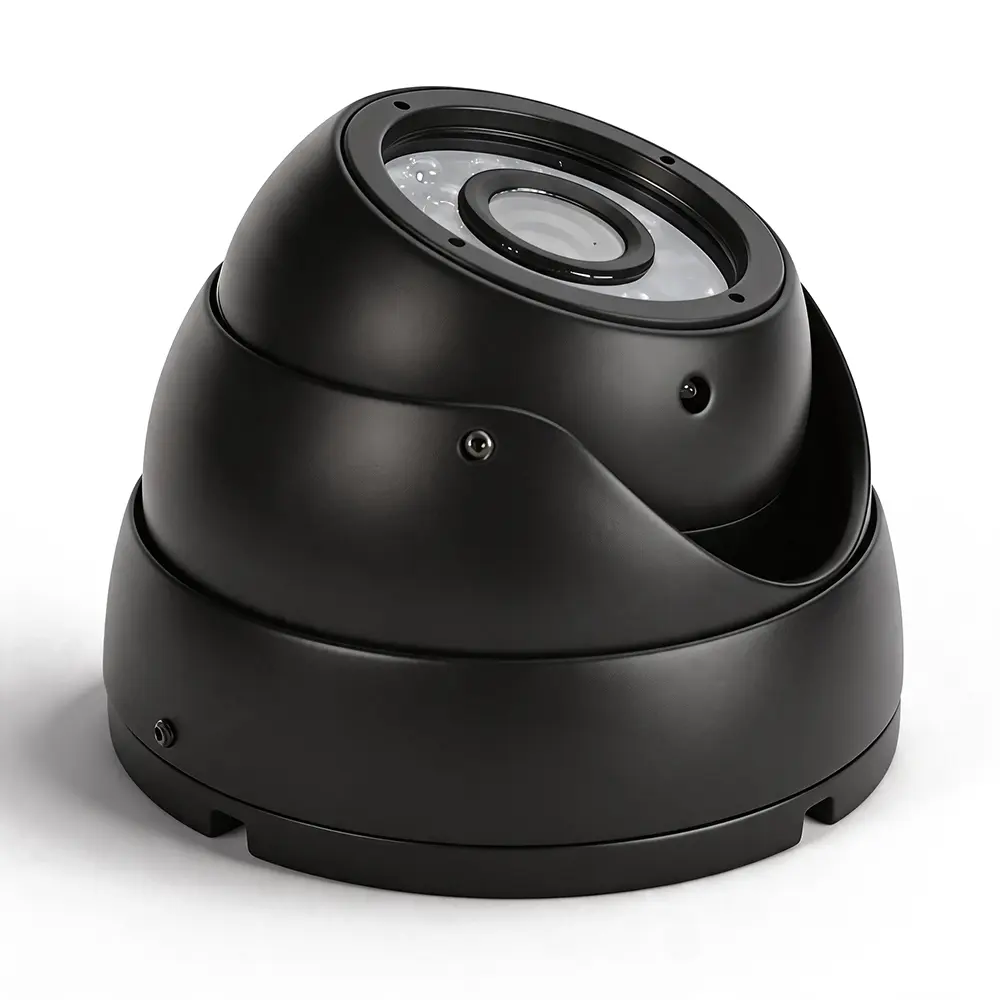

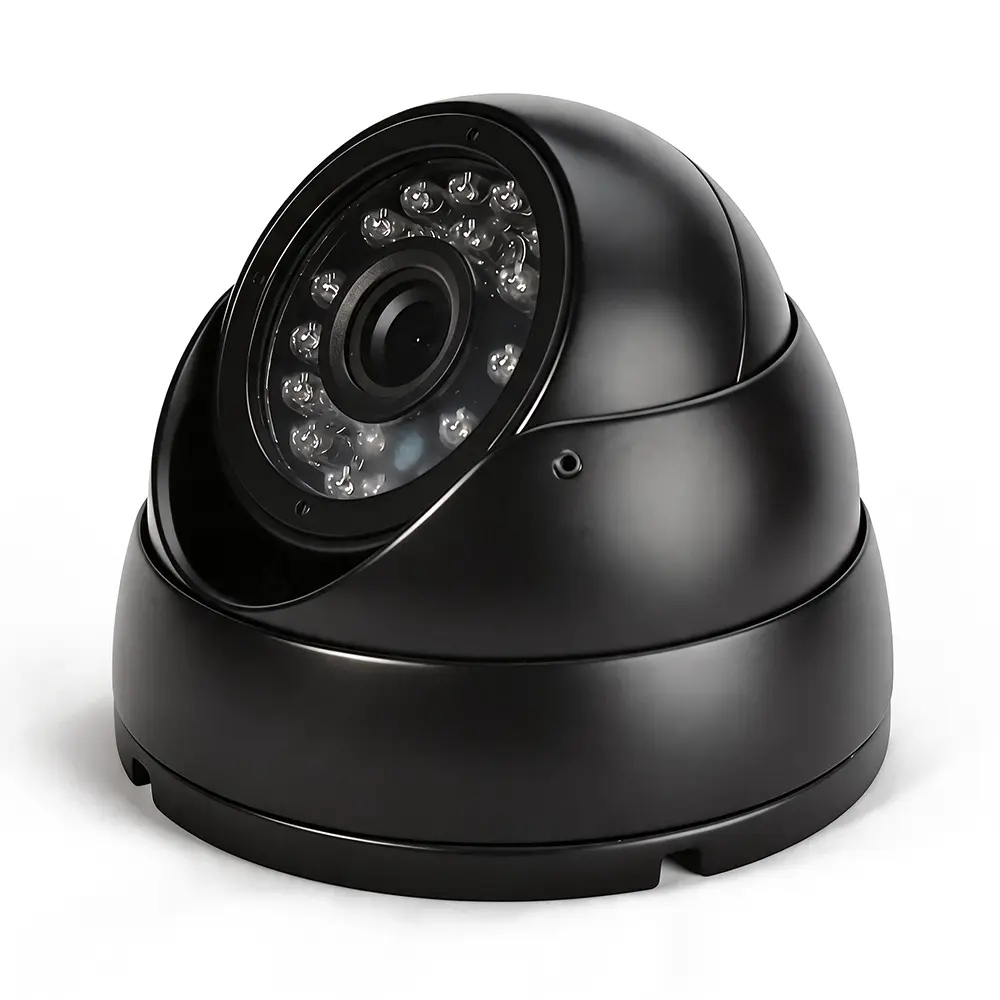

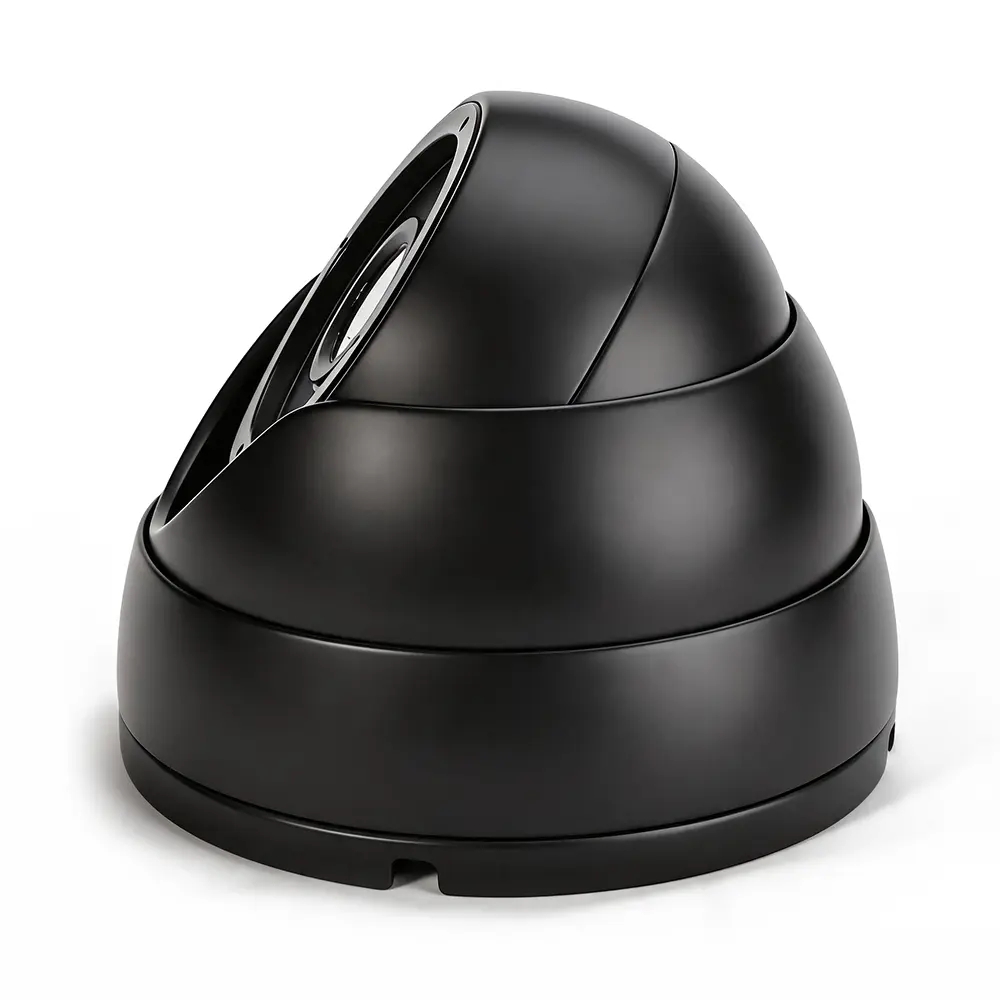

XY-N8824 is a high-definition dome-type in-vehicle interior camera, specially designed for commercial vehicle cabin monitoring. Adopting 2MP starlight-grade CMOS sensor and equipped with 24pcs high-density infrared fill lights, it delivers ultra-clear monitoring images day and night. The built-in high-sensitivity microphone supports synchronous audio and video recording, effectively recording cabin voice information.
With vehicle-grade shock resistance, anti-fog performance and global anti-overexposure algorithm, this camera perfectly solves common problems such as unstable image output, overexposure and long-term picture blurring of ordinary in-vehicle cameras. The durable ABS plastic dome housing features exquisite appearance and reliable heat resistance. Fixed by self-tapping screws, it is easy for ceiling concealed installation, widely applicable for buses, taxis, online car-hailing, school buses and logistics passenger vehicles.
| Item | Details |
|---|---|
| Product Model | XY-N8824 |
| Product Type | 2MP Starlight Dome In-Vehicle Interior Camera with Audio |
| Housing Material | High-quality ABS Plastic |
| Appearance Color | Black |
| Viewing Angle | DFOV 110° / HFOV 85° / VFOV 48° |
| IR LED Configuration | 24pcs High-density Infrared Night Vision Lights |
| Audio Function | Built-in 25mm² High-sensitivity Microphone (Audio Recording Supported) |
| Working Voltage | DC 12V |
| Working Current | 250mA @ DC12V |
| Signal System | PAL |
| Video Output | AHD Analog HD |
| Connector Type | 4-pin Aviation Connector |
| Cable Length | 0.6m |
| Net Weight | 0.3KG |
| Waterproof Grade | Non-waterproof (Indoor Cabin Use Only) |
| Installation Method | Self-tapping Screw Fixed Ceiling Installation |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | 2MP Starlight Day & Night HD Imaging | Equipped with professional 1/2.9-inch starlight CMOS sensor, supporting 1080P/720P dual resolution switching. Ultra-low illumination of 0.01Lux ensures clear and delicate imaging in weak light environment, achieving high-definition monitoring throughout day and night. |

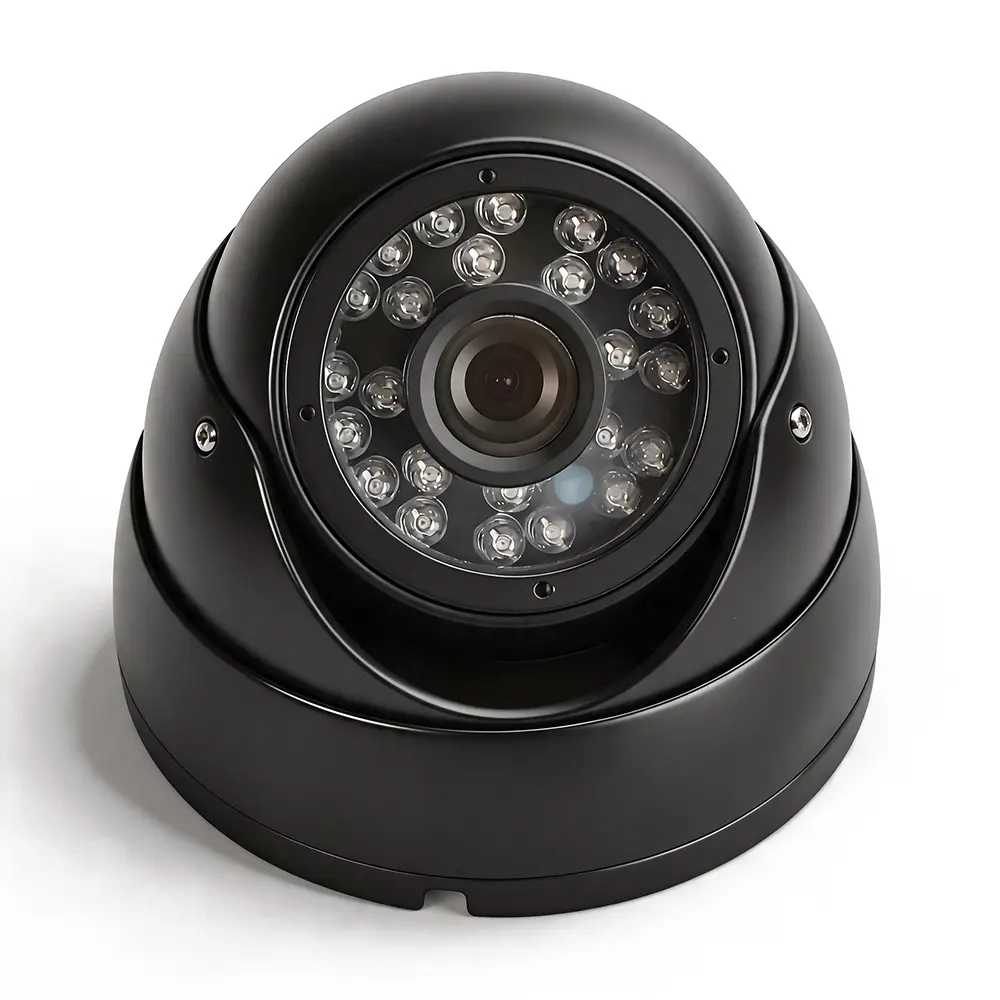

| 2 | 24pcs High-density Infrared Night Vision | Adopts 24 high-density infrared lights with uniform fill light range, effectively eliminating cabin dark areas. It presents clear black-and-white images in full darkness, greatly improving the integrity of night monitoring pictures compared with ordinary cabin cameras. |
| 3 | Synchronous Audio & Video Recording | Built-in 25mm² high-sensitivity pickup microphone, which can clearly record cabin dialogue and driving sound. Synchronous audio-video recording provides complete evidence data for vehicle safety supervision and dispute handling. |
| 4 | Global Anti-overexposure Algorithm | Intelligent digital exposure technology automatically adapts to complex light changes such as strong outdoor light entering the window and indoor light contrast. It suppresses overexposed highlights and compensates shadow details to restore real and layered cabin monitoring pictures. |
| 5 | High-temperature Stable Imaging Performance | Optimized industrial circuit design adapts to long-term high-temperature closed environment inside the vehicle. It maintains stable dark-level signal output during continuous operation, without black vertical bars or bright white lines in night vision mode. |
| 6 | Vehicle-grade Shockproof Structure | Reinforced internal anti-vibration structure effectively resists jitter and impact caused by vehicle bumping and driving vibration. The video output is smooth and stable without picture shaking, adapting to long-term vehicle driving scenarios. |
| 7 | Durable ABS Dome Housing | Adopts high-strength ABS plastic material, featuring scratch resistance, good heat dissipation and strong durability. The exquisite dome shape is suitable for ceiling concealed installation, which does not affect the overall interior aesthetics of the vehicle. |
| 8 | High Compatibility & Easy Installation | Standard PAL system AHD high-definition signal is compatible with most vehicle MDVR monitoring hosts on the market. The screw fixing method realizes firm installation, convenient for batch deployment of fleet vehicles. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9 Inch CMOS Starlight Sensor |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| View Angle Parameter | Diagonal / Horizontal / Vertical Angle | 110° / 85° / 48° |
| Night Vision | IR LED Quantity | 24pcs |
| Audio Function | Microphone Specification | 25mm² High-sensitivity Pickup Microphone |
| Video Output | Output Format | AHD Analog HD |
| Electrical Parameters | Operating Voltage | DC 12V |
| Working Current | 250mA | |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ | |
| Protection Grade | Waterproof Performance | Non-waterproof (Only for interior use) |
| Appearance Structure | Housing Material | ABS Plastic |
| Color | Black |

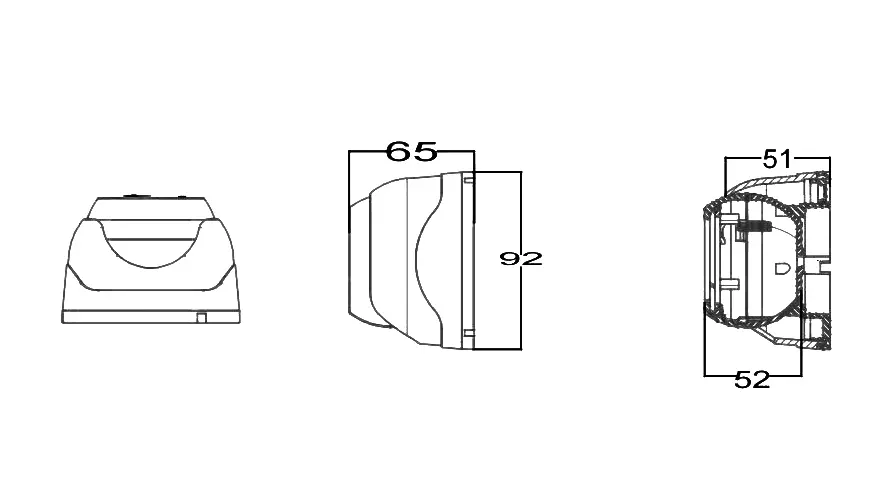

| Dimension Item | Remarks |
|---|---|
| Overall Size | Refer to official engineering dimension drawing for accurate data |
| Structural Feature | Mini dome compact structure, lightweight and easy for ceiling concealed installation |
XY-N8824 dome in-vehicle camera integrates starlight HD imaging, high-density infrared night vision and high-sensitivity audio pickup. With stable vehicle-level performance and elegant concealed installation design, it is a cost-effective audio-video integrated monitoring solution for various commercial vehicle fleets.
