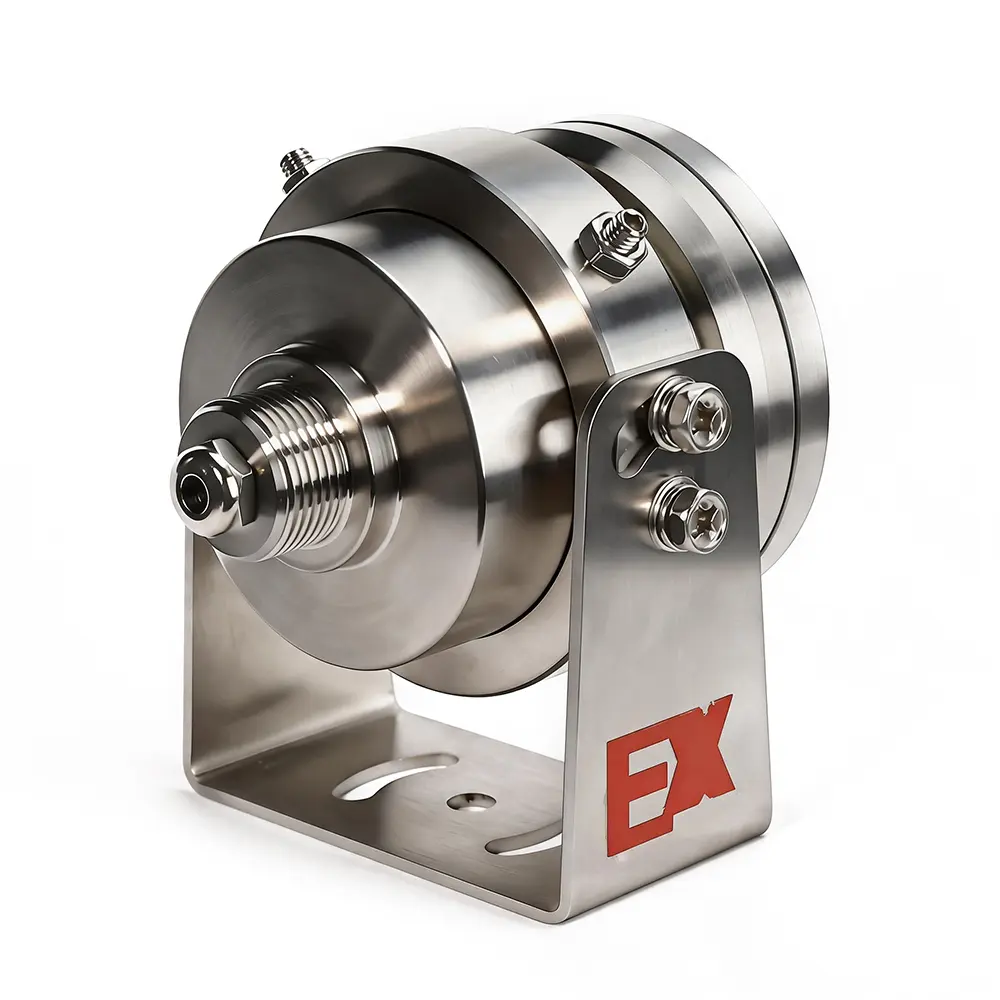

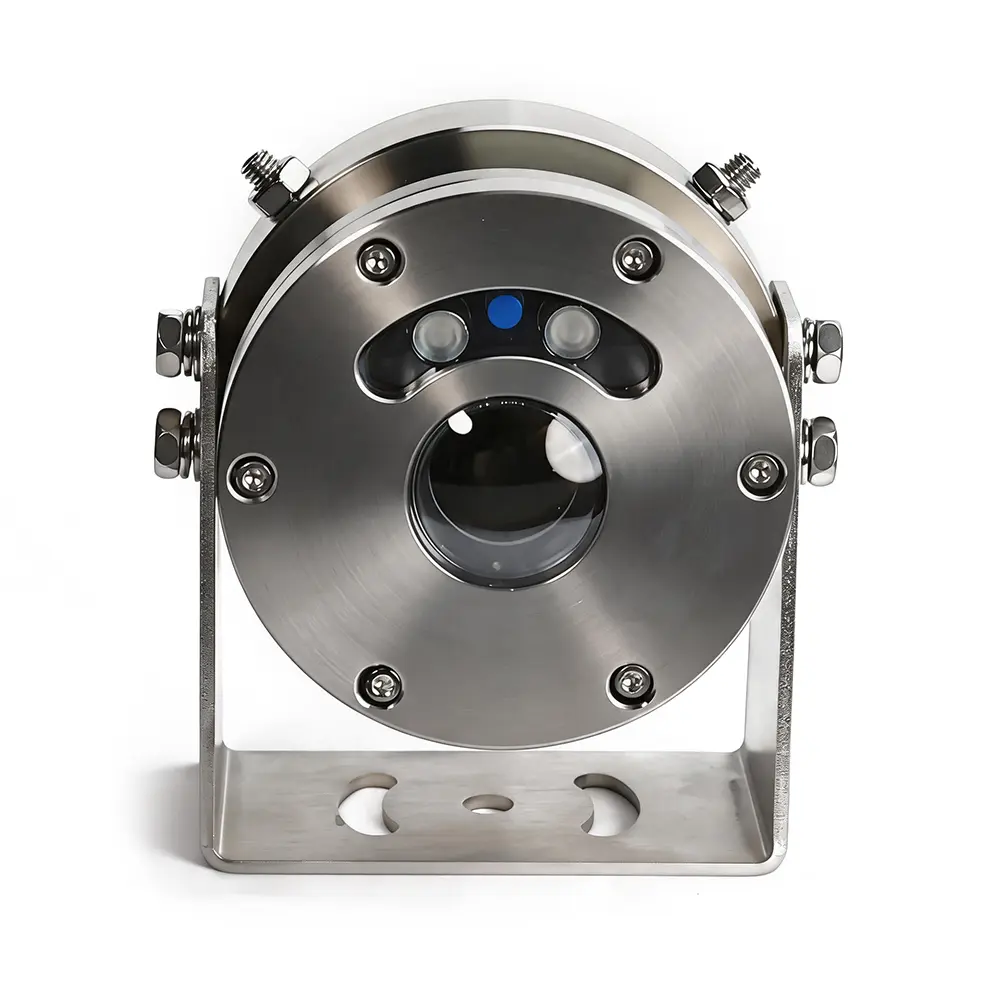

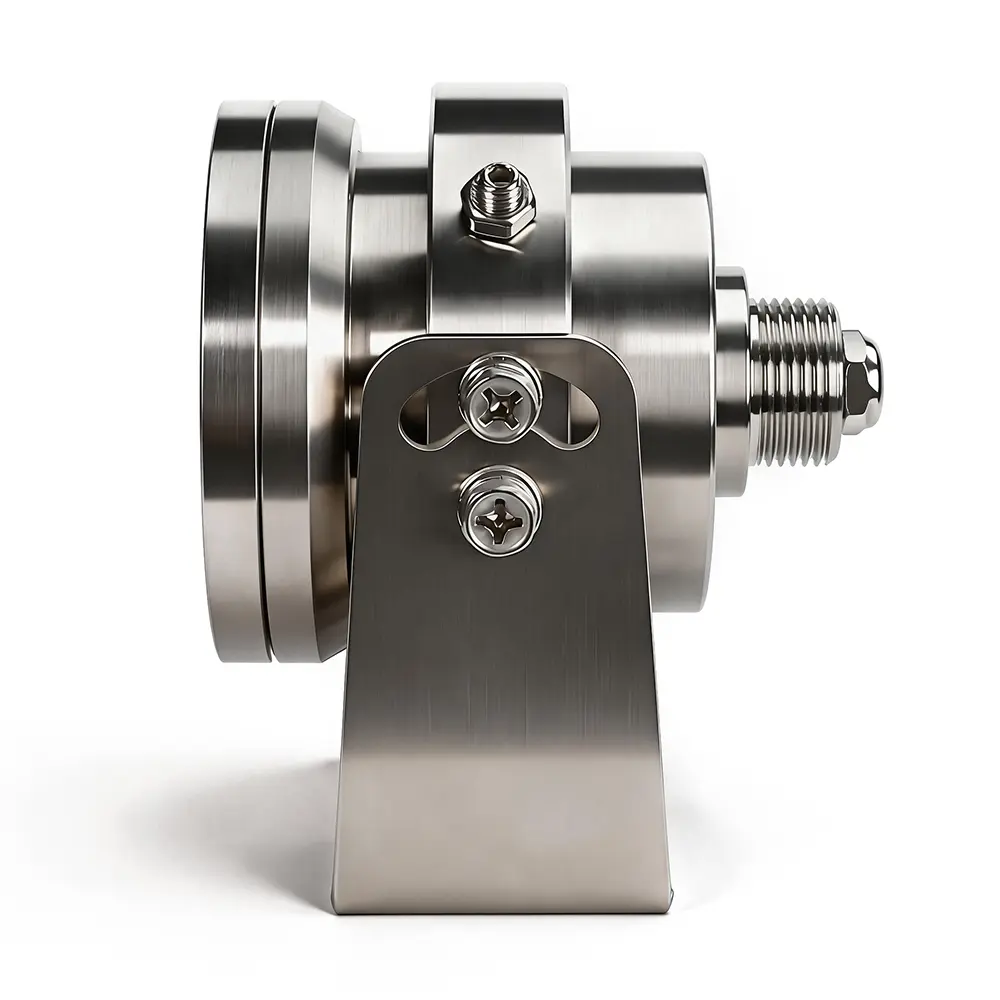

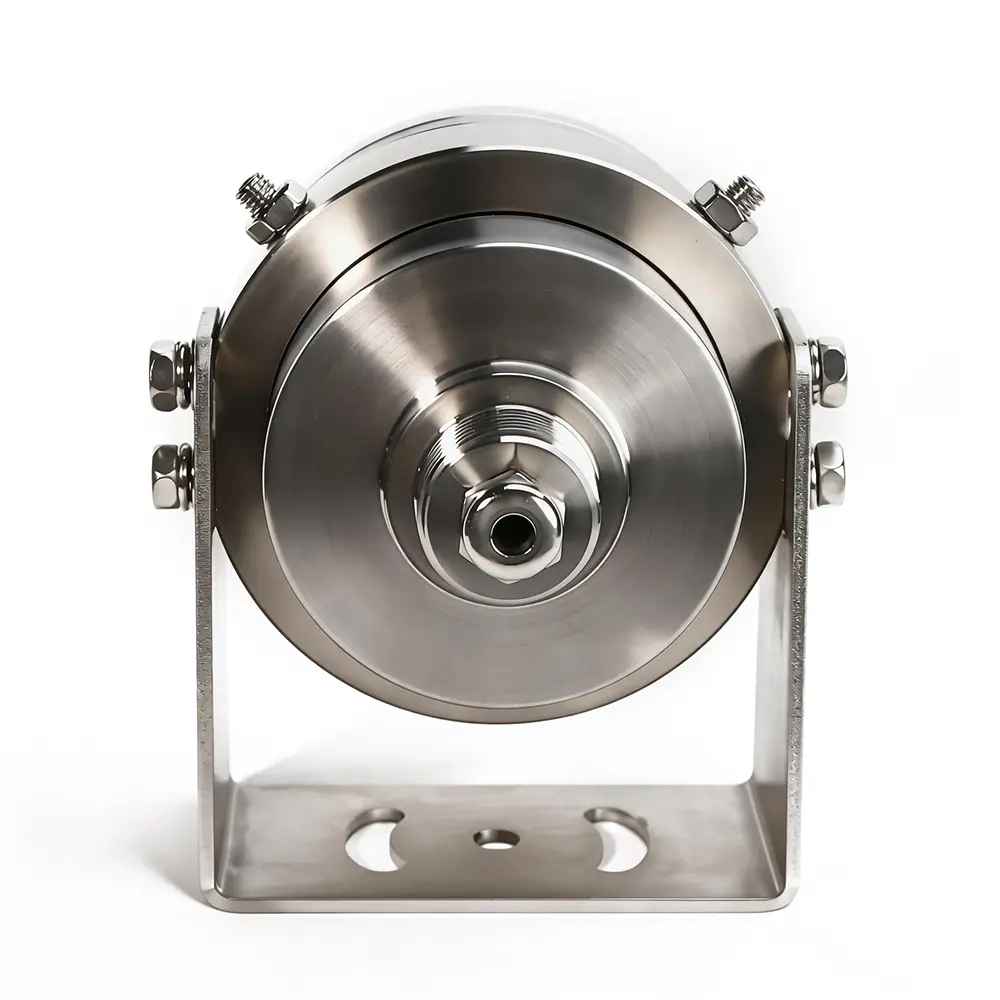

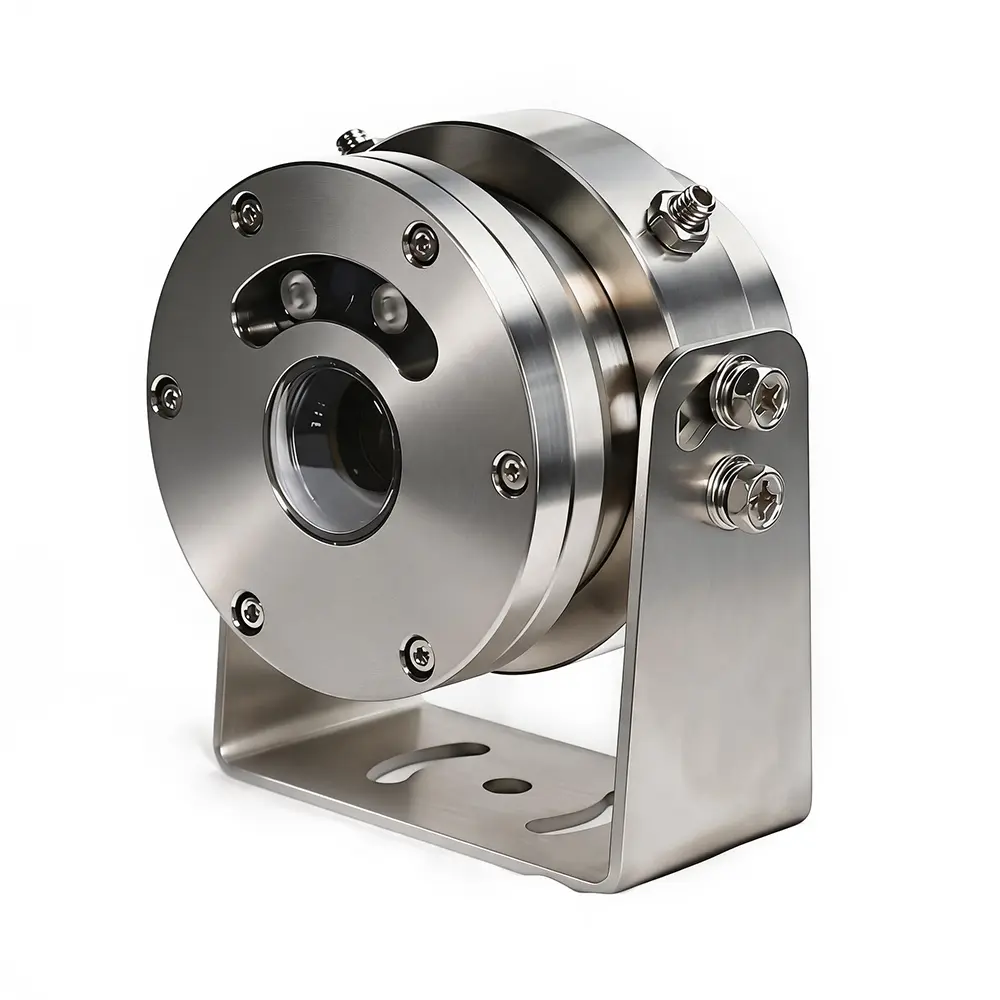

Equipped with 2MP starlight low-light CMOS sensor and only 2 built-in low-power infrared fill lights, this camera supports fixed 1080P full HD resolution, IP67 waterproof rating, vehicle-grade shockproof structure and 11-16V wide voltage input. Built-in global anti-overexposure algorithm optimizes imaging under tunnel backlight, strong sunlight and other high-contrast light conditions, effectively solving common defects of ordinary vehicle cameras such as unstable video signal and long-term picture blurring. It is the ideal compact monitoring equipment for small-sized dangerous goods transport vehicles and special engineering vehicles.
| Item | Details |
|---|---|
| Product Model | XY-FBH08 |
| Product Type | Mini Explosion-Proof Exterior Vehicle Monitoring Camera |
| Housing Material | 304 Stainless Steel |
| Appearance Color | Silvery-white |
| Explosion-Proof Grade | ExdⅡCT6 GB/tD A21 IP66 80℃ |
| Waterproof Rating | IP67 |
| Lens Parameter | 3.6mm lens, 85° horizontal viewing angle (±5% tolerance) |
| IR LED Quantity | 2pcs low-power high-brightness infrared lights |
| Working Voltage | DC 11V-16V (Rated DC12V) |
| Audio Function | No built-in microphone (silent version) |
| Connector Type | 4-core Female Aviation Connector |
| Installation Method | Self-tapping screw fixed installation |
| Net Weight | Approx. 2KG |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Professional Explosion-Proof Compliance | Strictly meets GB3836.1-2010 and GB3836.2-2010 explosion-proof standards. Qualified for Zone 1/2 flammable gas environments and Zone 20/21/22 combustible dust environments, covering IIA, IIB, IIC gas groups and T1-T6 temperature grades. |
| 2 | 2MP Starlight All-day Clear Imaging | Adopts 1/2.9" starlight CMOS sensor, fixed 1080P full HD resolution. 0.01Lux ultra-low illumination ensures clear color video output day and night, meeting all-weather vehicle external monitoring demands. |
| 3 | Global Anti-overexposure Technology | Intelligent digital exposure algorithm automatically adjusts picture brightness under strong backlight, sunlight glare and tunnel high-contrast scenes, avoiding image overexposure and dark area loss, retaining complete road monitoring details. |
| 4 | High Temperature Stable Imaging Performance | Maintains stable dark signal under long-term high-temperature outdoor working environment. No vertical black stripes or abnormal bright white lines appear during night vision monitoring, keeping consistent stable picture quality all day long. |
| 5 | Vehicle-grade Shockproof Structure | Reinforced internal shockproof design effectively resists continuous vibration from bumpy and rugged roads, ensuring stable and jitter-free video transmission during long-distance vehicle driving. |
| 6 | 11-16V Ultra-wide Voltage Adaptation | Wide voltage input adapts to unstable original power supply of special vehicles, perfectly compatible with various vehicle MDVR monitoring hosts without additional voltage regulator module. |
| 7 | IP67 Waterproof & Dustproof Protection | IP67 waterproof and dustproof grade copes with rainy, snowy, dusty and muddy harsh outdoor working conditions, suitable for long-term external vehicle installation all year round. |
| 8 | PAL/NTSC Dual Signal Optional | Supports switchable PAL and NTSC signal modes, compatible with global mainstream vehicle monitoring equipment, perfectly matching overseas fleet and engineering project systems. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL / NTSC Optional | |
| Effective Pixels | 1920(H)×1080(V) | |
| Frame Rate | 25fps(PAL) / 30fps(NTSC) | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Image Processing | Horizontal Resolution | 2000TVL |
| Image Processing Details | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Lens & Viewing Angle | Lens & Horizontal View Angle | 3.6mm, 85° (±5% tolerance) |
| Night Vision Configuration | IR LED Quantity | 2pcs |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 11V-16V (Rated DC12V) |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Protection Grade | Waterproof Grade | IP67 |
| Explosion-Proof Standard | Certification Standard & Grade | GB3836.1-2010, GB3836.2-2010; ExdⅡCT6 GB/tD A21 IP66 80℃ |
| Dimension Item | Size Remark |
|---|---|

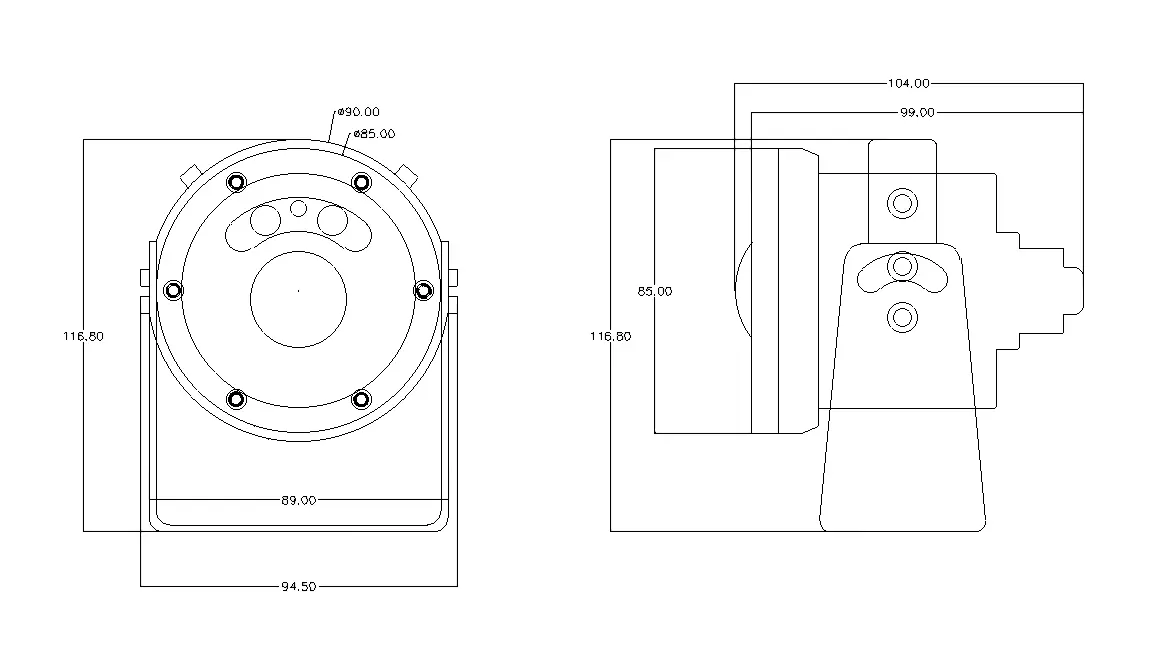

| Overall Product Size | Mini compact body, please refer to official engineering drawing for precise millimeter data |
| Note | Slight machining tolerance exists on stainless steel housing |
This mini explosion-proof vehicle camera is specially designed for narrow installation space and flammable, explosive and dust-prone hazardous environments, widely applied to multiple industrial scenarios:
It provides safe, stable and uninterrupted video monitoring for full-process transportation of hazardous materials, meeting strict safety monitoring requirements of special industrial vehicles with limited installation space.
The camera strictly complies with the GB3836.1-2010 and GB3836.2-2010 international explosion-proof standards. It is certified with an ExdⅡCT6 GB/tD A21 IP66 80℃ rating, making it safe for Zone 1/2 gas and Zone 20/21/22 dust hazardous environments.
It uses a digital exposure algorithm to automatically adjust picture brightness during high-contrast scenes (such as driving in/out of tunnels or against strong sunlight). This prevents overexposure in bright highlights and detail loss in dark areas.
Yes, the XY-FBH08 features an IP67 waterproof and dustproof rating coupled with an integrated sealed 304 stainless steel housing, ensuring reliable operation in rainy, snowy, muddy, and dusty outdoor conditions.
The camera operates on a wide DC 11V-16V input voltage range (with a rated voltage of DC12V), making it compatible with various vehicle power fluctuations and MDVR hosts.
No, this camera does not have a built-in microphone. It is a silent version designed purely for high-definition video monitoring.
