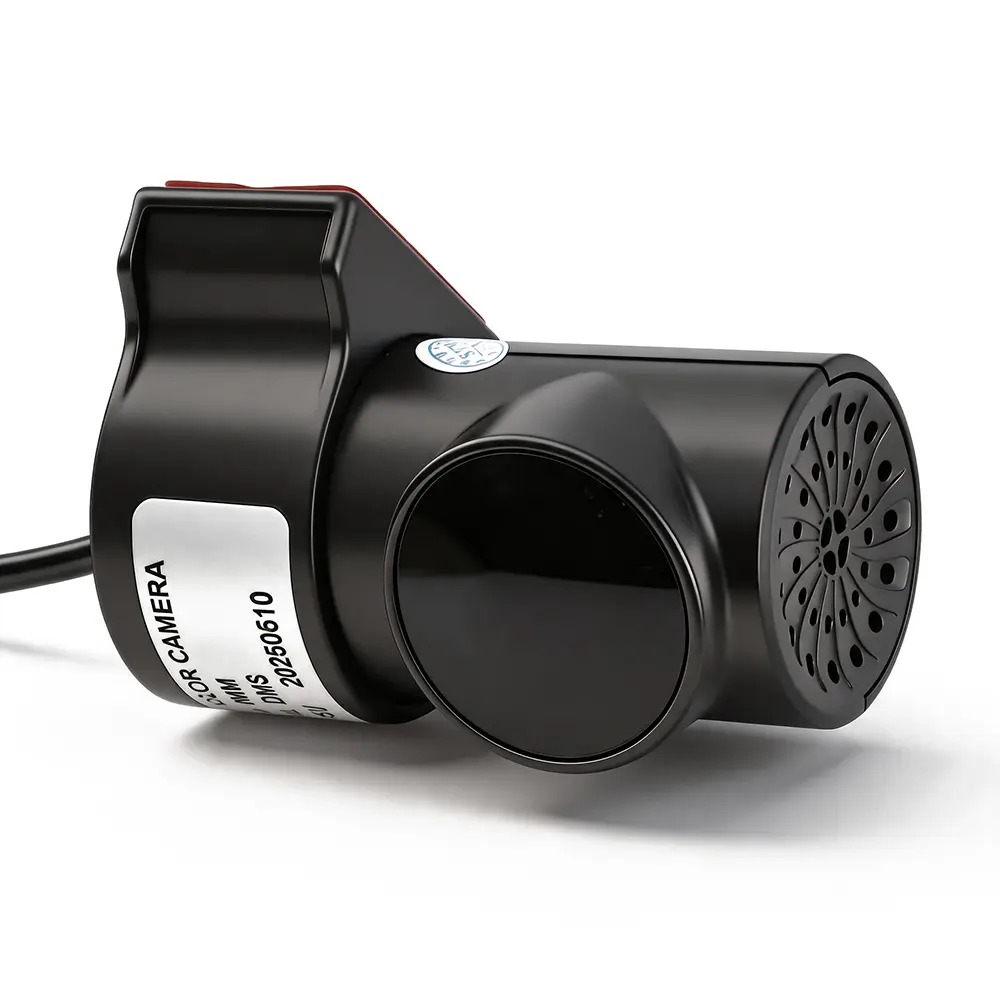

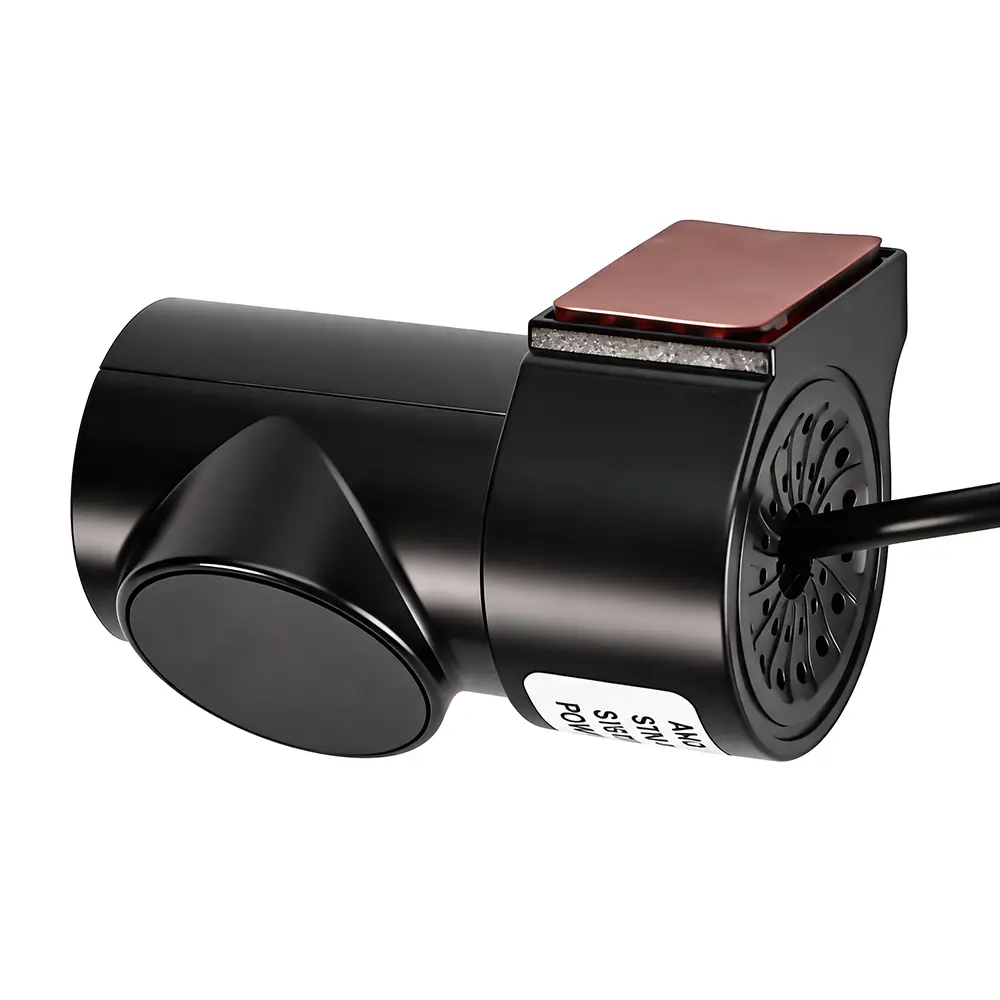

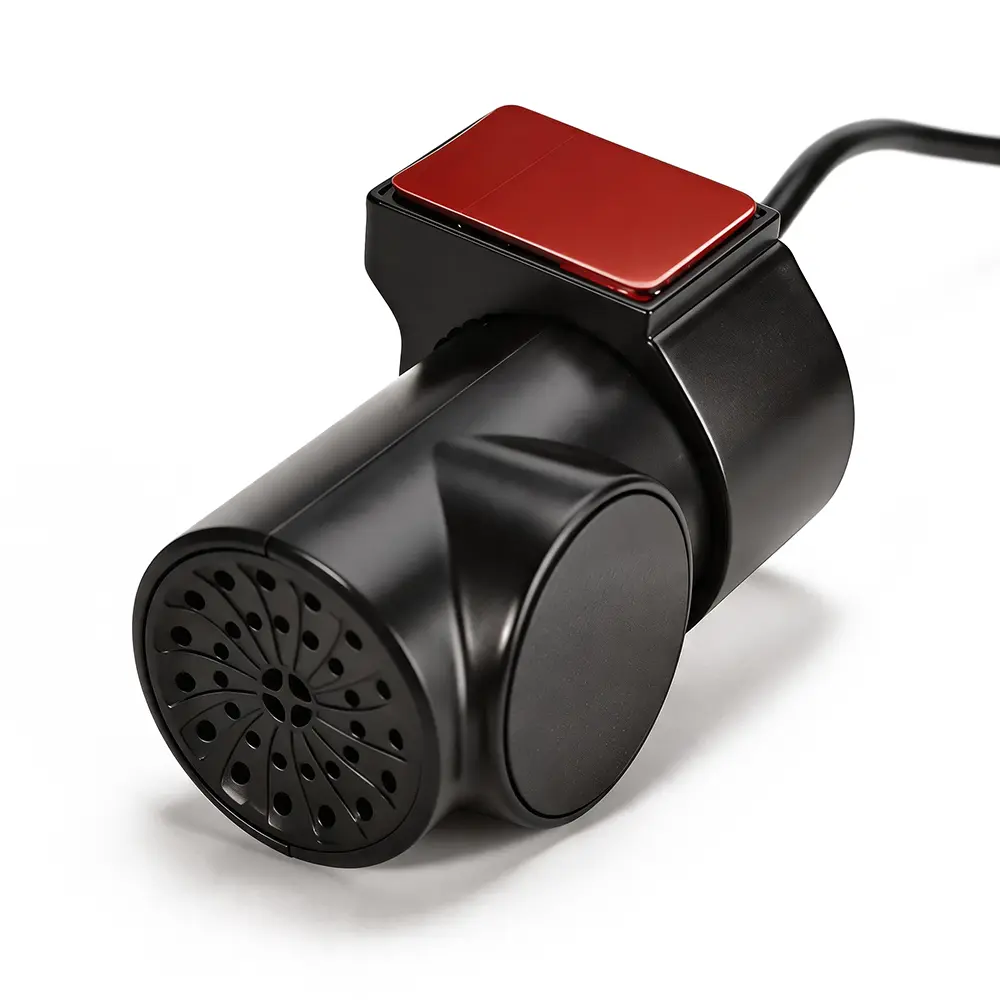

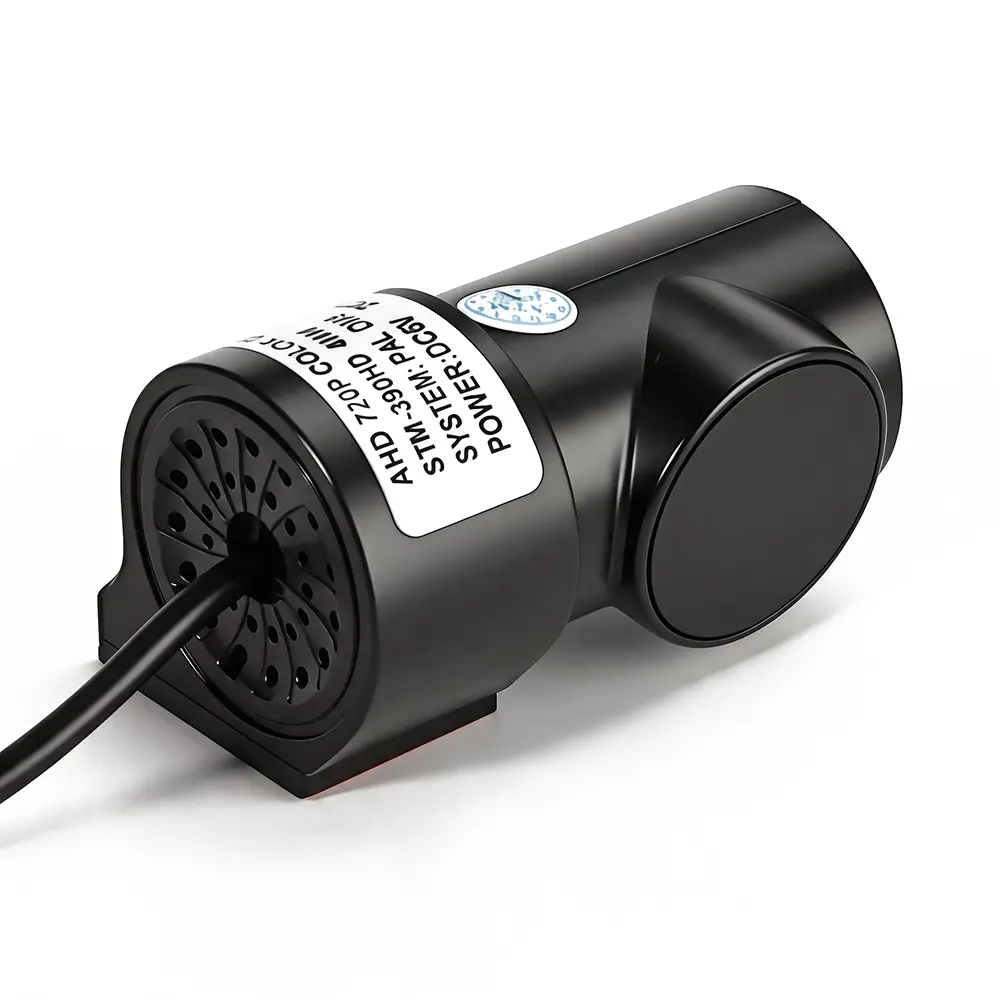

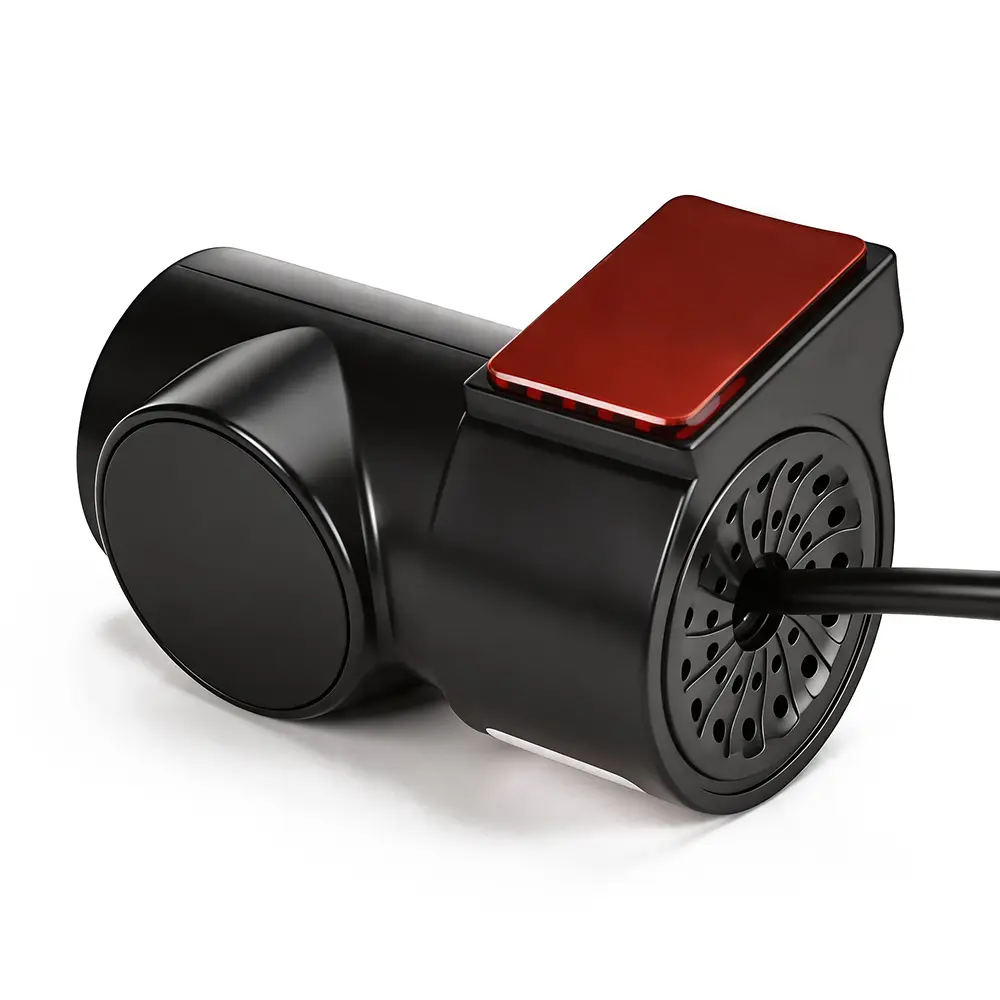

XY-N7503-DMS is a professional dedicated in-cabin camera optimized exclusively for DMS (Driver Monitoring System). Adopting premium starlight imaging sensor, this camera features low power consumption, anti-fog lens and vehicle-grade shockproof structure, perfectly solving common problems of traditional vehicle cameras such as unstable video signal and gradual picture blurring after long-time driving. With a targeted 60° narrow viewing angle, built-in 5 infrared LEDs and hole-free 3M adhesive installation, it delivers precise facial imaging data, greatly improving the recognition accuracy of driver fatigue, distraction and other abnormal behaviors, which is the ideal matching camera for fleet DMS safety monitoring systems.
| Item | Details |
|---|---|
| Product Model | XY-N7503-DMS |
| Product Type | In-Cabin DMS Driver Monitoring Camera |
| Housing Material | Engineering Plastic |
| Appearance Color | Black |

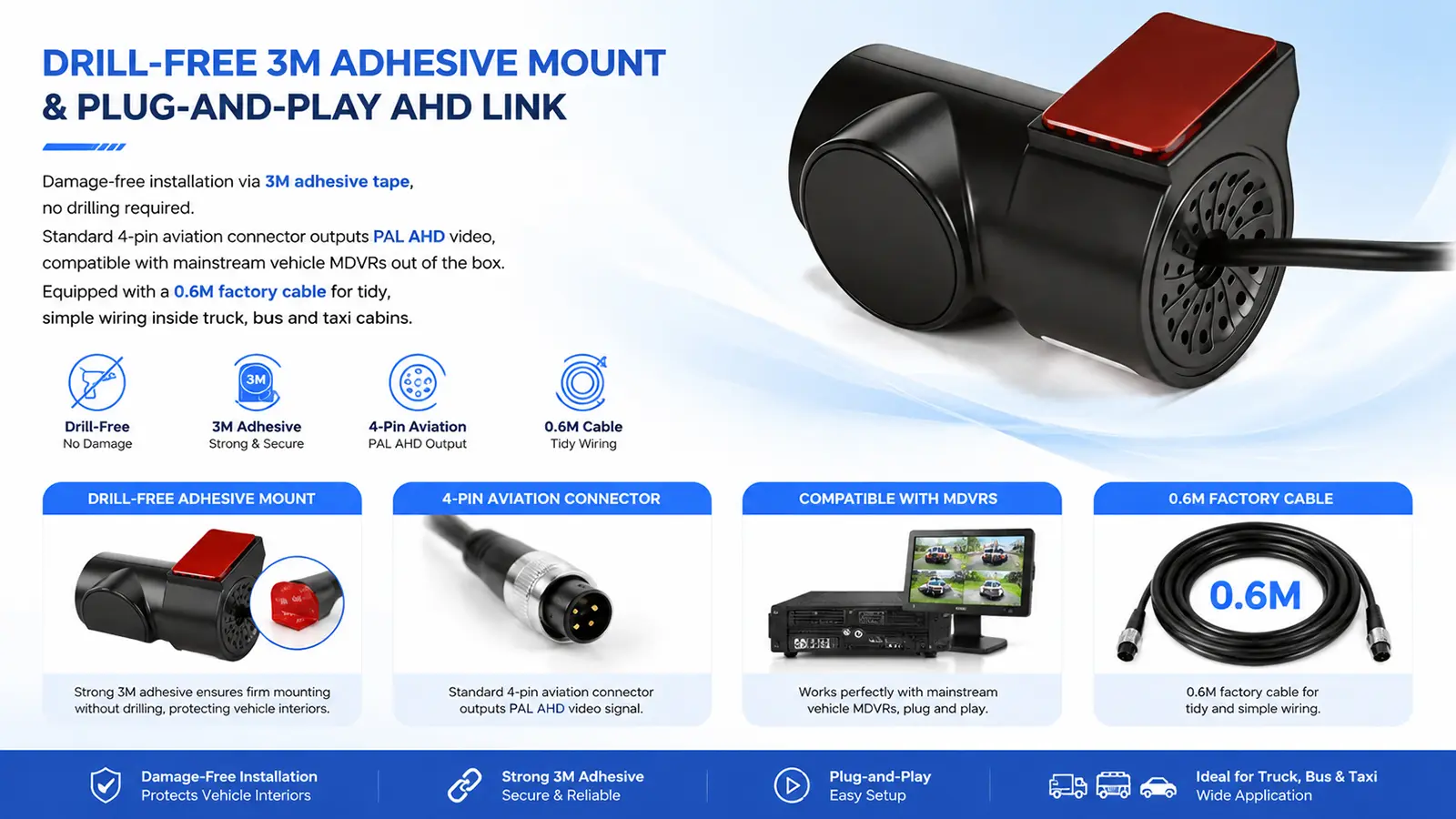

| Installation Method | 3M Adhesive Tape Mounting (Drill-free) |
| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.4KG |
| Waterproof Rating | Non-waterproof (Only for indoor in-cabin use) |
| IR LED Quantity | 5pcs Infrared Supplementary Lights |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | 2MP Starlight Dual-resolution HD Imaging | Equipped with 1/2.9" starlight-grade CMOS sensor, supporting switchable 1080P and 720P resolution. 0.01Lux ultra-low illumination ensures clear facial imaging day and night, providing stable video input for DMS system analysis. |
| 2 | Global Anti-overexposure Technology | Built-in advanced digital exposure algorithm, automatically balances image brightness under complex indoor light and strong backlight inside the car. It avoids facial overexposure and retains complete facial feature details for accurate DMS recognition. |
| 3 | Excellent High-temperature Stability | Keeps stable dark level signal under high-temperature closed cabin environment. No vertical black stripes or abnormal bright white lines appear during long-term night vision monitoring, maintaining consistent imaging quality. |
| 4 | Vehicle-grade Shockproof & Stable Power Supply | Reinforced shockproof internal structure resists bumpy road vibration during vehicle driving. Standard DC12V wide voltage design matches mainstream vehicle power supply systems perfectly. |
| 5 | 60° Targeted Viewing Angle for DMS | Customized 60° narrow viewing angle focuses precisely on driver's face area, effectively filtering useless background interference, greatly improving the accuracy of driver fatigue and distracted driving detection. |
| 6 | Built-in 5 IR LEDs Night Vision | 5 built-in infrared fill lights offer soft and uniform night supplementary lighting. It captures clear driver facial images in dark cabins without harsh glare that disturbs drivers' normal driving. |
| 7 | Drill-free 3M Adhesive Installation | Supports convenient 3M adhesive sticker mounting, no drilling or damage required for vehicle interior. Easy and fast installation, suitable for quick refitting of various fleet vehicles. |
| 8 | Low Power Consumption for Long-term Monitoring | Ultra-low working current of 150mA under DC12V, supporting 24-hour uninterrupted in-cabin monitoring with low vehicle power consumption, meeting long-lasting working demands of commercial fleets. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Night Vision Configuration | IR LED Quantity | 5pcs |
| Fixed Viewing Angle | Diagonal View Angle | 60° |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Working Current | 150mA @ DC 12V | |
| Environmental Resistance | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |

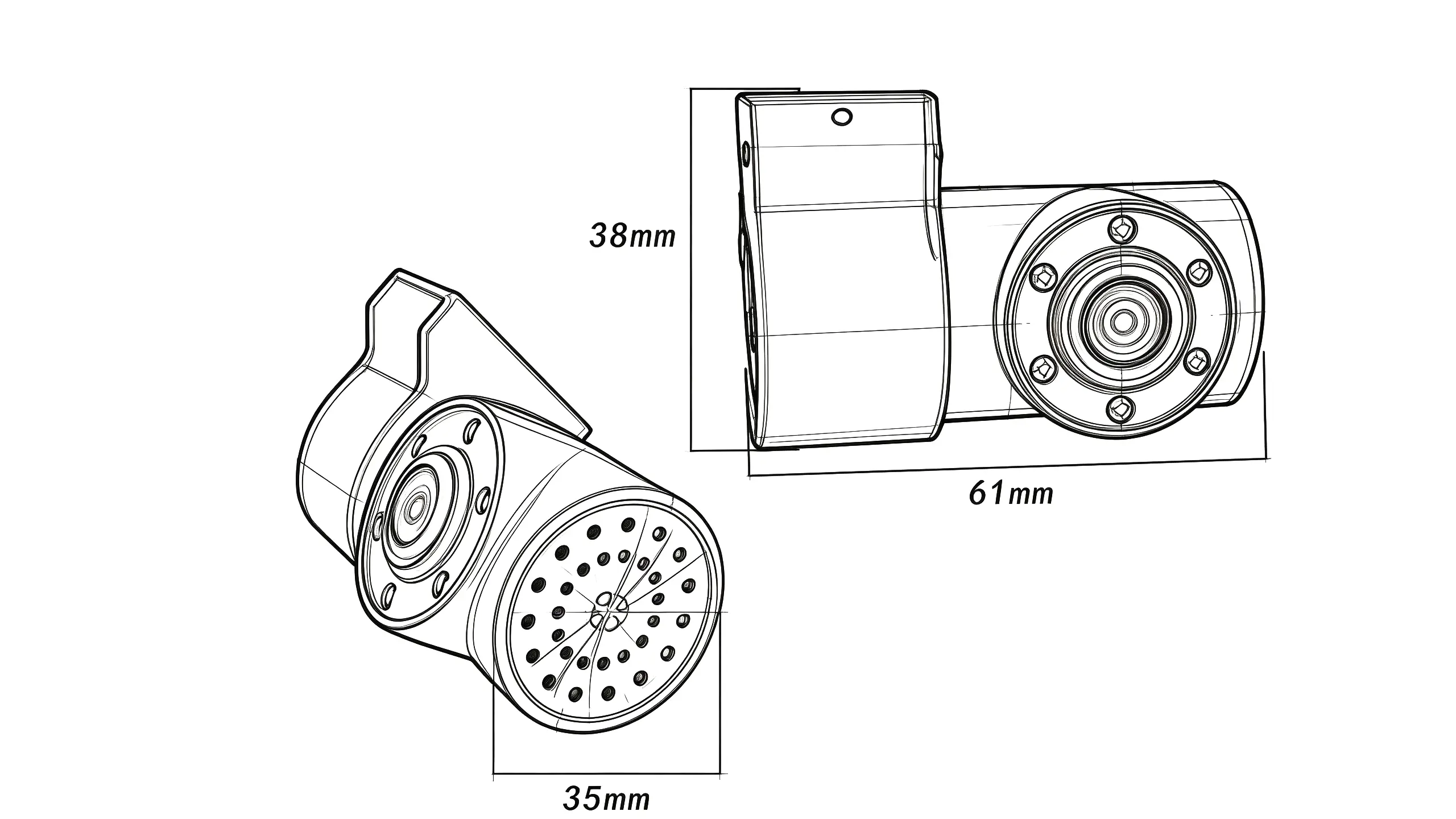

| Dimension Item | Size (mm) |
|---|---|
| Length | 61mm |
| Width | 38mm |
| Height | 35mm |
| Note | Slight dimensional tolerance exists; please refer to the technical drawing for precise details. |
This dedicated DMS in-cabin monitoring camera is widely applied to buses, taxis, trucks, logistics vehicles and various commercial fleets. It is specially designed for driver behavior monitoring scenarios, including driver fatigue detection, distracted driving alarm, phone use monitoring and face recognition recording, providing high-precision and stable video support for full-set vehicle DMS safety management systems.
