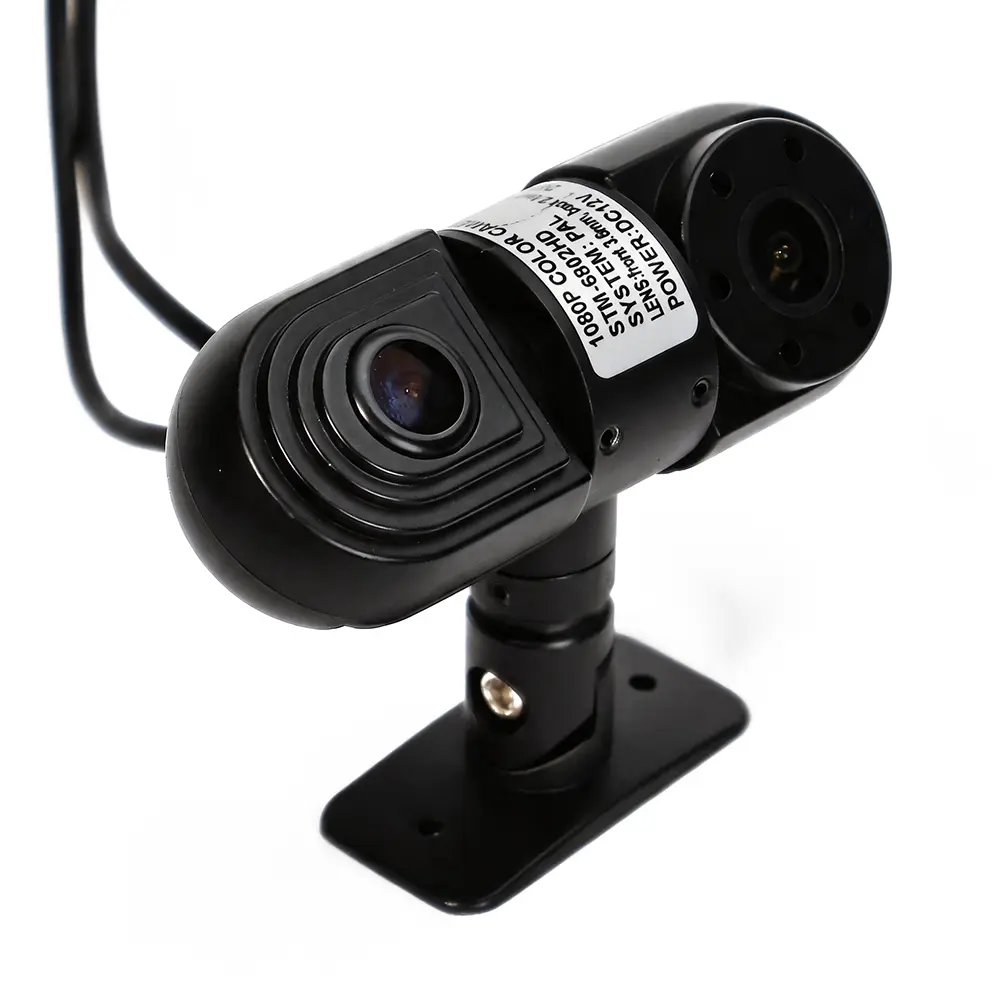

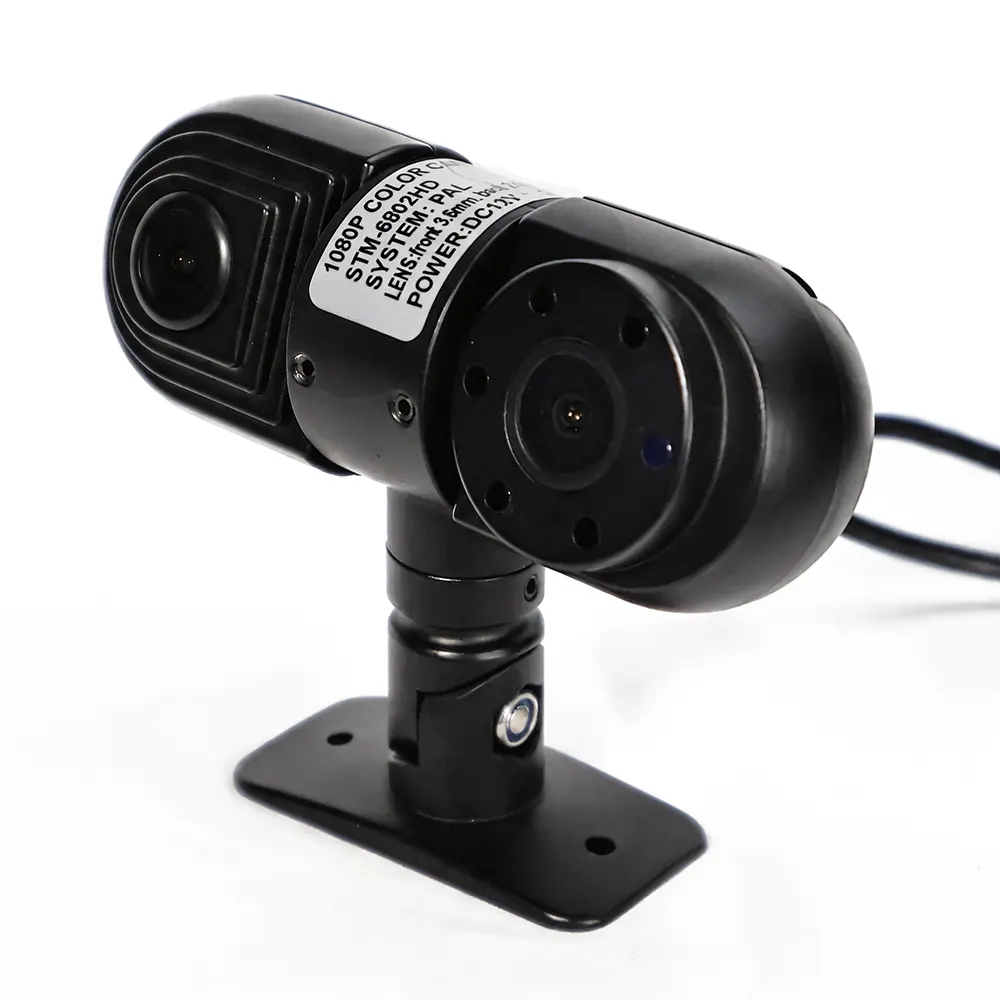

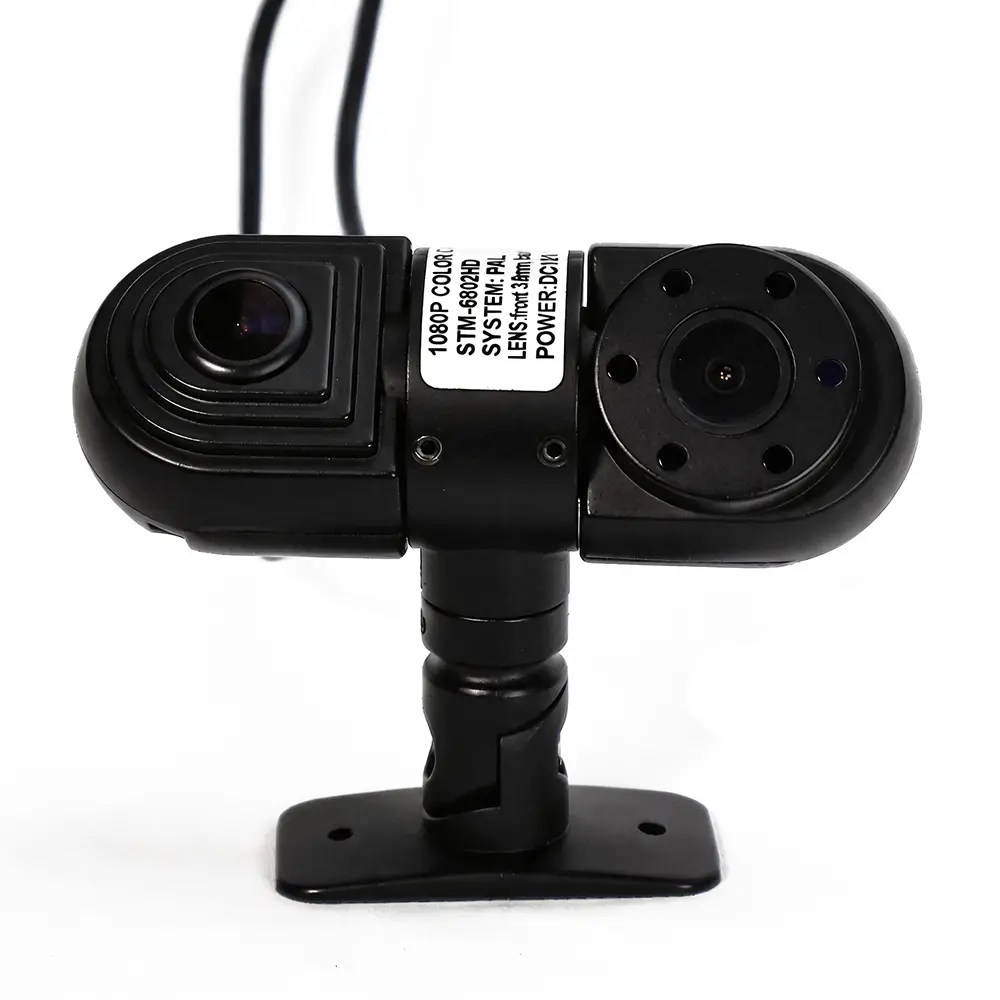

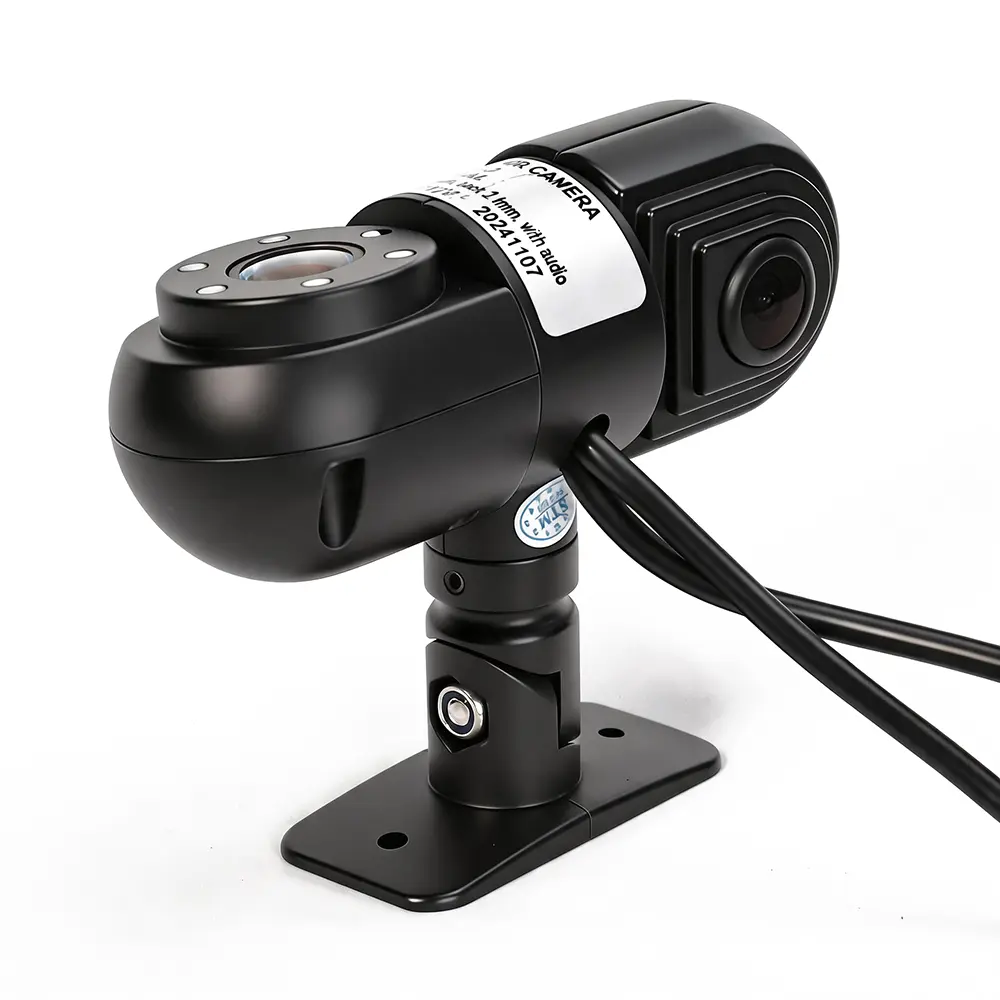

XY-N8903 is an all-in-one dual-lens vehicle monitoring camera that integrates front road ADAS acquisition and full passenger cabin surveillance into a single compact unit. It adopts independent dual optical path design: the front starlight lens with 85° horizontal angle is specially tuned for daytime road shooting without infrared interference; the ultra-wide rear cabin lens is equipped with 5pcs infrared lights to achieve clear monitoring within 3 meters in total darkness.
Equipped with shared 2MP starlight CMOS sensor and built-in high-sensitivity microphone covering 25 square meters cabin space, this camera supports DC9-16V ultra-wide vehicle voltage. With aluminum alloy housing, vehicle-grade shockproof structure and dual-channel independent global anti-overexposure algorithm, it can synchronously output front road and cabin two-way video. It adopts 3M adhesive non-destructive installation, and supports customized viewing angle and multi-resolution options (D1/720P/1080P). It is widely applicable to passenger buses, taxis, logistics trucks and other fleets that require simultaneous dual-channel monitoring of driving road and interior cabin.
| Item | Details |
|---|---|
| Product Model | XY-N8903 |
| Product Type | Dual-Channel Integrated Front Road + Cabin AHD Camera |
| Housing Material | Aluminum Alloy |
| Appearance Color | Black |
| Dual Lens Parameter | Front: D110°/H85°/V48°, No IR; Cabin: D168°/H130°/V90°, 5pcs IR |
| Infrared Night Vision | 5pcs IR for cabin, effective monitoring distance 0–3m |
| Built-in Audio Mic | High-sensitivity pickup, coverage range up to 25 ㎡ |
| Optional Resolution | D1 / 720P / 1080P (1080P as standard) |
| Working Voltage | DC 9V~16V (Rated DC12V) |
| Working Current | 250mA @ DC12V |
| Signal Format | PAL AHD |
| Default Cable Length | 3M |
| Net Weight | Approx. 0.4KG |
| Waterproof Grade | Non-waterproof (only for windshield interior) |
| Installation Method | 3M adhesive non-destructive sticking |
| Customizable Items | Viewing angle, image resolution |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | All-in-One Dual-Lens Integrated Structure | One camera contains two independent imaging channels, which can record front driving road and passenger cabin video synchronously at the same time. It saves installation space and reduces wiring layout cost compared with two separate cameras. |
| 2 | Scene-Optimized Separate Optical Design | The front starlight lens is designed for daytime road monitoring without infrared to avoid headlight glare reflection; the ultra-wide cabin lens is equipped with infrared fill light to eliminate dark blind spots in the closed passenger compartment at night. |
| 3 | 2MP Starlight Dual-Resolution Imaging | Adopts shared high-sensitivity starlight CMOS sensor with ultra-low illumination of 0.01Lux. It presents clear color road pictures in daytime and stable black-and-white cabin monitoring images in dark environment to realize all-day seamless recording. |
| 4 | 5pcs Uniform IR for Full Cabin Night Vision | The cabin lens is matched with 5pcs evenly distributed infrared LEDs, which can cover the full range of the passenger compartment within 3 meters, ensuring no shadow dead angle for night passenger monitoring. |
| 5 | Large-Coverage Built-in Pickup Microphone | Built-in high-sensitivity audio pickup module, the effective sound collection range covers 25 square meters cabin space, realizing synchronous storage of audio and video to retain complete voice evidence of driving and passenger communication. |
| 6 | 9–16V Ultra-Wide Vehicle Voltage Adaptation | Universally compatible with all kinds of 12V commercial vehicle power supply, it can work stably under daily voltage fluctuation without matching additional voltage stabilizer accessories. |
| 7 | Dual-Channel Independent Exposure Algorithm | The built-in global anti-overexposure algorithm carries out independent light calculation for front road and cabin scenes respectively, effectively suppressing overexposure caused by strong sunlight, tunnel light and window light reflection. |
| 8 | High-Temp Shockproof Aluminum Housing | Metal housing has excellent heat dissipation performance, maintaining stable signal output under long-term high temperature in the car; reinforced internal anti-vibration structure resists picture jitter caused by bumpy driving. |
| 9 | Custom Specs & Non-Destructive Mounting | Support personalized customization of lens angle and resolution; adopt 3M adhesive pasting installation without drilling and damaging the original vehicle interior, convenient for mass deployment of fleets. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging Core System | Image Sensor | 1/2.9" Starlight CMOS |
| Signal System | PAL AHD | |
| Effective Pixels | 1920×1080 / 1280×720 / D1 Optional | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure (dual-channel independent tuning) | |
| Lens & IR Configuration | Front Lens Parameter | D110° / H85° / V48°, No IR LED |
| Cabin Lens Parameter | D168° / H130° / V90°, 5pcs IR LEDs | |
| IR Effective Distance | 0 ~ 3m cabin night vision range | |
| Audio Function | Built-in Microphone Coverage | 25 square meters pickup range |
| Electrical Parameters | Operating Voltage | DC 9V ~ 16V |
| Working Current & Cable | 250mA, 3M cable length | |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ | |
| Protection Grade | Waterproof Performance | Non-waterproof (indoor windshield dedicated) |
| Appearance Spec | Housing Material & Color | Aluminum Alloy, Black |
| Net Weight | 0.4KG |

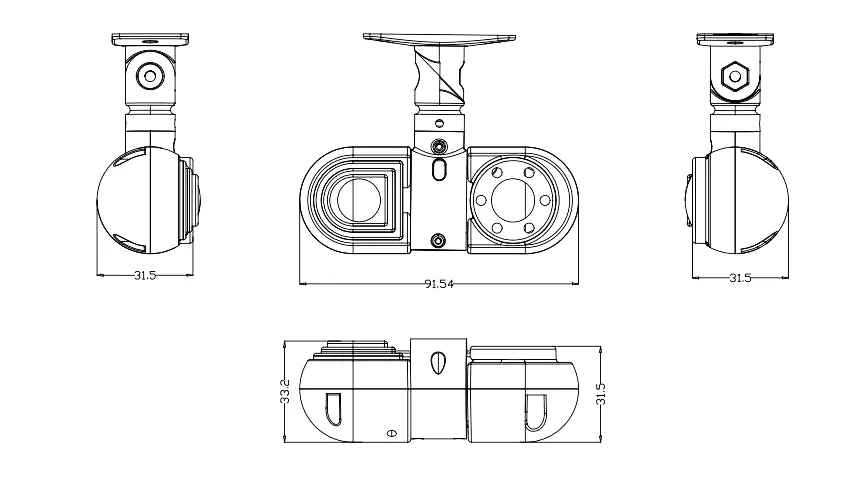

| Dimension Item | Remarks |
|---|---|
| Overall Outline Size | Refer to official engineering drawing for accurate millimeter dimension data |
| Structural Feature | Integrated dual-lens compact aluminum body, concealed windshield installation |
XY-N8903 dual-channel integrated camera eliminates the trouble of separately installing two cameras, realizing simultaneous recording of front road and passenger cabin. With wide voltage compatibility, built-in audio pickup and customizable parameters, it is an integrated high cost-performance monitoring solution for various commercial vehicle fleets.
