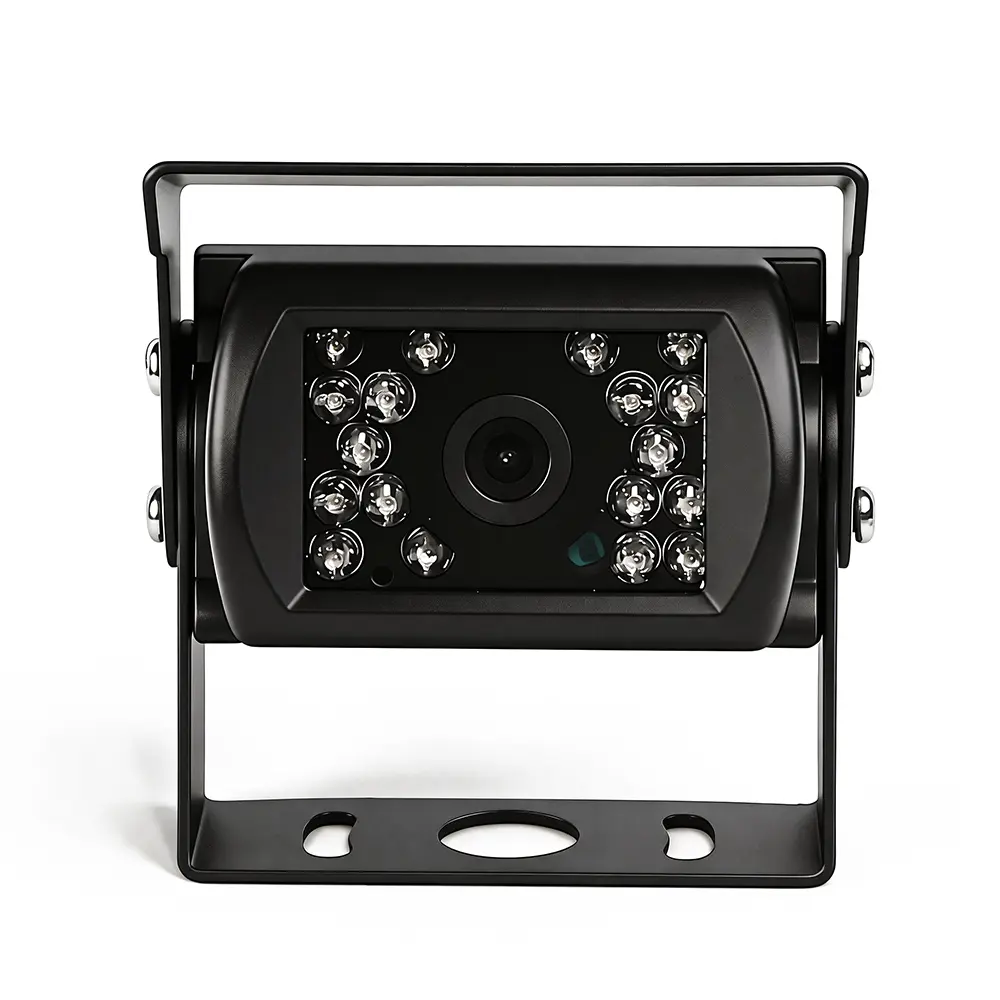

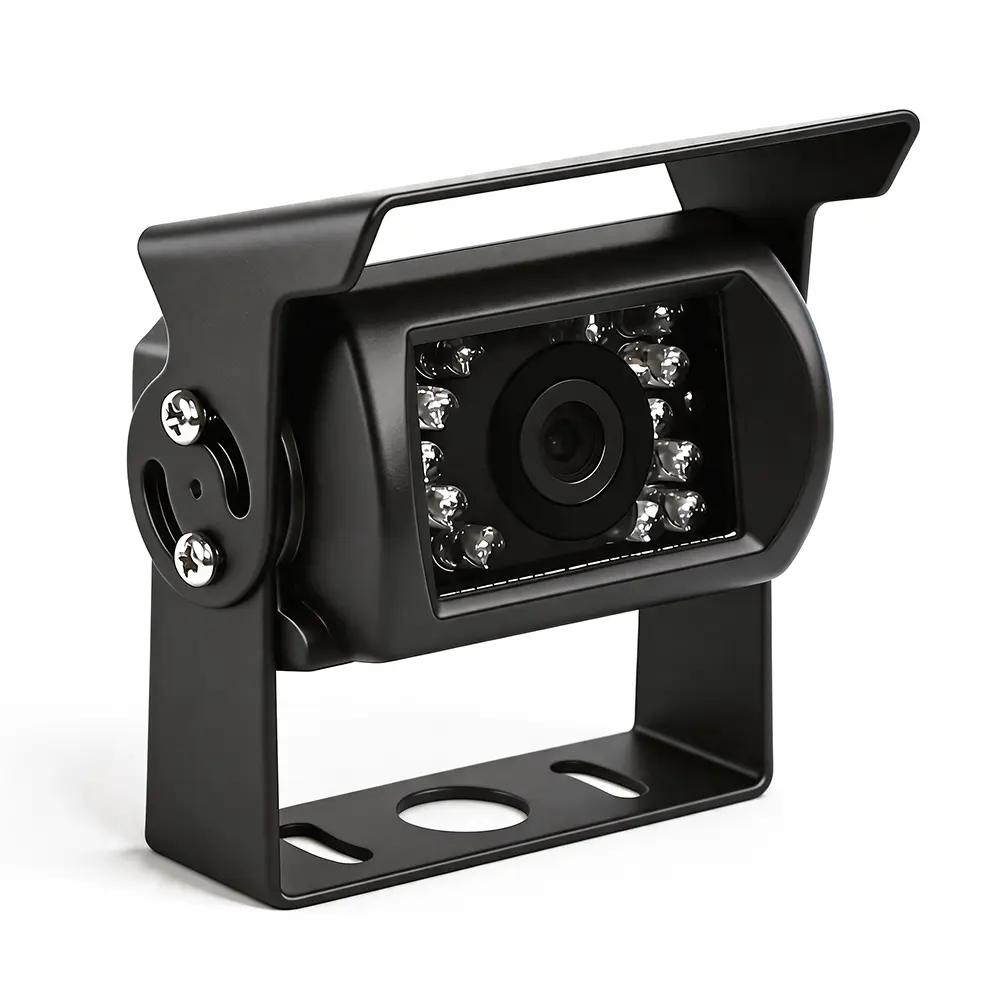

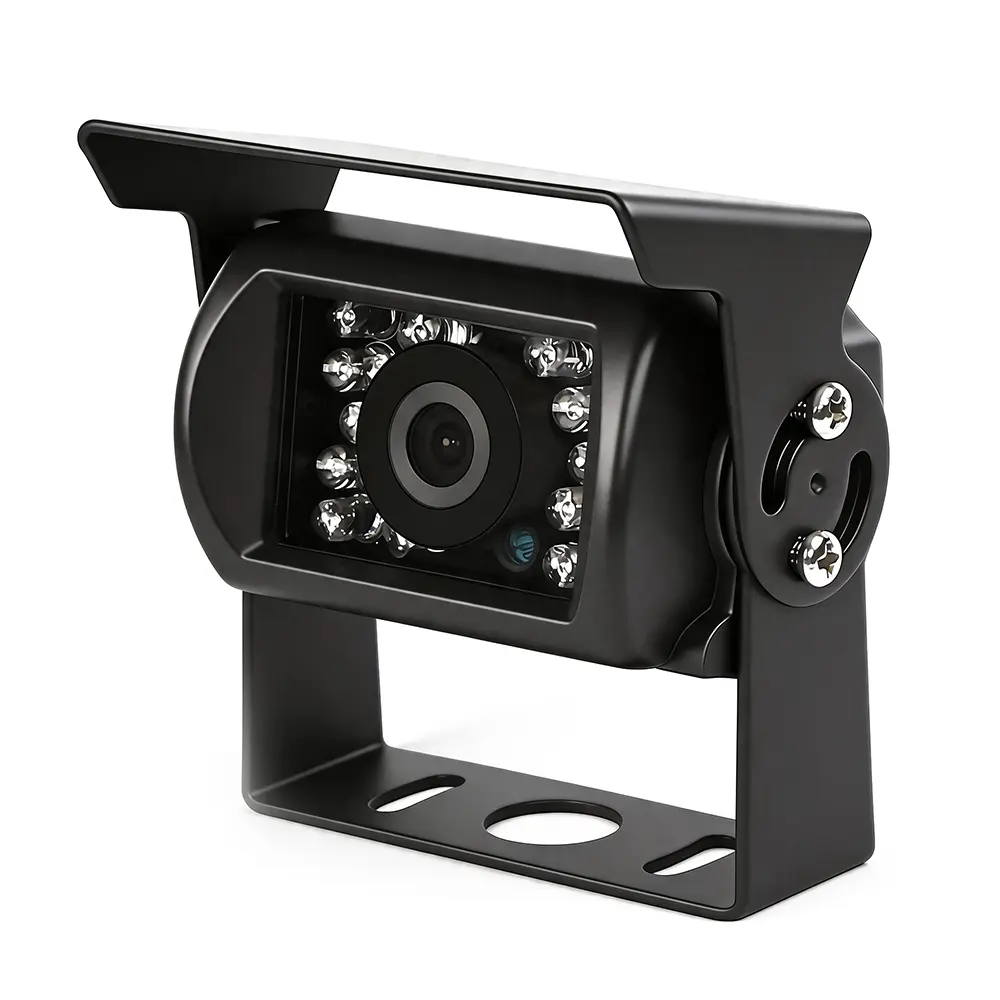

XY-FS7501 is a professional outdoor waterproof AHD vehicle camera tailored for exterior vehicle reversing monitoring and road safety surveillance. Adopting premium starlight low-light imaging chip, this camera features ultra-wide viewing angle, anti-fog optical lens, vehicle-grade shockproof structure and stable DC12V power supply. It effectively solves common industry pain points of traditional vehicle cameras, including unstable video transmission and progressive picture blurring after long-time bumpy driving. With durable aluminum alloy housing, IP67 waterproof rating and 18 high-density infrared LEDs for ultra-clear night vision, it supports firm screw installation, being a reliable all-weather monitoring solution for various commercial vehicles.
| Item | Details |
|---|---|
| Product Model | XY-FS7501 |
| Product Type | Exterior Waterproof Vehicle Monitoring Camera |
| Housing Material | Integrated Aluminum Alloy |
| Appearance Color | Black |
| Installation Method | Self-tapping Screw Fixed Installation |

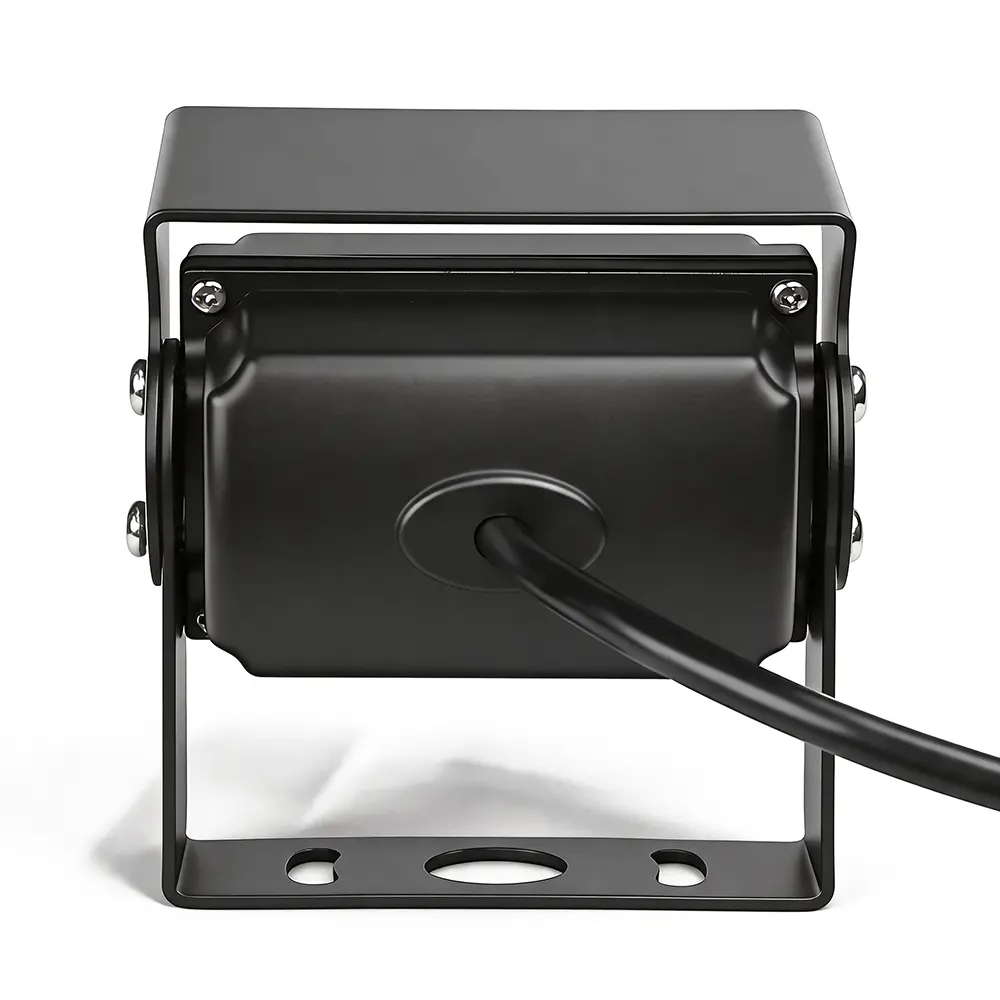

| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 0.6M |
| Net Weight | 0.4KG |
| Waterproof Rating | IP67 |
| Night Vision Configuration | 18pcs High-density Infrared LED Lights |
Equipped with 1/2.9" starlight-grade CMOS sensor, supporting switchable 1080P and 720P HD resolution. 0.01Lux ultra-low light sensitivity delivers sharp, delicate monitoring footage day and night, adapting to complex outdoor light changes.
Built-in advanced digital exposure technology, automatically balances picture brightness under strong sunlight glare, backlight and high-contrast road environments, effectively avoiding overexposure and retaining complete road details.
Maintains stable dark level signal under long-term high-temperature outdoor working conditions. No vertical black stripes or abnormal bright white lines occur during night vision monitoring, ensuring consistent stable image output.
Reinforced shockproof internal structure resists continuous vibration from bumpy roads. Standard DC12V power input is perfectly matched with mainstream vehicle monitoring host systems.
18 built-in high-density infrared fill lights provide uniform and strong night supplementary lighting. It captures ultra-clear road images in pitch-dark environments, covering full monitoring range without dark blind areas.
Standard 110° diagonal wide viewing angle expands exterior monitoring coverage, greatly reduces reversing blind spots and improves overall driving safety for commercial vehicles.
Solid aluminum alloy housing features outstanding heat dissipation and anti-collision performance. IP67 professional waterproof rating adapts to rainy, snowy, dusty and other harsh outdoor working scenarios.

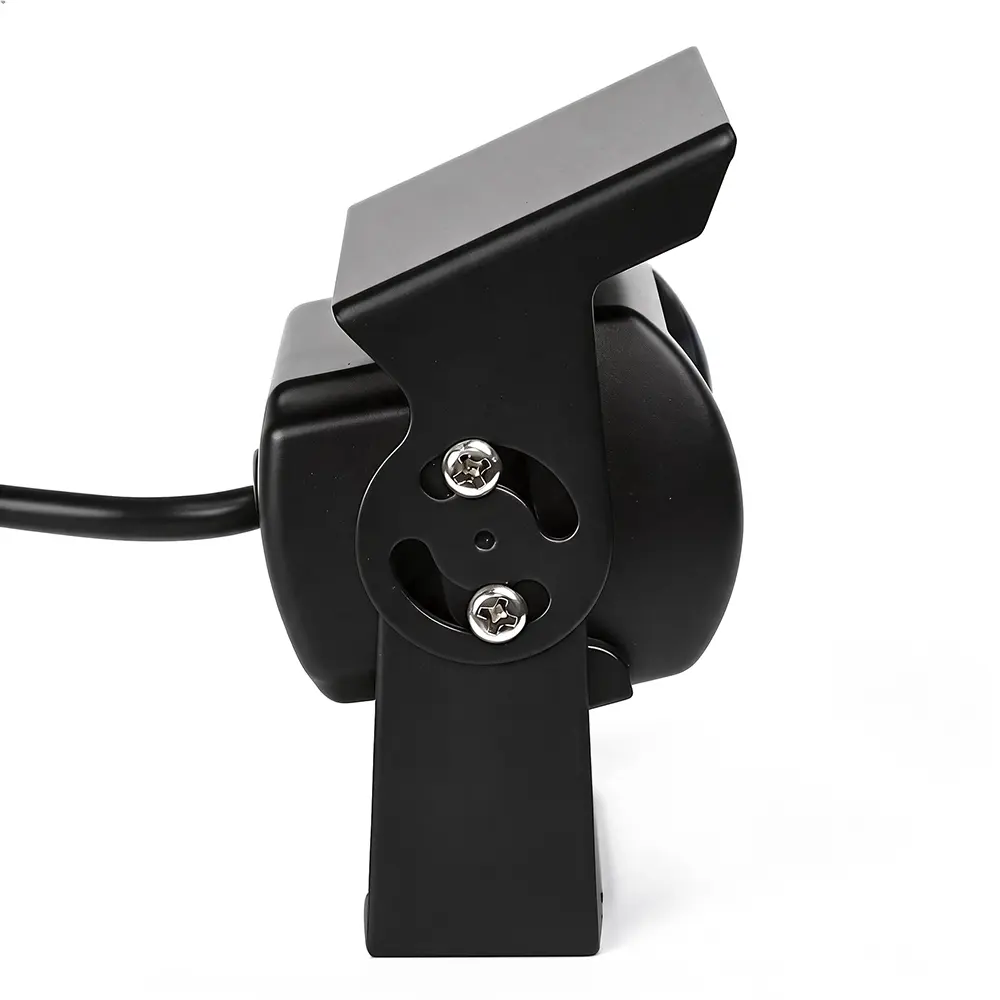

Reliable self-tapping screw installation ensures firm fixation on vehicle exterior. Only 250mA working current under DC12V, supporting 24-hour uninterrupted all-weather outdoor monitoring with low power loss.
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Night Vision System | IR LED Quantity | 18pcs |
| Viewing Angle Parameter | DFOV (Diagonal View Angle) | 110° |
| HFOV (Horizontal View Angle) | 85° | |
| VFOV (Vertical View Angle) | 48° | |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Working Current | 250mA @ DC 12V | |
| Environmental Adaptability | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Dimension Item | Remarks |
|---|---|

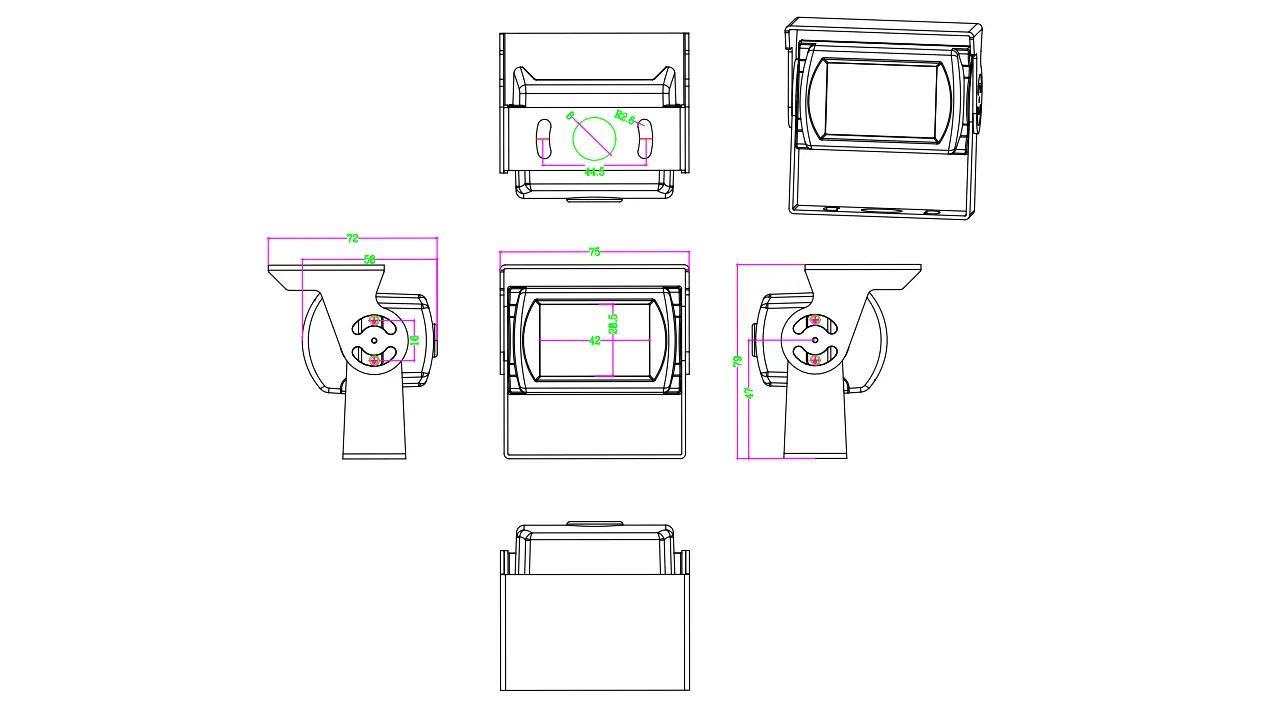

| Overall Product Size | Please refer to official dimension drawing for detailed size data |
This IP67 waterproof exterior vehicle camera is widely applicable to trucks, sanitation vehicles, construction machinery, passenger buses, logistics fleets and other commercial vehicles. It is perfectly used for vehicle rear reversing assistance, exterior road real-time monitoring and all-weather outdoor driving surveillance, providing stable night vision and reliable long-term monitoring performance for fleet safety management.
The camera has a professional IP67 waterproof rating, making it highly adaptable to harsh outdoor working scenarios like rain, snow, and dust.
It features 18 built-in high-density infrared LED lights that provide strong and uniform night supplementary lighting, ensuring ultra-clear night vision without dark blind areas.
Yes. The built-in Global Anti-overexposure Algorithm automatically balances brightness under strong glare, backlight, and high-contrast conditions to retain complete road details.
It provides a standard 110° diagonal viewing angle (DFOV) and an 85° horizontal viewing angle (HFOV), which significantly reduces reversing blind spots and improves driving safety.
This camera is widely suitable for various commercial vehicles, including trucks, sanitation vehicles, construction machinery, passenger buses, and logistics fleets.
