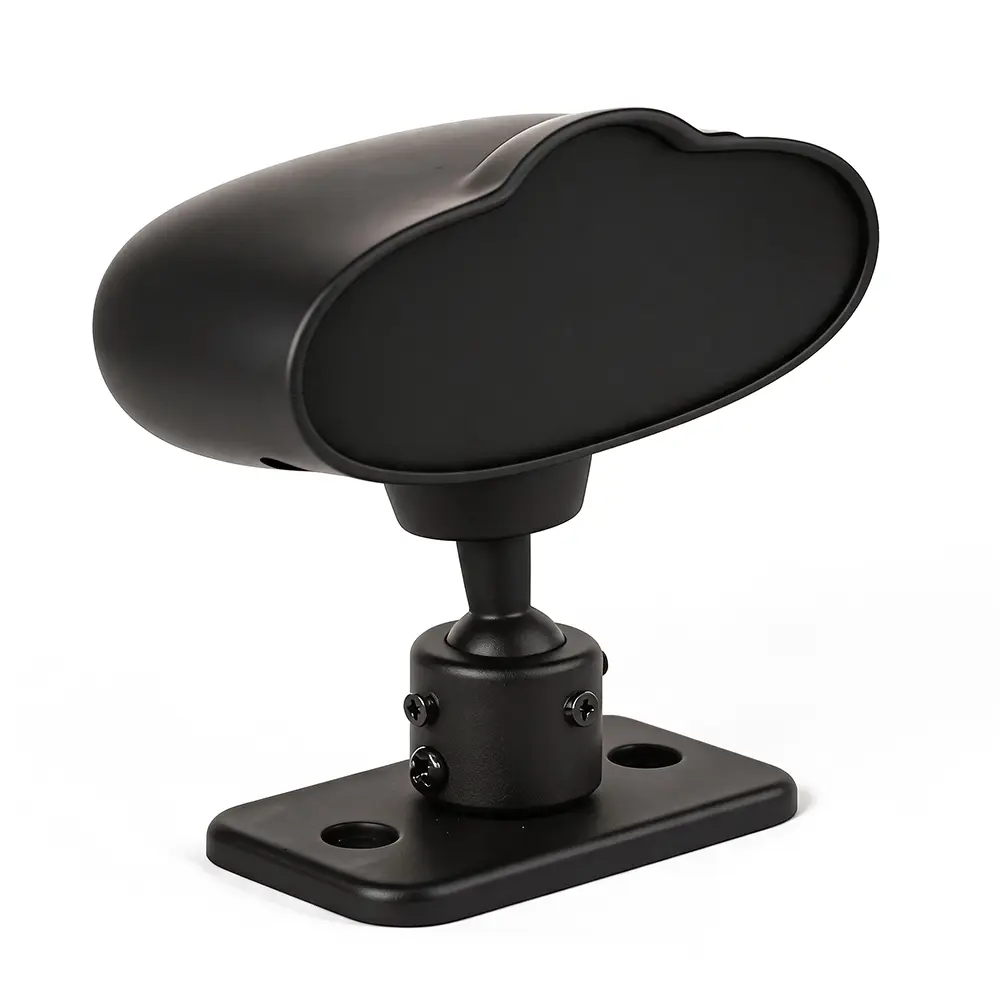

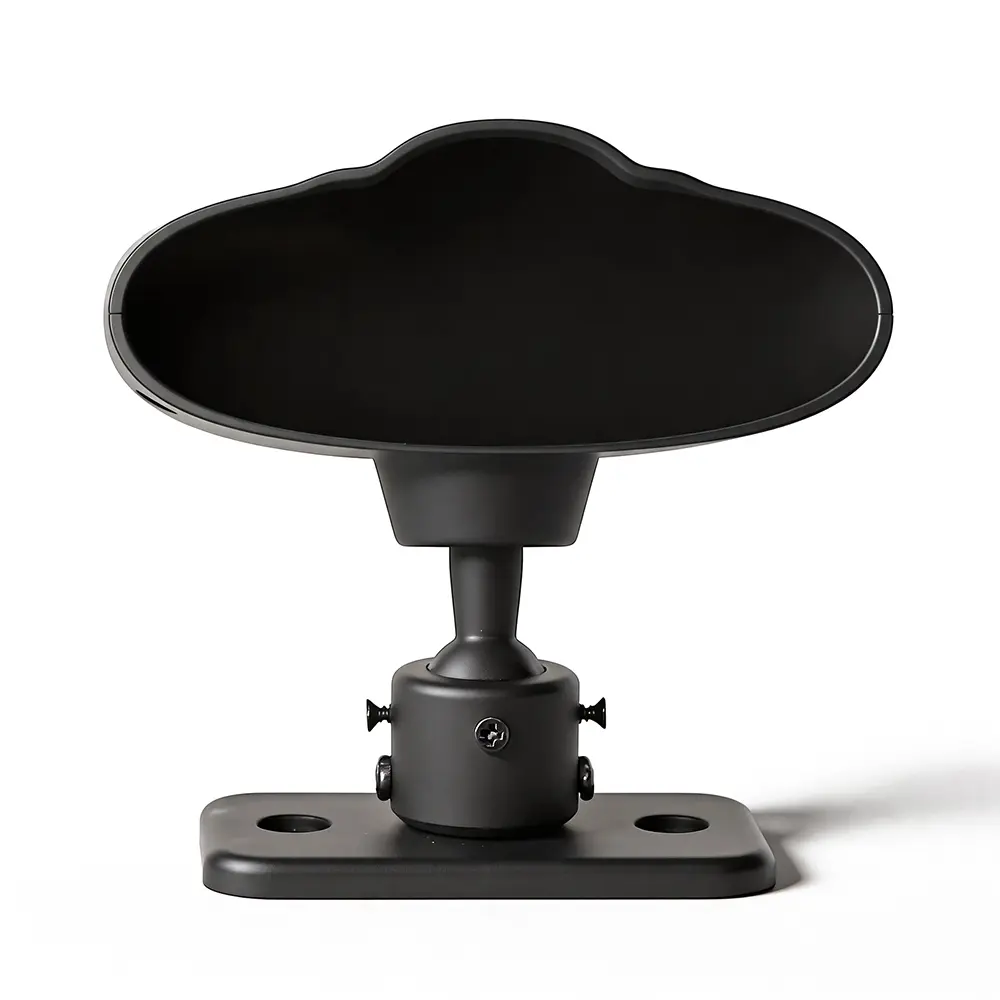

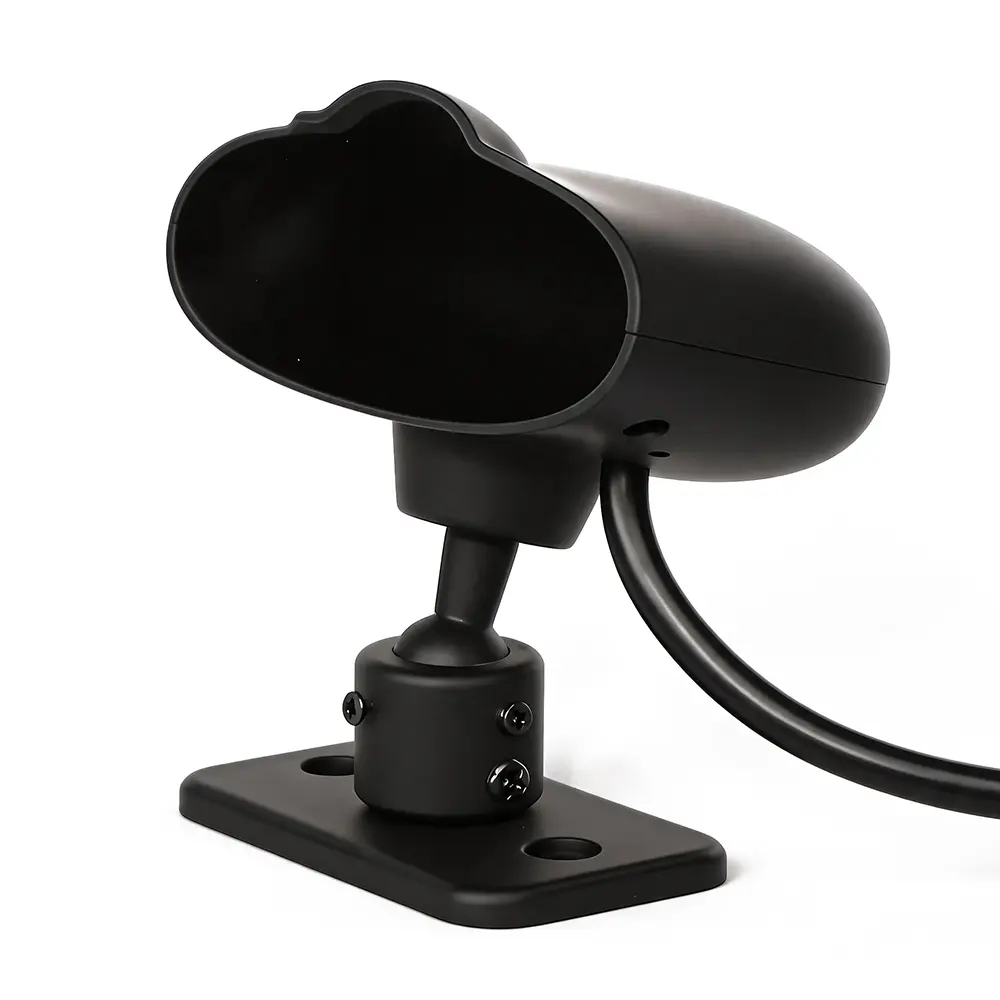

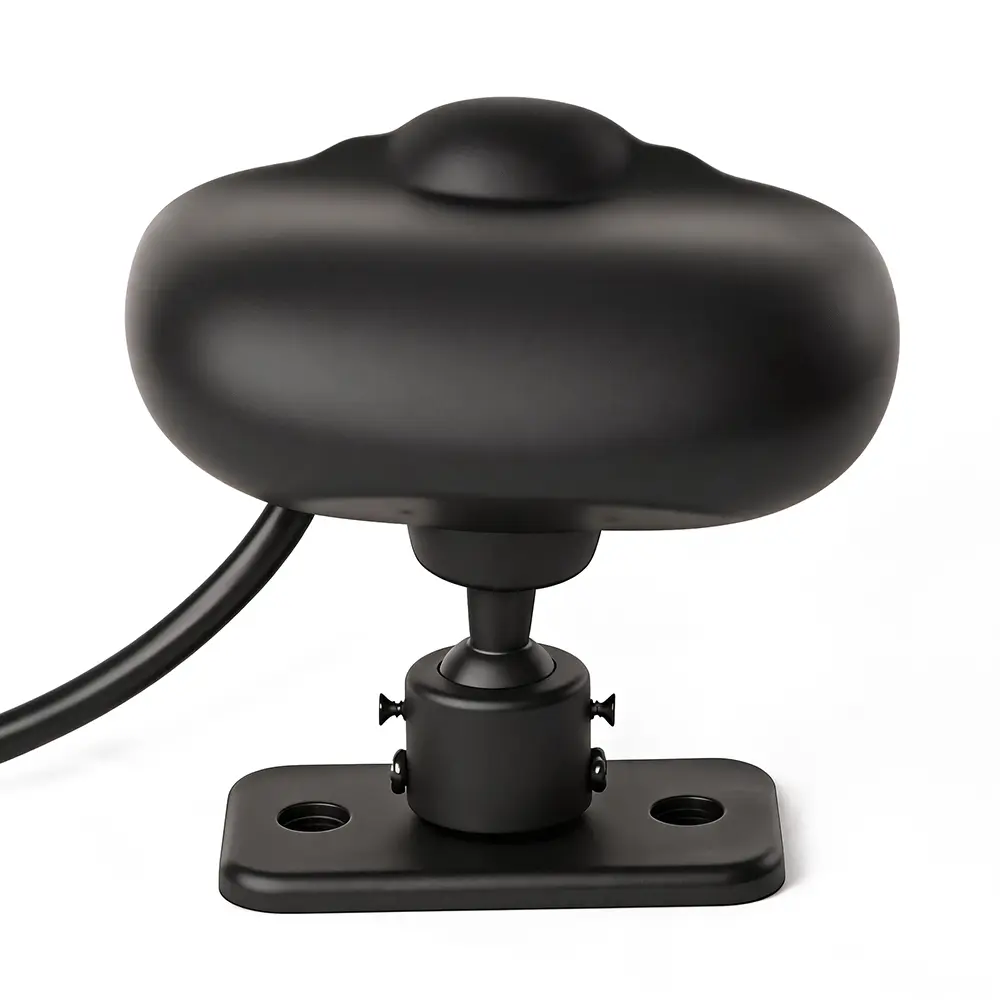

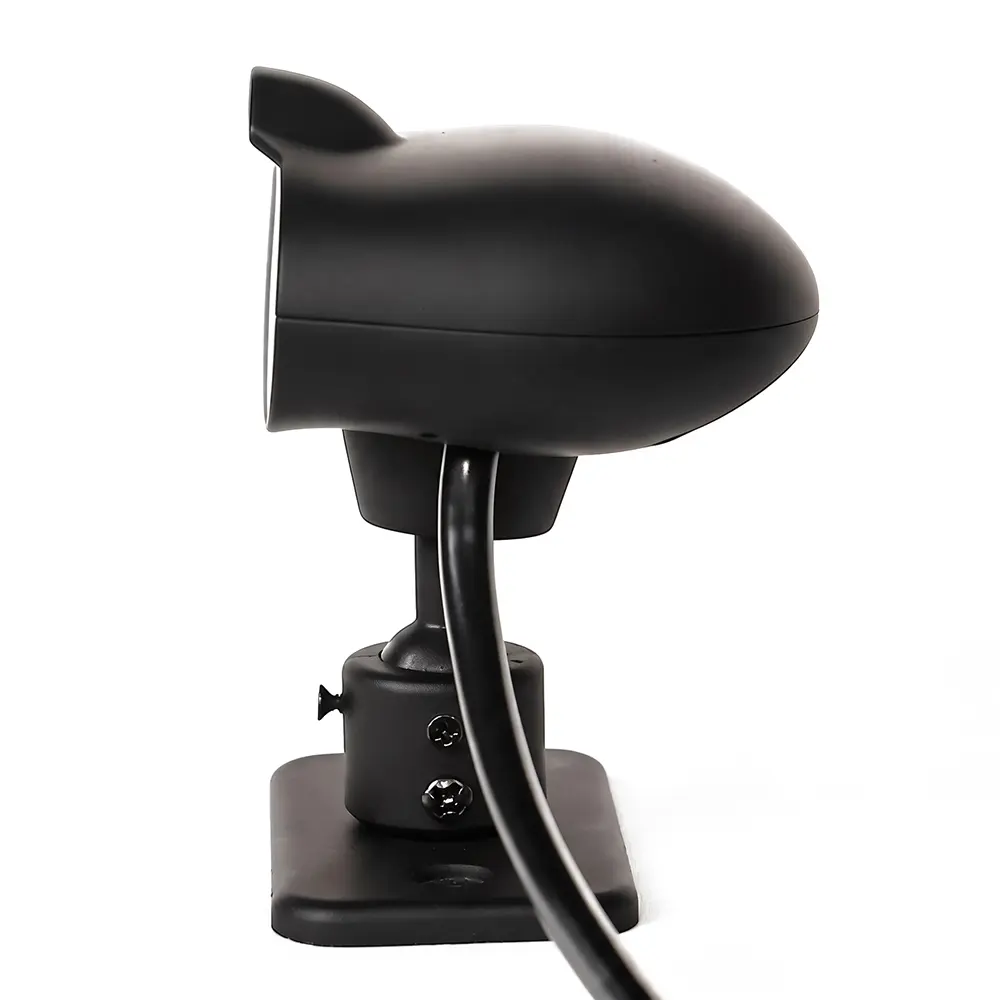

XY-DMS372 is an upgraded private-mold in-vehicle interior DMS camera, customized and optimized for commercial vehicle driver safety monitoring. Different from ordinary universal cameras, it adopts exclusive private mold casing with optimized internal structural layout for better heat dissipation and stability.
Equipped with 2MP starlight CMOS image sensor and ultra-low illumination 0.001Lux level night vision performance, matched with two 940nm invisible infrared lights, it provides ultra-clear black-and-white monitoring images in full-dark cabin environment without dazzling the driver. This camera supports PAL/NTSC dual video signal switching and standard DC9-14V vehicle voltage. With vehicle-grade shockproof structure, anti-fog lens and optimized DMS recognition algorithm, it greatly improves the accuracy of driver fatigue and distraction identification, effectively meeting the all-weather safety monitoring needs of buses, trucks and fleet vehicles.
| Item | Details |
|---|---|
| Product Model | XY-DMS372 |
| Product Type | Private Mold In-Vehicle DMS Monitoring Camera |
| Housing Feature | Exclusive Custom Private Mold Engineering Plastic |
| Appearance Color | Black |
| Resolution | 1080P / 720P Switchable (2MP Starlight) |
| Viewing Angle | 60° Horizontal Viewing Angle |
| Infrared Configuration | 2pcs 940nm Invisible Infrared Lights, 0-2m Monitoring Distance |
| Working Voltage | DC 9V~14V (Rated 12V Standard Vehicle Voltage) |
| Video Signal System | PAL / NTSC Dual Switchable |

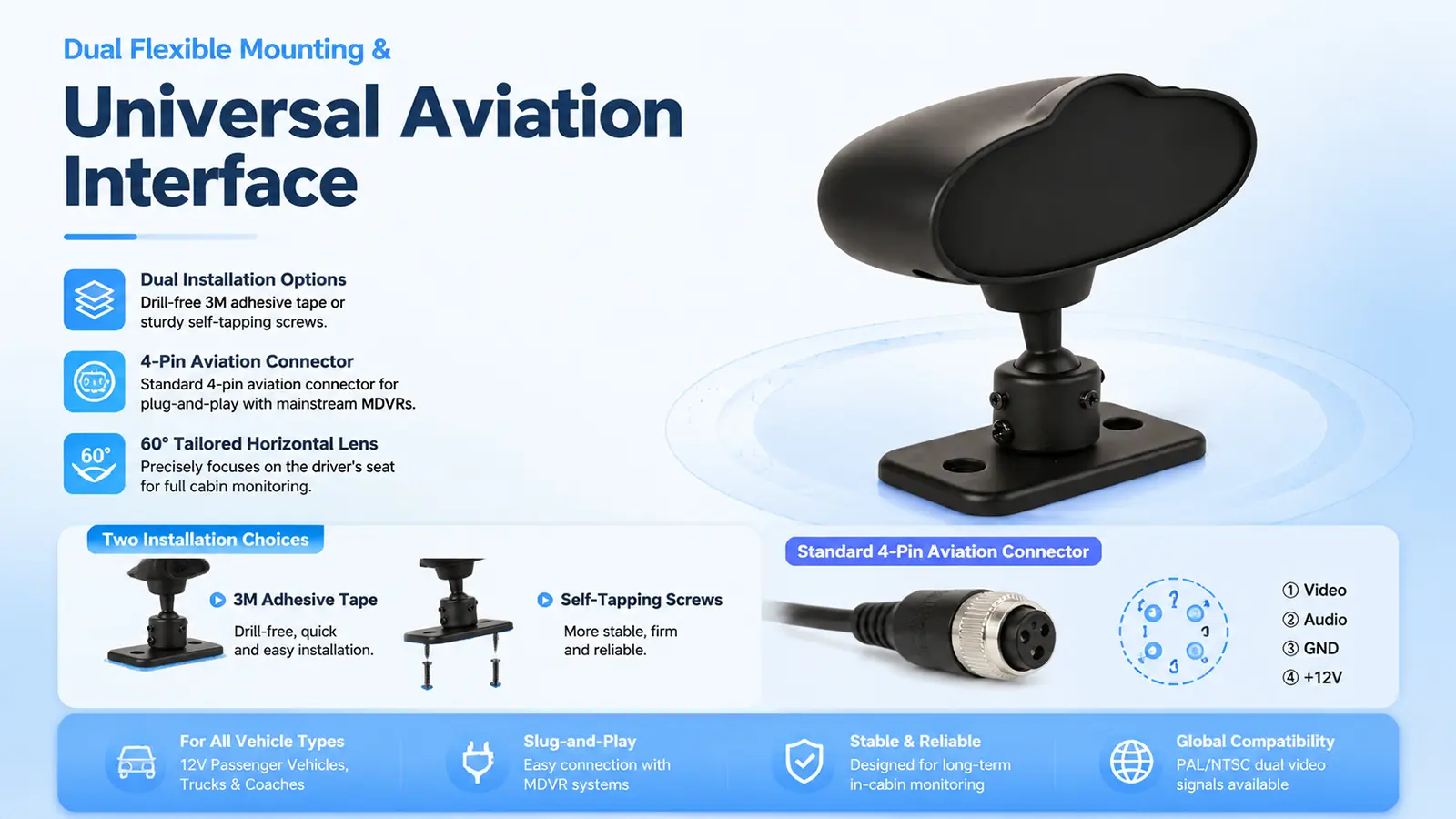

| Connector Type | 4-core Aviation Connector |
| Default Cable Length | 0.6m |
| Installation Method | 3M Adhesive / Self-tapping Screw Dual Installation |
| Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -20℃ ~ 80℃ |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | Exclusive Private Mold Design | Adopts independently customized private mold casing, with unique appearance and internal optimized structural layout. Compared with universal cameras, it has better internal heat dissipation space and structural stability, effectively avoiding long-term operation deformation and performance attenuation. |
| 2 | 0.001Lux Ultra-low Light Starlight Imaging | Built-in high-grade starlight CMOS sensor, reaching 0.001Lux ultra-low illumination monitoring level. It presents ultra-clear and delicate black-and-white images in extremely dark cabin environment, with far superior night vision performance than ordinary DMS cameras. |
| 3 | PAL/NTSC Global Dual Signal Compatibility | Supports free switching between PAL and NTSC video signal systems, perfectly matching mainstream vehicle MDVR hosts at home and abroad, fully adapting to global commercial vehicle monitoring system standards. |
| 4 | Optimized DMS Intelligent Recognition Algorithm | The imaging and face recognition parameters are specially tuned, with more accurate driver face capture and behavior judgment. It effectively identifies fatigue driving, distracted driving and driver absence, improving fleet safety early warning accuracy. |
| 5 | 940nm Invisible No-glare Infrared Night Vision | Equipped with 940nm naked-eye invisible infrared lights, no visible light glare during night monitoring. It will not cause visual interference or light pollution to the driver, ensuring safe driving while realizing 24-hour all-weather monitoring. |
| 6 | Global Adaptive Exposure Technology | Intelligent digital exposure algorithm automatically adapts to complex light changes in the cabin, such as strong light transmission and light and shadow contrast. It eliminates screen overexposure and dark shadow details loss, restoring real and complete cabin monitoring pictures. |
| 7 | High-temperature Stable Imaging Output | Optimized industrial circuit design ensures stable signal output under long-term high-temperature working environment in the car. No vertical black stripes, screen flicker or abnormal bright lines occur, maintaining consistent and stable monitoring quality. |
| 8 | Vehicle-grade Shockproof & Anti-fog Structure | Reinforced internal anti-vibration structure resists jitter caused by vehicle bumping; professional anti-fog lens prevents picture blurring caused by internal and external temperature difference of the camera, ensuring long-term clear imaging. |
| 9 | Stable 9-14V Standard Voltage Adaptation | Targeted for 12V vehicle power supply design, stably adapting to DC9-14V voltage range. It resists daily vehicle voltage fluctuation interference, ensuring continuous and stable operation of the camera. |
| 10 | Flexible Dual Installation Solution | Supports non-destructive 3M adhesive pasting and firm screw fixing installation. It can be freely installed on dashboard, windshield and other cabin positions, with simple operation and strong scene adaptability. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" 2MP Starlight CMOS |
| Signal System | PAL / NTSC Switchable | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps / 30fps Optional | |
| Minimum Illumination | 0.001Lux @ F1.2 | |
| Resolution | 1080P / 720P Switchable HD | |
| Signal & Output | Signal-to-Noise Ratio | ≥50dB |
| Imaging Mode | Black & White | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | Automatic | |
| Night Vision & View Angle | IR LED Configuration | 2pcs 940nm Invisible Infrared Lamps |
| Monitoring Parameters | 60° Horizontal Angle, 0-2m Monitoring Distance | |
| Video Output | Output Format | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 9V~14V |
| Interface & Cable | 4-core Aviation Connector, 0.6m Cable Length | |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -20℃ ~ 80℃ | |
| Appearance Structure | Housing Material | Custom Private Mold Engineering Plastic |
| Color | Black |
| Dimension Item | Size Remark |
|---|---|

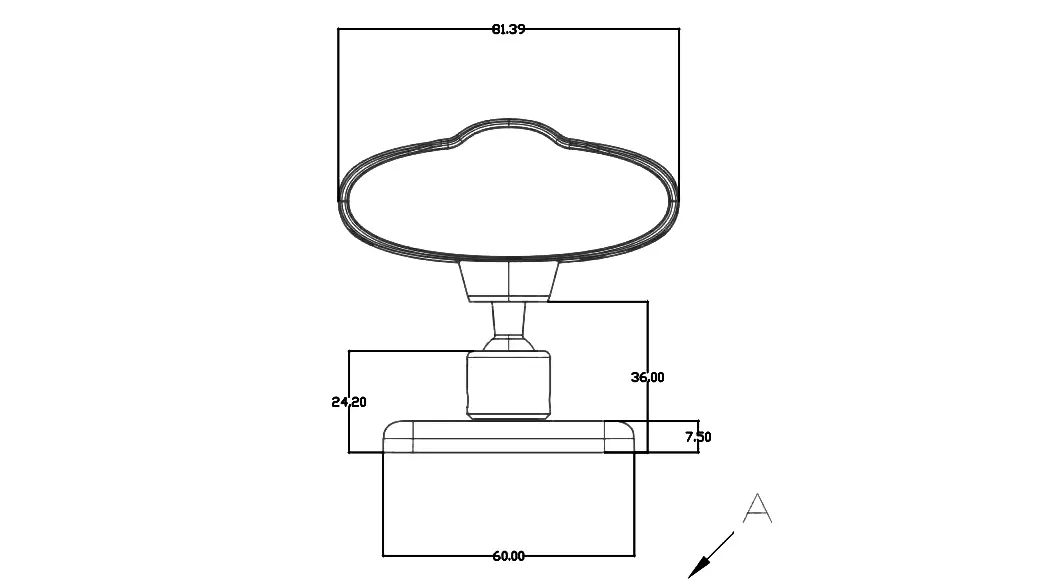

| Overall Product Size | Refer to exclusive private mold engineering drawing for accurate millimeter data |
| Structural Features | Compact mini body, optimized internal heat dissipation structure, suitable for concealed interior installation |
XY-DMS372 is a differentiated upgraded DMS interior camera with exclusive private mold and industry-leading ultra-low light imaging capability. It combines accurate intelligent recognition, global signal compatibility and stable vehicle-level performance, being a high-quality customized safety monitoring solution for medium and high-end commercial vehicle fleets.
