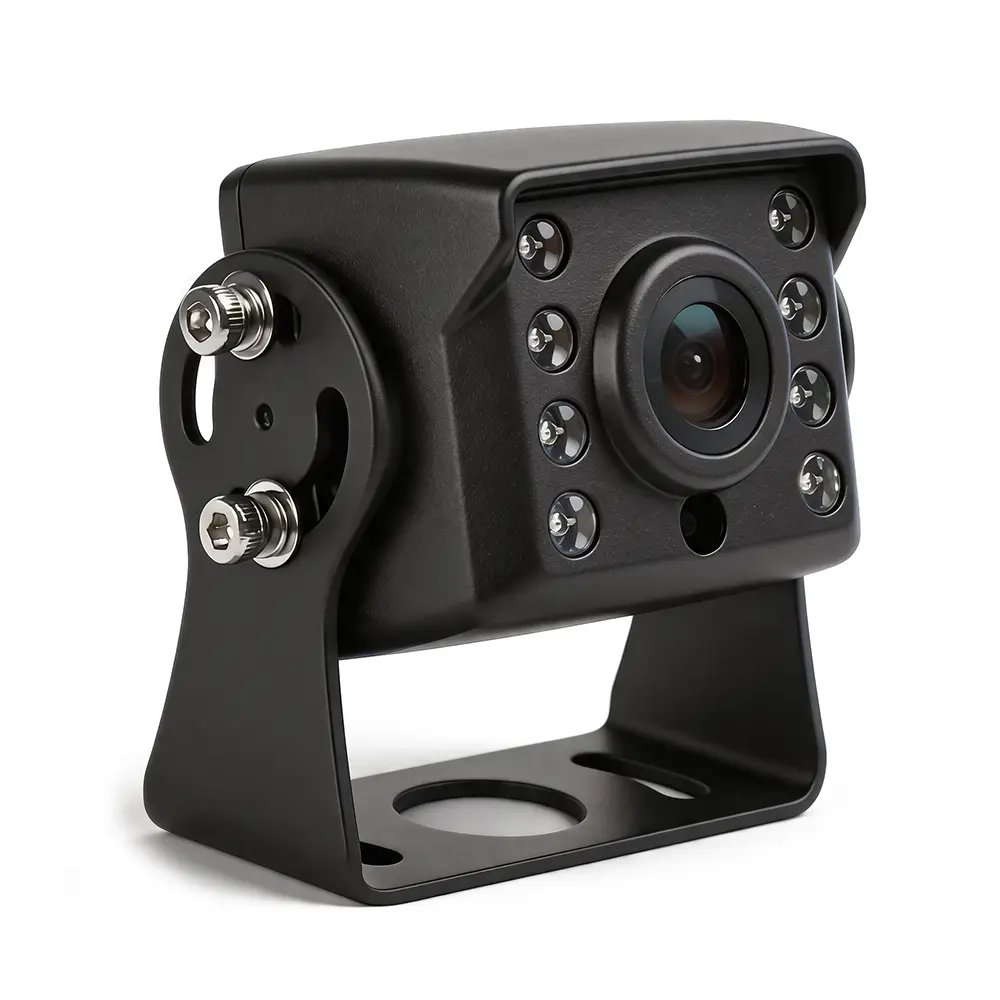

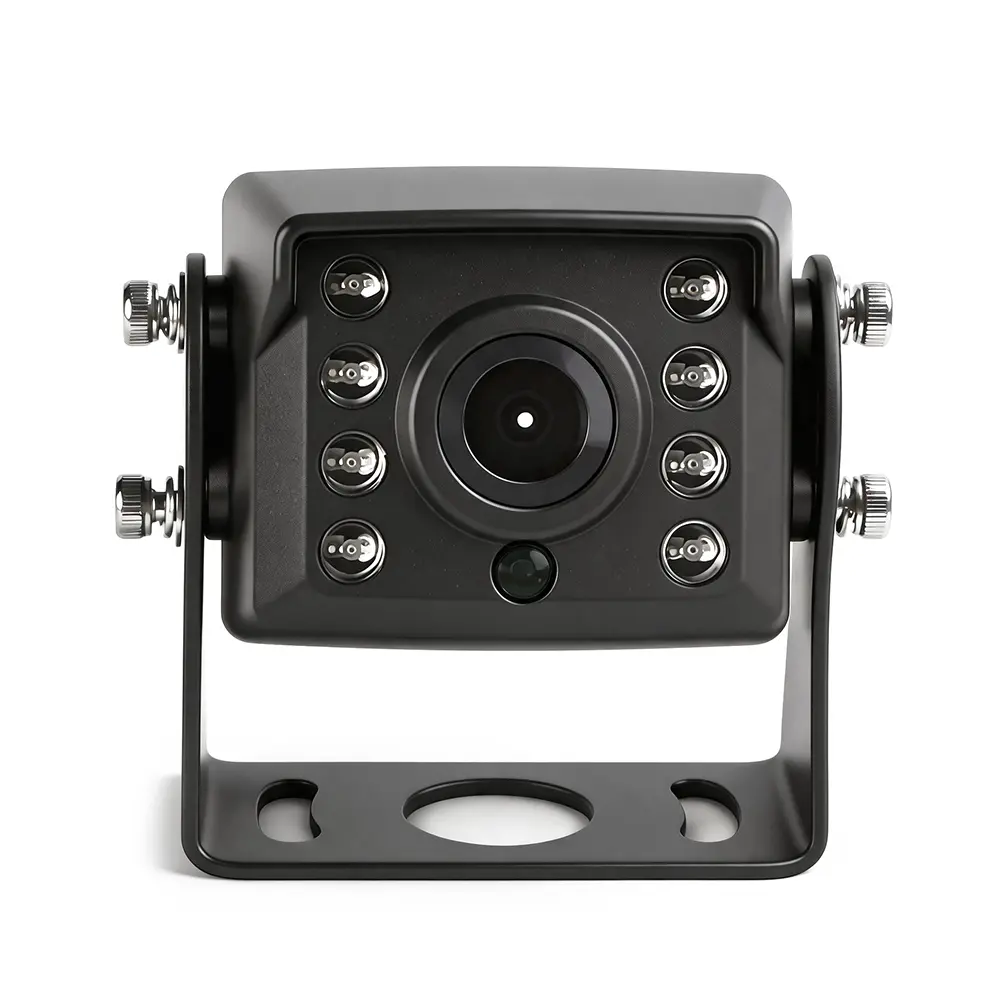

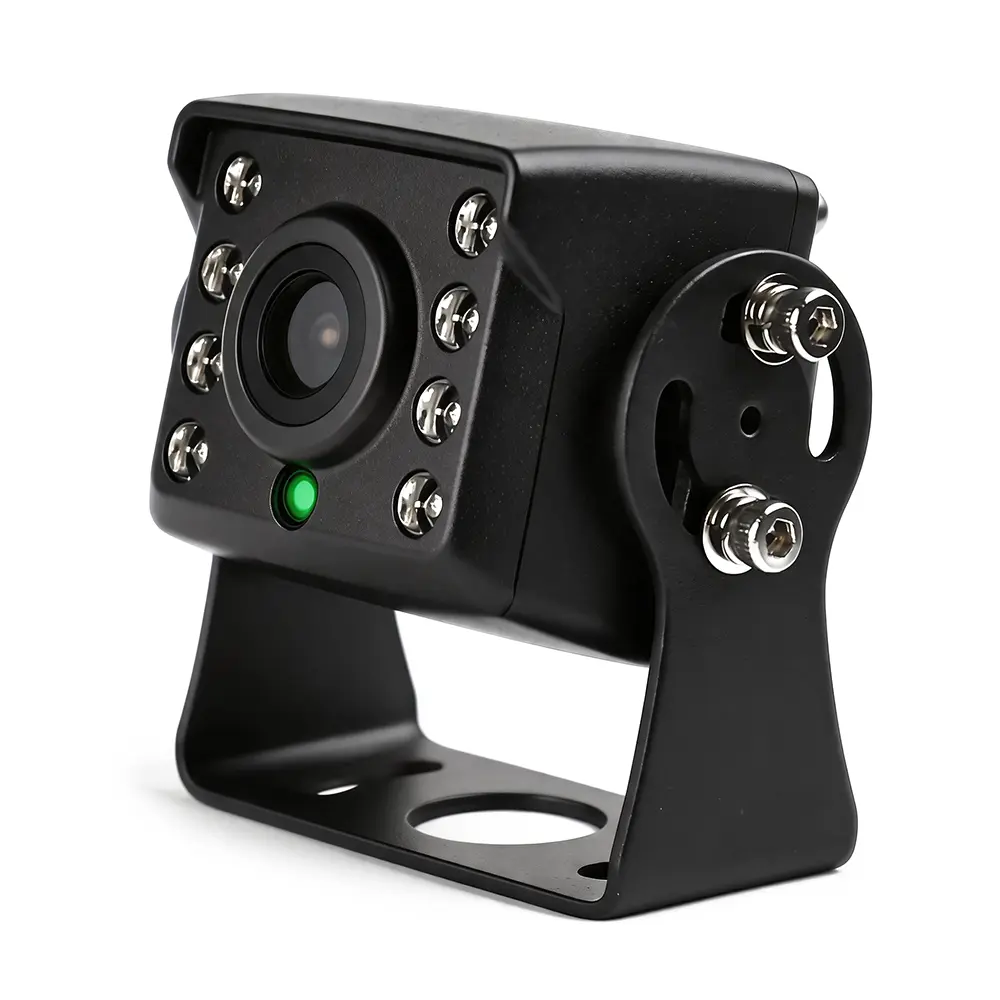

XY-FS361 is a cost-effective outdoor waterproof AHD vehicle camera, specially designed for commercial vehicle reversing assistance and real-time exterior road monitoring. Adopting high-performance 2MP starlight CMOS image sensor, this camera supports dual resolution switching of 720P and 1080P, delivering clear monitoring images day and night.
Built with rugged aluminum alloy housing and IP67 full waterproof rating, it can resist rainwater, dust and mud splash for long-term outdoor vehicle installation. Equipped with global anti-overexposure algorithm and vehicle-grade shockproof structure, it effectively solves common problems such as picture overexposure, signal jitter and image distortion during bumpy driving. With compact size and easy screw installation, it is a perfect universal monitoring accessory for various light commercial vehicles and engineering vehicles.
| Item | Details |
| Product Model | XY-FS361 |
| Product Type | IP67 Waterproof Exterior Vehicle AHD Camera |
| Housing Material | High-strength Aluminum Alloy |
| Appearance Color | Black |
| Waterproof & Dustproof Grade | IP67 |
| Viewing Angle | DFOV 110° / HFOV 85° / VFOV 48° |
| IR LED Quantity | 8pcs infrared night vision fill lights |
| Working Voltage | DC 12V |
| Rated Working Current | 250mA @ DC12V |
| Connector Type | 4-core aviation connector |
| Default Cable Length | 0.6m |
| Net Weight | Approx. 0.4KG |
| Installation Method | Self-tapping screw fixed mounting |
| No. | Feature Title | Detailed Description |
| 1 | Dual Resolution Starlight Imaging | Adopts professional 1/2.9-inch starlight CMOS sensor, supports freely switched 720P/1080P dual resolution. Ultra-low illumination 0.01Lux realizes clear color monitoring at night without picture noise. |
| 2 | Global Anti-overexposure Algorithm | Intelligent automatic exposure adjustment effectively solves picture overexposure caused by strong sunlight, tunnel light contrast and driving backlight. Both bright and dark areas present complete real road details. |
| 3 | Stable Night Vision under High Temperature | Optimized internal circuit design ensures stable signal output during long-time high-temperature outdoor working. No vertical black stripes or abnormal bright lines appear during night vision monitoring. |
| 4 | Vehicle-grade Anti-vibration Structure | Reinforced shockproof internal structure adapts long-term bumpy road vibration during vehicle driving, avoiding screen jitter, signal interruption and picture freezing. |
| 5 | IP67 All-weather Waterproof Performance | Premium aluminum alloy fully sealed housing reaches IP67 waterproof grade, perfectly resisting rain wash, mud splash and dust erosion for outdoor all-year use. |
| 6 | Plug & Play & Easy Installation | Standard DC12V power supply and universal 4-pin aviation connector match most mainstream vehicle MDVR systems. Compact body with screw mounting brings quick and firm installation. |
| Category | Parameter Item | Specific Specification |
| Imaging System | Image Sensor | 1/2.9" Starlight CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| View Angle Parameter | Full View / Horizontal / Vertical Angle | 110° / 85° / 48° |
| Night Vision Configuration | IR LED Quantity | 8pcs |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 12V |
| Working Current | 250mA | |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ | |
| Protection Grade | Waterproof & Dustproof Standard | IP67 |
| Dimension Item | Size Remark |

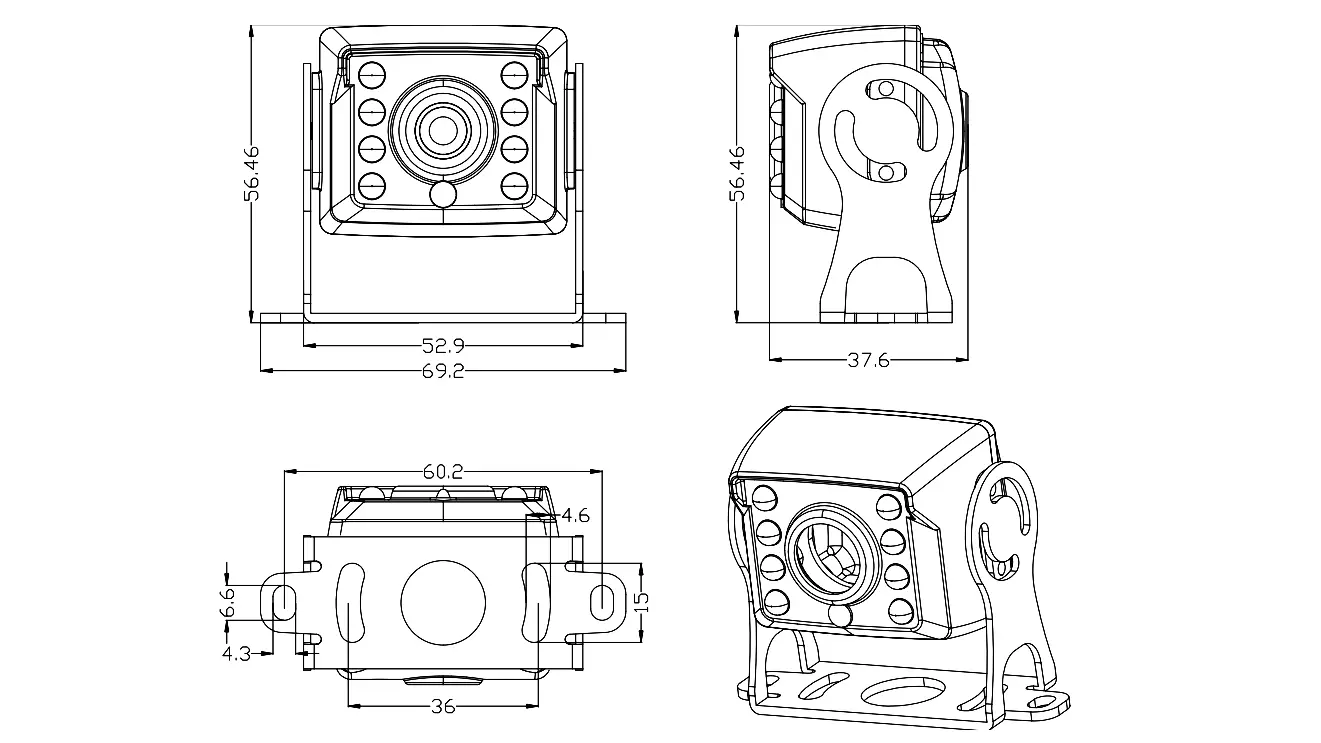

| Overall Product Size | Please refer to official engineering drawing for precise millimeter dimension data |
| Note | Minor machining tolerance exists for aluminum alloy housing |
This universal waterproof vehicle camera supports stable all-weather monitoring, perfectly matching various vehicle monitoring host devices, and is the most cost-effective exterior monitoring solution for commercial fleets.
