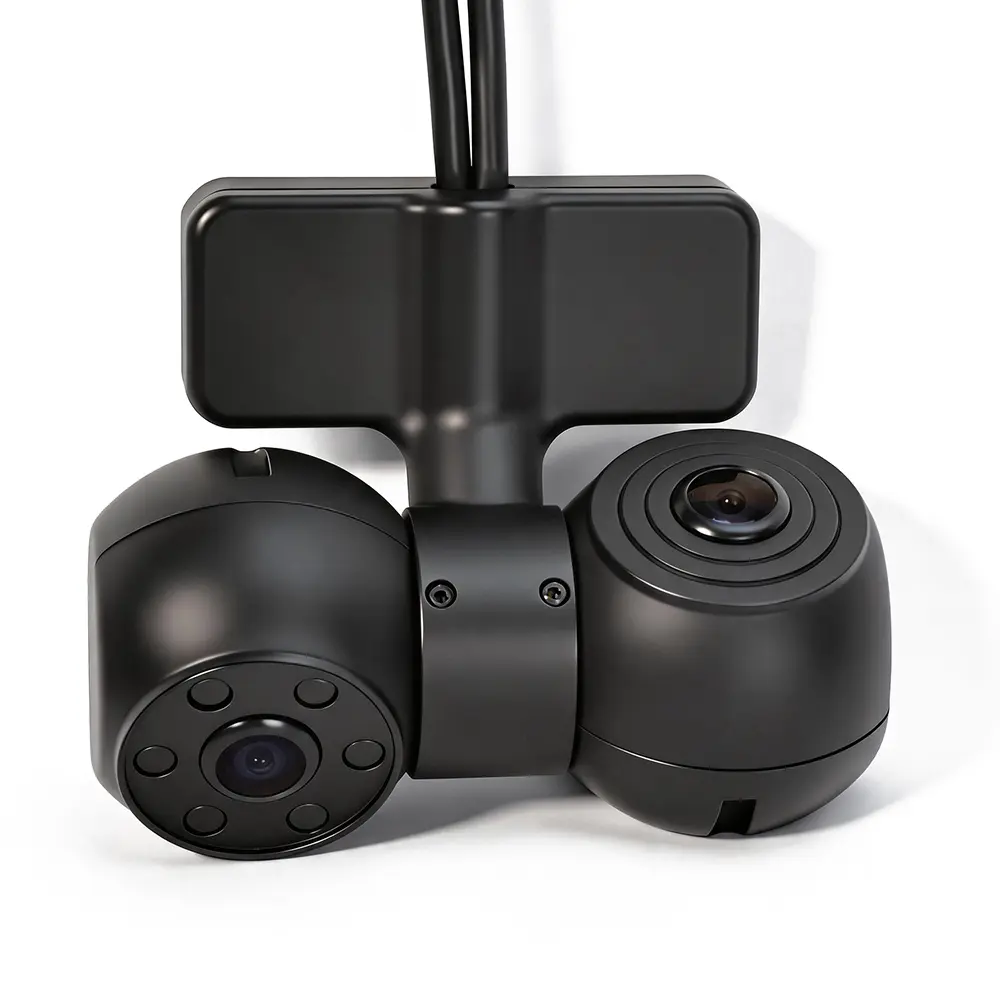

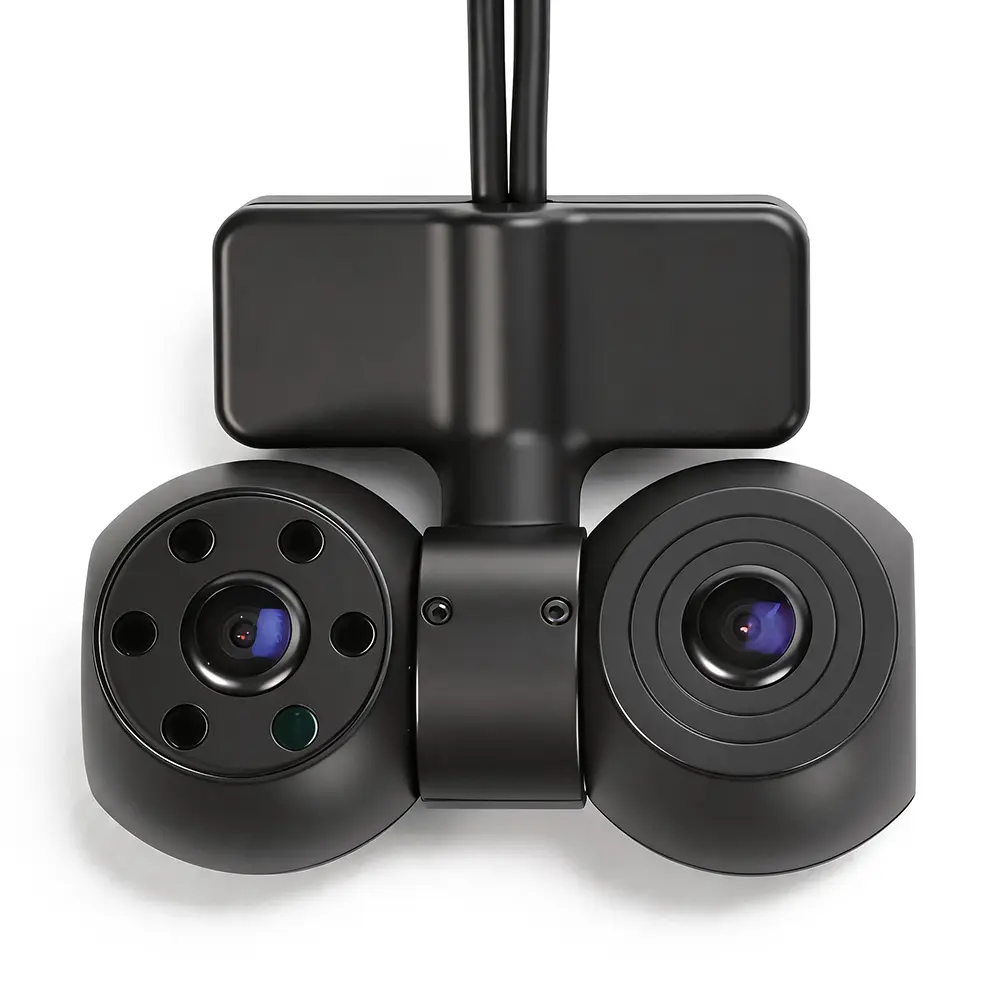

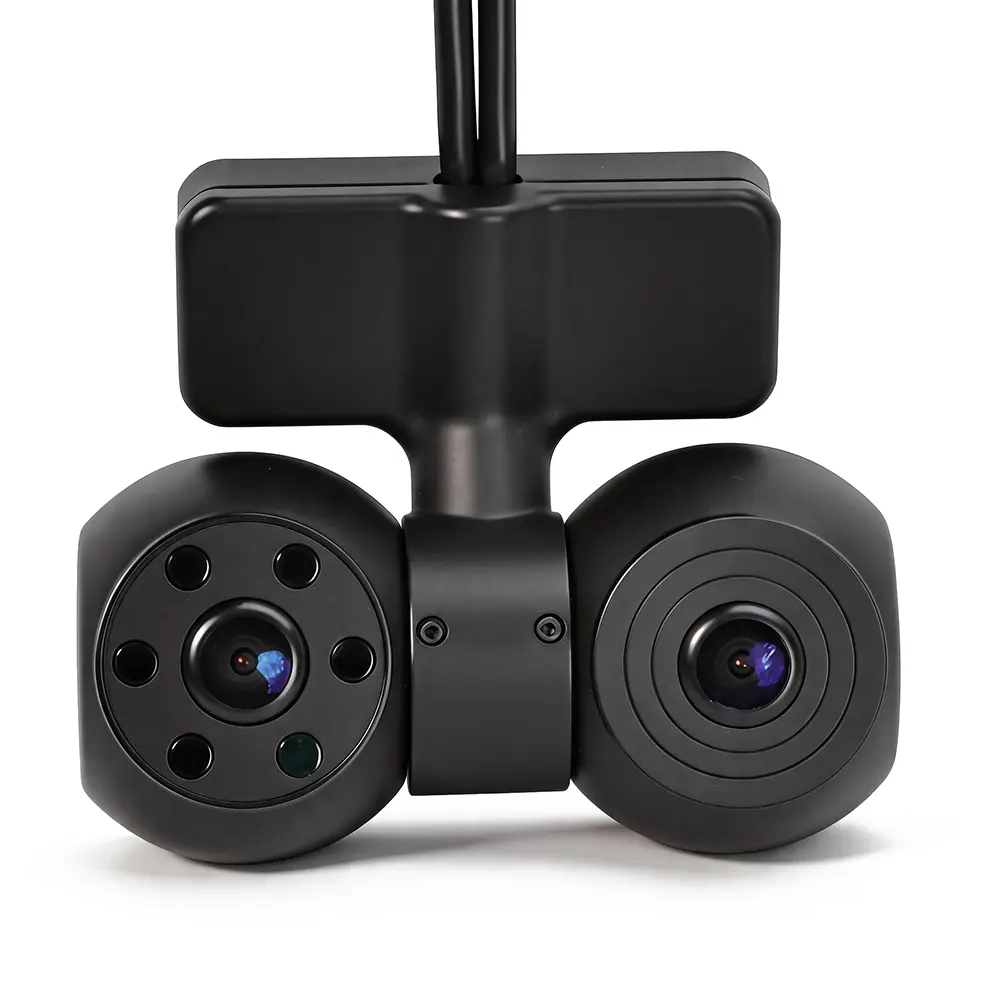

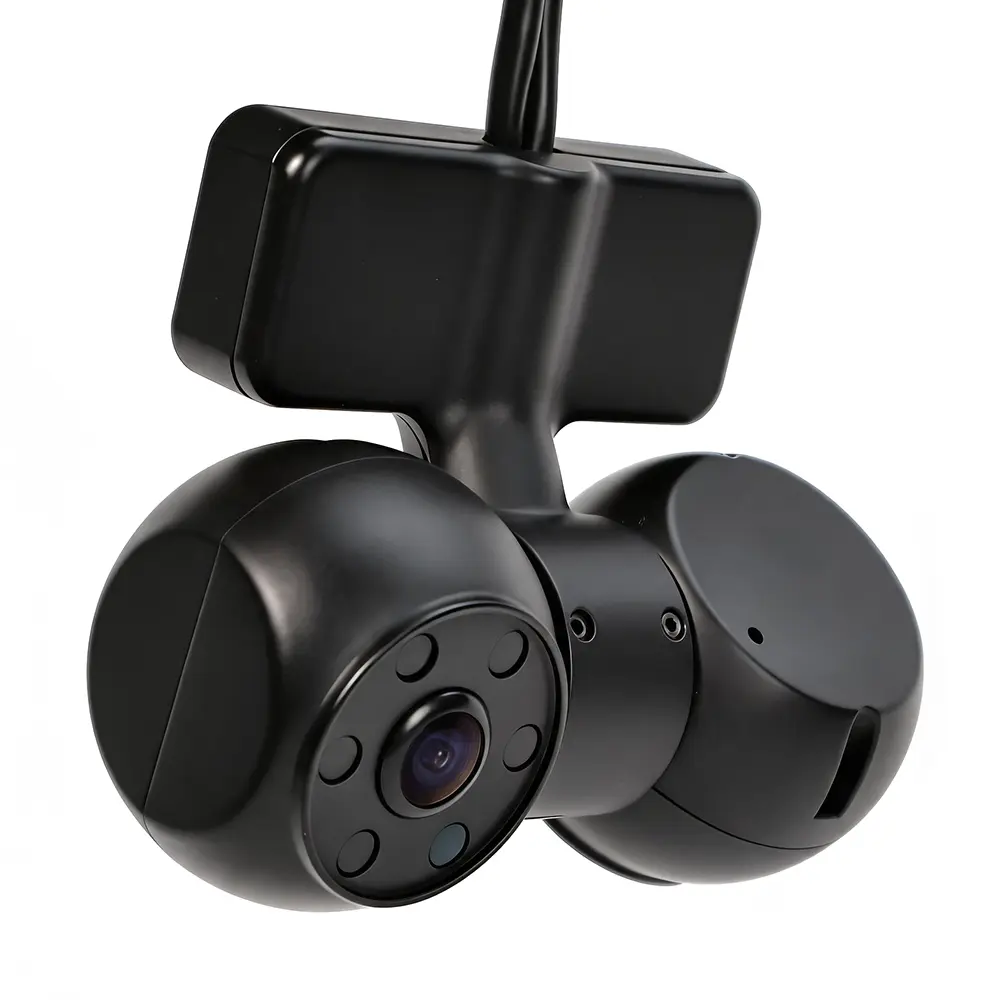

XY-N7200HD is an all-in-one dual-lens in-cabin vehicle camera designed for dual-channel synchronous monitoring. It integrates front road monitoring and interior cabin monitoring into one compact device, equipped with high-performance starlight imaging sensor, built-in noise reduction microphone and vehicle-grade anti-vibration structure. Supporting 9-16V wide voltage input to adapt to unstable vehicle power supply, this camera solves common problems such as picture jitter, signal loss and image blurring of traditional single-lens vehicle cameras. With dual independent wide-angle lenses, synchronous audio recording and drill-free adhesive installation, it is the optimal monitoring device for online car-hailing, taxis, buses and commercial fleets.
| Item | Details |
|---|---|
| Product Model | XY-N7200HD |
| Product Type | Dual-Lens Dual-Channel In-Cabin Monitoring Camera |
| Housing Material | Aluminum Alloy |
| Appearance Color | Black |
| Installation Method | 3M Adhesive Tape Mounting (Drill-free, No Damage) |
| Interface Type | 4-core Female Aviation Connector |
| Cable Length | 3M |
| Net Weight | 0.4KG |
| Waterproof Rating | Non-waterproof (Only for indoor in-cabin use) |
| Audio Function | Built-in HD Noise Reduction Microphone |
| Customized Service | Support customized 125° wide viewing angle lens |
Adopts professional 1/2.9" starlight CMOS sensor, supporting switchable 1080P/720P dual resolution. 0.01Lux ultra-low illumination ensures clear synchronous video recording for front road and cabin scenes day and night.
Built-in intelligent digital exposure system, automatically balances image brightness under strong sunlight, backlight and complex indoor light inside the car, avoiding picture overexposure and missing key monitoring details.
Keeps stable signal output under high-temperature closed cabin environment. No black stripes or abnormal bright lines appear during long-time working, maintaining consistent dual-channel imaging quality.
Wide voltage design adapts to unstable original vehicle power supply; reinforced internal shockproof structure resists vibration from bumpy roads, ensuring stable dual-video transmission during driving.
Front lens monitors road driving conditions, cabin lens covers full interior space. Realize synchronous recording of driving behavior and passenger status with one camera, saving installation cost and space.
Equipped with high-sensitivity noise reduction microphone, supports 25㎡ long-distance audio pickup. Realize synchronous recording of video and audio to provide complete evidence for traffic disputes and passenger conflicts.
Compatible with D1, 720P, 1080P three output resolutions, matching different models of vehicle monitoring hosts to meet diverse project matching requirements.
Support 3M adhesive sticker installation without drilling holes, will not damage original vehicle interior. Compact aluminum alloy body is easy for hidden installation inside the front windshield.
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Dual Lens Viewing Angle | Front Road Lens | DFOV:110°, HFOV:85°, VFOV:48° |
| Cabin Monitoring Lens | DFOV:168°, HFOV:130°, VFOV:90° | |
| Audio Function | Built-in Microphone Pickup Range | 25㎡ Effective Pickup Area |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 9V-16V (Rated DC12V) |
| Environmental Resistance | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Dimension Item | Remarks |
|---|---|

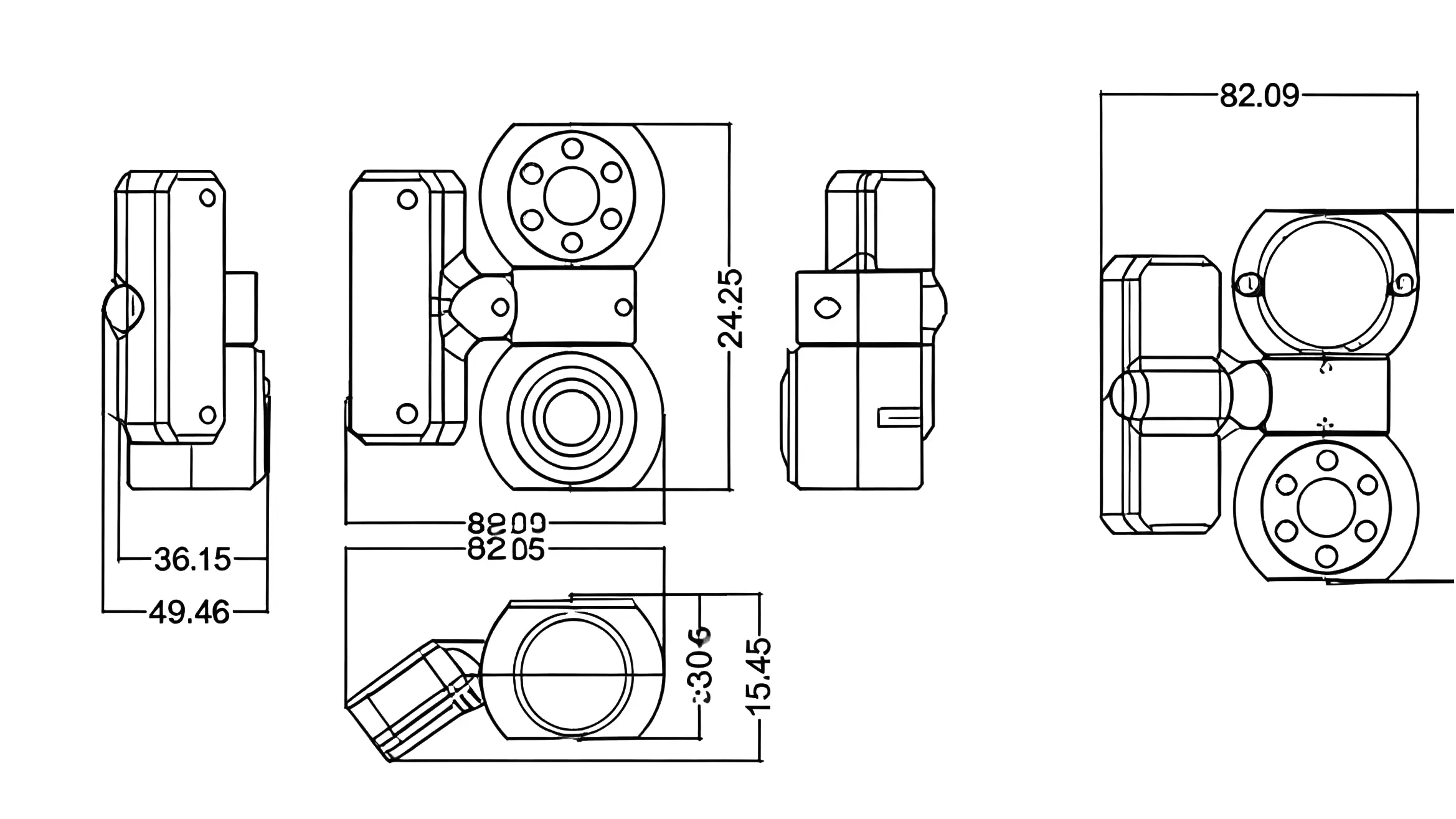

| Overall Product Size | Please refer to official dimension drawing for accurate size data |
This dual-lens synchronous monitoring camera is specially developed for fleet interior safety management. It is widely applied to online car-hailing vehicles, taxis, passenger buses, logistics vans and various commercial vehicles. It can simultaneously record front driving road conditions and in-car passenger dynamics, match audio synchronous recording function, effectively solve traffic accident evidence retention, passenger dispute handling and driver behavior supervision problems, and meet full-scene monitoring demands of commercial fleets.
