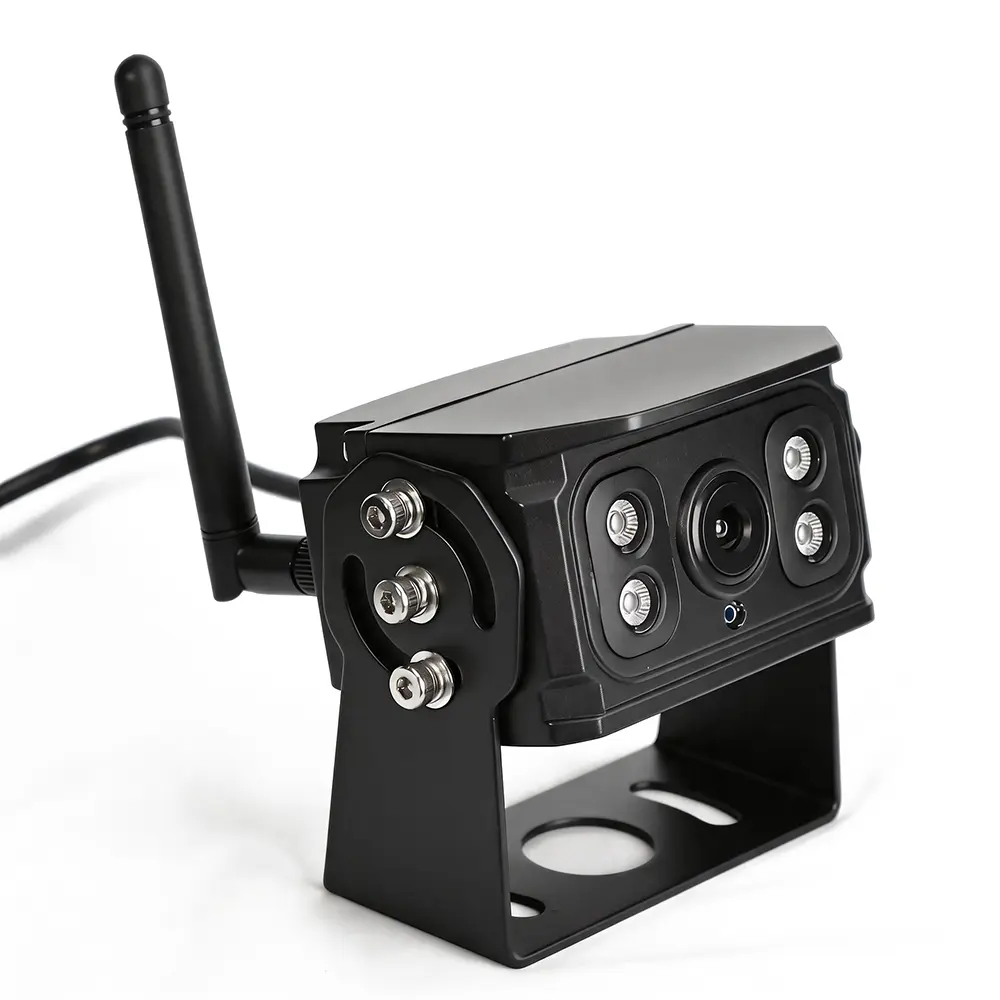

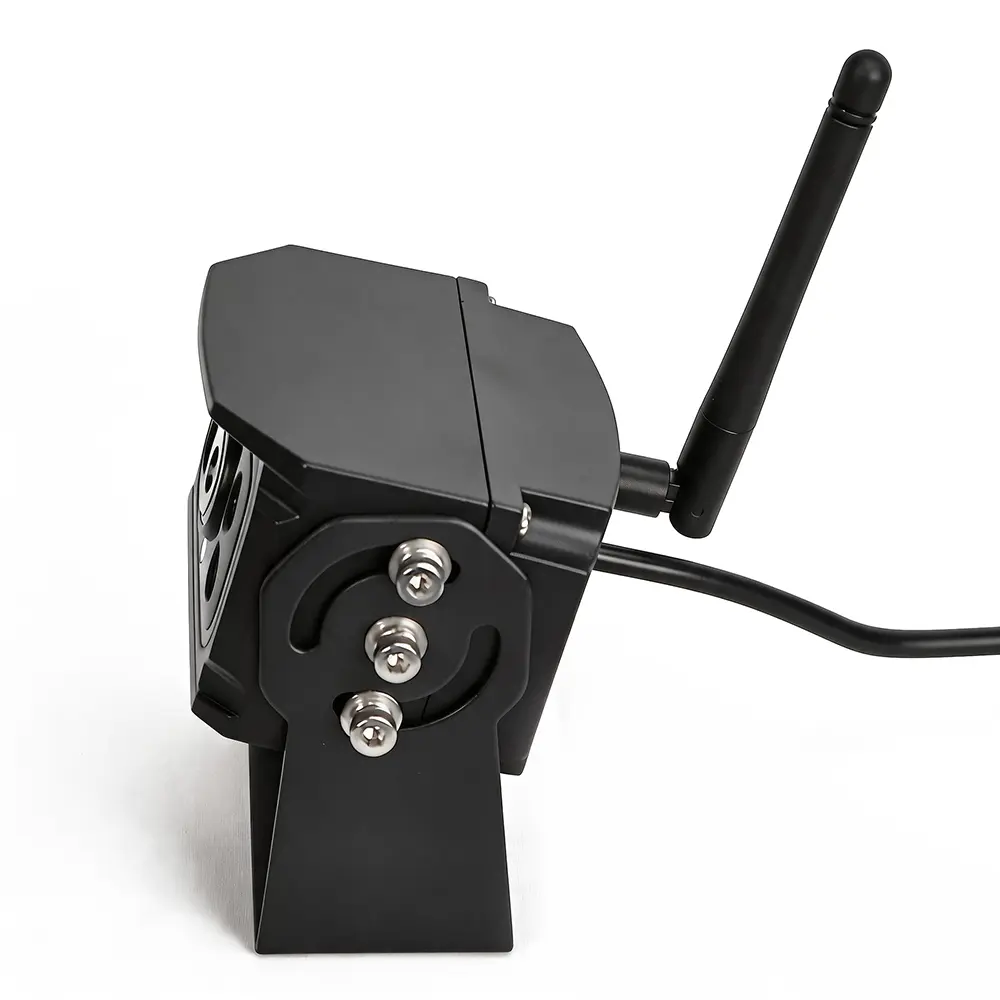

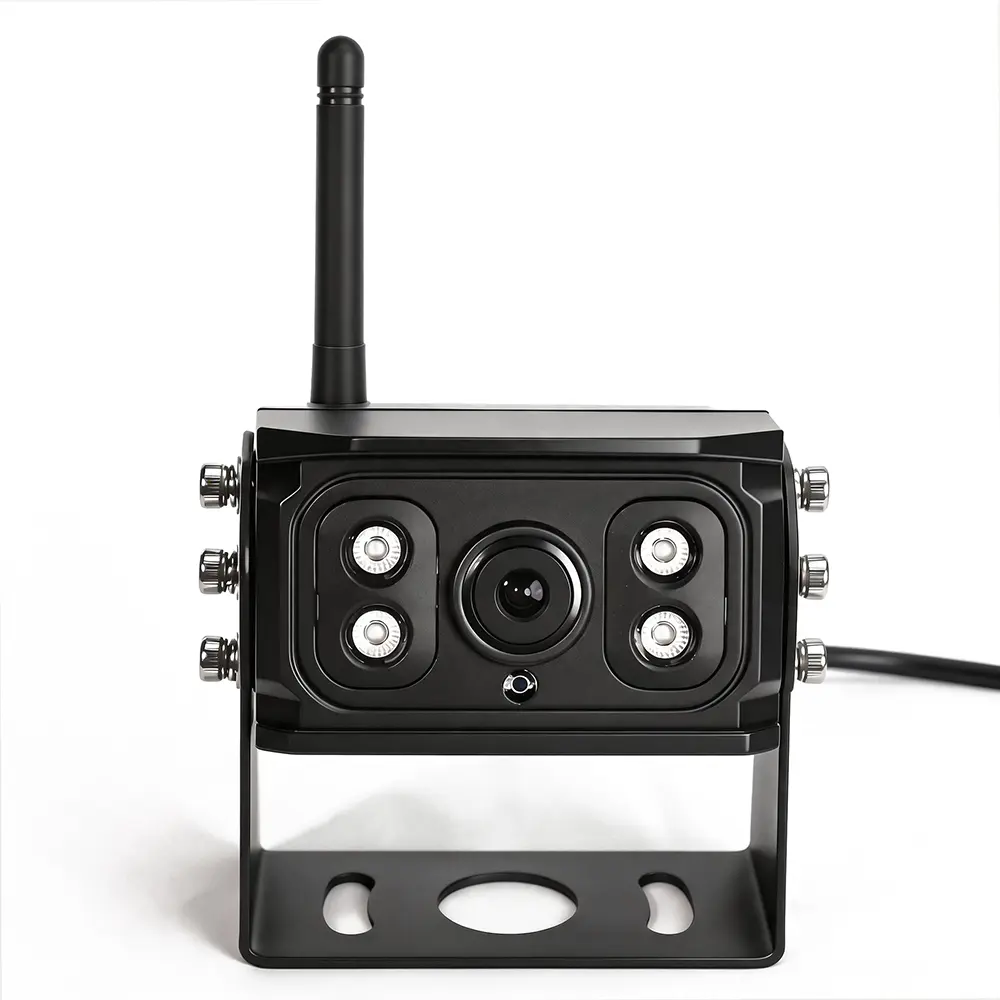

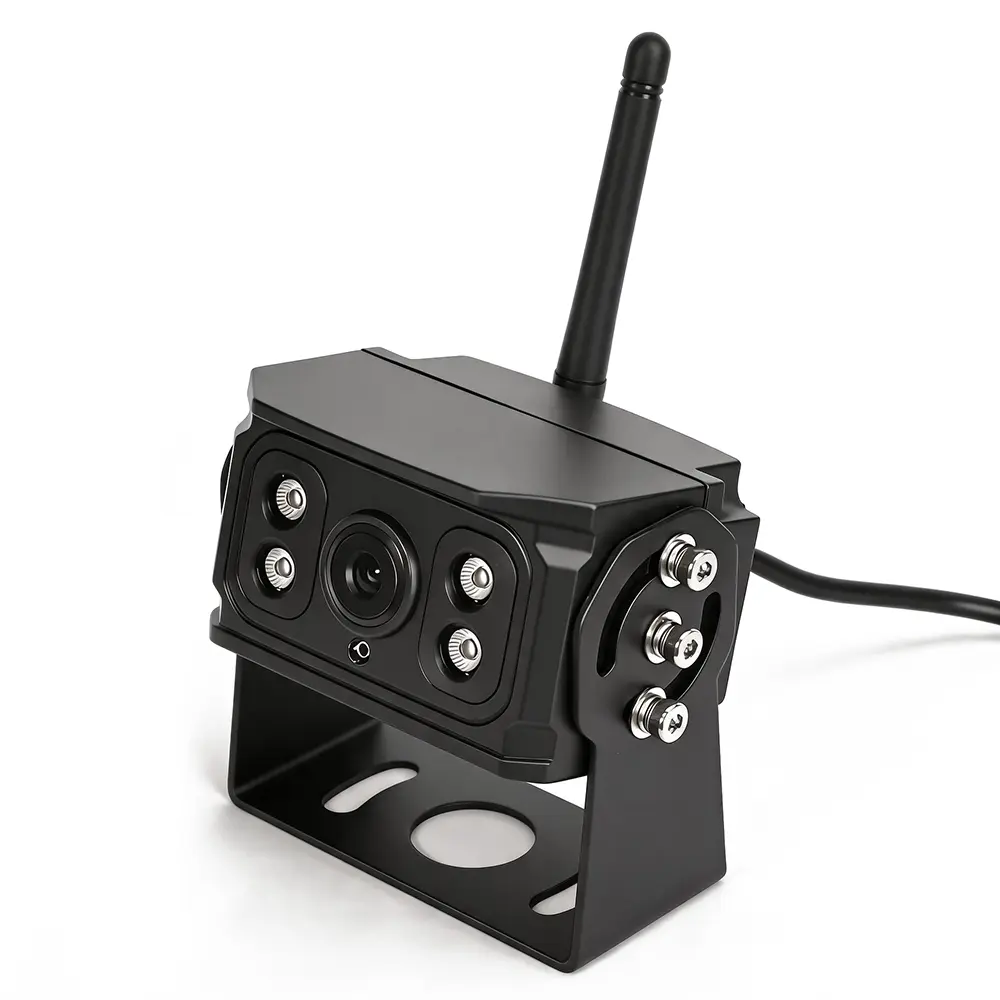

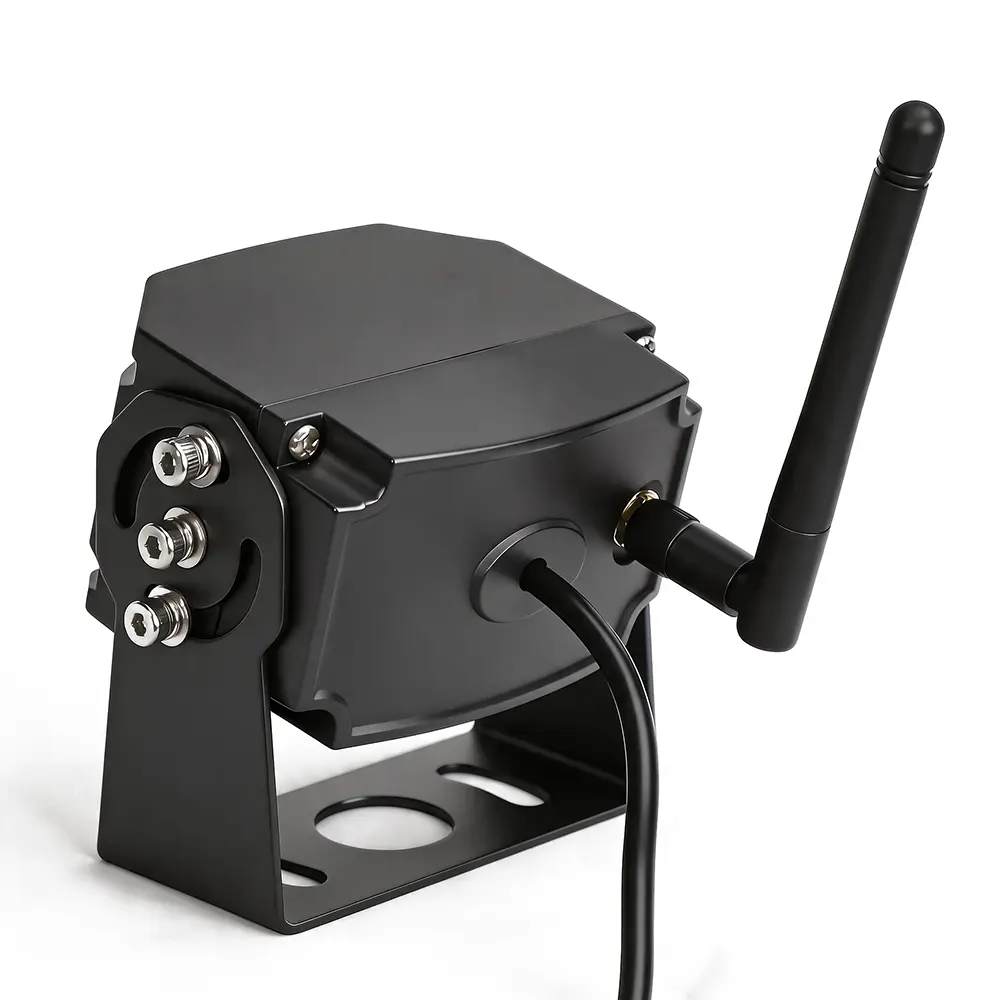

XY-FS760WX is an industrial-grade outdoor waterproof wireless vehicle camera, specially designed to solve complicated wiring troubles for trailers, heavy trucks and engineering machinery. Built-in professional FHSS frequency hopping wireless transmission module, this camera supports long-distance stable wireless video & audio synchronous transmission without wiring harness layout between vehicle head and carriage.
Featuring IP68 ultra-high waterproof rating, full aluminum alloy sealed housing adapts high-pressure water washing, rainy and muddy harsh outdoor environments. It supports ultra-wide vehicle voltage 9-30V, compatible with 12V/24V all commercial vehicles. With built-in infrared night vision lights and clear 720P HD imaging, plus multi-layer wireless encryption protection, it effectively avoids signal interference and signal interception. It is the best wireless monitoring solution for vehicle reversing blind spot monitoring and fleet wireless visual safety system.
| Item | Details |
|---|---|
| Product Model | XY-FS760WX |
| Product Type | IP68 Waterproof FHSS Wireless Vehicle Monitoring Camera |
| Housing Material | High-strength Sealed Aluminum Alloy |
| Appearance Color | Black |
| Waterproof & Dustproof Grade | IP68 (Deep Submersible Waterproof) |
| Horizontal Viewing Angle | 85° |
| Video Resolution | 720P (1280*720) |
| IR Night Vision Lights | 2pcs 850nm High-sensitivity Infrared Lamps |
| Working Voltage | DC 9V-30V Ultra-wide Vehicle Voltage |
| Working Current | 300mA (Typical); 380mA (Max) |
| Wireless Transmission Distance | Max 200m Line-of-sight Transmission |
| Audio Function | Built-in Mic, Synchronous Audio & Video Transmission |
| Video Signal Mode | PAL / NTSC Switchable |
| Connector Type | DC Power Interface |
| Default Cable Length | 0.6m |
| Net Weight | Approx. 2KG |
| Installation Method | Self-tapping Screw Fixed Mounting |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | FHSS Frequency Hopping Anti-interference Wireless Signal | Adopts advanced 4T1R FHSS frequency hopping spread spectrum technology with 125 hopping channels. Strong anti-electromagnetic interference capability, stable signal without delay or disconnection even in complex vehicle electromagnetic environment. |
| 2 | IP68 Deep Waterproof Protection | Fully integrated sealed aluminum alloy housing reaches IP68 highest waterproof grade, supporting long-term water immersion and high-pressure gun washing, completely adapting to car washing, heavy rain and muddy road conditions. |
| 3 | 9-30V Ultra-wide Voltage Compatibility | Wide voltage design matches both 12V and 24V vehicle power supply universally, no extra voltage stabilizer needed, adapts unstable original vehicle power supply perfectly. |
| 4 | 200m Long-distance Wireless Transmission | Optimized RF radio frequency circuit improves signal penetration and transmission distance, realizing stable real-time transmission within 200 meters line-of-sight, perfectly suitable for long semi-trailers and cargo trailers. |
| 5 | Synchronous Audio & Video Monitoring | Built-in high-sensitivity pickup mic, supports synchronous collection and transmission of video and sound. Drivers can monitor both road image and surrounding sound in real time for safer driving. |
| 6 | Full Encryption Signal Security Protection | Supports WEP, WPA, WPA2, WPA3 full range wireless encryption protocols, effectively preventing external signal interception and video stealing, protecting vehicle monitoring data privacy. |
| 7 | 720P HD Day & Night Imaging | High-definition image sensor matches automatic infrared switching system, clear color image in daytime and black-white night vision image in full dark environment, meeting all-weather monitoring demands. |
| 8 | Plug & Play Easy Installation | Complete wireless transmission design removes complicated wiring harness between vehicle head and trailer, no damage to original vehicle circuit, greatly reducing installation difficulty and time cost. |
| Parameter Item | Specific Specification |
|---|---|
| Operating Voltage | DC 9V ~ 30V |
| Typical Working Current | 300mA |
| Max Working Current | 380mA |
| Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 85℃ |
| Working Humidity | ≤85% RH, Non-condensing |
| Parameter Item | Specific Specification |
|---|---|
| Image Resolution | 720P (1280*720) |
| Frame Rate | 30fps |
| Video Signal System | PAL / NTSC Optional |
| Horizontal View Angle | 85° |
| Infrared Lamp Spec | 2pcs 850nm Infrared Lights |
| Auto White Balance | Automatic |
| Electronic Shutter | Automatic |
| Parameter Item | Specific Specification |
|---|---|
| Working Frequency Band | 2400MHz ~ 2483.5MHz |
| Wireless Technology | FHSS Frequency Hopping Spread Spectrum |
| Hopping Channel Quantity | 125 Channels |
| Max Transmission Distance | 200m (Line-of-sight) |
| Receiver Sensitivity | -88dBm |
| Wireless Encryption Mode | WEP/WPA/WPA2/WPA3 |
| Parameter Item | Specific Specification |
|---|---|
| Audio Sampling Rate | 16kHz 12-bit ADC |
| Audio Frequency Range | 20Hz ~ 20KHz |
| Signal-to-Noise Ratio | ≥63dB |
| Dimension Item | Size Remark |
|---|---|

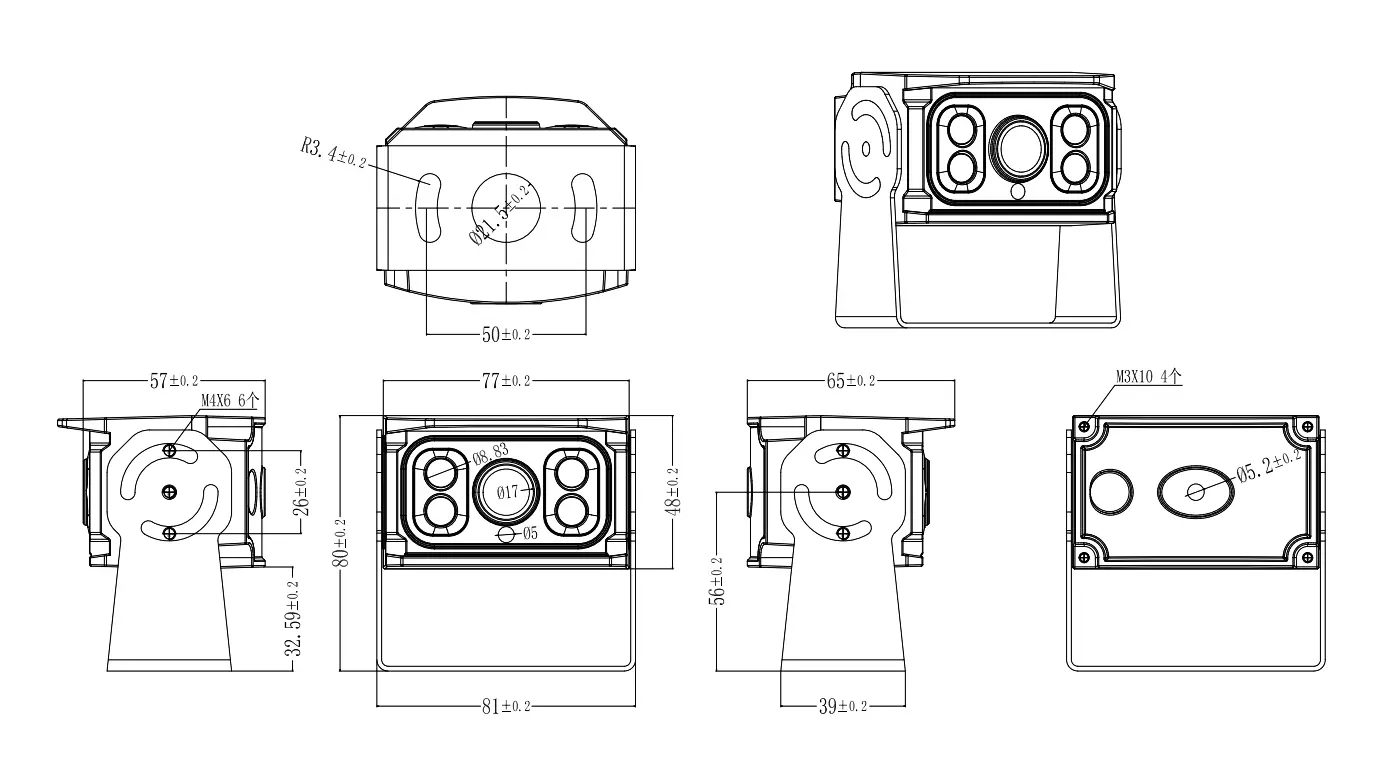

| Overall Product Size | Please refer to official engineering drawing for accurate millimeter dimension data |
| Mounting Screw Specification | M3 & M4 General Mounting Screws |
| Machining Tolerance | ±0.2mm Standard Industrial Tolerance |
Breaking the limitation of traditional wired vehicle cameras, XY-FS760WX removes complicated wiring work while maintaining industrial waterproof and shockproof performance. With stable anti-interference wireless signal and wide voltage compatibility, it is a professional wireless monitoring accessory for large commercial vehicles and engineering equipment.
A: The camera is built with an optimized RF circuit supporting FHSS technology, providing a stable, line-of-sight wireless transmission distance of up to 200 meters, which makes it perfect for long semi-trailers and cargo trailers.
A: It adopts advanced 4T1R FHSS (Frequency Hopping Spread Spectrum) technology across 125 hopping channels. This provides strong anti-electromagnetic interference, ensuring a stable video signal without lag or connection drops.
A: Yes, it is enclosed in a high-strength, fully sealed aluminum alloy housing that achieves an IP68 waterproof rating. It easily withstands deep water immersion, heavy rain, mud, and high-pressure water washing.
A: Yes, the camera has a built-in high-sensitivity pickup microphone, enabling synchronous audio and video transmission for comprehensive real-time monitoring.
A: Absolutely. It features an ultra-wide voltage design supporting DC 9V to 30V, making it universally compatible with both 12V and 24V commercial vehicle electrical systems without the need for extra voltage stabilizers.
A: Equipped with a 720P HD image sensor and 2pcs 850nm infrared night vision lights, the camera automatically switches to infrared night vision in low-light environments, delivering clear monochrome imaging in complete darkness.
