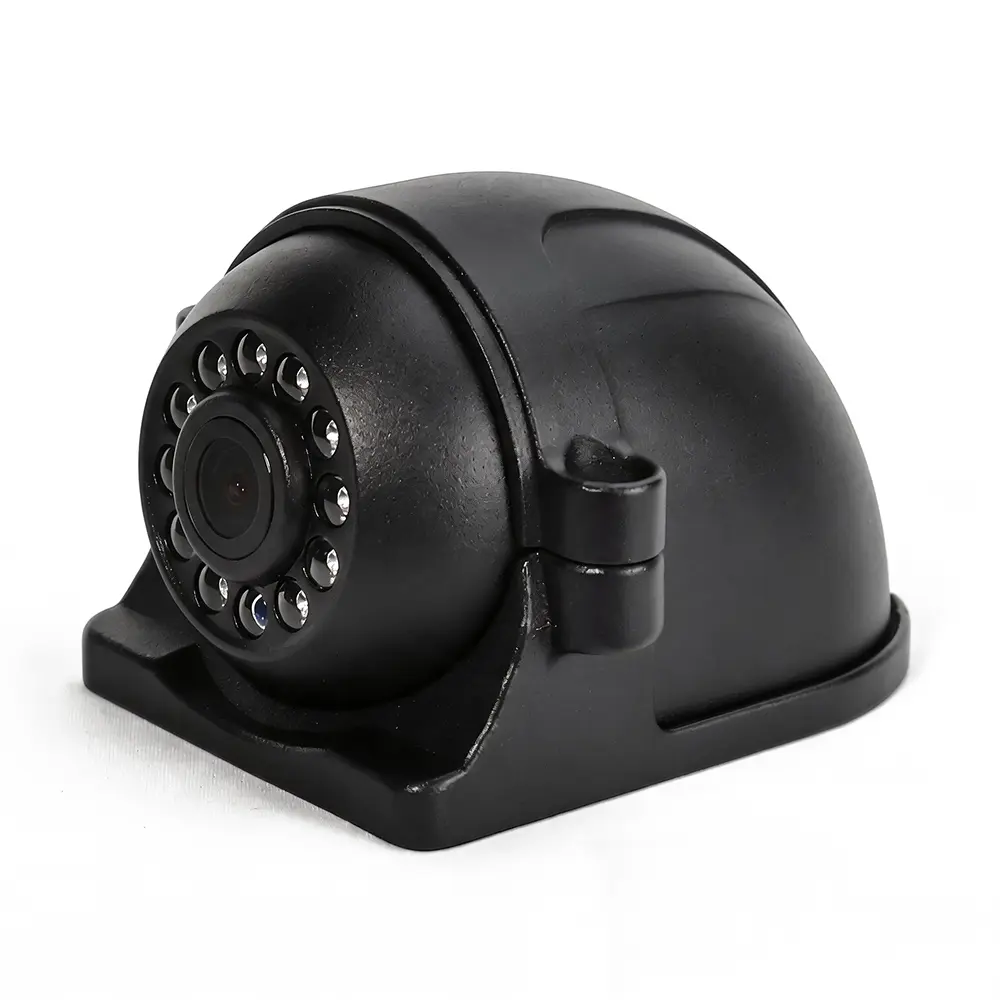

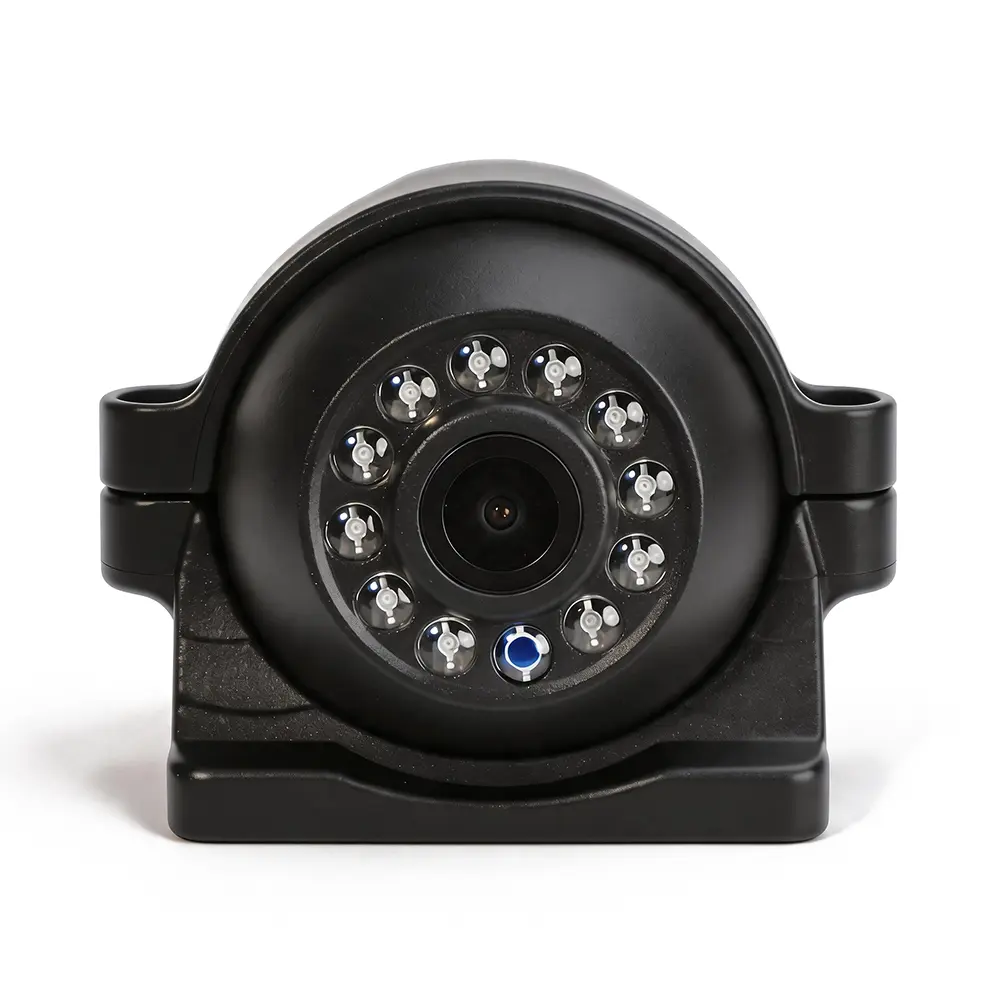

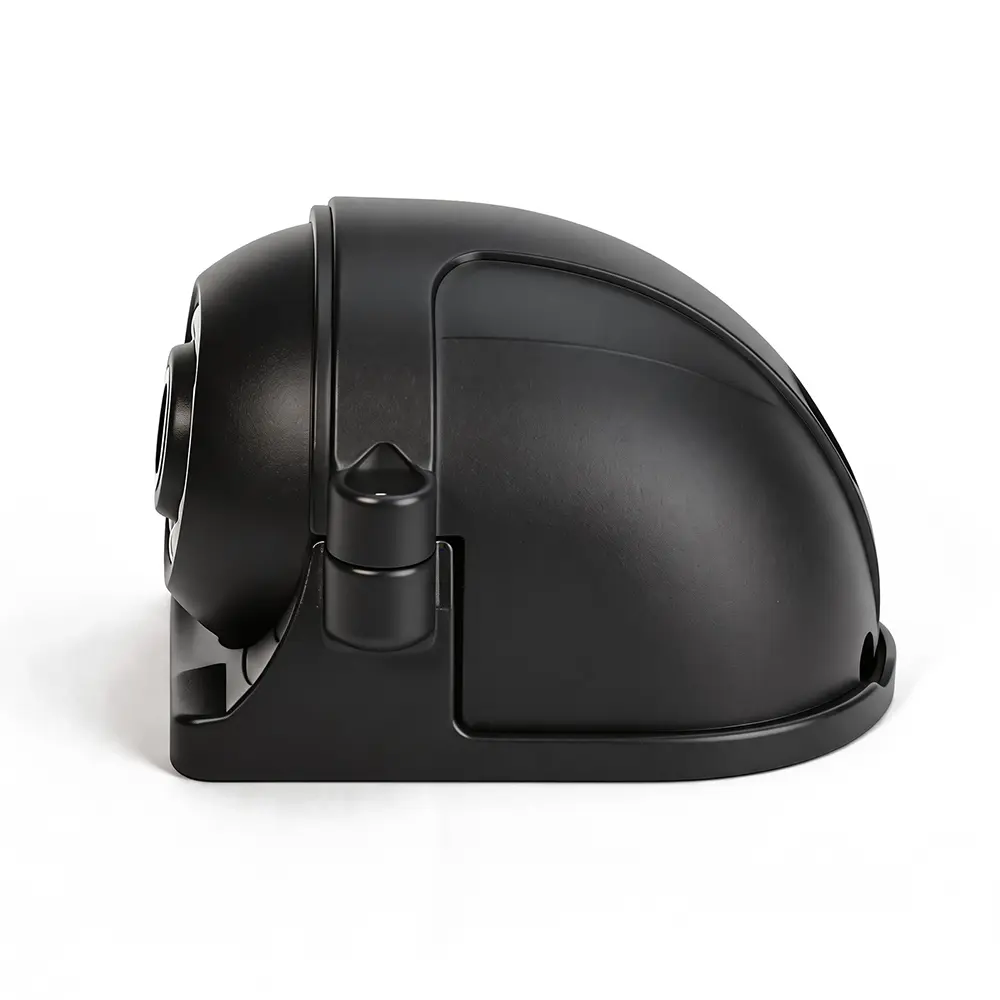

XY-FS797 is an upgraded ultra-wide-angle outdoor waterproof AHD vehicle camera, specially optimized for large vehicle blind spot elimination. Featuring an industry-leading 150° horizontal viewing angle (166° diagonal), it covers nearly all side and rear blind areas of trucks, buses and engineering vehicles.
Adopting 2MP starlight CMOS sensor and 12 high-brightness infrared lights, the camera delivers ultra-clear day color imaging and stable night vision effect. It supports DC 9-16V wide voltage adaptation, built with full sealed aluminum alloy housing, standard IP67 waterproof grade and optional IP69K high-pressure wash waterproof grade. With vehicle-grade shockproof structure and global anti-overexposure algorithm, it effectively solves common problems such as driving jitter, strong light overexposure and long-time high-temperature image abnormality. Lightweight mini body and screw fixing design make installation convenient and firm, perfectly suitable for all kinds of commercial vehicle all-weather exterior monitoring.
| Item | Details |
| Product Model | XY-FS797 |
| Product Type | 150° Ultra-Wide Angle IP67 Waterproof Exterior Vehicle Camera |

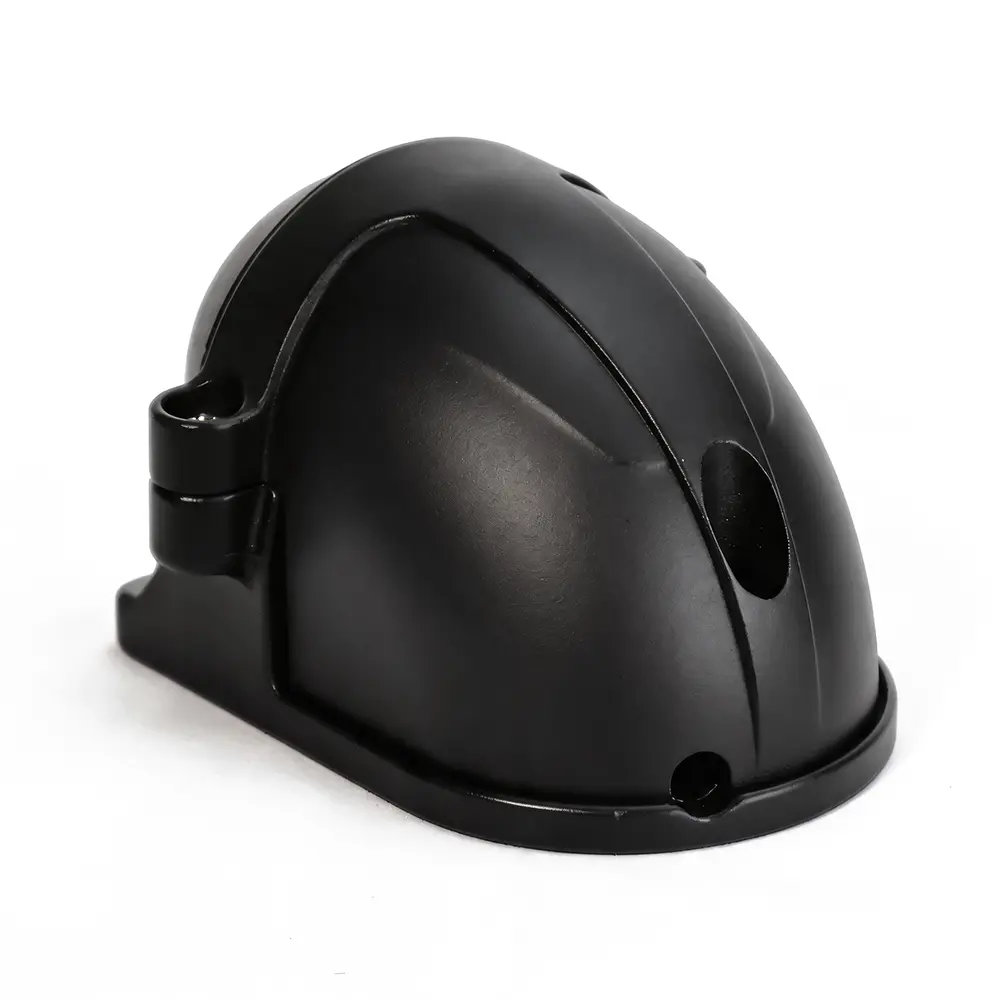

| Housing Material | High-strength Aluminum Alloy |
| Appearance Color | Black |
| Standard Waterproof Grade | IP67 |
| Optional Waterproof Grade | IP69K (Customized for high-pressure washing) |
| Viewing Angle | DFOV 166° / HFOV 150° / VFOV 90° |

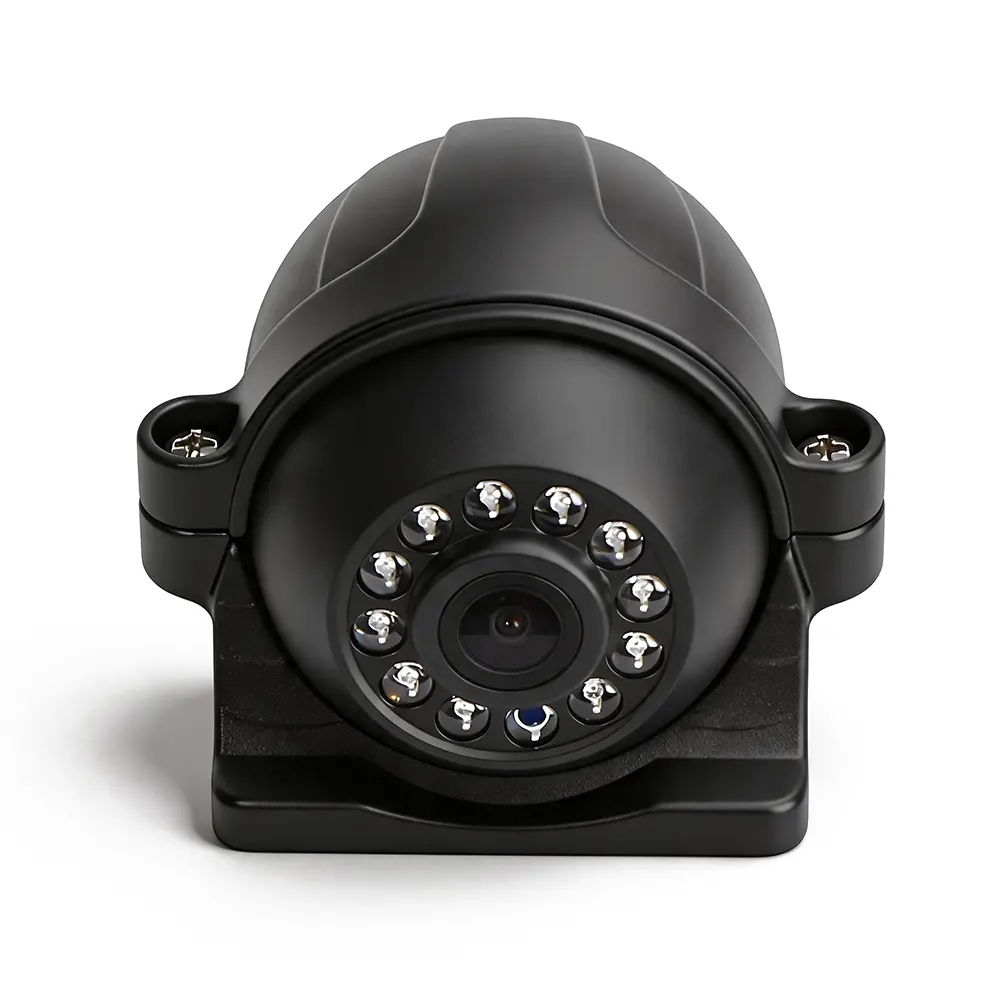

| IR LED Quantity | 12pcs high-brightness infrared night vision lights |
| Working Voltage | DC 9V~16V Wide Voltage (Rated 12V) |
| Working Current | 250mA @ DC12V |
| Connector Type | 4-core aviation connector |
| Default Cable Length | 0.6m |
| Net Weight | Approx. 0.3KG |
| Installation Method | Self-tapping screw fixed mounting |
| No. | Feature Title | Detailed Description |

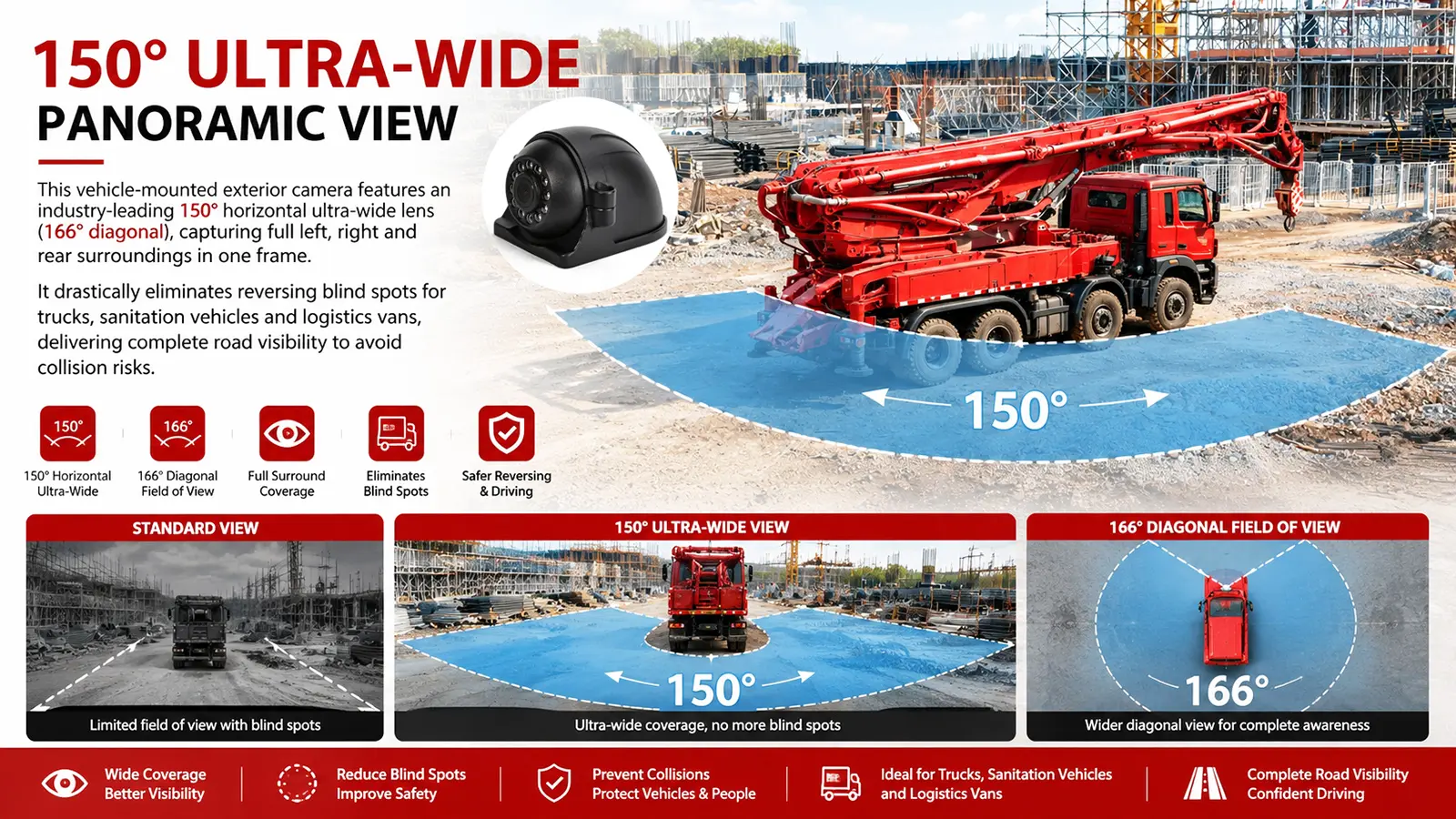

| 1 | 150° Super Wide Blind Spot Elimination Lens | Equipped with upgraded ultra-wide lens, 150° horizontal viewing angle and 166° diagonal viewing angle, covering a super-large monitoring range. It greatly eliminates vehicle side and rear blind spots, effectively avoiding scraping and collision accidents during turning and lane changing. |
| 2 | 2MP Starlight Dual Resolution HD Imaging | Built-in professional 1/2.9-inch starlight CMOS sensor, supports 720P/1080P resolution switching. 0.01Lux ultra-low light sensitivity ensures bright and delicate color images in daytime and clear black-and-white monitoring effect in dark night environment. |
| 3 | Global Anti-overexposure Algorithm | Intelligent adaptive exposure technology automatically adjusts screen brightness in complex light scenes such as strong sunlight, backlight driving and tunnel access. It suppresses local overexposure, compensates dark shadows, and retains complete road scene details. |
| 4 | High-Temperature Stable Night Vision Performance | Optimized industrial circuit structure adapts long-term high-temperature outdoor working environment. No vertical black stripes, screen flicker or bright line abnormality occurs during long-time continuous night vision monitoring, ensuring stable all-weather output. |
| 5 | 9-16V Wide Voltage Compatibility | Wide voltage design adapts unstable voltage output of 12V vehicle power supply, compatible with all mainstream 12V commercial vehicles. No additional voltage stabilizer is required, reducing installation accessories and failure risks. |
| 6 | Dual IP67/IP69K Waterproof Optional | Standard IP67 dustproof and waterproof meets daily outdoor rain and dust protection needs; optional IP69K high-pressure waterproof version supports high-temperature and high-pressure water gun flushing, suitable for sanitation vehicles requiring frequent cleaning. |
| 7 | Vehicle-Grade Anti-Vibration Structure | Reinforced internal shockproof structure resists continuous vibration and bump impact from rugged roads, ensuring smooth and jitter-free video transmission during long-distance driving. |
| 8 | Lightweight & Easy Installation | Ultra-light 0.3KG mini aluminum alloy body saves installation space, fits narrow gaps of vehicle body. Simple screw fixing realizes fast and firm installation without damaging the original vehicle structure. |
| Category | Parameter Item | Specific Specification |
| Imaging System | Image Sensor | 1/2.9" Starlight CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| View Angle Parameter | Diagonal / Horizontal / Vertical View Angle | 166° / 150° / 90° |
| Night Vision Configuration | IR LED Quantity | 12pcs |
| Video Output | Video Output Signal | AHD Analog HD Signal |
| Electrical Parameters | Working Voltage | DC 9V~16V |
| Working Current | 250mA | |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ | |
| Protection Grade | Waterproof & Dustproof Standard | IP67 standard, optional IP69K |
| Dimension Item | Size Remark |

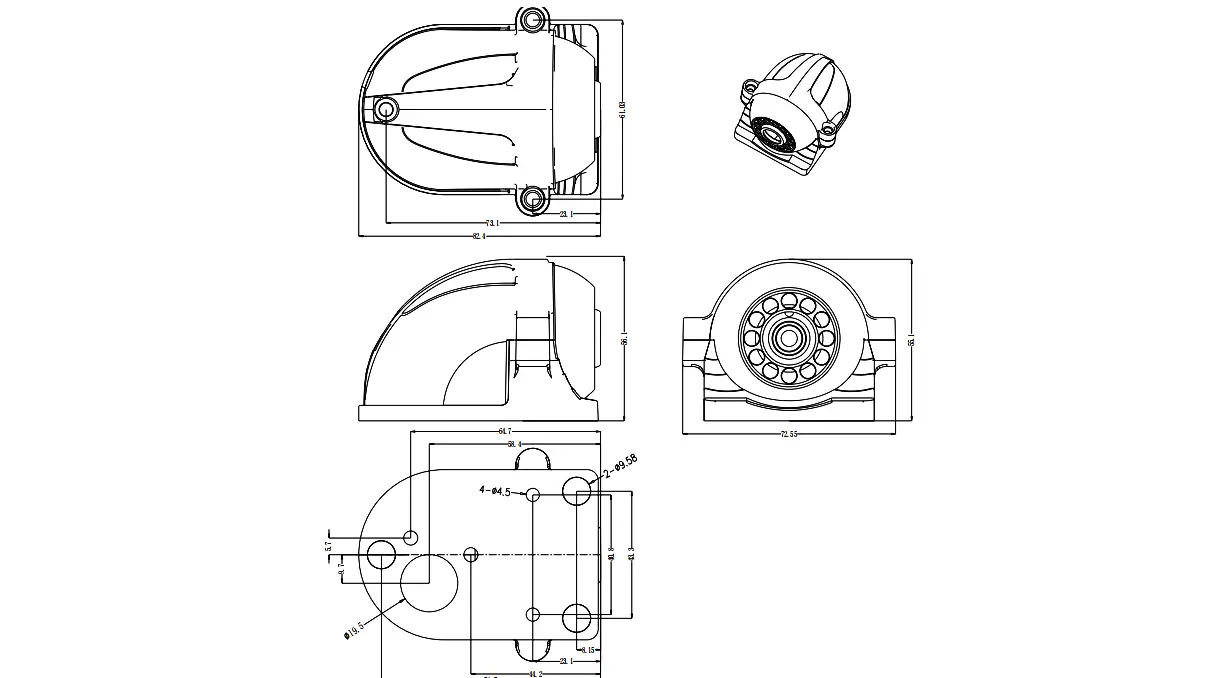

| Overall Product Size | Please refer to official engineering drawing for accurate millimeter dimension data |
| Note | Minor machining tolerance exists on lightweight aluminum alloy housing |
XY-FS797 takes the lead in 150° ultra-wide viewing angle design among similar vehicle cameras. With dual waterproof options, wide voltage adaptation and stable starlight imaging performance, it is a high cost-performance blind spot monitoring solution for commercial fleet unified matching and batch installation.
