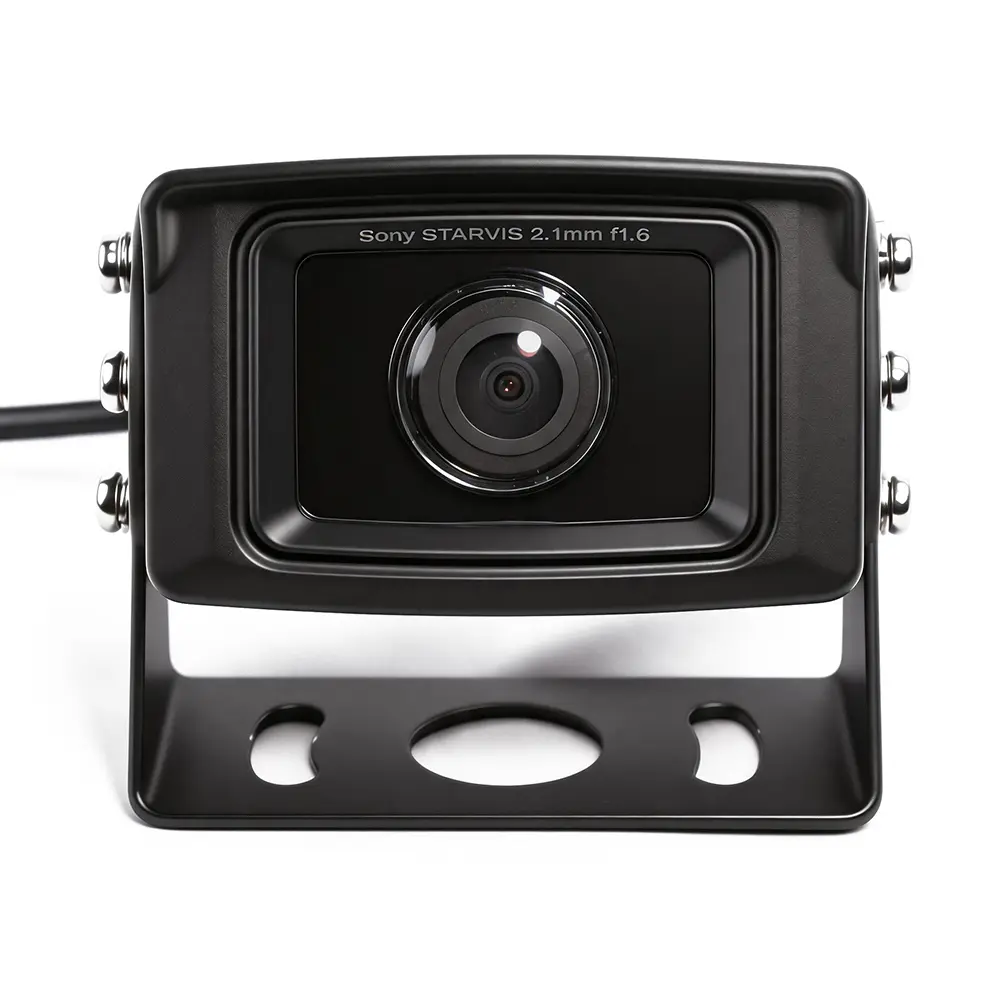

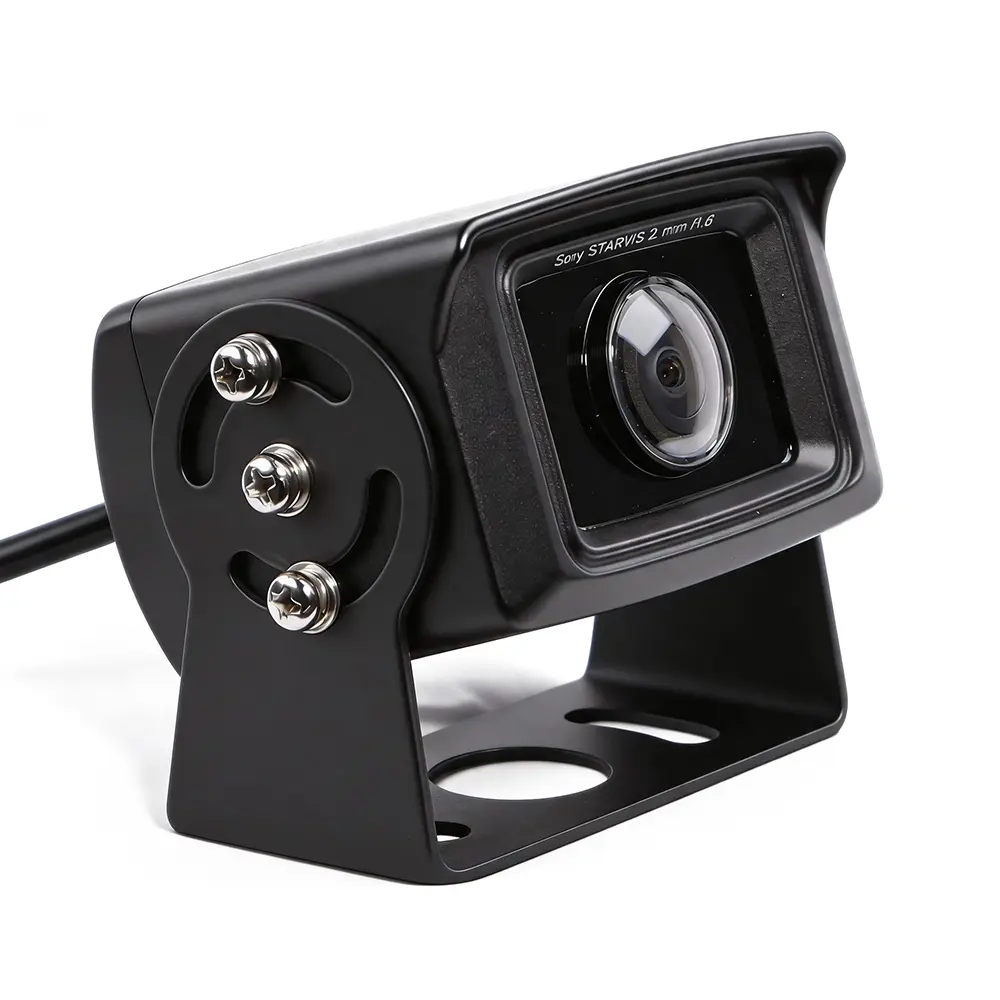

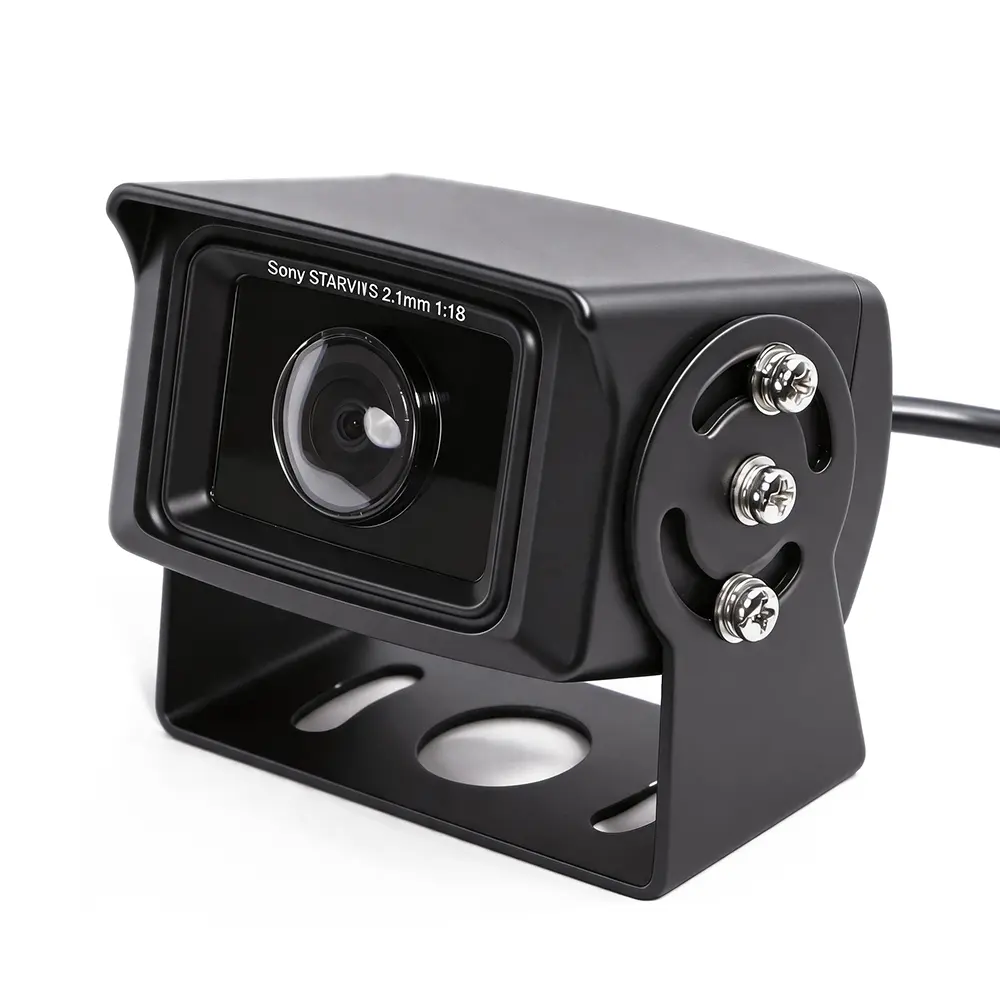

XY-FS760 is a professional IP67 fully waterproof exterior vehicle monitoring camera, constructed with sturdy aluminum alloy metal housing. Equipped with a 2.1mm ultra-wide lens offering 155° diagonal / 130° horizontal viewing angle and 18 built-in infrared LEDs, this 2MP starlight AHD camera delivers clear all-vehicle blind spot footage day and night.
Adopting global adaptive anti-overexposure algorithm and vehicle-grade shockproof internal structure, it effectively solves common defects such as image flicker and long-term blurring. The IP67 sealed structure fully resists rain splash, mud contamination and dust intrusion. Fixed by self-tapping screws for simple exterior installation, it is widely applied to heavy trucks, sanitation vehicles, passenger buses and construction machinery for rear view and side blind spot safety monitoring.
| Item | Details |
|---|---|
| Product Model | XY-FS760 |
| Product Type | IP67 Waterproof 130° Ultra-Wide Exterior Starlight AHD Camera |
| Housing Material | Aluminum Alloy Metal |
| Appearance Color | Black |
| Viewing Angle | DFOV 155° / HFOV 130° / VFOV 70° (2.1mm Wide Lens) |
| IR LED Quantity | 18pcs Infrared Night Vision Fill Lights |
| Working Voltage | DC 12V |
| Working Current | 250mA @ DC12V |
| Signal System | PAL AHD |
| Connector Type | 4-pin Aviation Connector |
| Default Cable Length | 0.6M |
| Net Weight | 0.4KG |
| Waterproof Grade | IP67 Dustproof & Waterproof |

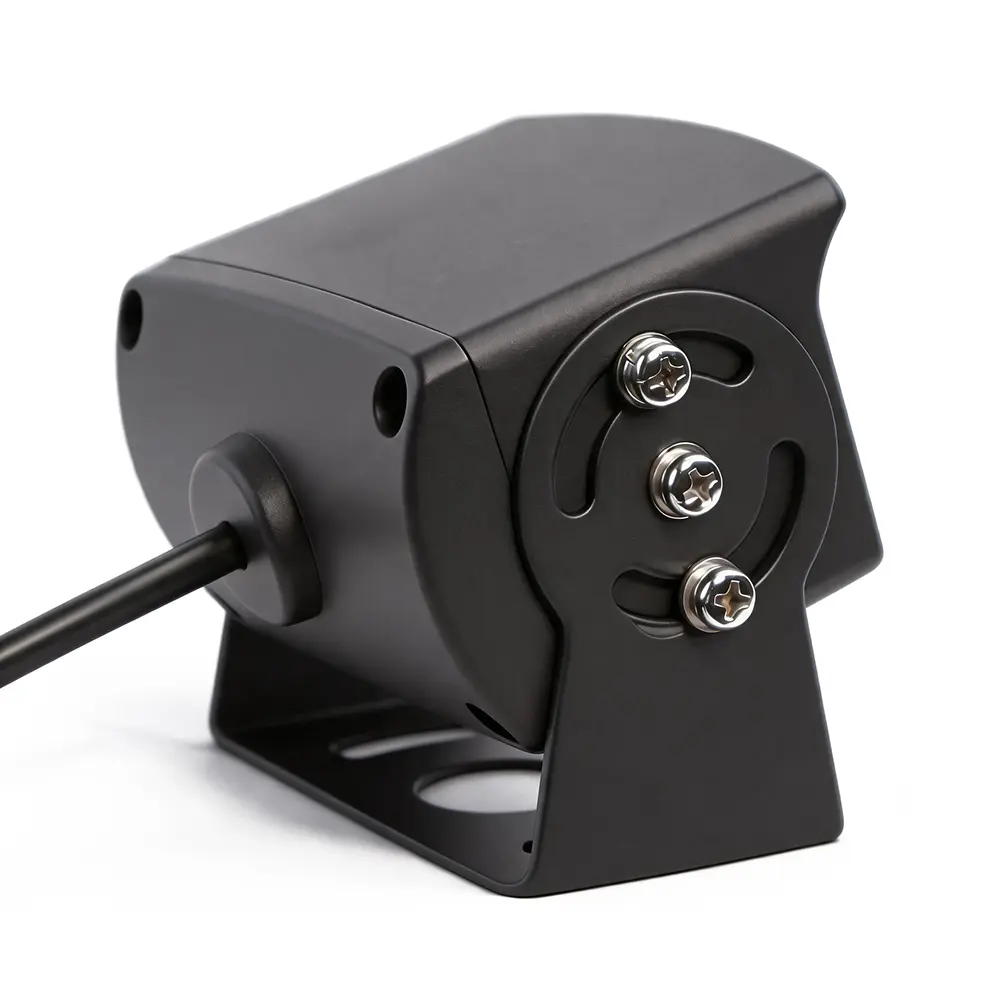

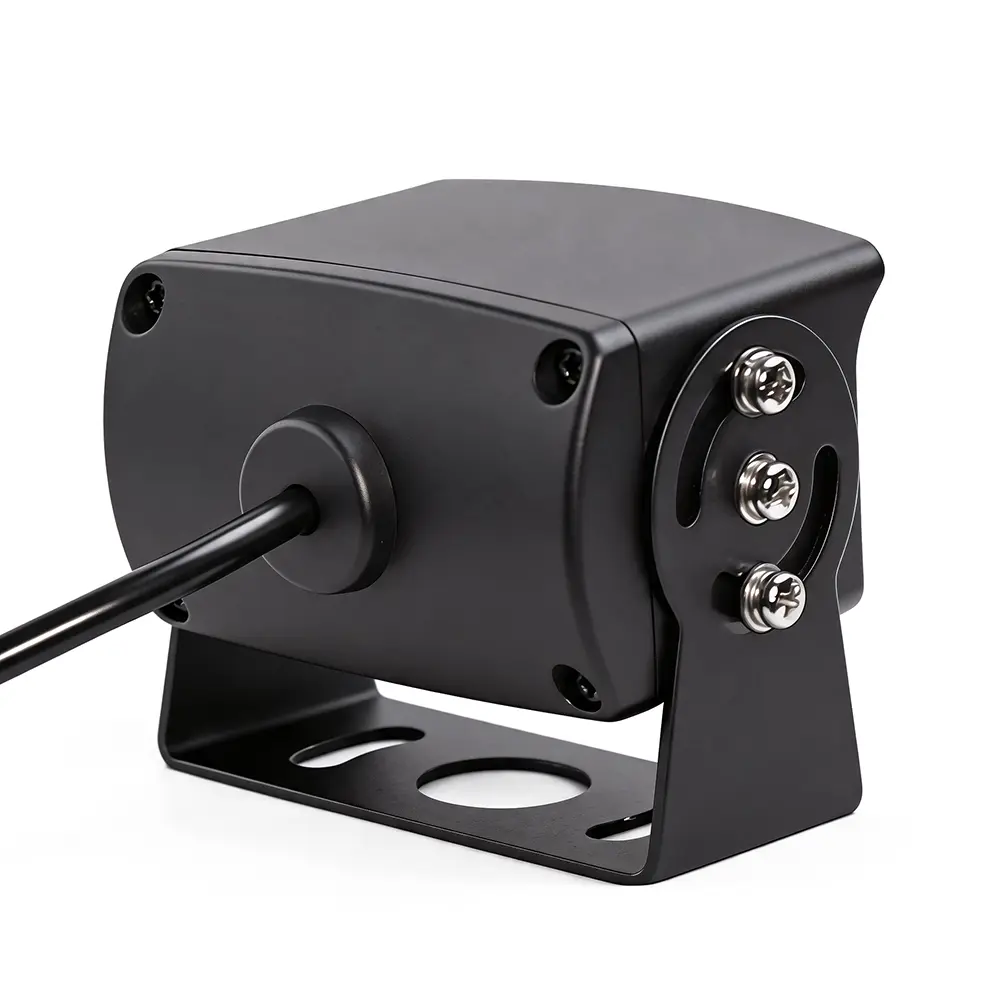

| Installation Method | Self-tapping Screw Fixed Mounting |
| No. | Feature Title | Detailed Description |
|---|---|---|
| 1 | 130° Horizontal Super Wide Lens | Adopts short focal 2.1mm ultra-wide lens with 155° diagonal coverage, greatly reduces vehicle side and rear visual blind spots for safer reversing and lane change. |
| 2 | 2MP Starlight Dual Resolution Sensor | Built-in 1/2.9-inch starlight CMOS sensor with 0.01Lux ultra-low light sensitivity, supports switchable 1080P/720P HD image for day & night clear monitoring. |
| 3 | 18pcs Uniform Infrared Fill Lights | Adequate evenly distributed infrared LEDs eliminate dark corners, presenting complete vehicle peripheral images under full dark environments. |
| 4 | Global Anti-overexposure Algorithm | Intelligent digital exposure automatically adjusts brightness under strong sunlight, tunnel light and backlight scenes to avoid overexposed white screen and lost road details. |
| 5 | High-Temperature Stable Imaging Circuit | Maintains stable dark-level signal during long-time high-temperature outdoor operation; no vertical black stripes or abnormal bright lines appear during night vision mode. |
| 6 | IP67 Sealed Aluminum Housing | Integral metal fully sealed shell features anti-rust, anti-mud and anti-splash performance, adapting to all kinds of harsh outdoor weather conditions. |
| 7 | Vehicle-Grade Shockproof Structure | Reinforced internal shock-absorbing assembly resists vibration from bumpy roads, delivering smooth stable video stream without shaking. |
| 8 | Low Power Consumption Design | Only 250mA operating current eases the load of vehicle power supply, suitable for 24-hour uninterrupted monitoring. |
| 9 | Universal AHD PAL Compatibility | Standard AHD analog HD signal output, plug-and-play matching all mainstream vehicle MDVR monitoring hosts on market. |
| Category | Parameter Item | Specific Specification |
|---|---|---|
| Imaging System | Image Sensor | 1/2.9" Starlight CMOS |
| Signal System | PAL | |
| Effective Pixels | 1920(H)×1080(V) / 1280(H)×720(V) | |
| Frame Rate | 25fps | |
| Synchronization Mode | Internal Synchronization | |
| Minimum Illumination | 0.01Lux @ F1.2 | |
| Horizontal Resolution | 2000TVL | |
| Image Processing | Auto White Balance | Automatic |
| Electronic Shutter | AUTO | |
| Exposure Mode | Global Anti-overexposure | |
| Lens Angle Parameter | Diagonal / Horizontal / Vertical | 155° / 130° / 70° |
| Night Vision Configuration | IR LED Quantity | 18pcs |
| Video Output | Signal Format | AHD Analog HD |
| Electrical Parameters | Operating Voltage | DC 12V |
| Working Current | 250mA | |
| Environmental Parameters | Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ | |
| Protection Grade | Waterproof Standard | IP67 |
| Appearance Housing | Material | Aluminum Alloy |
| Color | Black |
| Dimension Item | Remarks |
|---|---|

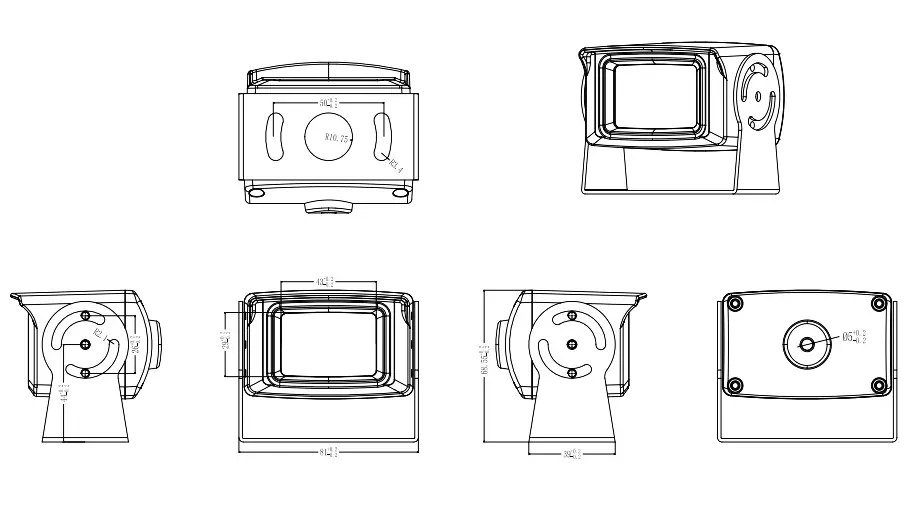

| Overall Outline Size | Refer to official engineering drawing for precise millimeter dimension data |
| Structural Feature | Compact full metal IP67 sealed housing, exterior screw fixed mounting design |
XY-FS760 is an IP67 metal waterproof exterior camera equipped with industry-leading 130° horizontal ultra-wide lens. Combining starlight night vision, vehicle shock resistance and all-weather waterproof performance, it serves as a standard blind spot monitoring matching device for all types of commercial vehicle fleets.
The camera is built with an IP67 dustproof and waterproof rating, meaning its fully sealed aluminum alloy housing completely resists rain splashes, mud contamination, and dust intrusion in harsh outdoor environments.
It features a 2.1mm wide-angle lens that delivers a Diagonal Field of View (DFOV) of 155°, a Horizontal Field of View (HFOV) of 130°, and a Vertical Field of View (VFOV) of 70° to minimize blind spots.
Yes, it features 18 built-in infrared night vision fill lights and a 1/2.9-inch starlight CMOS sensor with 0.01Lux sensitivity, providing clear, balanced footage in dark and low-light conditions.
It integrates a global adaptive anti-overexposure algorithm. This system automatically adapts and balances the video brightness under challenging backlights, intense sunlight, or tunnel entrances to avoid details being washed out.
Yes, it uses standard AHD PAL signal output and connects via a 4-pin aviation connector, making it plug-and-play compatible with most mainstream vehicle MDVR systems on the market.
With its reinforced vehicle-grade shockproof internal structure, it is widely used on heavy trucks, logistics cargo vans, sanitation vehicles, tour coaches, and heavy construction machinery.
