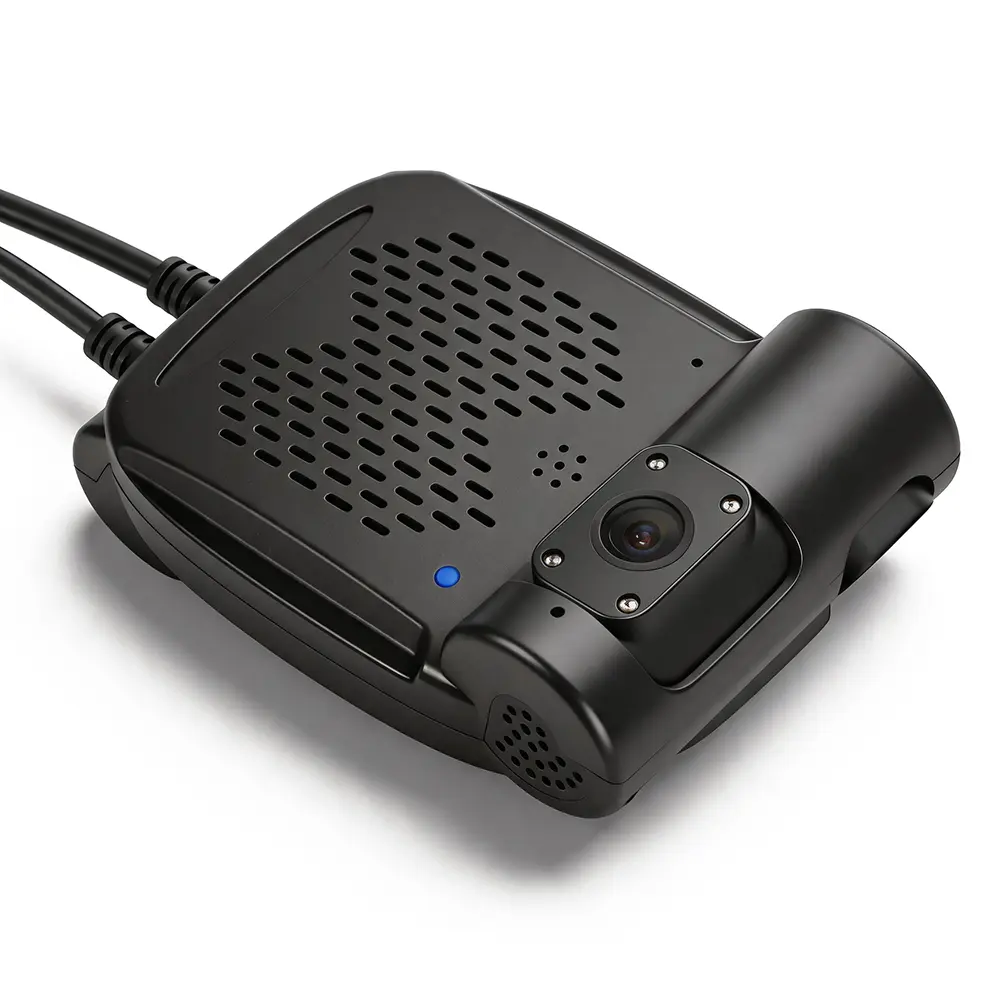

XY-N8901-2 is an all-in-one vehicle intelligent monitoring terminal integrating dual 1080P video input, ADAS+DMS dual AI early warning, GPS+Beidou high-precision positioning, 4G remote transmission, TF card local storage and two-way audio intercom. Adopting domestic dual-core chips and H.265 high-efficiency encoding, it features an exclusive vehicle-specific file system to fully protect video integrity, and fully complies with national fleet management industry protocols. Equipped with wide voltage power protection, multi-function expansion ports and one-click SOS emergency alarm, it is widely applied to buses, school buses, taxis, ride-hailing vehicles and logistics commercial vehicles to realize full-process intelligent fleet supervision.
Item |
Details |
Product Model |
XY-N8901-2 |
Product Type |
4G Dual-Channel AI Vehicle Monitoring Terminal (ADAS & DMS Supported) |
Operating System |
Embedded Linux |
Supported Languages |
Chinese / English |
Video Input |
2-CH 1080P AHD (Front road camera + cabin interior camera) |
Video Codec |
H.264 & H.265 Dual Encoding |
Positioning Mode |
GPS + Beidou Dual-Mode High-Precision Positioning |
Wireless Network |
Built-in 4G CAT1 Global Frequency Band; USB External WiFi Supported |
Storage Slot |
Single TF Card Slot (Max 512G) + Supercapacitor Power-off Backup |
Audio Function |
Built-in MIC & Speaker, Two-Way Audio Intercom + Synchronous A/V Recording |
Working Voltage |
DC 9V~36V Wide Vehicle Voltage |
Power Consumption |
≤5W under normal operating state |
Signal System |
PAL / NTSC Switchable |
Core AI Functions |
ADAS road safety warning + DMS driver behavior identification |
External Interfaces |
SIM Slot, TF Slot, USB, RS232, SOS Input, IO Output, Video Input, Power Port |
Compliant Protocols |
JT/T808-2011, JT/T808-2019, JT/T1076-2016, JT/T1078-2016 |
Dimensions |
120mm × 77mm × 55mm |
Net Weight |
240g |
Installation Method |
3M Double-sided Adhesive Tape Mounting |
No. |
Feature Title |
Detailed Description |
1 |
Dual 1080P Video Input & H.265 High-Efficiency Compression |
Supports simultaneous access to front road monitoring camera and cabin monitoring camera for dual-channel 1080P real-time recording. H.265 encoding greatly reduces video storage space and 4G remote transmission traffic. Recording resolution (1080P/720P/D1) and 8 adjustable image quality levels meet diversified fleet cost control demands. |
2 |
Embedded ADAS + DMS Dual AI Intelligent Algorithms |
Independent built-in AI computing module carries two major monitoring systems. ADAS provides lane departure warning, forward collision reminder, pedestrian and obstacle detection; DMS identifies fatigue driving, smoking, lens occlusion and distracted driving. Real-time alarm data will be automatically pushed to the cloud monitoring platform. |
3 |
GPS+Beidou Dual-Mode High-Precision Positioning |
Matched with an external satellite antenna for stable dual-satellite signal reception. It continuously records real-time vehicle location, driving speed and complete driving tracks, supporting track playback, electronic fence and vehicle location query via mobile APP and PC client. |
4 |
4G Remote Cloud Monitoring & Expandable WiFi Function |
Built-in global universal 4G CAT1 module realizes remote real-time video preview, alarm linkage and platform dispatching. Without onboard WiFi, the USB port supports external WiFi adapter for local wireless debugging and parameter configuration. |
5 |
Dual-Safe Video Storage Protection Mechanism |
Supports up to 512G large-capacity TF card local storage, equipped with supercapacitor to prevent video loss caused by sudden power failure. Exclusive vehicle bare disk file system optimizes read-write efficiency and effectively avoids video damage or frame loss during long-term bumpy driving. |
6 |
Two-Way Audio Intercom & One-Click SOS Emergency Alarm |
Built-in high-sensitivity microphone and power amplifier speaker support real-time voice communication between vehicles and monitoring centers. Independent external SOS emergency button input allows drivers to trigger one-click alarms in accidents for rapid rescue and platform notification. |
7 |
9-36V Ultra-Wide Voltage & Full Vehicle-Grade Power Protection |
Wide voltage design adapts to all types of commercial vehicles from light vans to heavy trucks. Integrated overvoltage, undervoltage, short circuit and reverse connection protection circuits; supports scheduled power on/off and delayed power-off after vehicle flameout to save power consumption. |
8 |
Rich Expansion Interfaces & Standard Industry Protocols |
Reserved RS232 serial port for peripheral docking; low-level IO output supports remote vehicle locking control. Fully compliant with national transportation JT/T series protocols, enabling seamless connection with mainstream fleet management cloud platforms without secondary development. |
9 |
Multi-Terminal Remote Management & Dual-Level Security Authority |
Supports video preview, parameter configuration and device upgrade via mobile APP, PC client and web platform. Two-layer password authority management (user + administrator) prevents unauthorized access to driving videos and vehicle data. |
10 |
Dual Upgrade Modes & Built-in Collision Acceleration Sensor |
Supports offline local upgrade via TF card and online remote upgrade via FTP for convenient after-sales maintenance. Built-in 3-axis acceleration sensor automatically triggers emergency locked recording when collision, hard braking or violent vibration occurs. |
Category |
Parameter Item |
Specific Specification |
Main Control System |
CPU |
ARM Dual-Core Processor @1.5GHz |
RAM / Flash |
2Gb DDR RAM + 2Gb Flash Storage |
|
Operating Interface |
Web / Mobile APP, supports screen character overlay |
|
System Language |
Chinese / English Switchable |
|
Video Recording System |
Video Input |
2-CH AHD 1080P, compatible with IR night vision vehicle cameras |
Signal Format |
PAL / NTSC Switchable |
|
Frame Rate |
PAL: Total 100fps; NTSC: Total 120fps |
|
Adjustable Bitrate |
CIF:256Kbps~1.5Mbps / 720P:1Mbps~4Mbps / 1080P:1Mbps~8Mbps |
|
Recording Trigger Modes |
Ignition auto recording, collision alarm recording, manual emergency recording |
|
Audio System |
Audio Input |
Built-in high-sensitivity MIC |
Audio Output |
Built-in power amplifier speaker |
|
Audio Encoding |
G.711A |
|
Core Function |
Synchronized audio-video recording, two-way voice intercom |
|
Wireless Communication |
Cellular Network |
4G TDD-LTE & FDD-LTE CAT1, global frequency bands |
WiFi Expansion |
USB external WiFi adapter supported |
|
Positioning Module |
Positioning Mode |
GPS + Beidou dual-mode positioning |
Accessory |
External TTL Gmouse antenna |
|
Sensor Module |
Motion Sensor |
Built-in 3-axis acceleration shock sensor |
Storage System |
Storage Medium |
Single TF card slot, maximum expandable to 512G |
Backup Protection |
Supercapacitor power-off video backup |
|
Upgrade Method |
TF card local upgrade / FTP remote upgrade |
|
External Interfaces |
SIM Card Slot |
1 × Micro SIM slot |
USB Port |
1 × USB (only for external WiFi) |
|
Serial Port |
1 × RS232 serial communication port |
|
IO Input |
1-channel SOS emergency signal input |
|
IO Output |
1-channel low-level IO (remote vehicle lock control) |
|
Power Supply |
Input Voltage |
DC 9V ~ 36V wide vehicle voltage |
Auxiliary Output |
DC 5V / 1A |
|
Protection Function |
Overvoltage, undervoltage, short circuit, reverse connection protection |
|
Environment Adaptability |
Operating Temperature |
-20℃ ~ +70℃ |
Working Humidity |
20% ~ 80% RH |
|
Security Control |
Access Authority |
Two-level password: User permission + Administrator permission |
Physical Parameters |
Overall Size |
120mm * 77mm * 55mm |
Net Weight |
240g |
Qty |
Accessory Name |
Function Introduction |
1 |
XY-N8901-2 Main Monitoring Terminal |
Core host for video recording, AI calculation, positioning and remote transmission |
1 |
Special Vehicle Power Cable |
Connect vehicle ACC power supply, realize delayed power-off after flameout |
1 |
SOS Emergency Alarm Cable |
External one-click emergency trigger button for drivers |
1 |
GPS+Beidou Dual-Mode Antenna |
Receive satellite signals to ensure accurate vehicle positioning |
1 |
3M Double-sided Adhesive Tape |
Drill-free damage-free interior installation of the host |
1 |
Side Cover Screw Tool Kit |
For daily maintenance and TF card replacement operation |
XY-N8901-2 intelligent vehicle monitoring terminal is a professional vehicle monitoring host integrating HD video recording, dual AI safety early warning, satellite positioning and 4G remote management. With dual-safe storage design, vehicle-grade wide voltage protection and abundant expansion interfaces, it adapts to long-term bumpy and high-temperature driving environments of various commercial fleets, delivering stable, complete and intelligent all-round vehicle supervision solutions for fleet operators.
